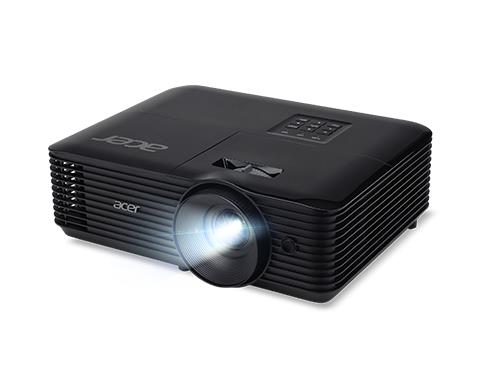

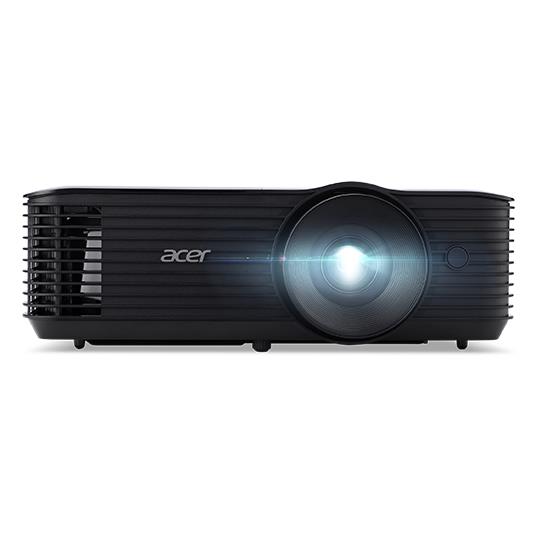

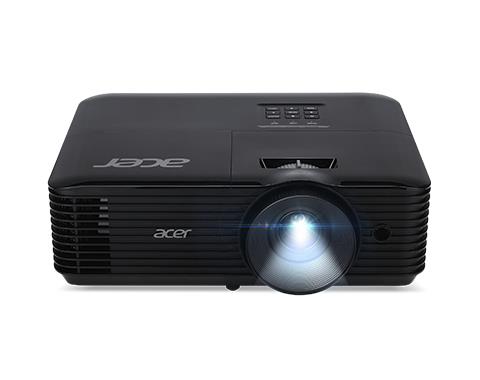

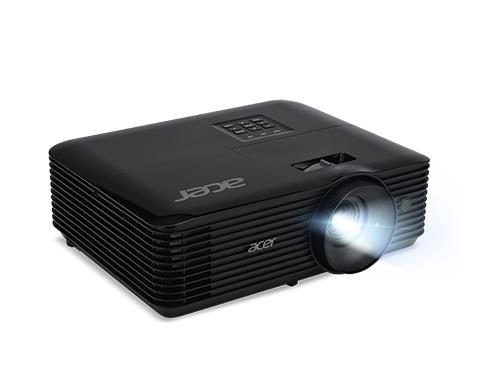

PROJECTOR X1328WI 5000 LUMENS/MR.JTW11.001 ACER
General
| Unit Calculated Weight | 3.91 kg |
| Unit Calculated Volume | 0.02216 cubm |
| Units per Pallet | 0 |
| Summary | Acer Value X1328Wi. Projector brightness: 4500 ANSI lumens, Projection technology: DLP, Projector native resolution: WXGA (1280x800). Light source type: Lamp, Service life of light source: 6000 h, Service life of light source (economic mode): 10000 h. Focal length range: 21.85 - 24 mm, Aperture range (F-F): 2.41 - 2.53, Throw ratio: 1.54 - 1.72. Analog signal format system: NTSC, PAL, SECAM, Supported graphics resolutions: 1280 x 800 (WXGA), 1920 x 1200 (WUXGA). Projection modes: Ceiling, Front, Rear, Compatible operating systems: MacOS, Windows |
| Unit Box Height | 0.34 |
| Unit Box Length | 0.395 |
| Unit Box Width | 0.165 |
| Model | X1328WI |
Projector
| Contrast ratio (typical) | 20000:1 |
| Horizontal scan range | 15 - 100 kHz |
| Keystone correction, vertical | -40 - 40 ° |
| Native aspect ratio | 16:10 |
| Number of colours | 1.07 billion colours |
| Projection distance | 1 - 10 m |
| Projection technology | DLP |
| Projector brightness | 4500 ANSI lumens |
| Projector native resolution | WXGA (1280x800) |
| Supported aspect ratios | 16:10/16:9/4:3 |
| Vertical scan range | 24 - 120 Hz |
Light source
| Lamp power | 220 W |
| Lamps quantity | 1 lamp(s) |
| Light source type | Lamp |
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 10000 h |
Lens system
| Aperture range (F-F) | 2.41 - 2.53 |
| Focal length range | 21.85 - 24 mm |
| Throw ratio | 1.54 - 1.72 |
| Zoom capability | Yes |
Video
| 3D | Yes |
| Analog signal format system | NTSC/PAL/SECAM |
| Full HD | No |
| Supported graphics resolutions | 1280 x 800 (WXGA)/1920 x 1200 (WUXGA) |
Ports & interfaces
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Composite video in | 1 |
| DVI port | No |
| Mobile High-Definition Link (MHL) | No |
| PC Audio in | Yes |
| PC Audio out | Yes |
| USB 2.0 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Ethernet LAN | No |
| Smart TV | No |
| Wi-Fi | No |
Storage
| Card reader integrated | No |
Features
| Compatible operating systems | MacOS, Windows |
| Interactive | No |
| Projection modes | Ceiling,Front,Rear |
Multimedia
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 3 W |
Design
| Market positioning | Presentation |
| Placement | Ceiling |
| Product colour | Black |
| Product type | Standard throw projector |
Display
| Built-in display | No |
Power
| AC input voltage | 100 - 240 V |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 265 W |
| Power source | AC |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Depth | 240 mm |
| Height | 113.7 mm |
| Package depth | 400 mm |
| Package height | 168 mm |
| Package weight | 3880 g |
| Package width | 347 mm |
| Weight | 2750 g |
| Width | 313 mm |
Packaging content
| Cables included | AC |
| Manual | Yes |
| Remote control included | No |
Logistics data
| Harmonized System (HS) code | 85286200 |
| Quantity per pack | 1 pc(s) |
