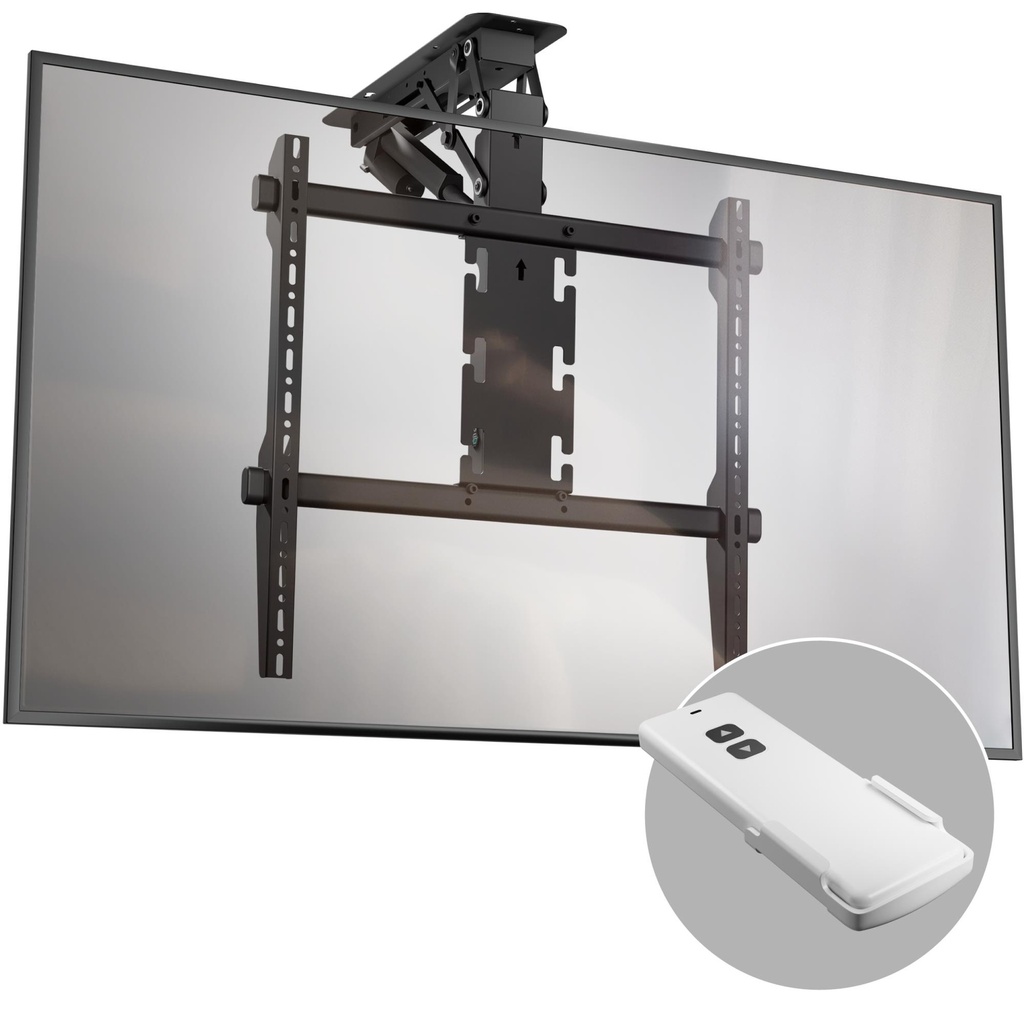

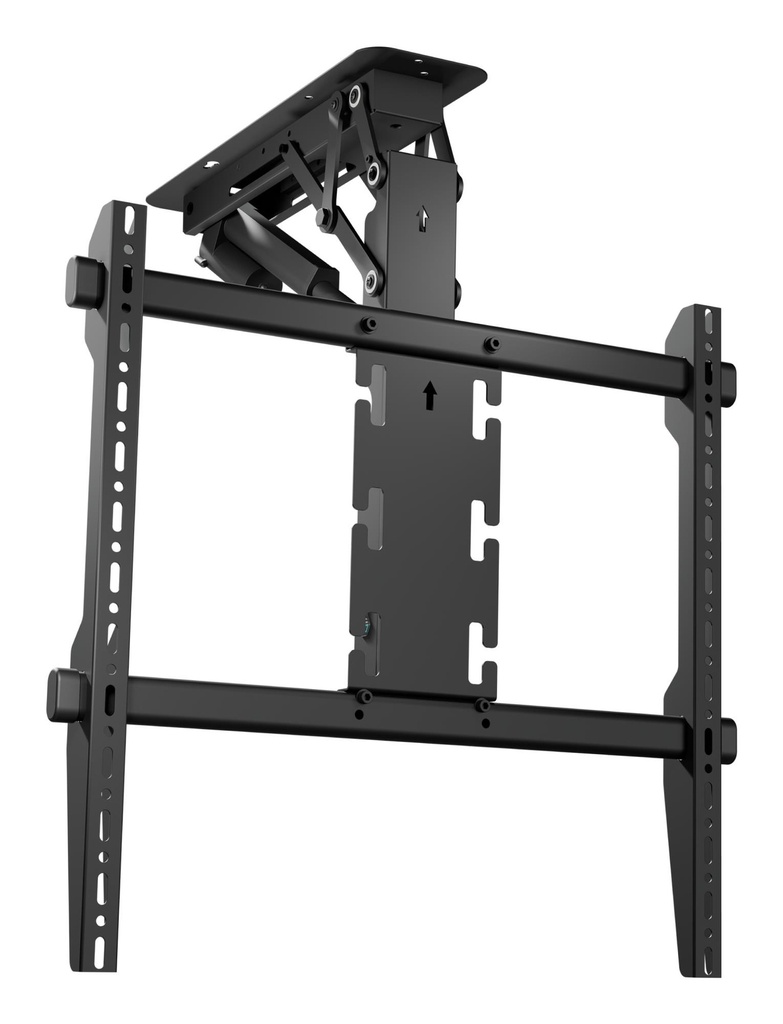

TV SET ACC CEILING MOUNT/50-75" BLACK N3LE-B ONKRON
General
| Unit Calculated Weight | 40 kg |
| Unit Calculated Volume | 0.03465 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | ONKRON N3LE-B. Maximum weight capacity: 40 kg, Minimum screen size: 127 cm (50"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 600 x 600 mm. Angle of rotation: 8°, Distance to the wall (max): 123.3 cm. Product colour: Black |
| Unit Box Height | 0.21 |
| Unit Box Length | 0.75 |
| Unit Box Width | 0.22 |
Mounting
| Maximum screen size | 75 " |
| Maximum VESA mount | 600 x 600 mm |
| Maximum weight capacity | 40 kg |
| Maximum weight capacity (per display) | 40 kg |
| Minimum screen size | 50 " |
| Minimum VESA mount | 200 x 100 mm |
| Mounting type | Ceiling |
| Number of displays supported | 1 |
| Panel mounting interface | 200 x 100/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 400/400 x 200/400 x 300/400 x 400/500 x 200/500 x 400/600 x 200/600 x 300/600 x 400/600 x 600 mm |
Ergonomics

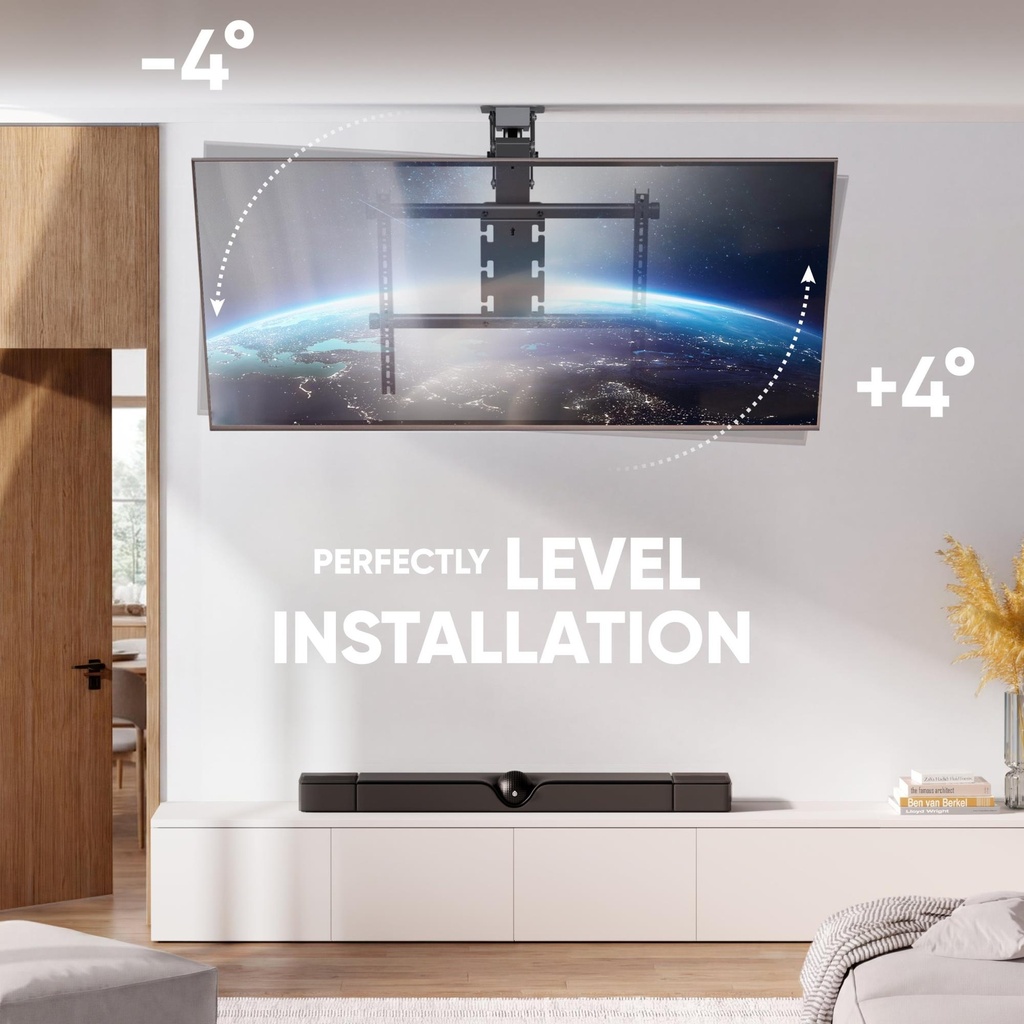

| Angle of rotation | 8 ° |

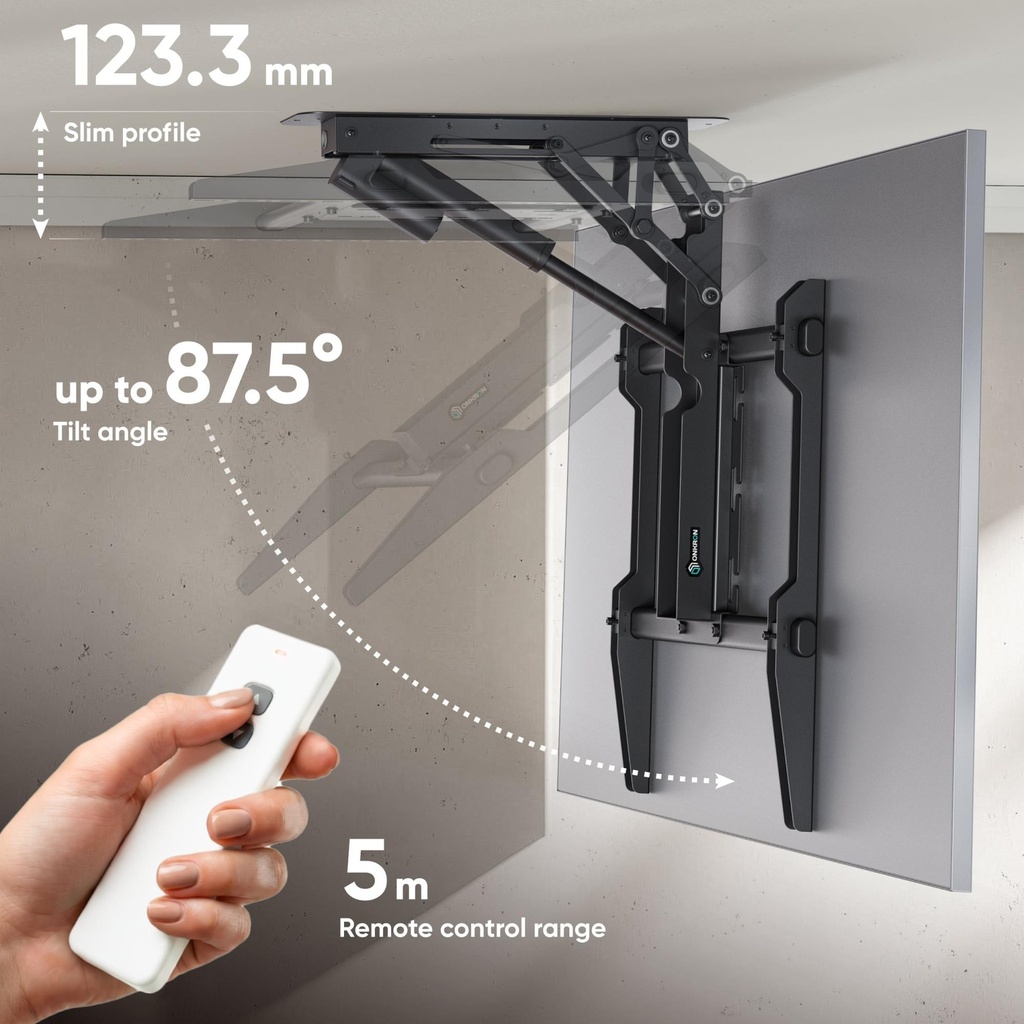

| Distance to the wall (max) | 1233 mm |
| Tilt adjustment | Yes |
| Tilt angle | 87.5 ° |
Design
| Housing material | Plastic/SPCC/Steel |
| Product colour | Black |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |

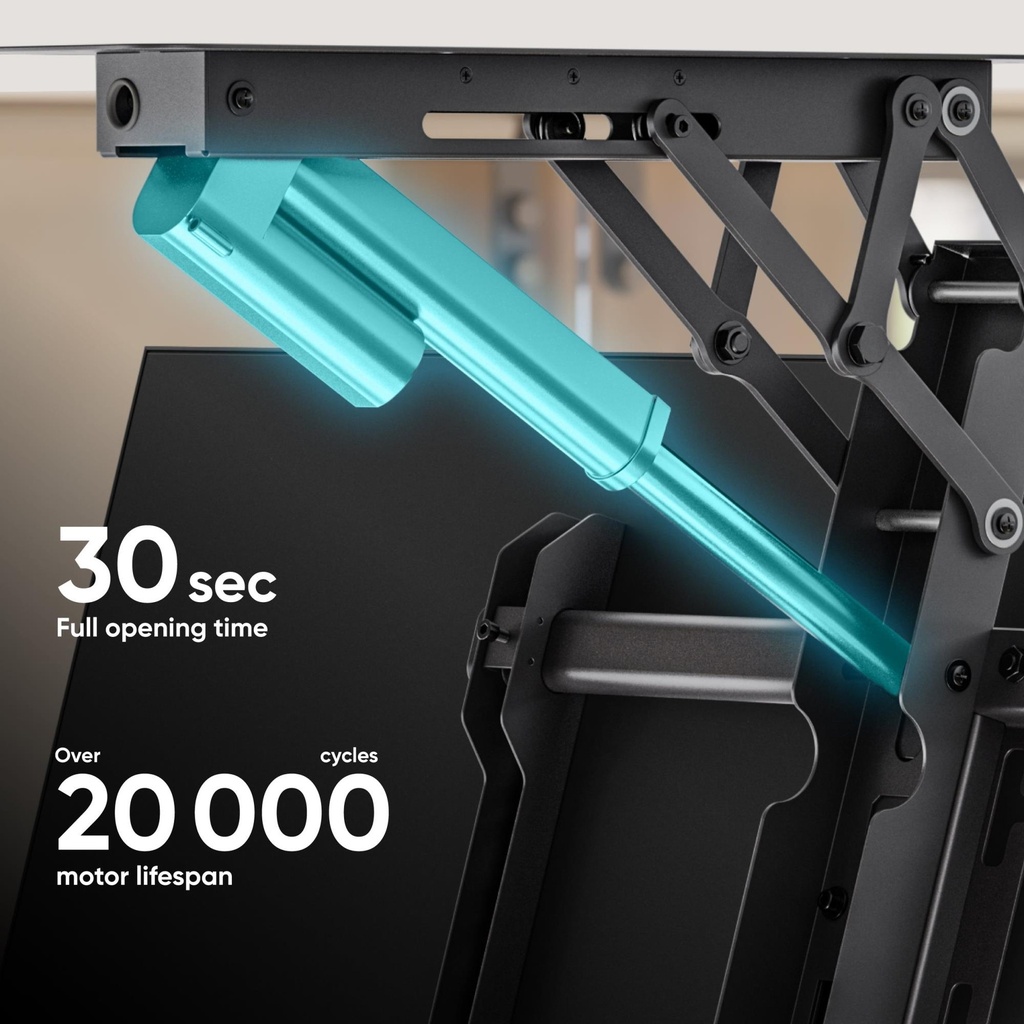

| Motorized | Yes |

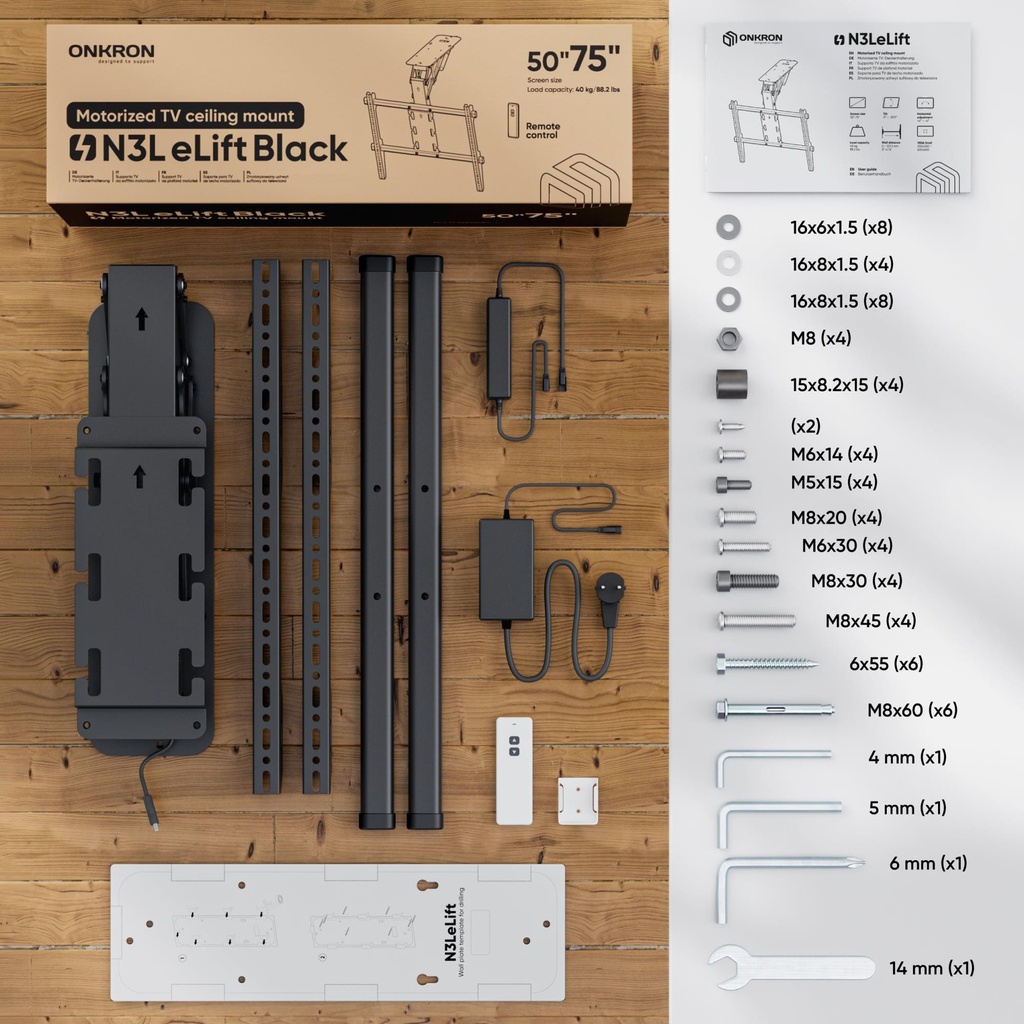

Packaging content
| Manual | Yes |
| Mounting kit | Yes |
| Remote control included | Yes |
| Screw nuts included | Yes |
Technical details
| Maximum operating temperature | 55 °C |
Weight & dimensions
| Height | 630 mm |
| Width | 684 mm |
Packaging data
| Package depth | 225 mm |
| Package height | 217 mm |
| Package tare weight | 15100 g |
| Package width | 755 mm |
| Quantity per pack | 1 pair(s) |
Logistics data
| Pallet gross volume | 3680 dm³ |
