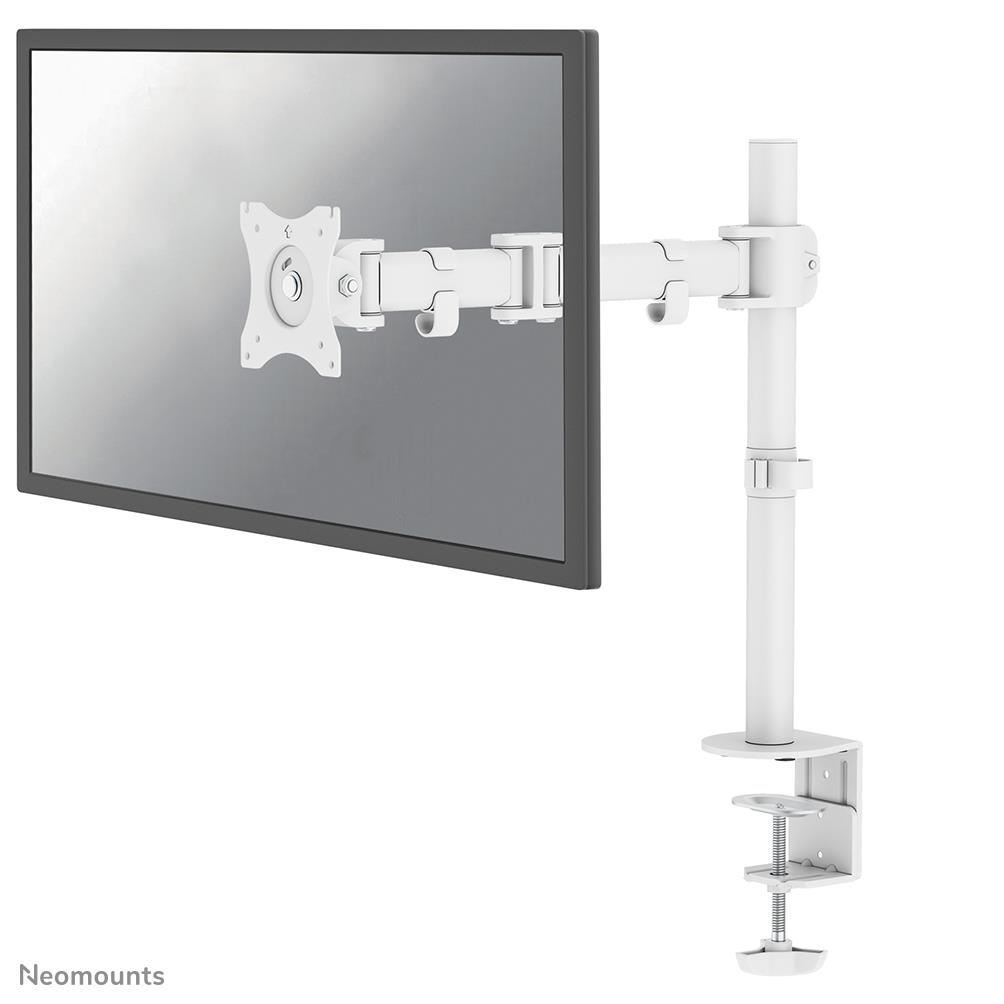

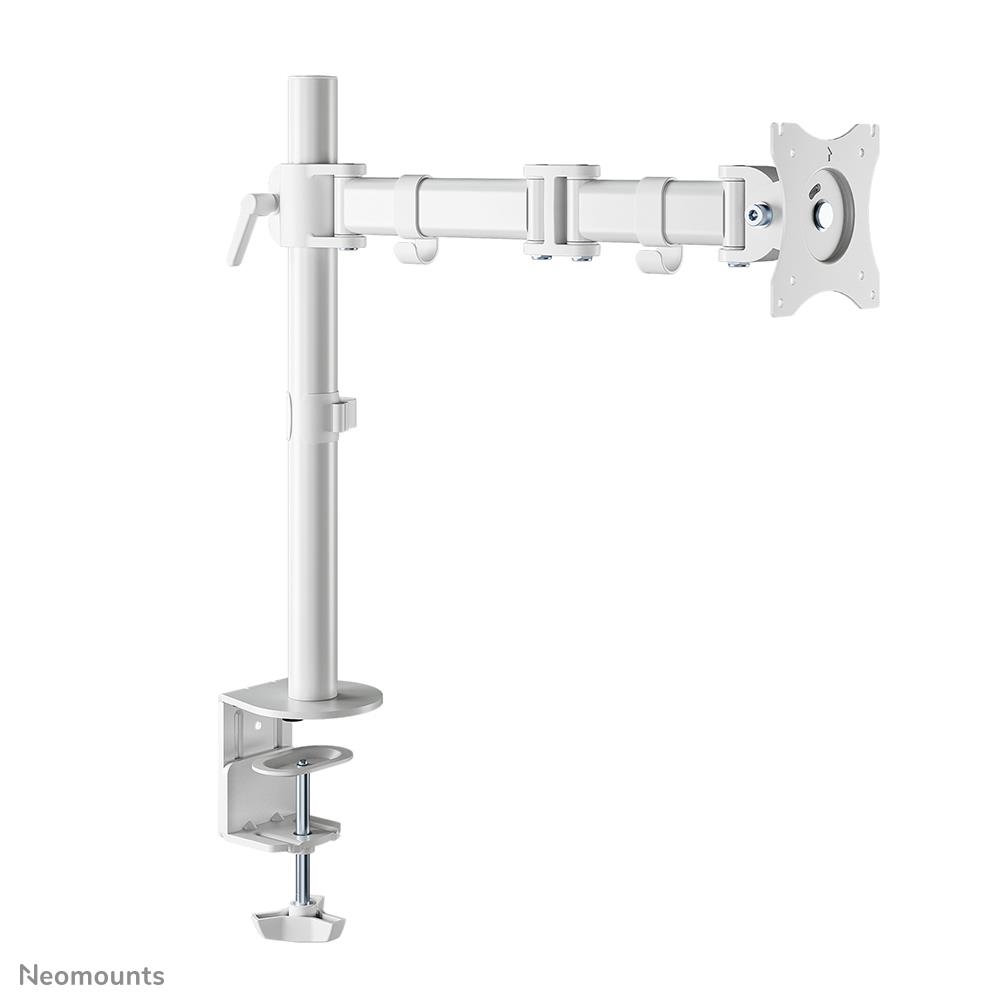

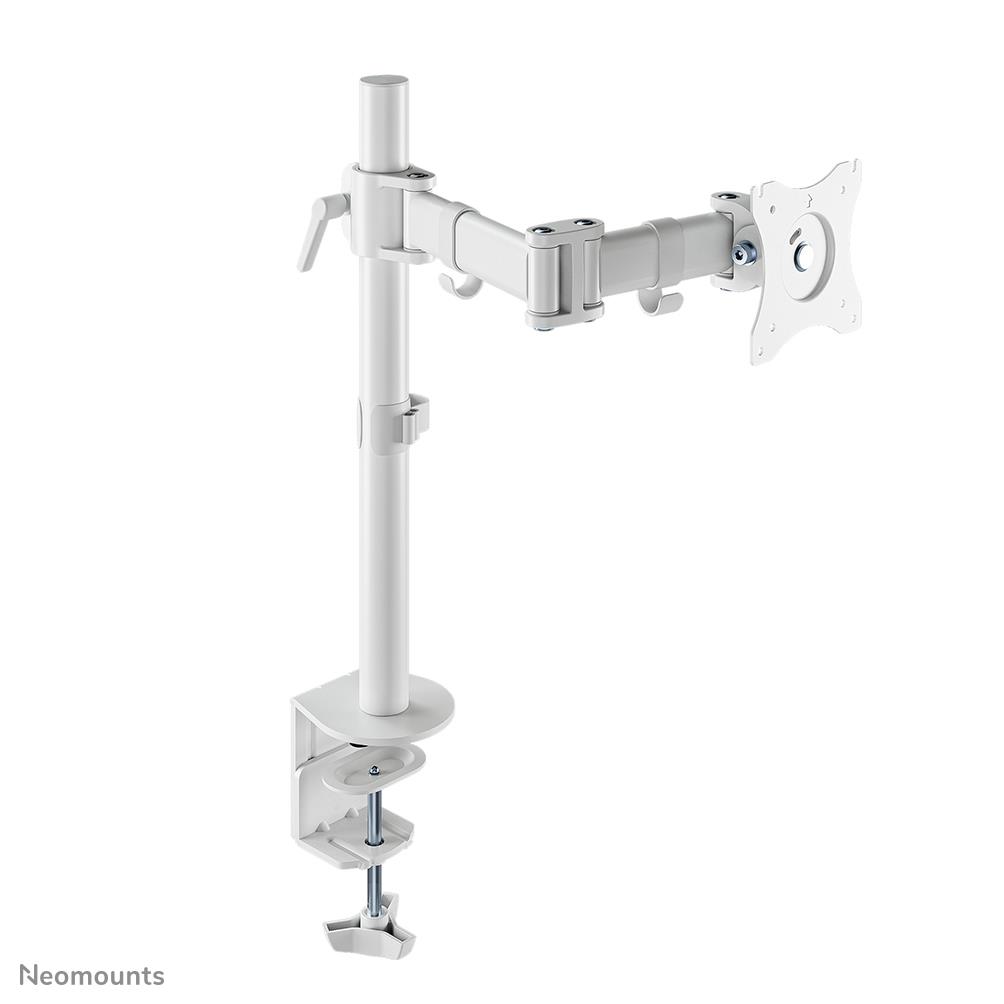

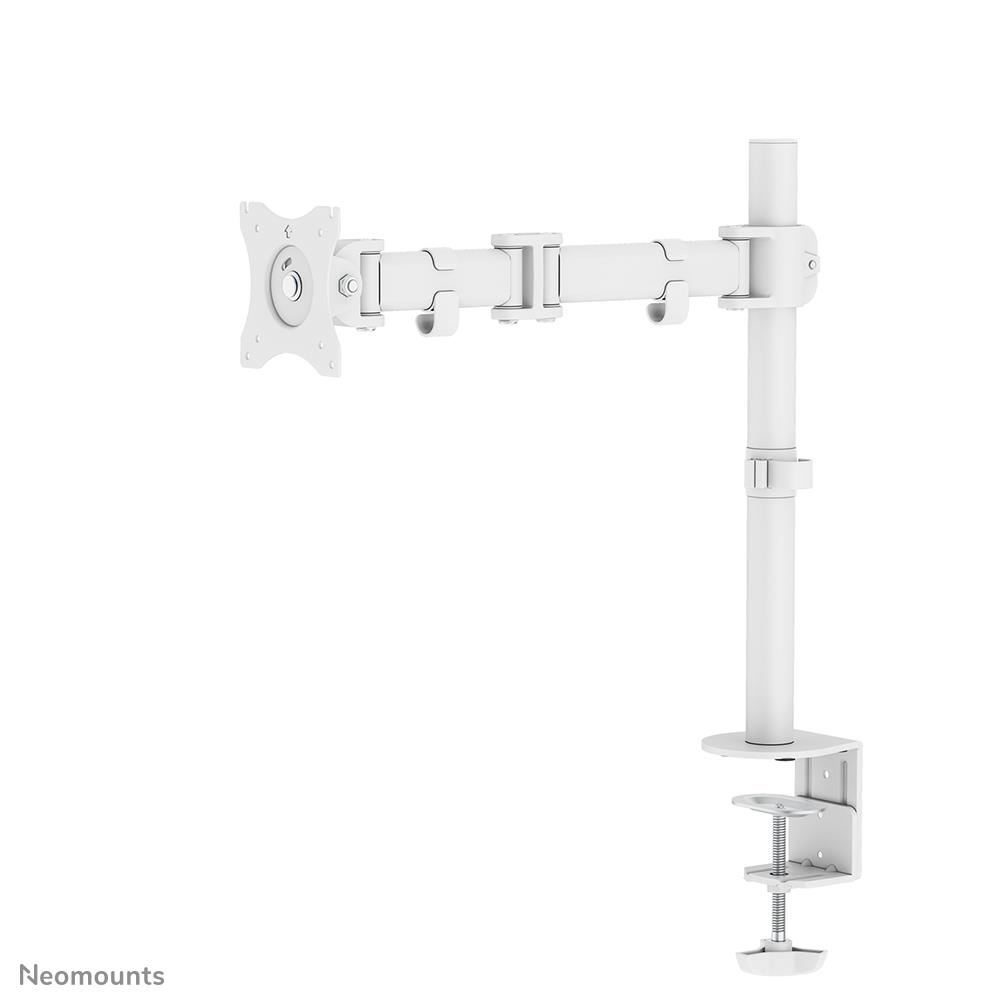

The Neomounts desk mount, model NM-D135WHITE is a tilt-, swivel and rotatable desk mount for flat screens up to 30". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

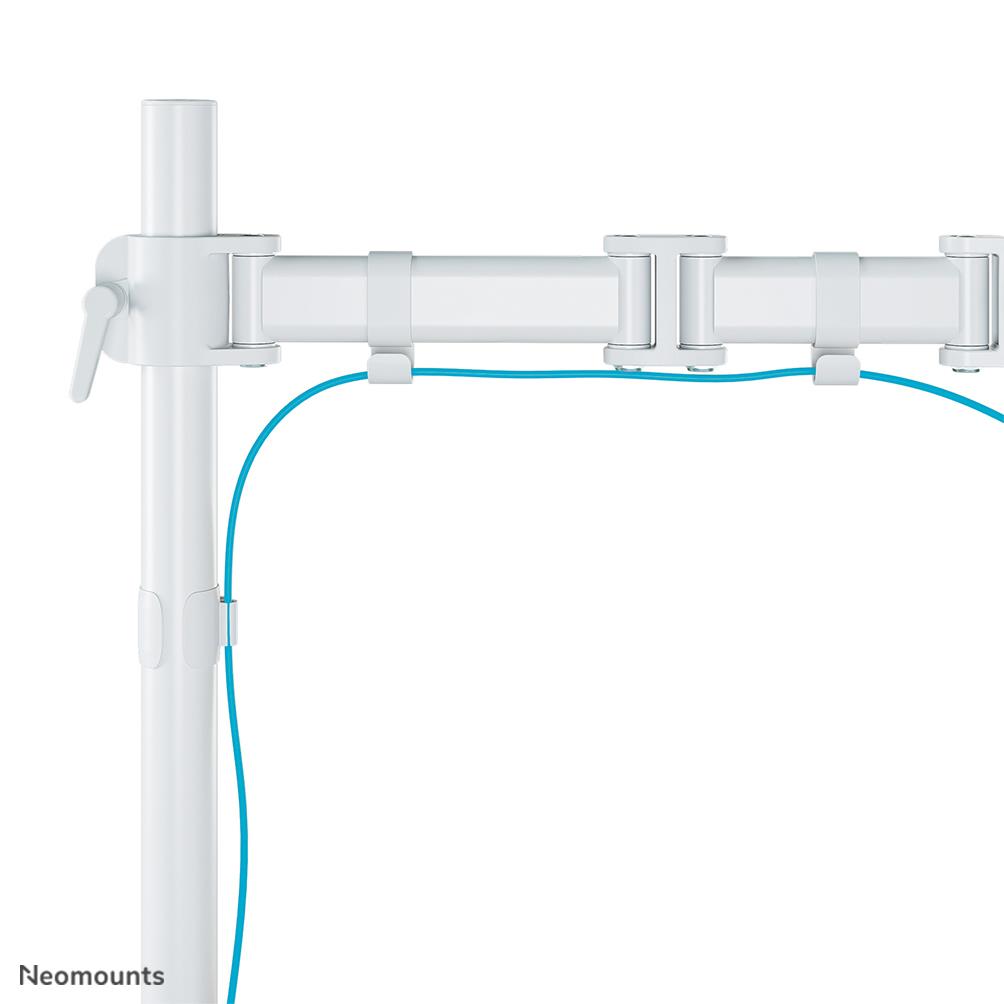

Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 41,5 centimetres. Depth adjustable from 0 to 41 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts NM-D135WHITE has three pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

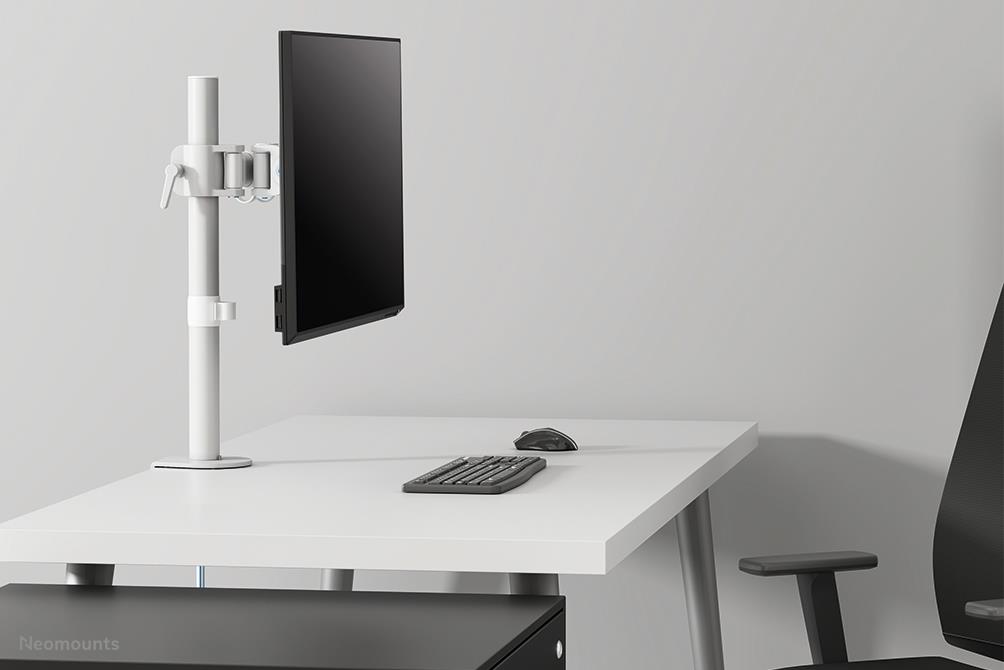

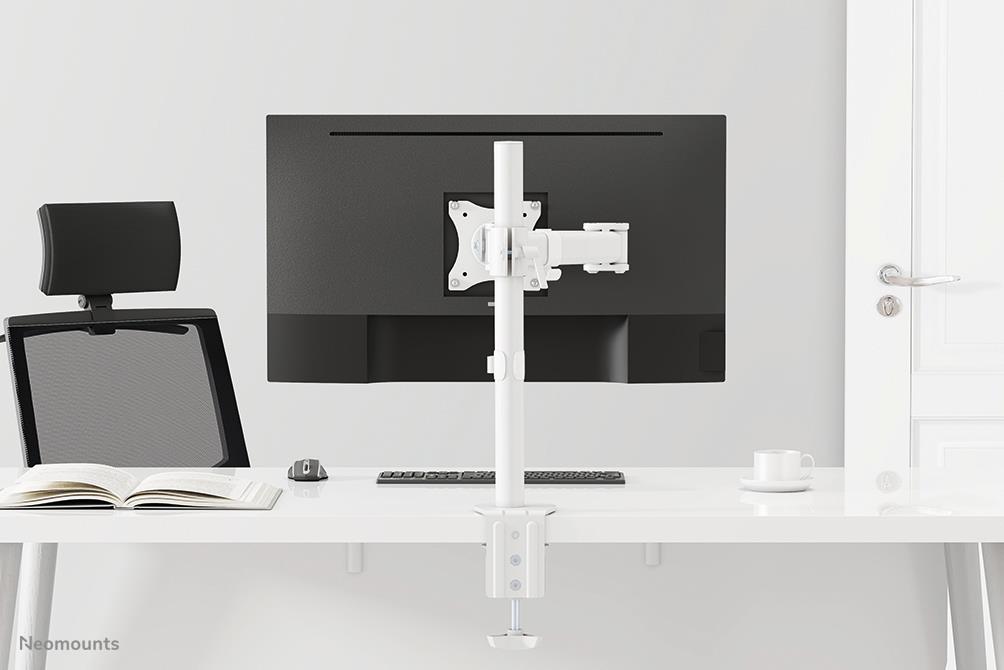

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
General
| Unit Calculated Weight | 3.75 kg |
| Unit Calculated Volume | 0.008712 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts NM-D135WHITE Monitor arm 10-30". Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 76.2 cm (30"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 180°, Tilt angle range: 0 - 90°. Product colour: White |
| Unit Box Height | 0.165 |
| Unit Box Length | 0.48 |
| Unit Box Width | 0.11 |

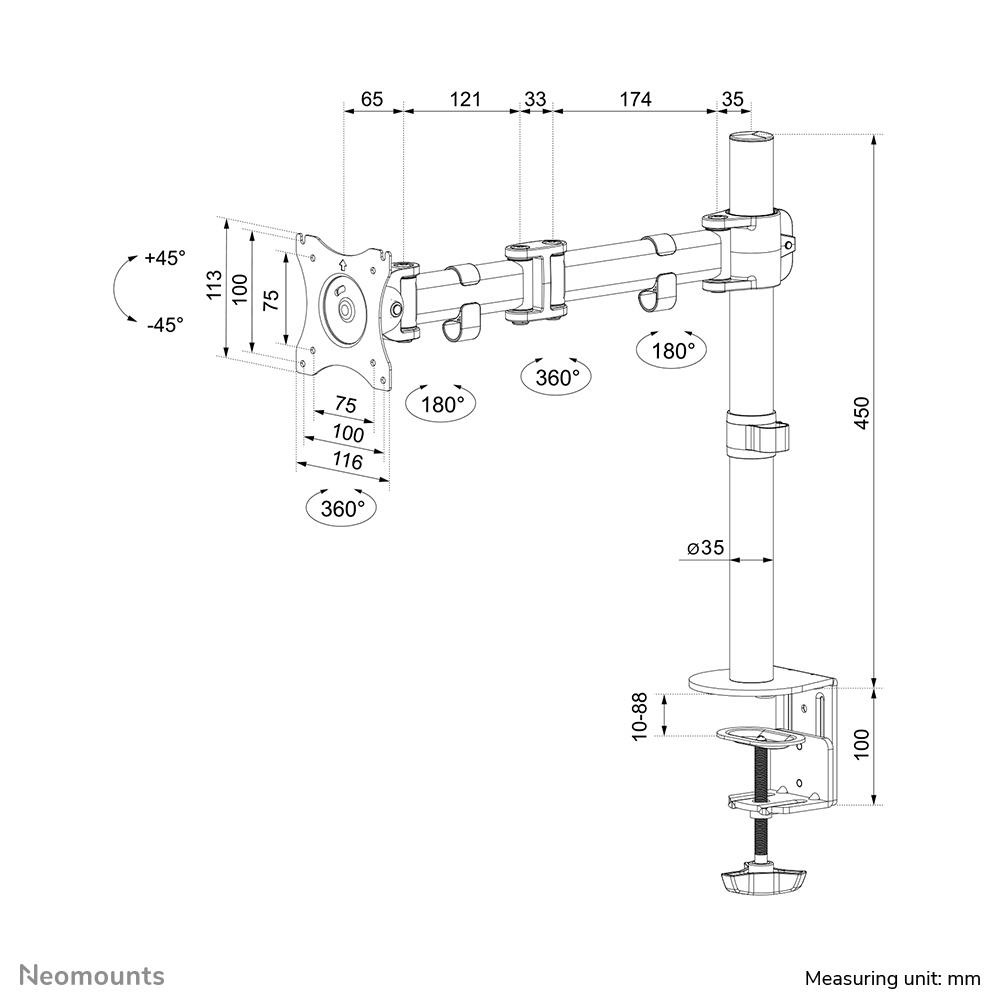

Mounting
| Desk thickness (max) | 90 mm |
| Desk thickness (min) | 10 mm |
| Maximum screen size | 30 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 8 kg |
| Maximum weight capacity (per display) | 8 kg |
| Minimum screen size | 10 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Adjustable depth | Yes |
| Angle of rotation | 360 ° |
| Depth adjustment range | 0 - 410 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 - 415 mm |
| Height adjustment type | Manual |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | 0 - 180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 90 ° |
Design
| Housing material | Steel |
| Product colour | White |
Weight & dimensions
| Depth | 410 mm |
| Height | 415 mm |
| Weight | 3330 g |
Packaging data
| Package depth | 110 mm |
| Package height | 478 mm |
| Package net weight | 3330 g |
| Package weight | 3300 g |
| Package width | 163 mm |
Logistics data
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 15800 g |
| Master (outer) case height | 240 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case net weight | 13300 g |
| Master (outer) case width | 495 mm |
| Products per master (outer) case | 4 pc(s) |
| Products per pallet (EU) | 120 pc(s) |
