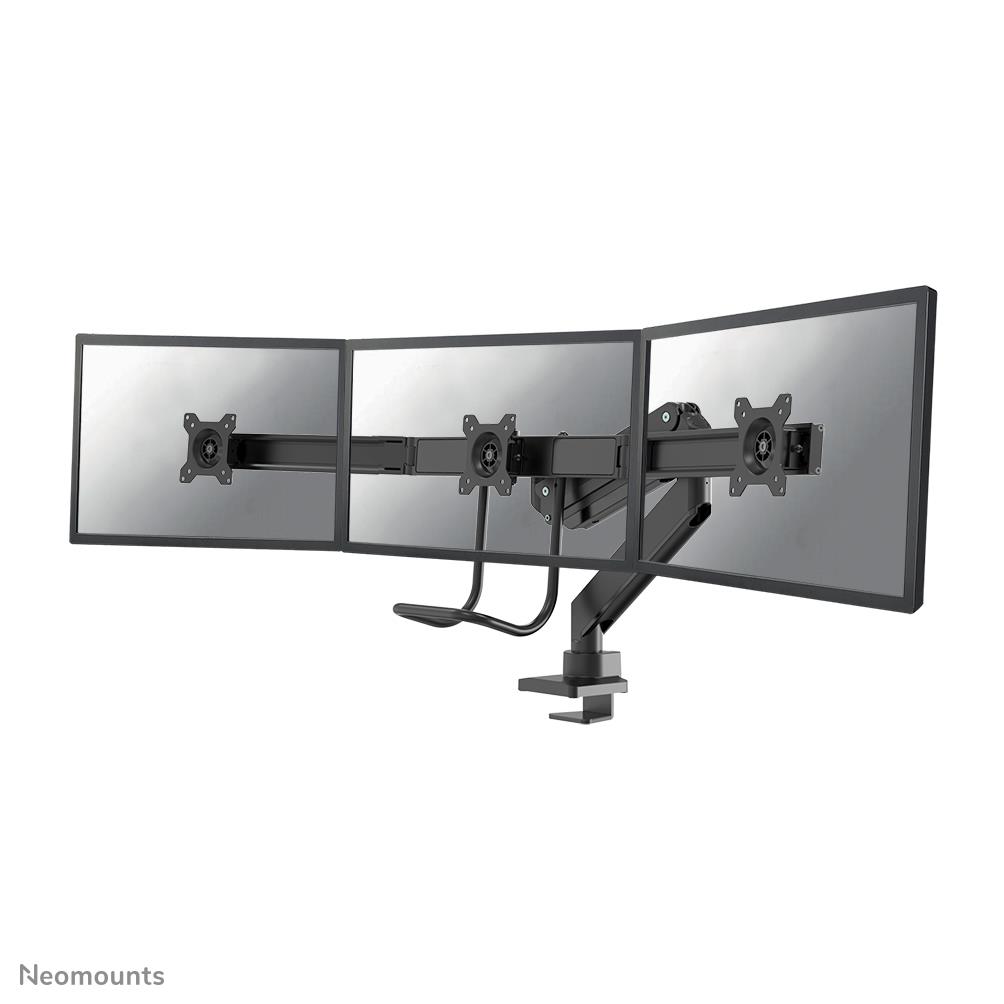

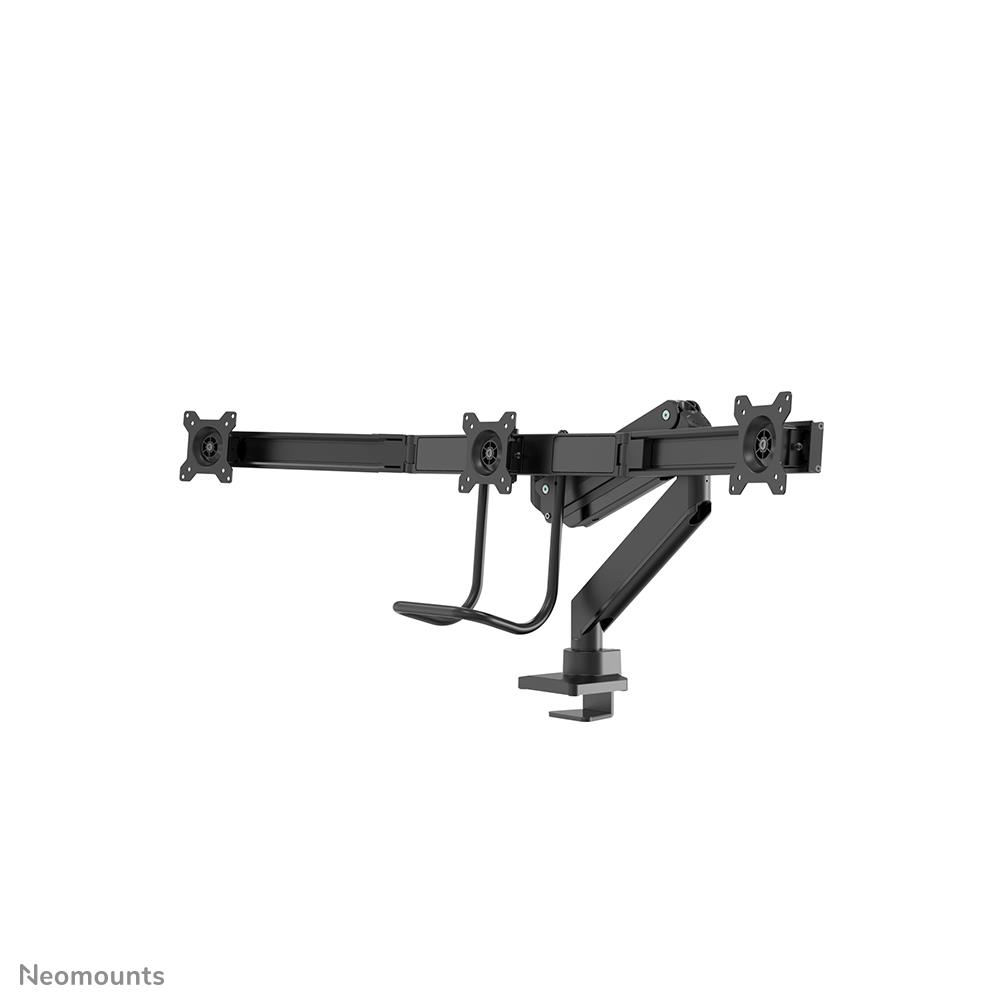

The Neomounts NM-D775DX3BLACK is a tilt-, swivel and rotatable desk mount with crossbar and handle for three flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

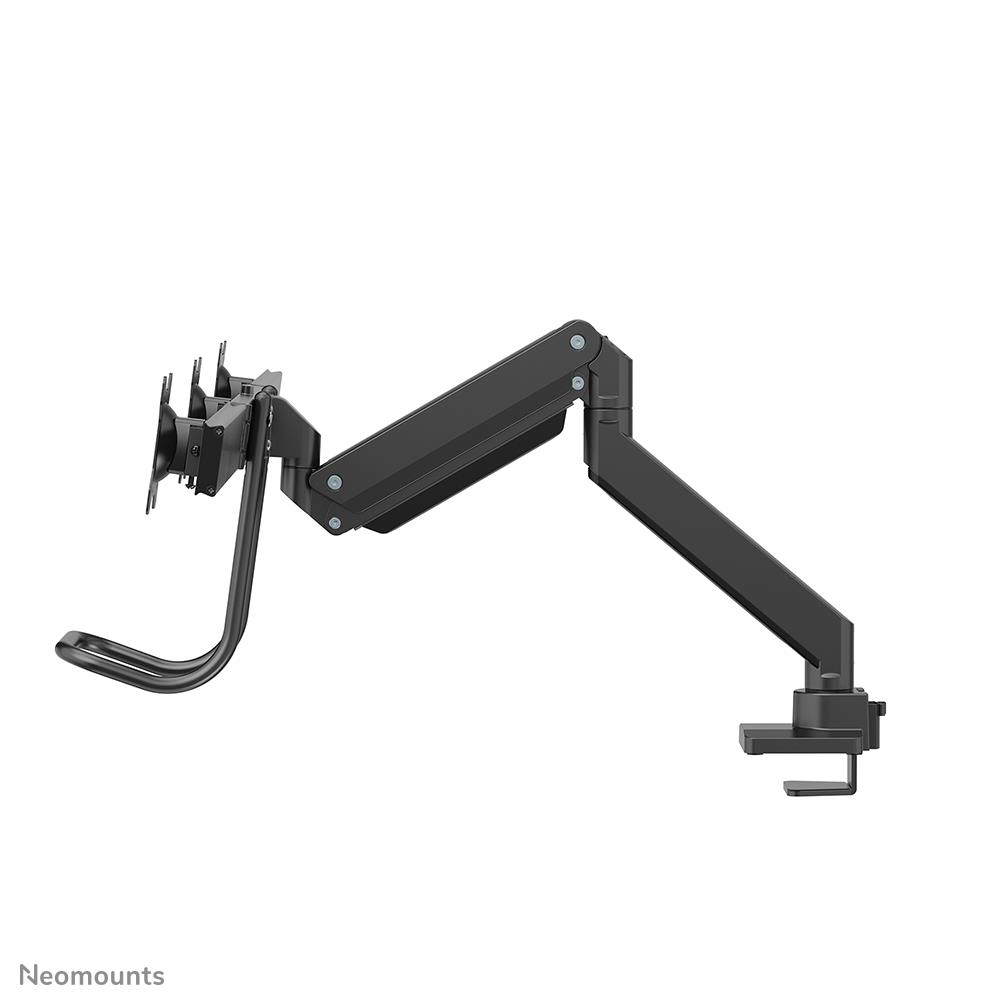

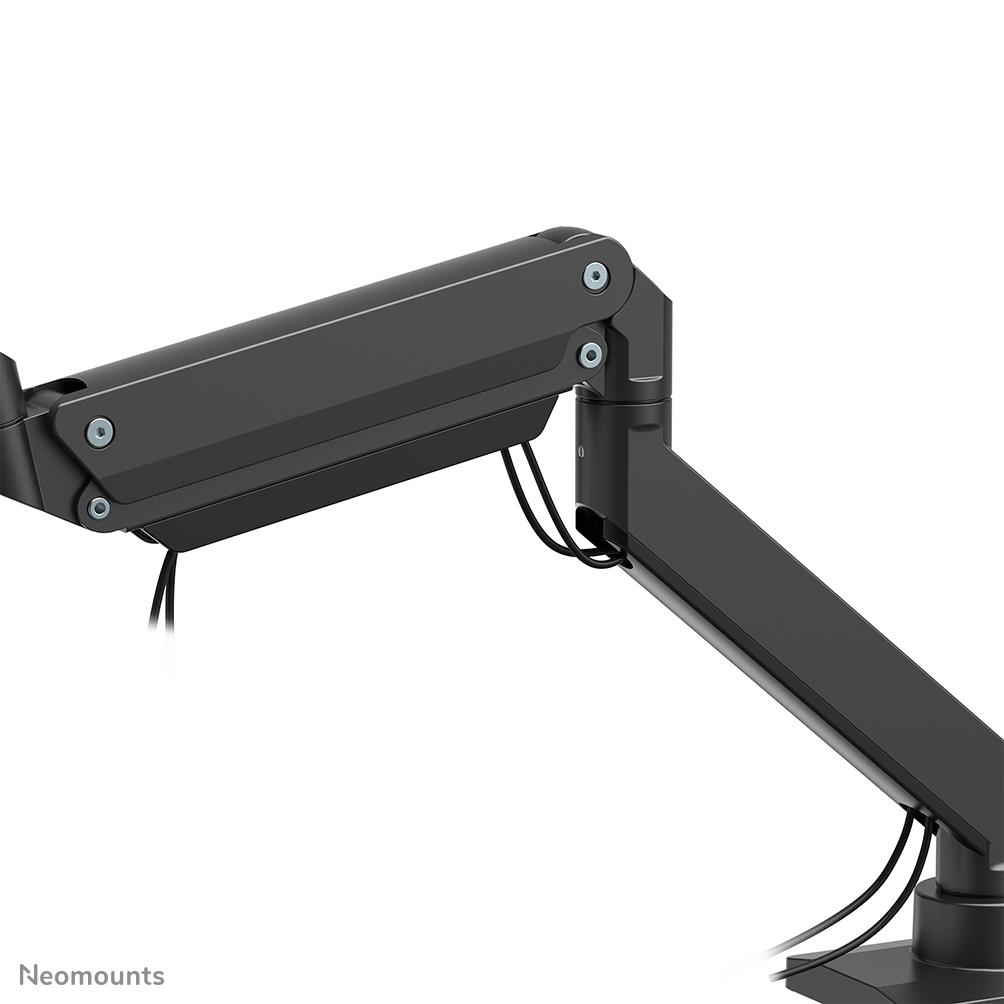

Neomounts unique tilt (20°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 60 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.

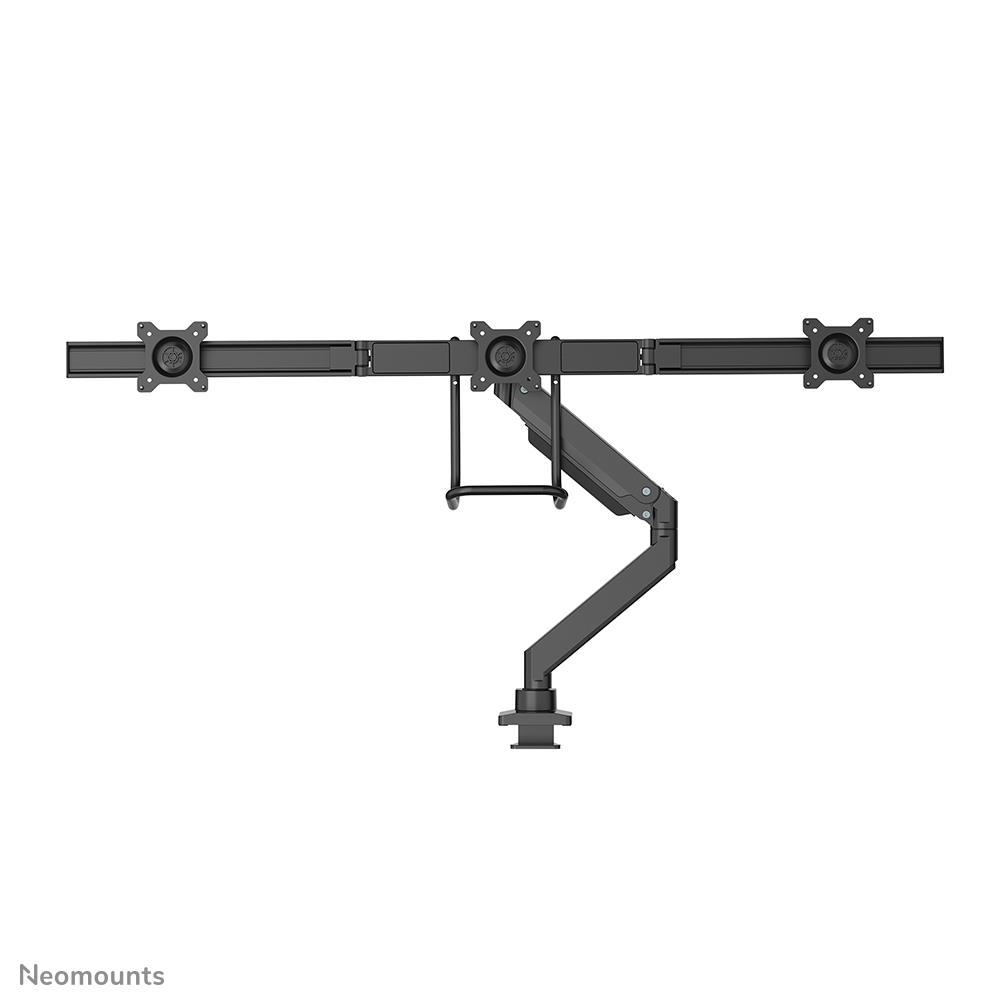

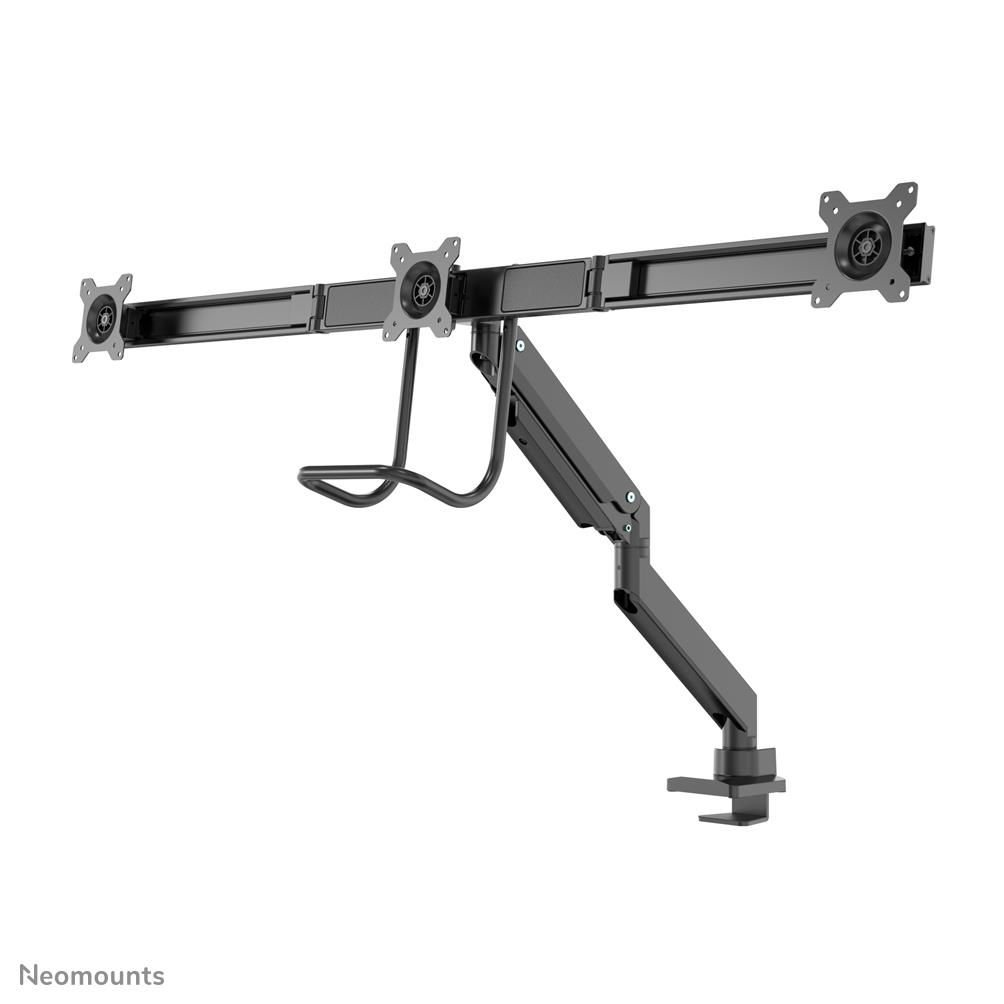

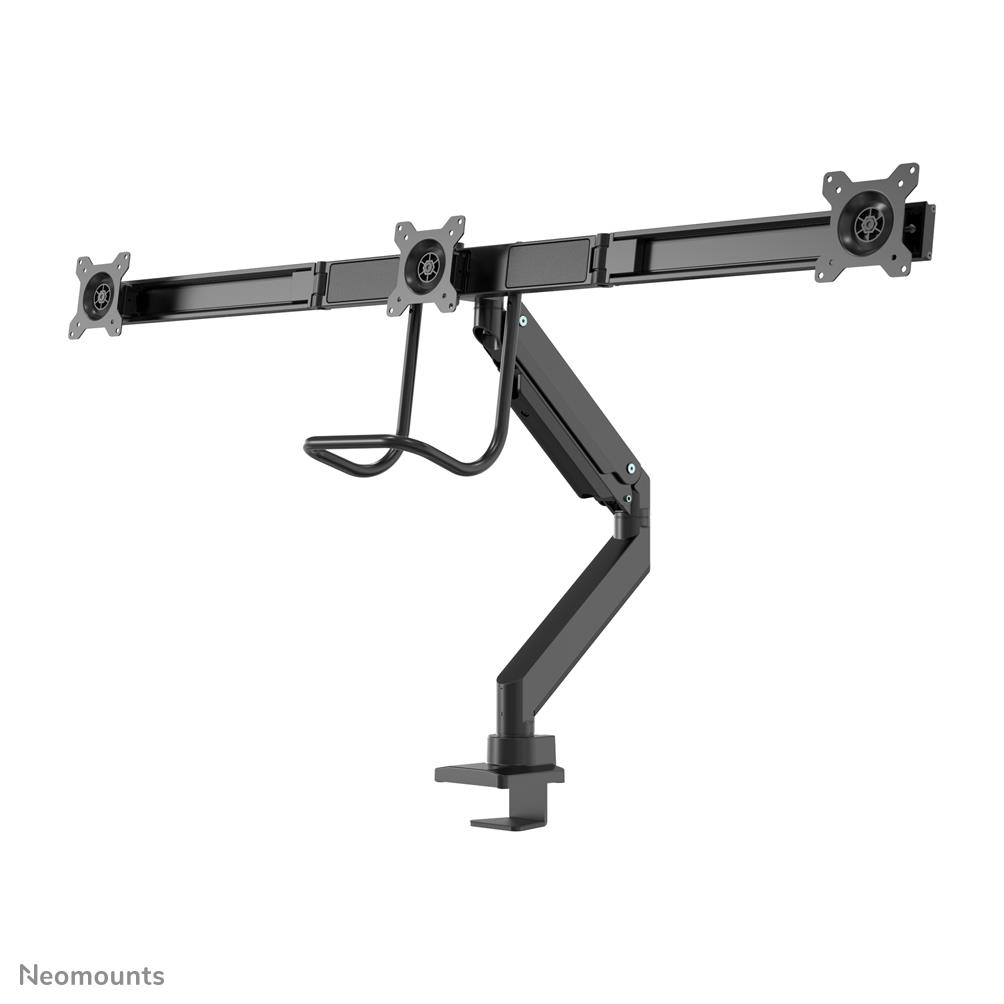

Neomounts NM-D775DX3BLACK with handle has three pivot points and is suitable for most screens up to 27" (68,6 cm). The weight capacity of this product is 1-6 kg per screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
General
| Unit Calculated Weight | 8.7 kg |
| Unit Calculated Volume | 0.03024 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts NM-D775DX3BLACK Monitor arm 17-27" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 6 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 360°, Tilt angle range: 0 - 20°. Product colour: Black |
| CnCode | 83021000 |
| Unit Box Height | 0.32 |
| Unit Box Length | 0.63 |
| Unit Box Width | 0.15 |
Mounting

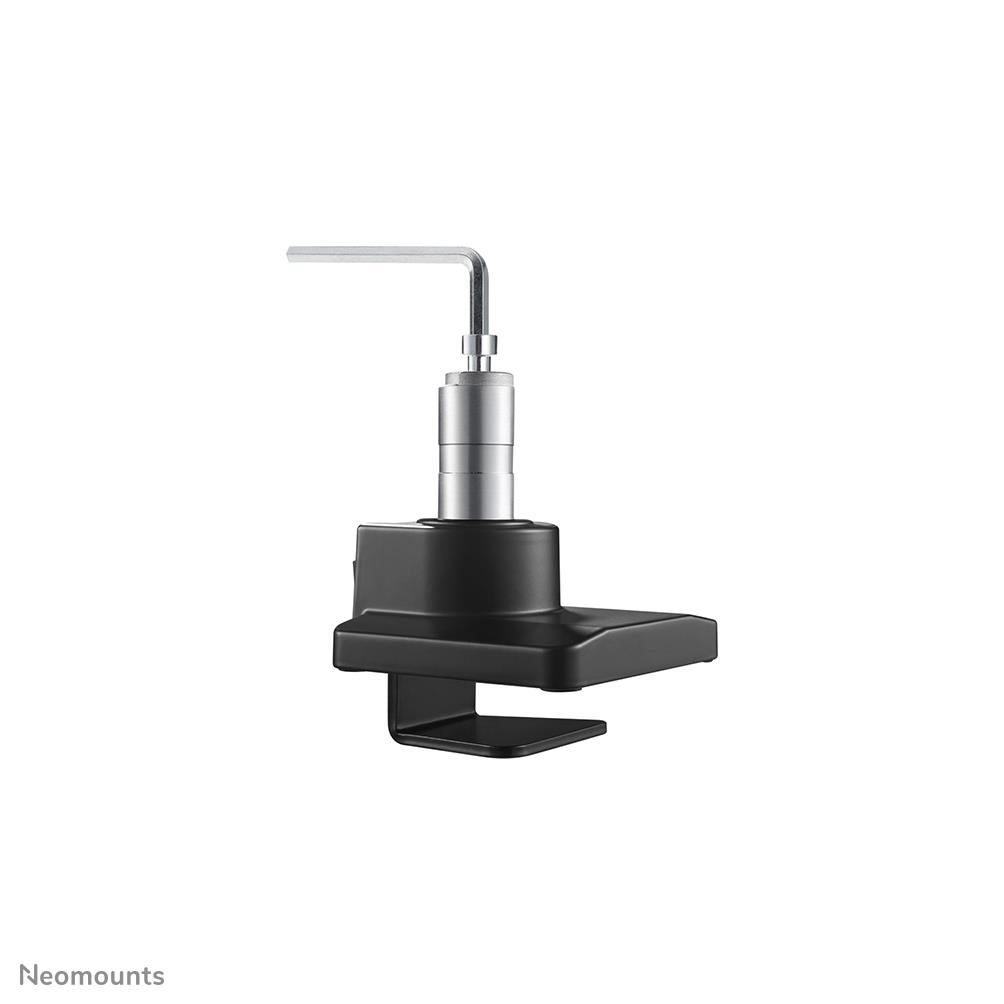

| Desk thickness (max) | 45 mm |
| Desk thickness (min) | 10 mm |
| Maximum screen size | 27 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 6 kg |
| Maximum weight capacity (per display) | 6 kg |
| Minimum screen size | 17 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 3 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Adjustable depth | Yes |
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Depth adjustment range | 0 - 630 mm |
| Height adjustment | Yes |
| Height adjustment range | 270 - 600 mm |
| Height adjustment type | Gas spring |
| Rotating | Yes |
| Swivel angle | 360 ° |
| Swivel angle range | 0 - 360 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 20 ° |
Design
| Housing material | Aluminium |
| Product colour | Black |
Weight & dimensions
| Height | 600 mm |
| Weight | 8580 g |
Packaging data
| Package depth | 145 mm |
| Package height | 623 mm |
| Package net weight | 10200 g |
| Package weight | 10200 g |
| Package width | 320 mm |
Other features
| Minimum weight | 1 kg |
Logistics data
| Country of origin | China |
| Harmonized System (HS) code | 7616991099 |
| Master (outer) case gross weight | 10200 g |
| Master (outer) case height | 640 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case net weight | 10200 g |
| Master (outer) case width | 340 mm |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet (EU) | 30 pc(s) |
