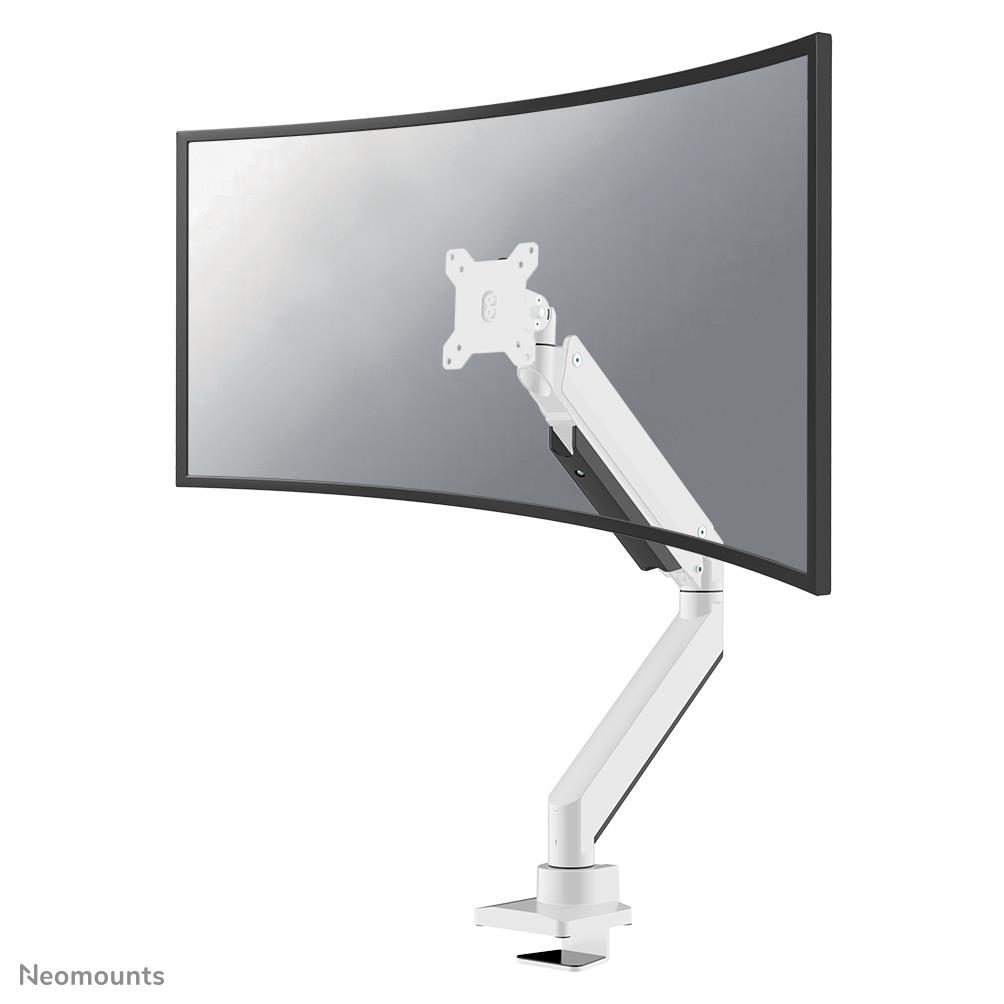

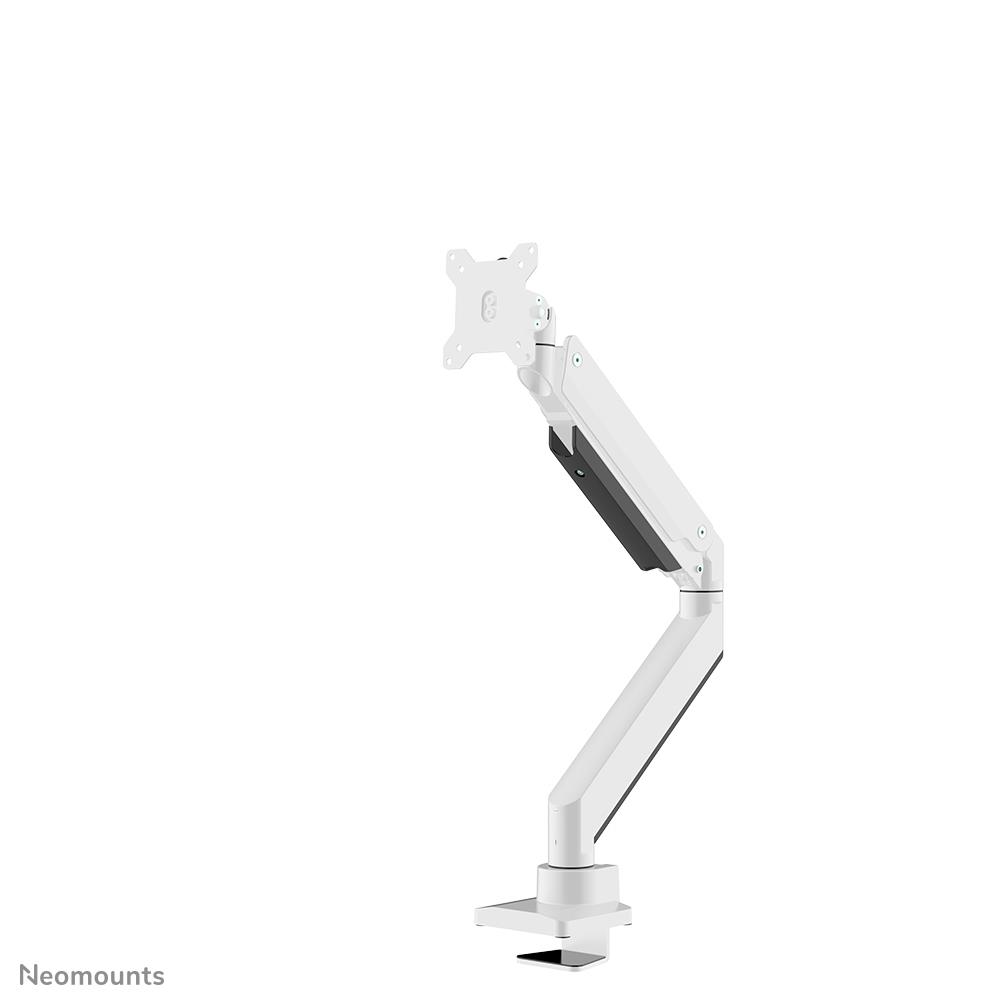

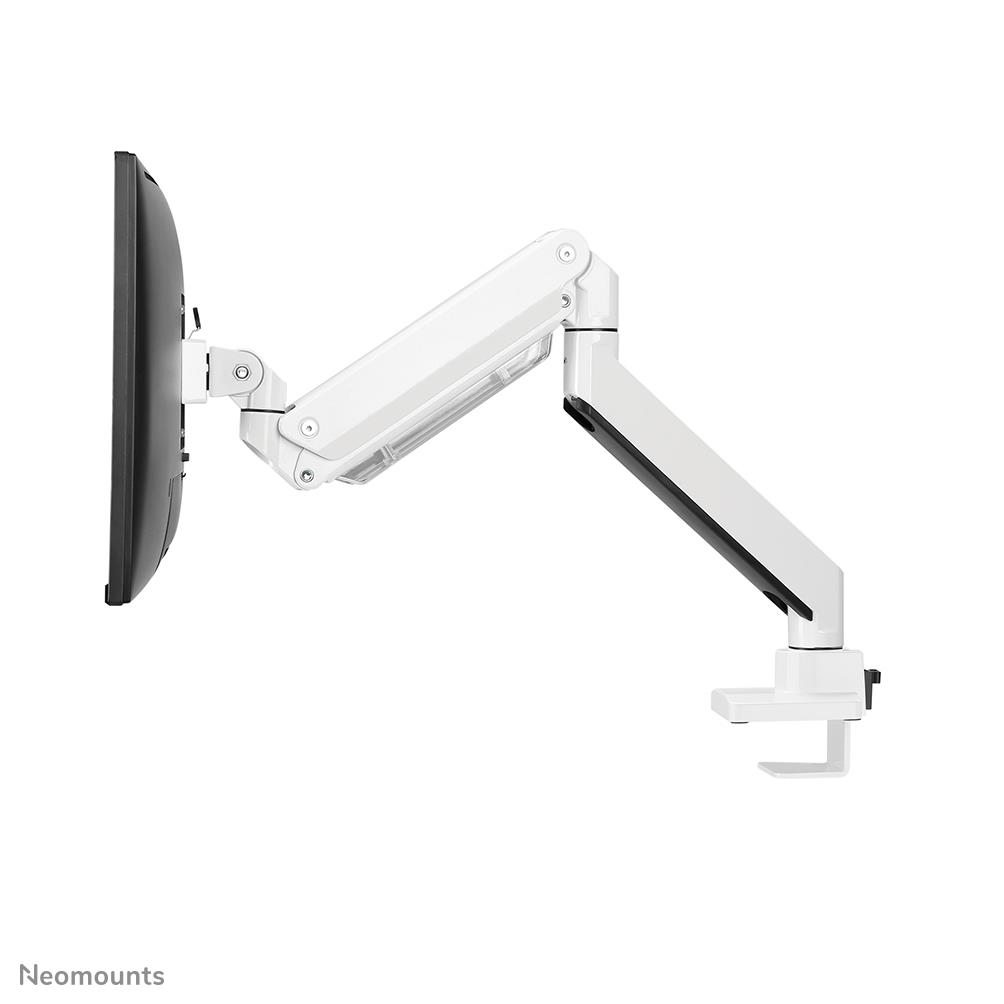

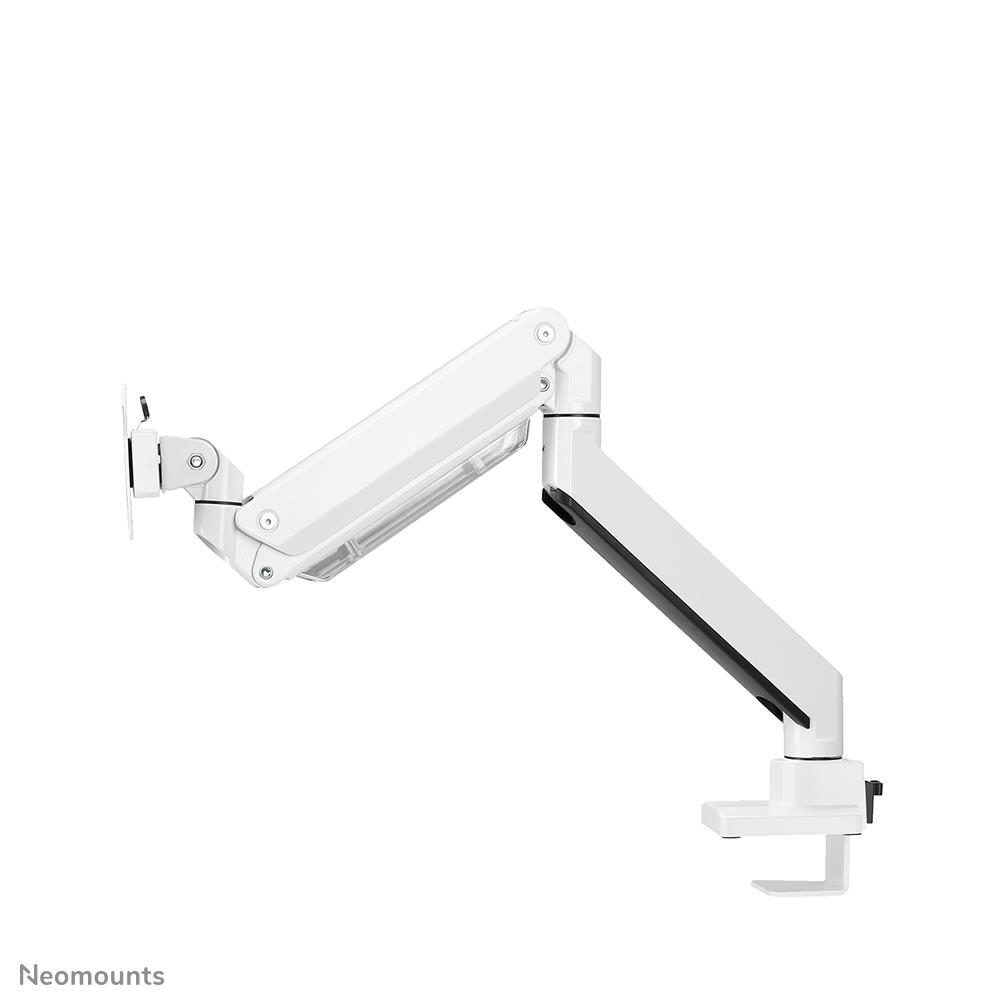

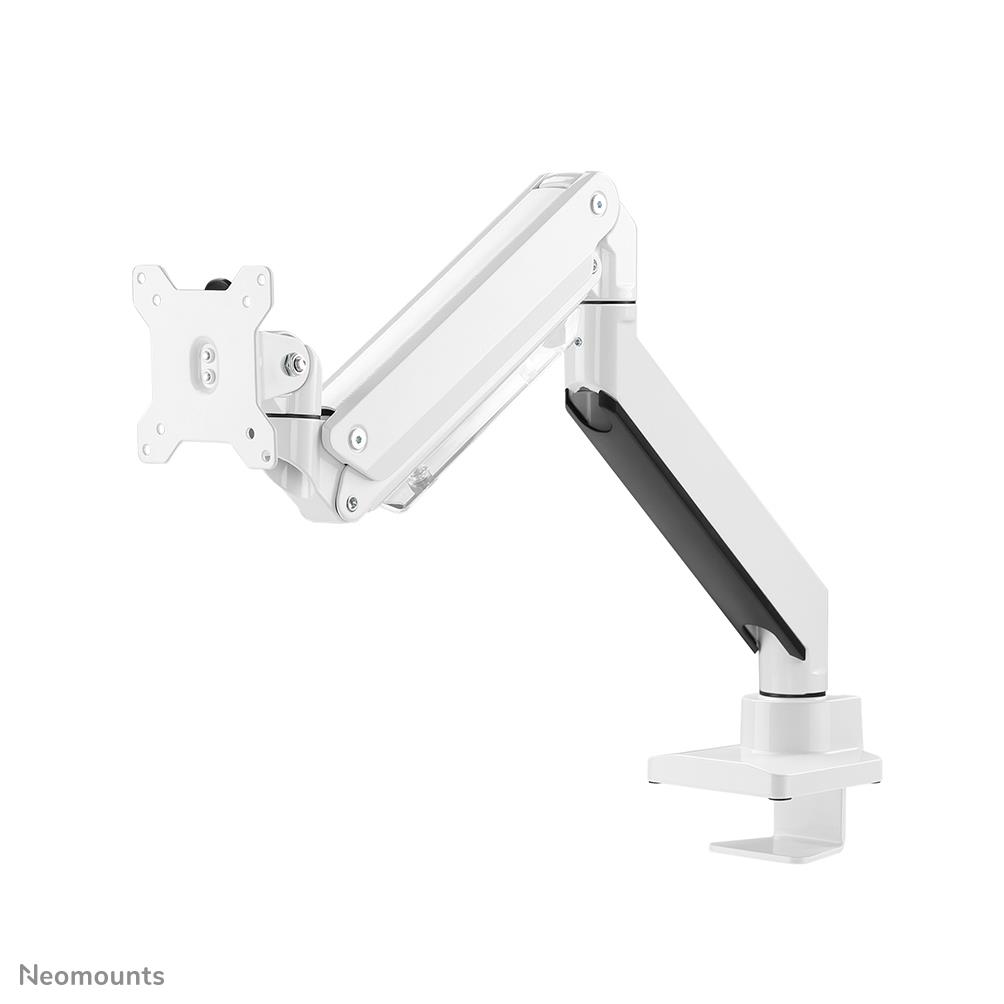

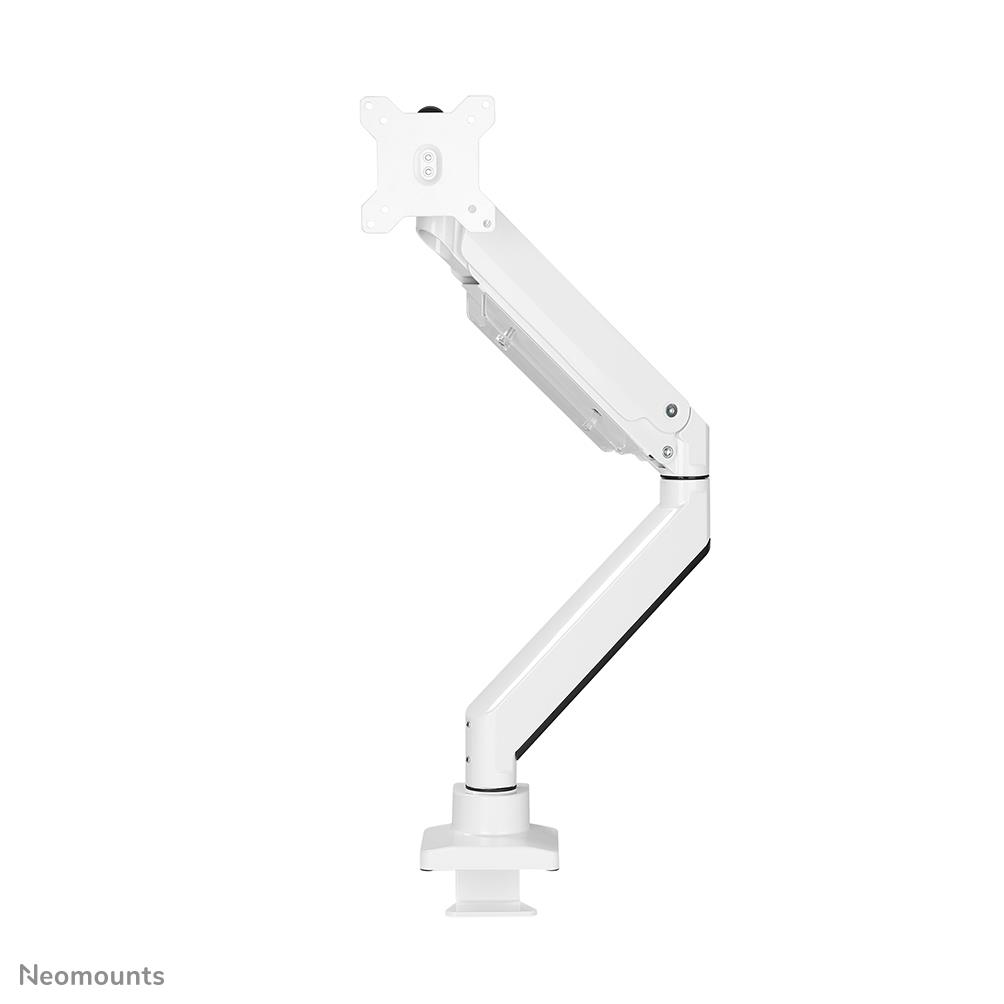

The Neomounts NM-D775WHITEPLUS is a tilt-, swivel and rotatable desk mount for curved screens up to 49". This mount is a great choice for space saving placement on desks using a top-fix desk clamp or grommet mount.
The NM-D775WHITEPLUS mounts are specifically designed to support curved screens. They feature a strengthened head for curved screens and are designed to support a higher total capacity up to 49" and a maximum weight of 18 kg.
Neomounts unique tilt (180°), rotate (360°) and swivel (180°/ 360°) technology allows the NM-PLUS mounts to change to any viewing angle for optimal use of the capabilities of the ultra-wide screen. The mount is equipped with a 180° stop mechanism. The mounts are easily adjustable in height to 60 centimetres, using a gas spring. Additionally, the mounts are also adjustable in depth, from 0 to 63 centimetres.
A unique cable management conceals and routes cables from mount to the ultra-wide screen. The NM-D775WHITEPLUS desk mounts are ideal for use in offices, on counters and in reception areas.
All installation material is included with the product.
General
| Unit Calculated Weight | 5 kg |
| Unit Calculated Volume | 0.01665 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts NM-D775WHITEPLUS Monitor arm 10-49" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 18 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 124.5 cm (49"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 360°, Tilt angle range: -45 - 45°. Product colour: White |
| Unit Box Height | 0.24 |
| Unit Box Length | 0.555 |
| Unit Box Width | 0.125 |
Mounting
| Desk thickness (max) | 45 mm |
| Desk thickness (min) | 10 mm |
| Maximum screen size | 49 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 18 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 14 kg |
| Maximum weight capacity (per display) | 18 kg |
| Minimum screen size | 10 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Adjustable depth | Yes |
| Angle of rotation | 180 ° |
| Cable management | Yes |
| Depth adjustment range | 0 - 630 mm |
| Height adjustment | Yes |
| Height adjustment range | 270 - 600 mm |
| Height adjustment type | Gas spring |
| Rotating | Yes |
| Swivel angle | 360 ° |
| Swivel angle range | 0 - 360 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45 ° |
Design
| Housing material | Steel |
| Product colour | White |
Weight & dimensions
| Depth | 630 mm |
| Height | 600 mm |
| Weight | 3910 g |
Packaging data
| Package depth | 123 mm |
| Package height | 555 mm |
| Package net weight | 5200 g |
| Package weight | 5200 g |
| Package width | 240 mm |
Other features
| Minimum weight | 1 kg |
Logistics data
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 5200 g |
| Master (outer) case height | 575 mm |
| Master (outer) case length | 265 mm |
| Master (outer) case net weight | 4800 g |
| Master (outer) case width | 500 mm |
| Products per master (outer) case | 4 pc(s) |
| Products per pallet (EU) | 72 pc(s) |
