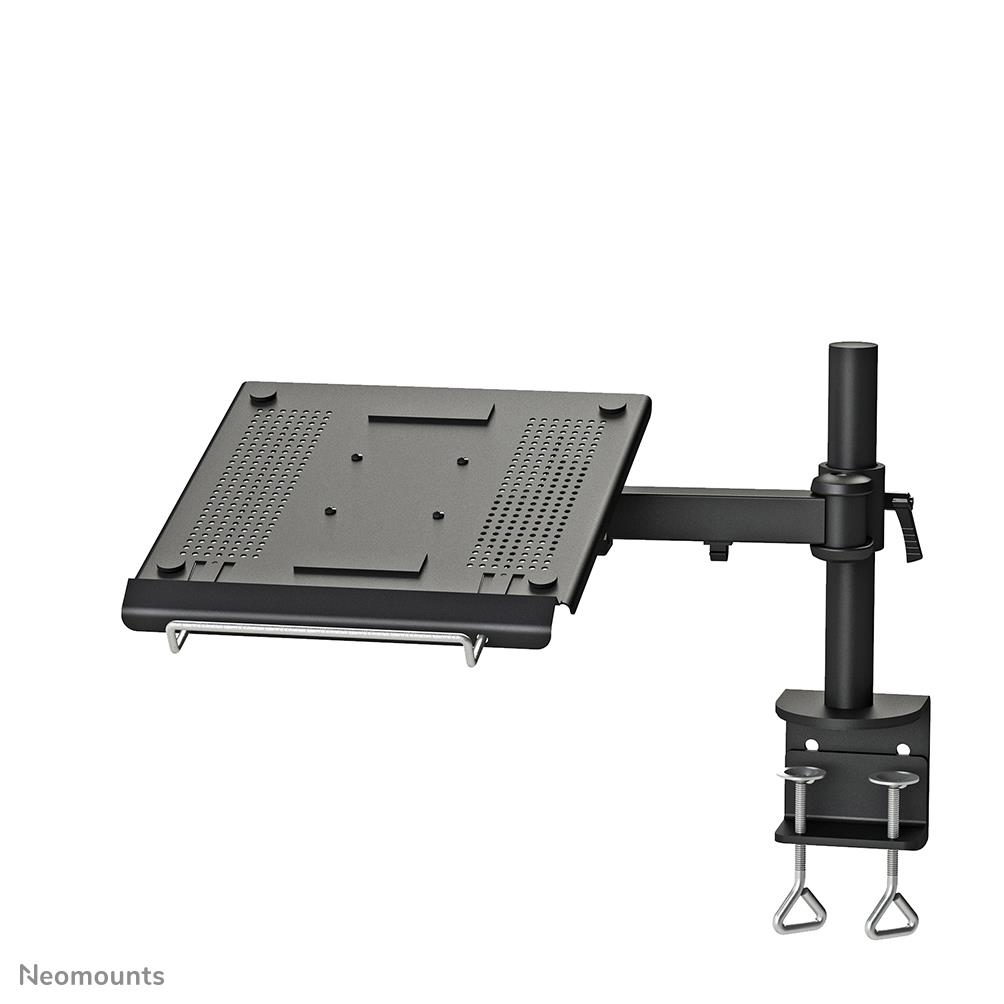

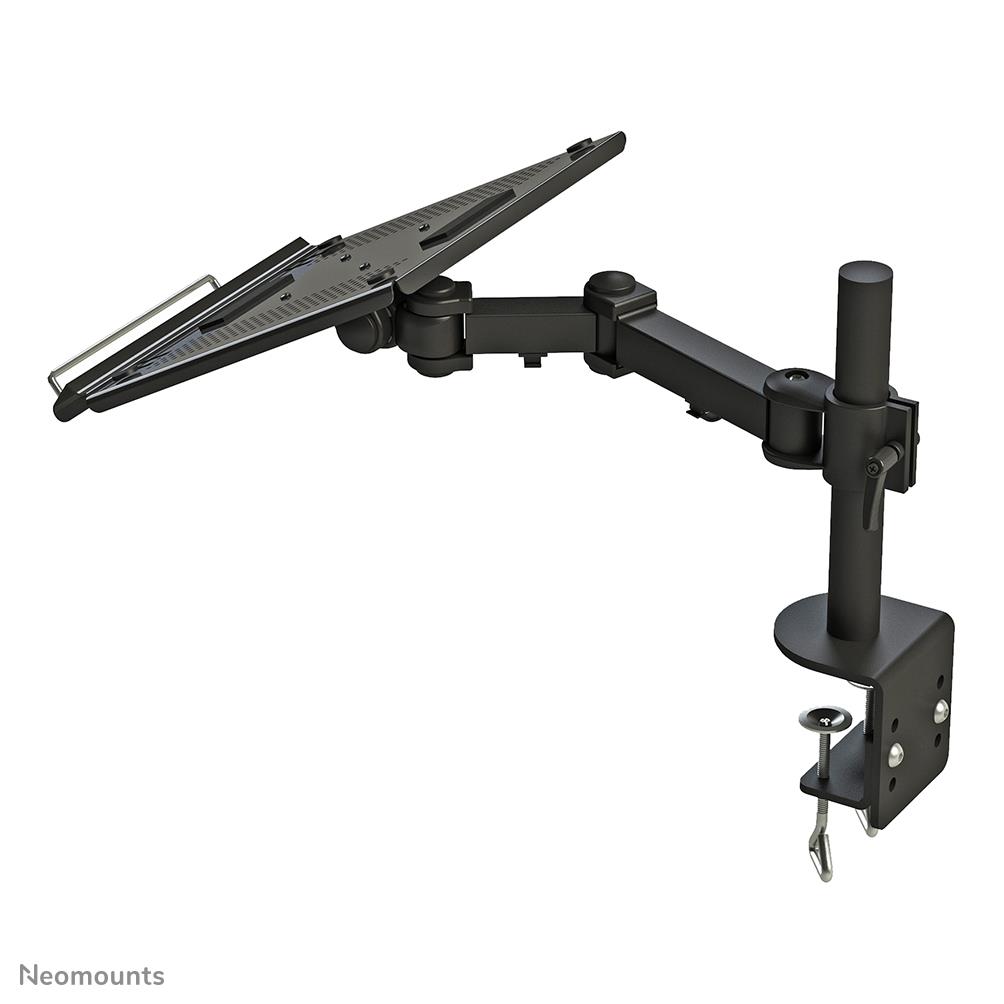

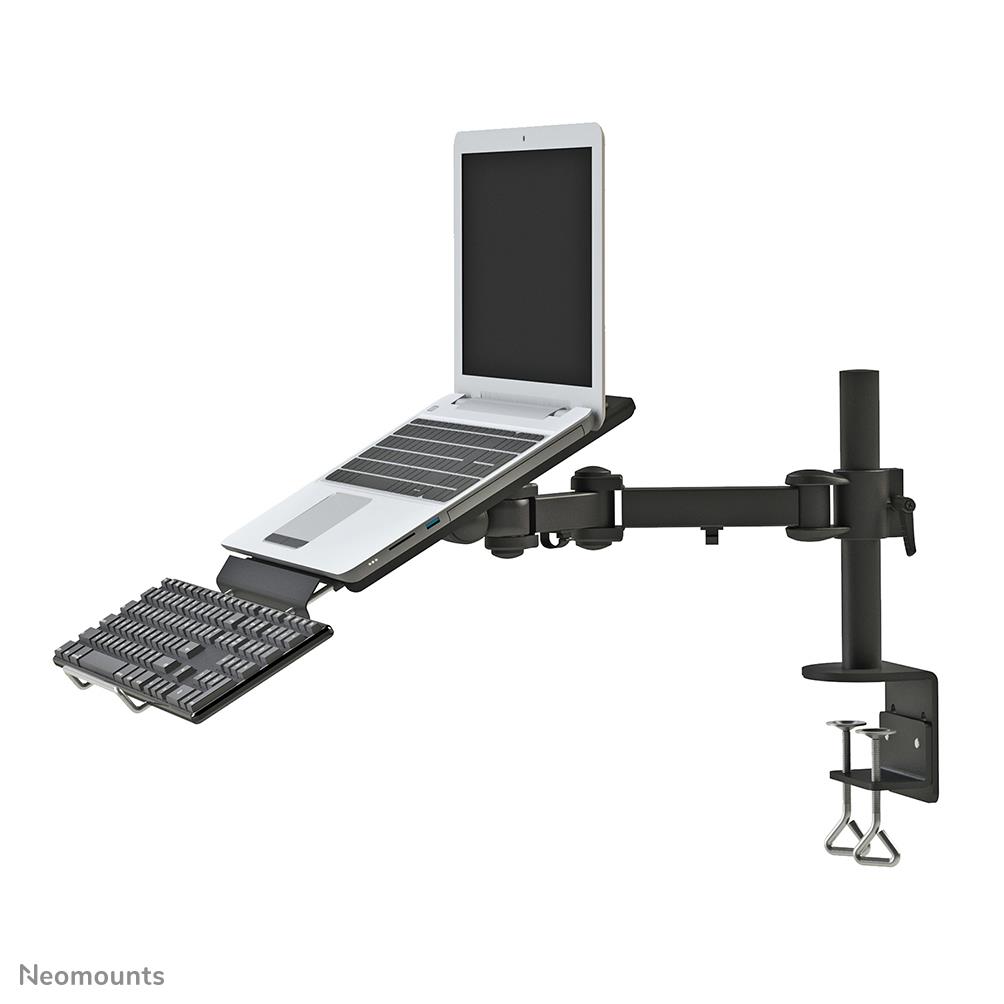

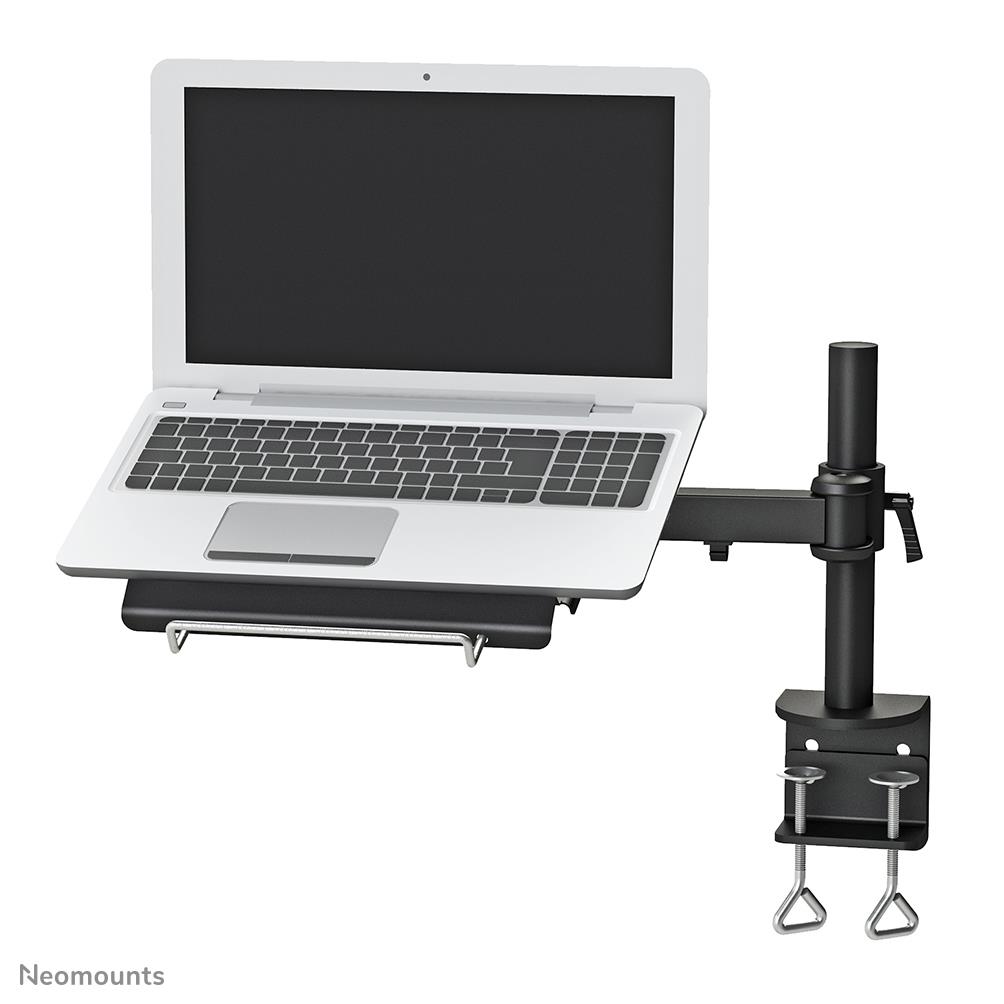

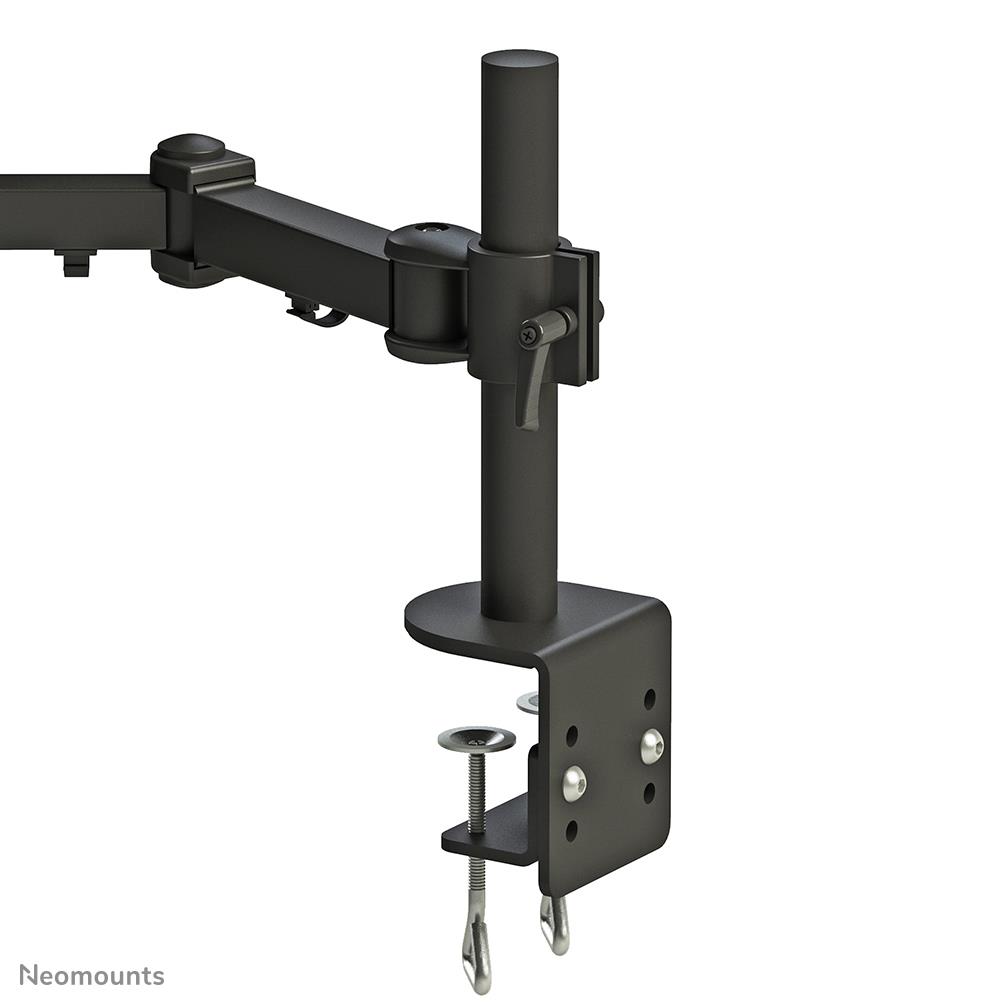

The Neomounts notebook desk mount, model NOTEBOOK-D100 is a tilt- and swivel desk mount for notebooks up to 22". This mount is a great choice for space saving placement on desks using a desk clamp. They keyboard holder included stores extra keyboards if used.

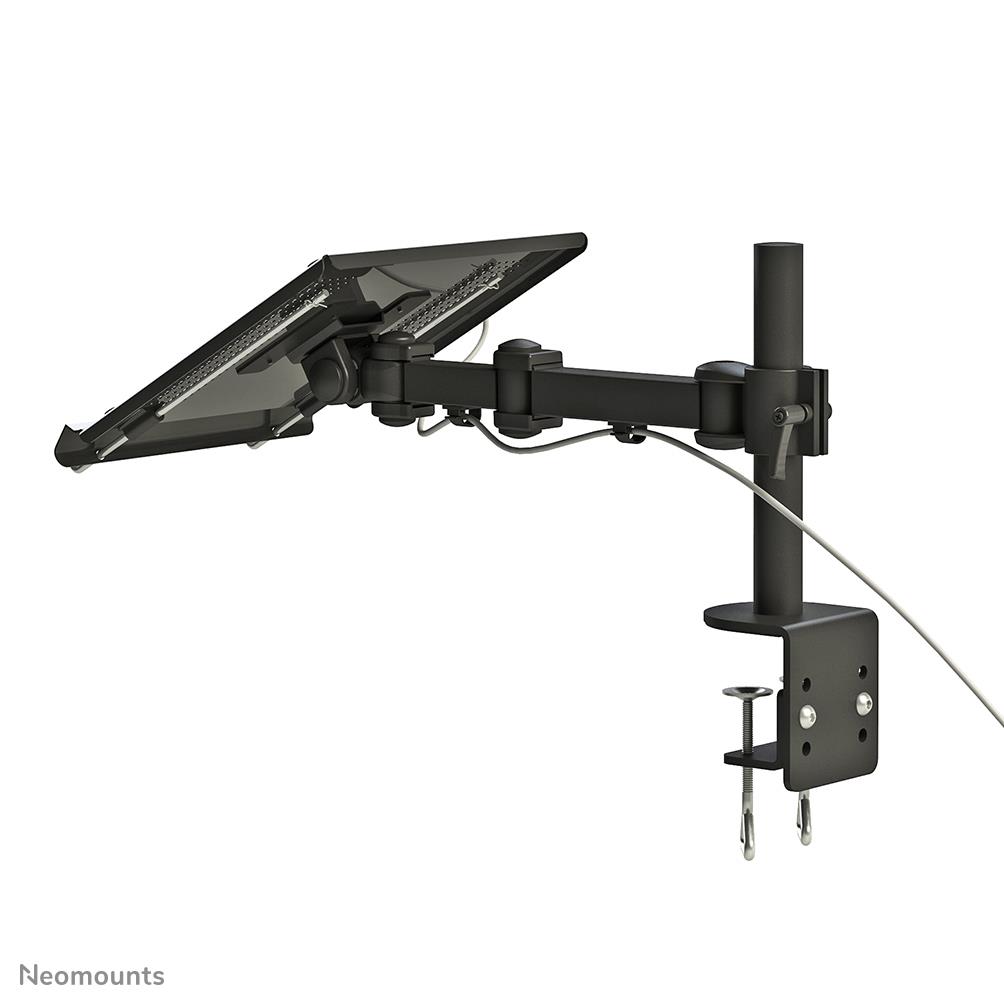

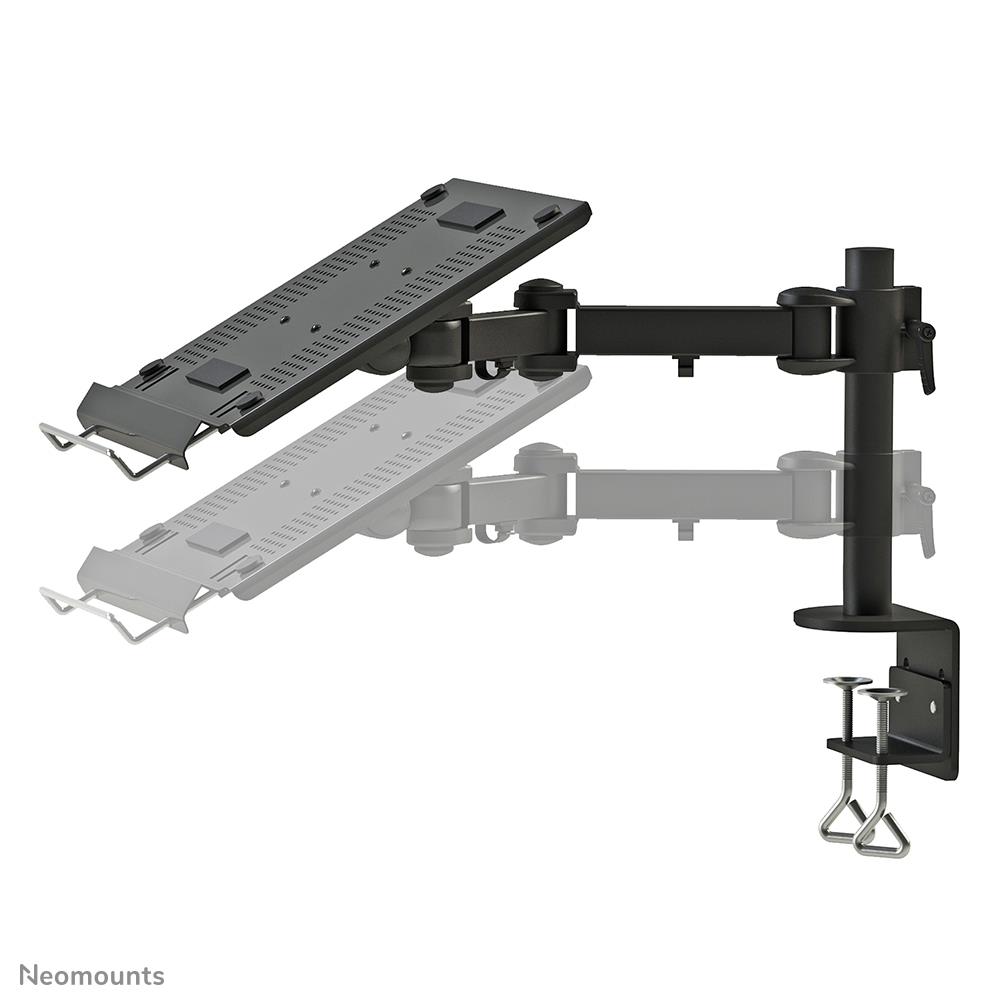

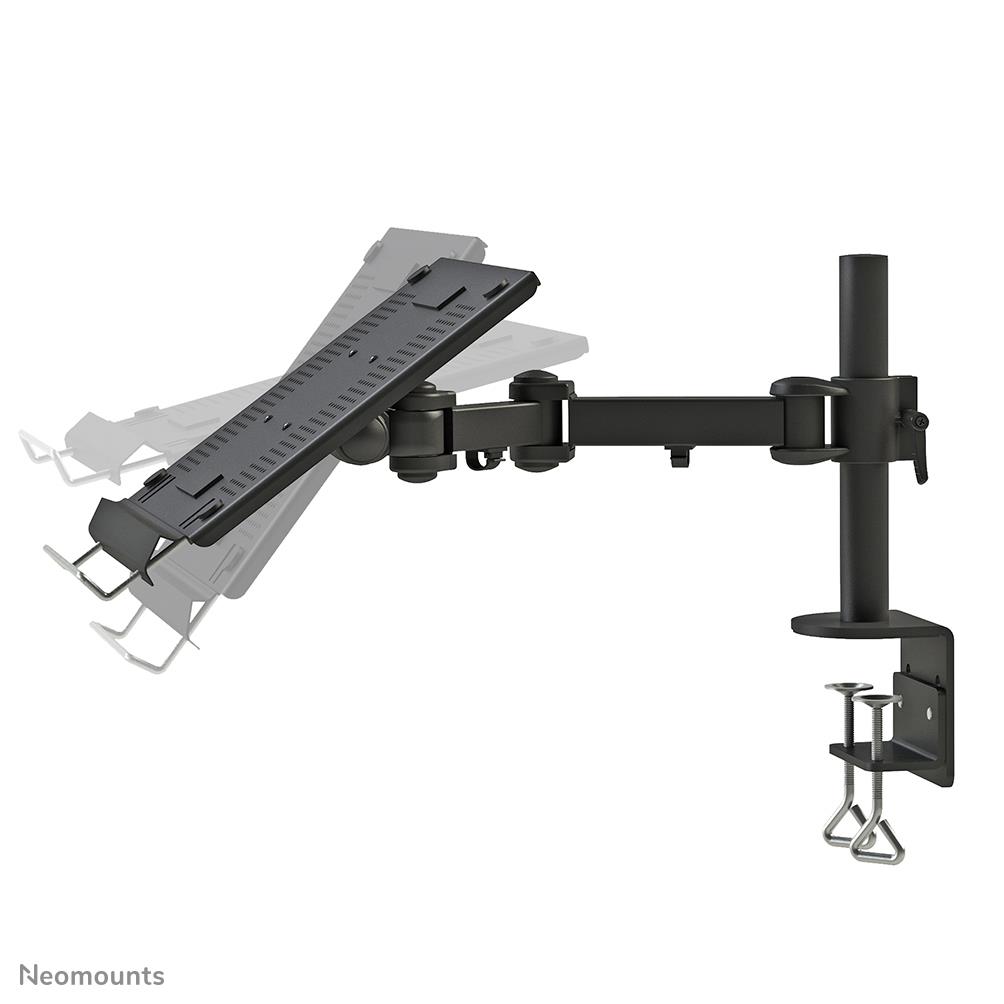

Neomounts versatile tilt (30°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the notebook. The mount is manually height adjustable from 0 to 26 centimetres. Depth adjustable from 0 to 57 centimetres. An innovative cable management conceals and routes cables from mount to notebook. Hide your cables to keep the workplace nice and tidy.
Neomounts NOTEBOOK-D100 has two pivot points and is suitable for notebooks up to 22" (55 cm). The weight capacity of this product is 10 kg. The desk mount is suitable for most notebooks.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
General
| Unit Calculated Weight | 4.81 kg |
| Unit Calculated Volume | 0.01896 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts NOTEBOOK-D100 Laptop holder monitor arm 10-22". Product colour: Black, Material: Steel, Minimum notebook screen size compatibility: 25.4 cm (10"). Height adjustment range: 0 - 260 mm, Depth adjustment range: 0 - 570 mm, Swivel angle: 180°. Depth: 570 mm, Height: 260 mm, Weight: 4.18 kg. Package width: 391 mm, Package depth: 148 mm, Package height: 315 mm. Master (outer) case width: 475 mm, Master (outer) case length: 425 mm, Master (outer) case height: 345 mm |
| Unit Box Height | 0.32 |
| Unit Box Length | 0.395 |
| Unit Box Width | 0.15 |
| Model name | Neomounts NOTEBOOK-D100 Laptop holder monitor arm 10-22" |
Design
| Material | Steel |
| Maximum notebook screen size compatibility | 22 " |
| Maximum weight capacity | 10 kg |
| Minimum notebook screen size compatibility | 10 " |
| Number of devices supported | 1 |
| Product colour | Black |
| Swivelling | Yes |
| Tilt adjustment | Yes |
Ergonomics
| Adjustable | Yes |
| Depth adjustment range | 0 - 570 mm |
| Distance to the wall (max) | 570 mm |
| Distance to the wall (min) | 0 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 - 260 mm |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | 0 - 180 ° |
| Tilt angle range | 0 - 30 ° |
Weight & dimensions
| Depth | 570 mm |
| Height | 260 mm |
| Weight | 4180 g |
Packaging data
| Package depth | 148 mm |
| Package height | 315 mm |
| Package weight | 4500 g |
| Package width | 391 mm |
Technical details
| Country of origin | Taiwan |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 14600 g |
| Master (outer) case height | 345 mm |
| Master (outer) case length | 425 mm |
| Master (outer) case net weight | 13500 g |
| Master (outer) case width | 475 mm |
| Products per master (outer) case | 3 pc(s) |
| Products per pallet (EU) | 60 pc(s) |
Other features
| Number of displays supported | 1 |
