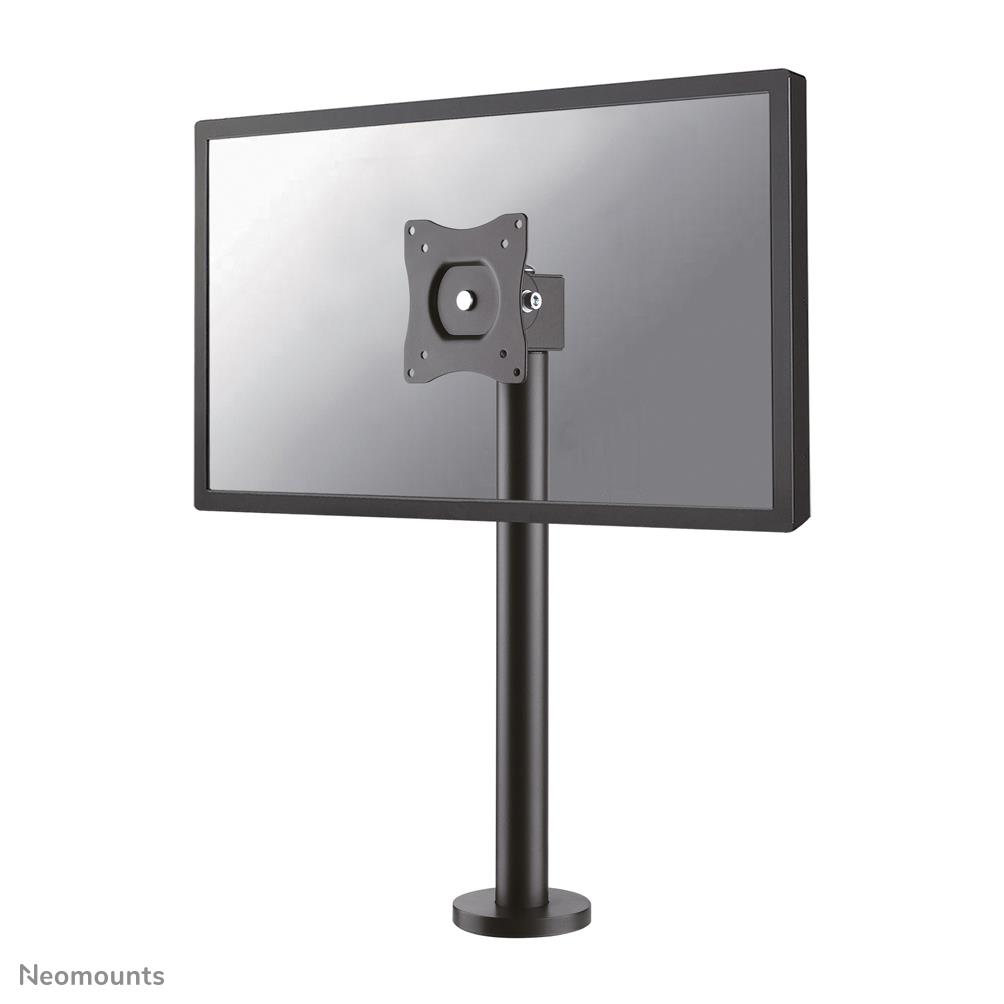

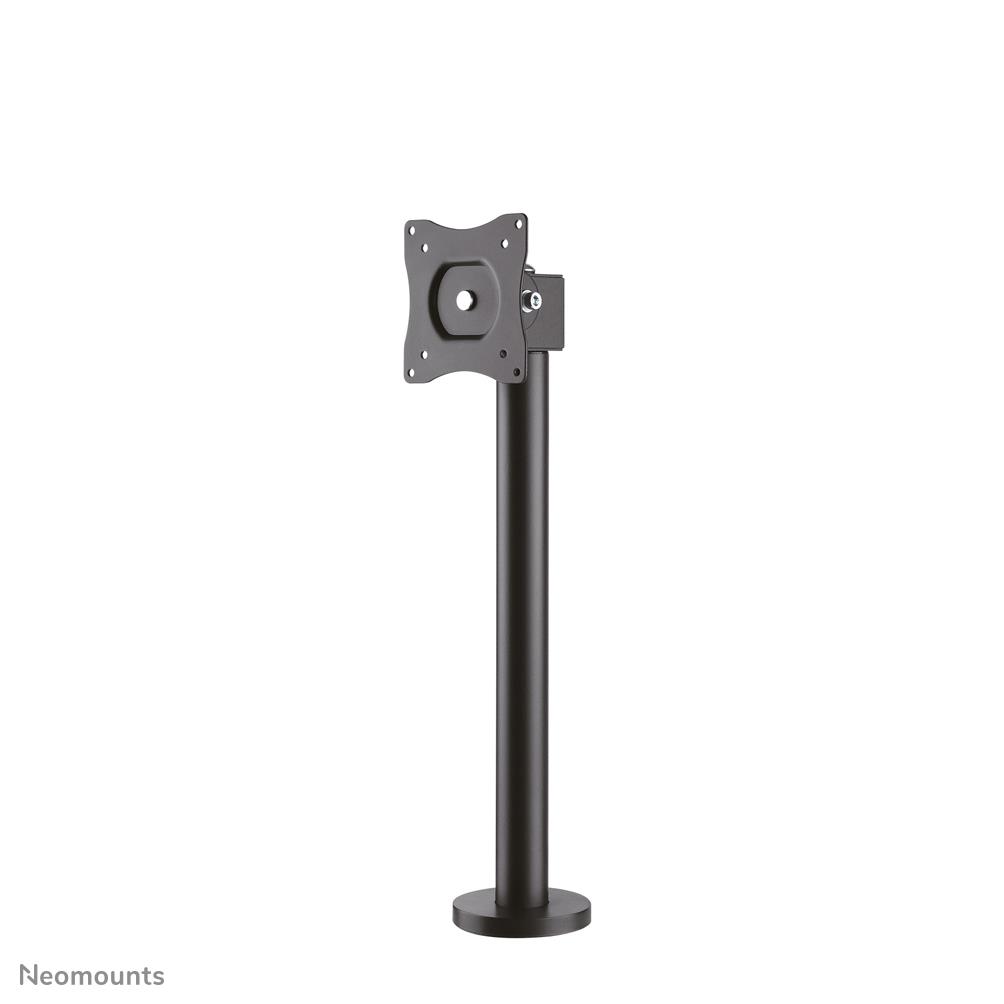

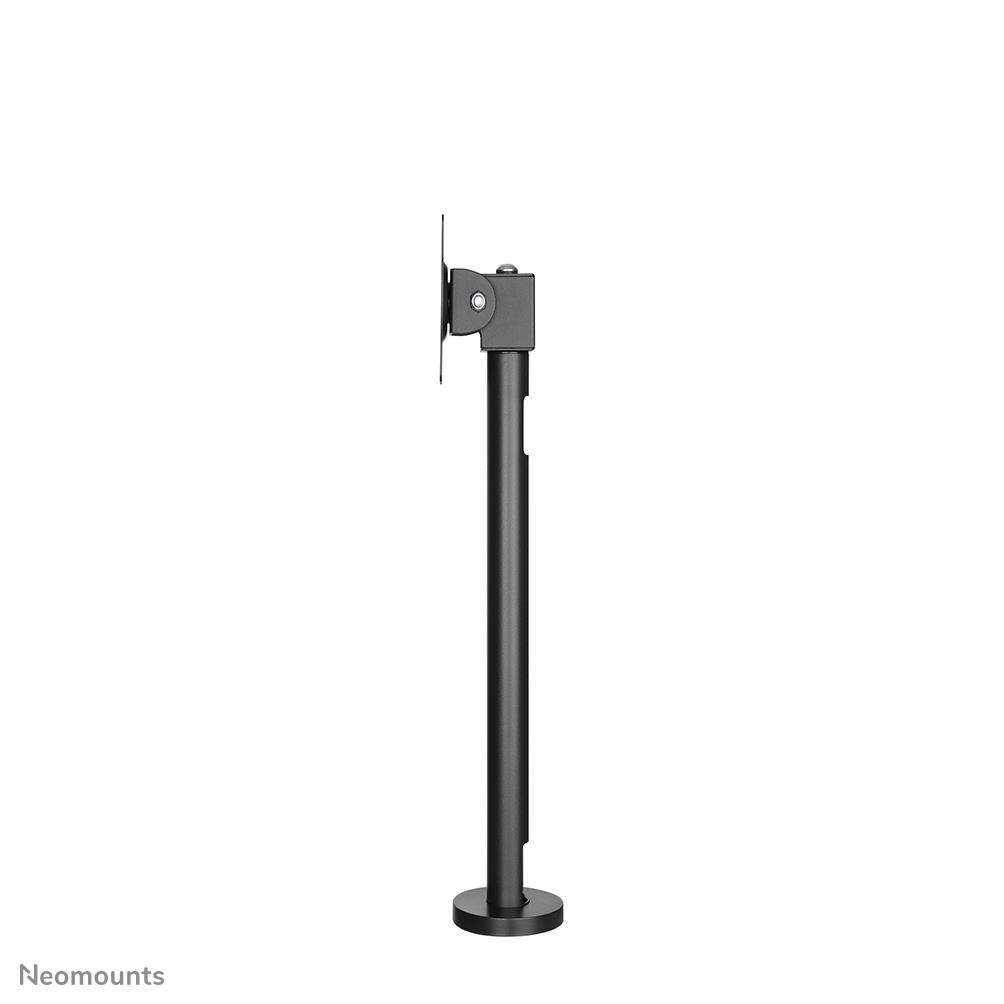

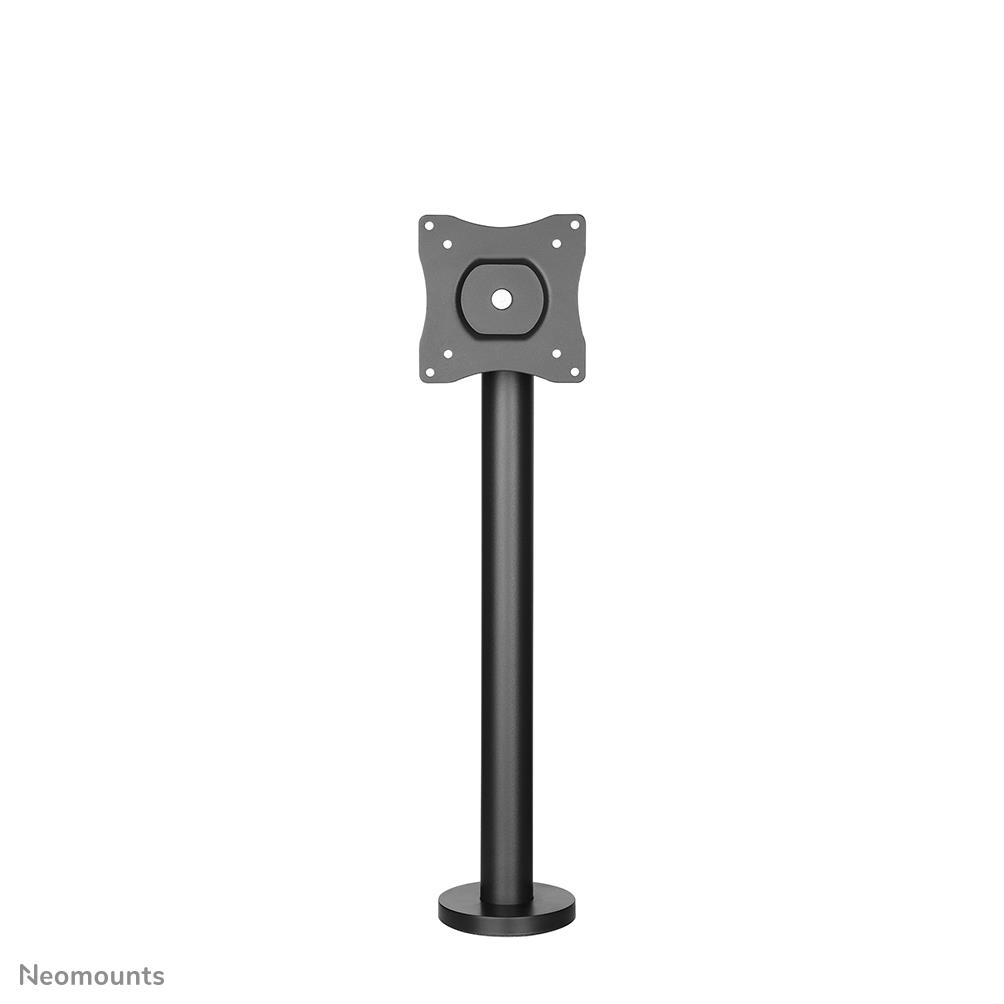

The Neomounts desk mount, model NS-DPOS100BLACK is a tilt-, swivel and rotatable desk mount for flat screens up to 32". This mount is a great choice for space saving placement on desks and counters using a bolt-down base.

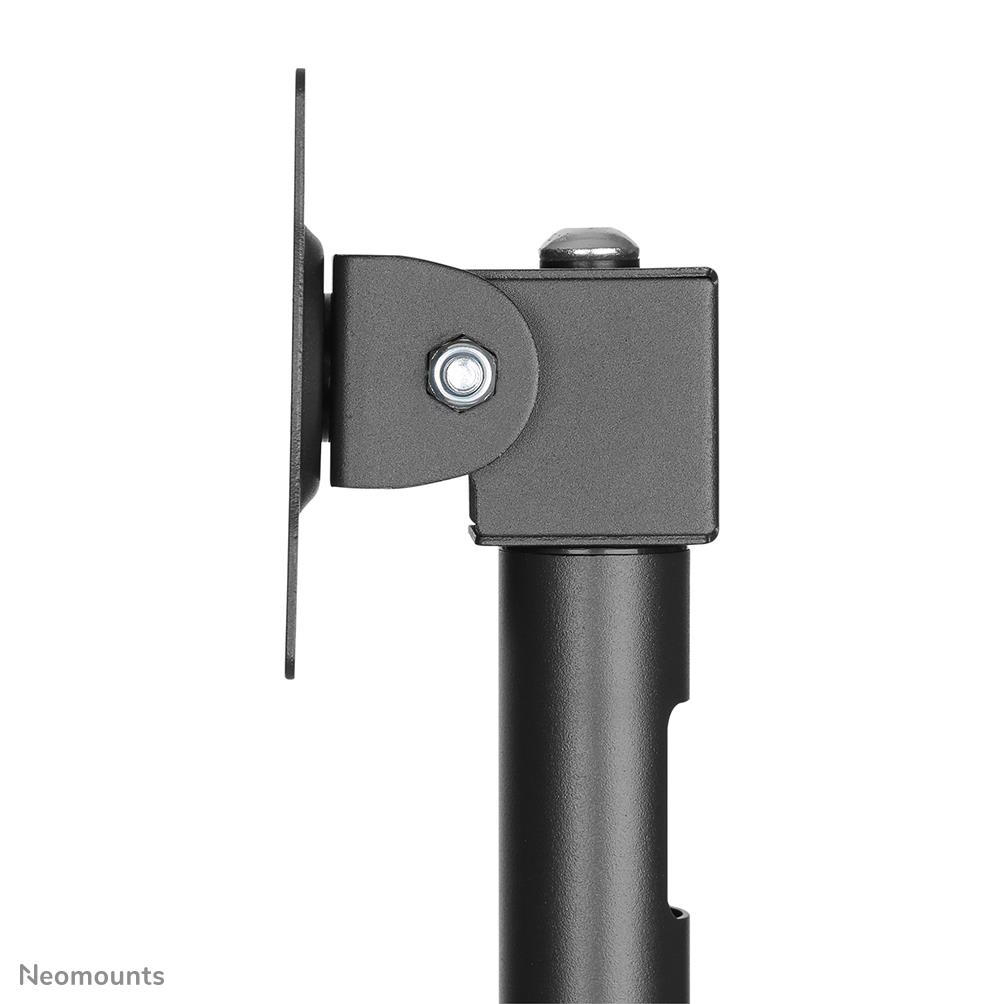

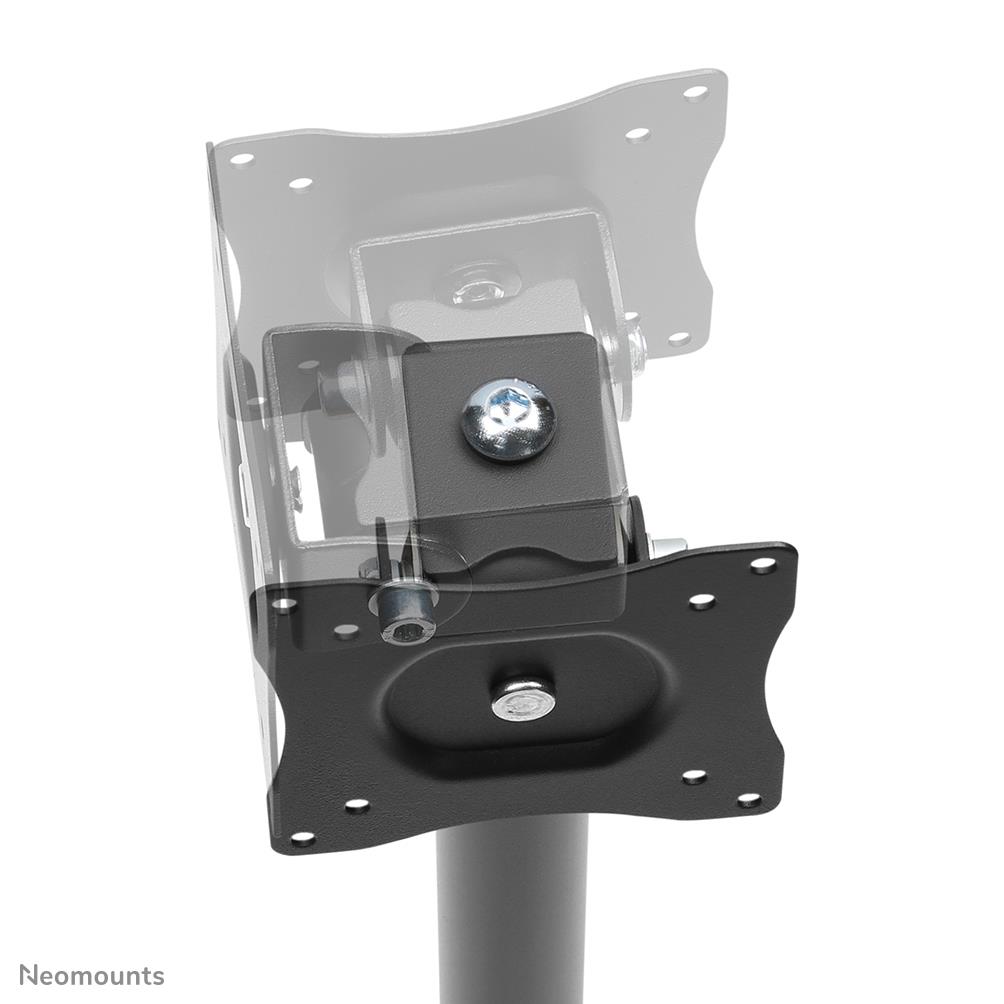

Neomounts versatile tilt (60°), rotate (360°) and swivel (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. Ideal for use in offices and on counters or in a reception area.

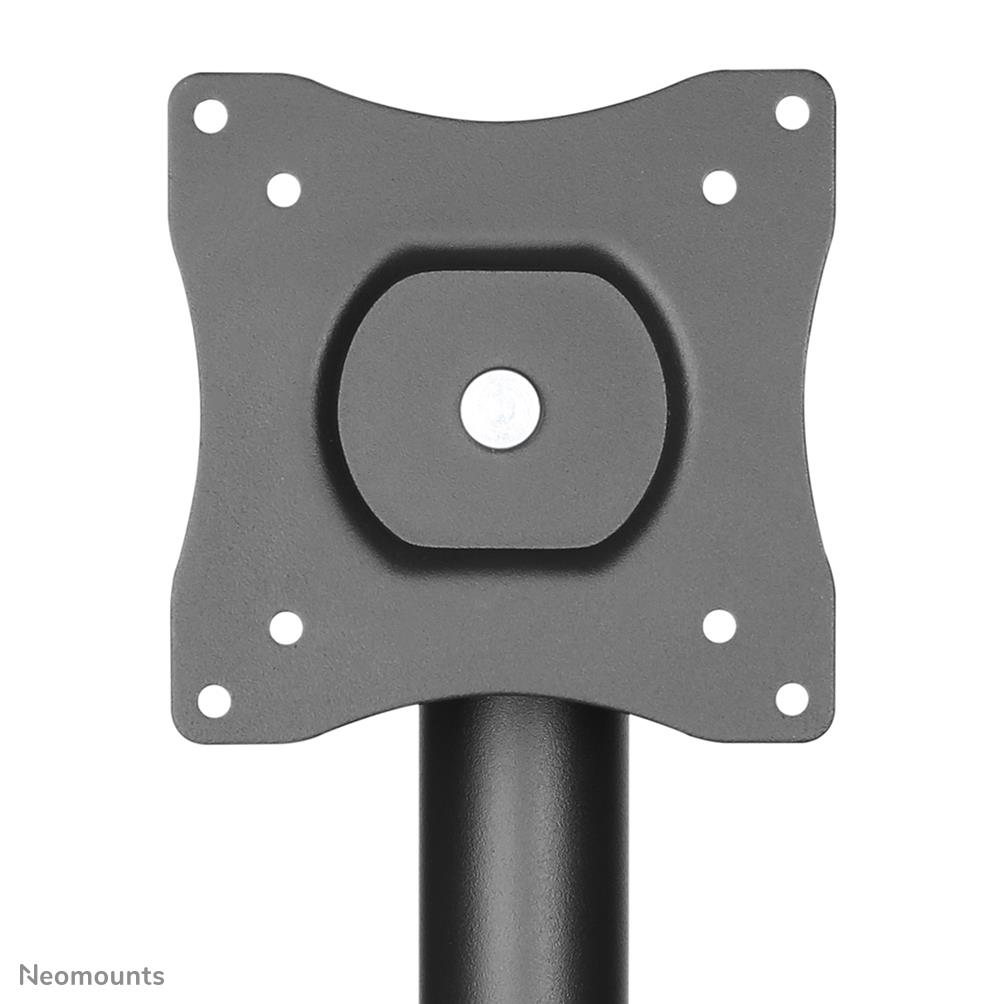

Neomounts NS-DPOS100BLACK is suitable for screens up to 32". The weight capacity of this product is 15 kg. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
General
| Unit Calculated Weight | 1.7 kg |
| Unit Calculated Volume | 0.01013 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts NS-DPOS100BLACK Monitor stand 10-32" - bolt-down. Mounting: Bolt-through, Maximum weight capacity: 15 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 360°, Tilt angle range: -15 - 45°. Product colour: Black |
| CnCode | 83021000 |
| Unit Box Height | 0.15 |
| Unit Box Length | 0.54 |
| Unit Box Width | 0.125 |
Mounting
| Maximum screen size | 32 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 15 kg |
| Maximum weight capacity (per display) | 15 kg |
| Minimum screen size | 10 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Bolt-through |
| Mounting type | Desk |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Height adjustment | Yes |
| Height adjustment range | 0 - 440 mm |
| Rotating | Yes |
| Swivel angle | 360 ° |
| Swivel angle range | 0 - 360 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 45 ° |
Design
| Housing material | Steel |
| Product colour | Black |
Weight & dimensions
| Height | 44 mm |
| Weight | 1440 g |
Packaging data
| Package depth | 501 mm |
| Package height | 100 mm |
| Package net weight | 1900 g |
| Package weight | 1900 g |
| Package width | 115 mm |
Packaging content
| VESA mount included | Yes |
Logistics data
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 15500 g |
| Master (outer) case height | 553 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case net weight | 15500 g |
| Master (outer) case width | 305 mm |
| Products per master (outer) case | 8 pc(s) |
| Products per pallet (EU) | 80 pc(s) |
