> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps.
> Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD Plus.
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.
> Supports EPTZ, and one-click arming and disarming.
General

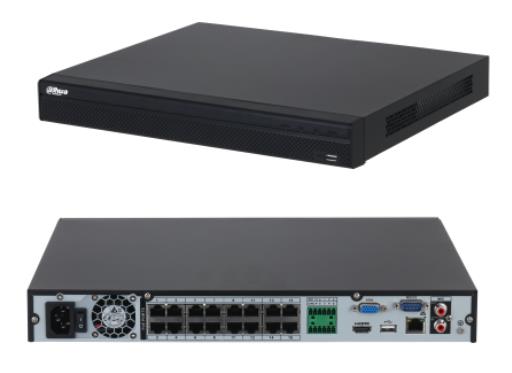

| Model | DHI-NVR4216-16P-4KS3 |
| Number of Channels | 16 |
| Unit Box Height | 0.42 |
| Unit Box Length | 0.45 |
| CPU | Industrial-grade processor |
| Unit Box Width | 0.14 |
| PoE ports | 16 |
| Power supply requirements | 100–240 VAC, 50/60 Hz |
| Dimensions | 375.0 × 327.9 × 53.0 mm |
| Operating temperature range | –10 °C to +55 °C |
| Units per Pallet | 0 |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.03269 cubm |
| Product Net Weight | 2.6 kg |
| Unit Calculated Weight | 4.1 kg |
Mounting Type
| Desktop/pedestal | Yes |
| Rack | Yes |
Interface
| SATA | Yes |
Input/Output connectors
| 15pin D-sub | 1 |
| Alarm In | 4 |
| Alarm Out | 2 |
| Audio-In | 1 |
| Audio-Out | 1 |
| HDMI | 1 |
| RJ45 | 1 |
| RS232 | 1 |
| USB 2.0 | 2 |
