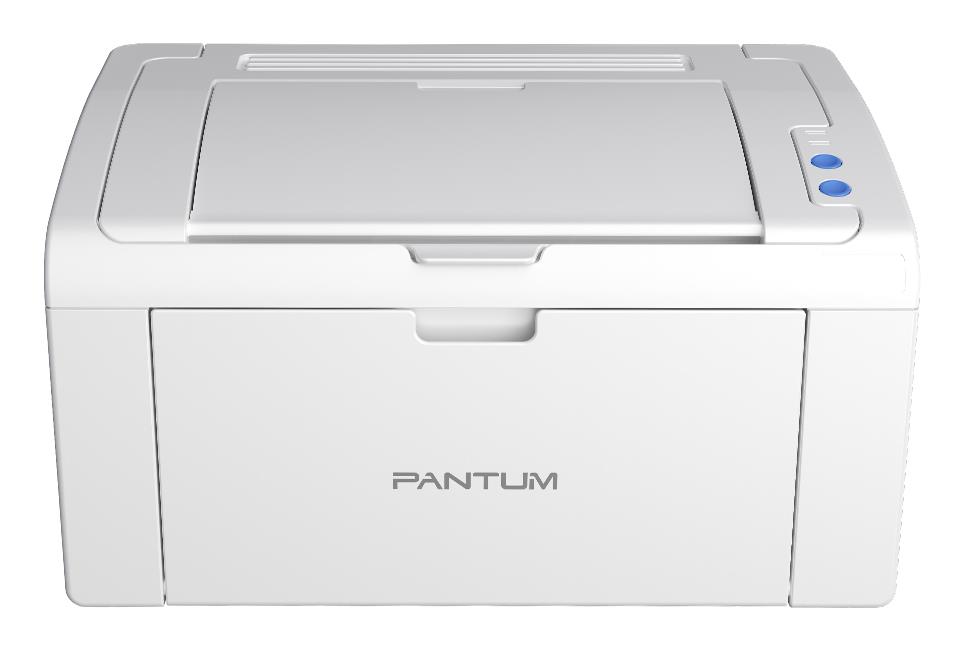

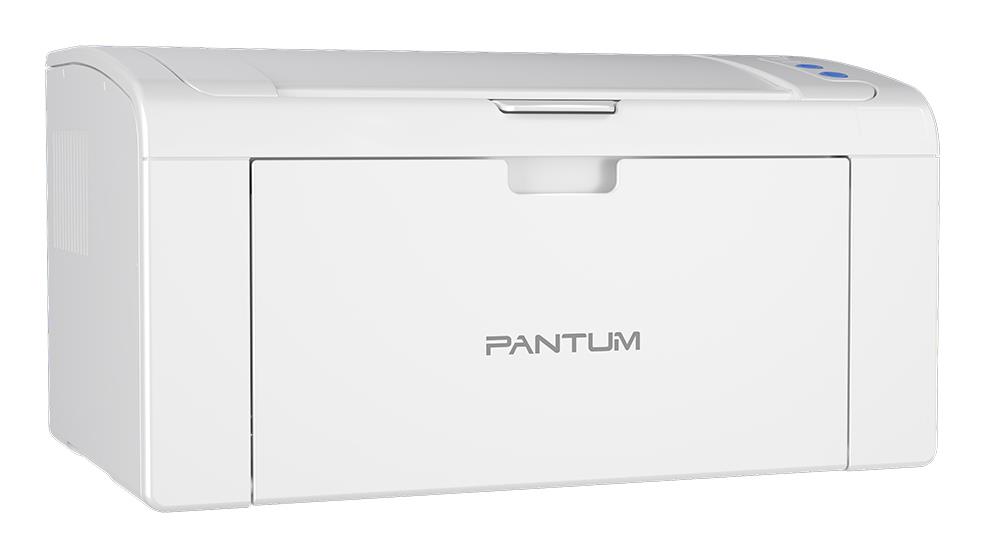

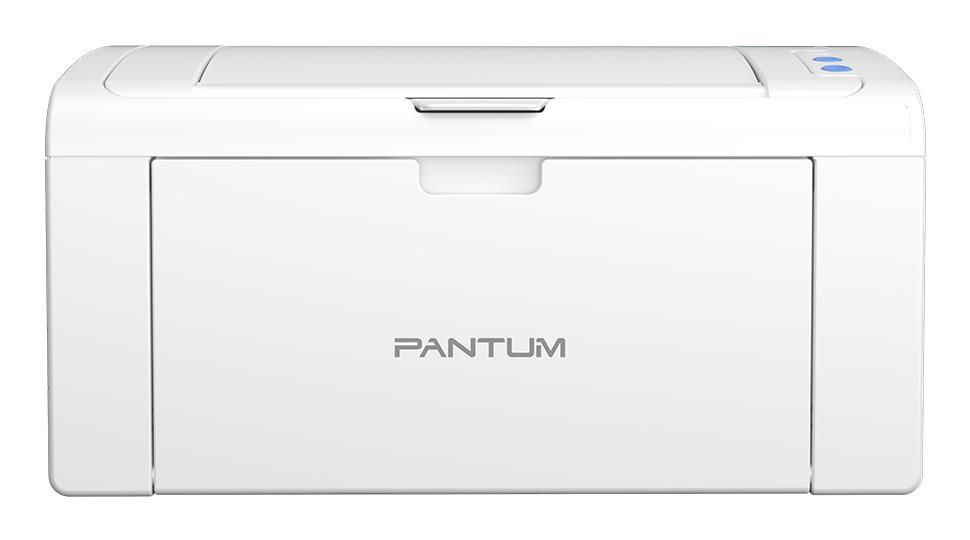

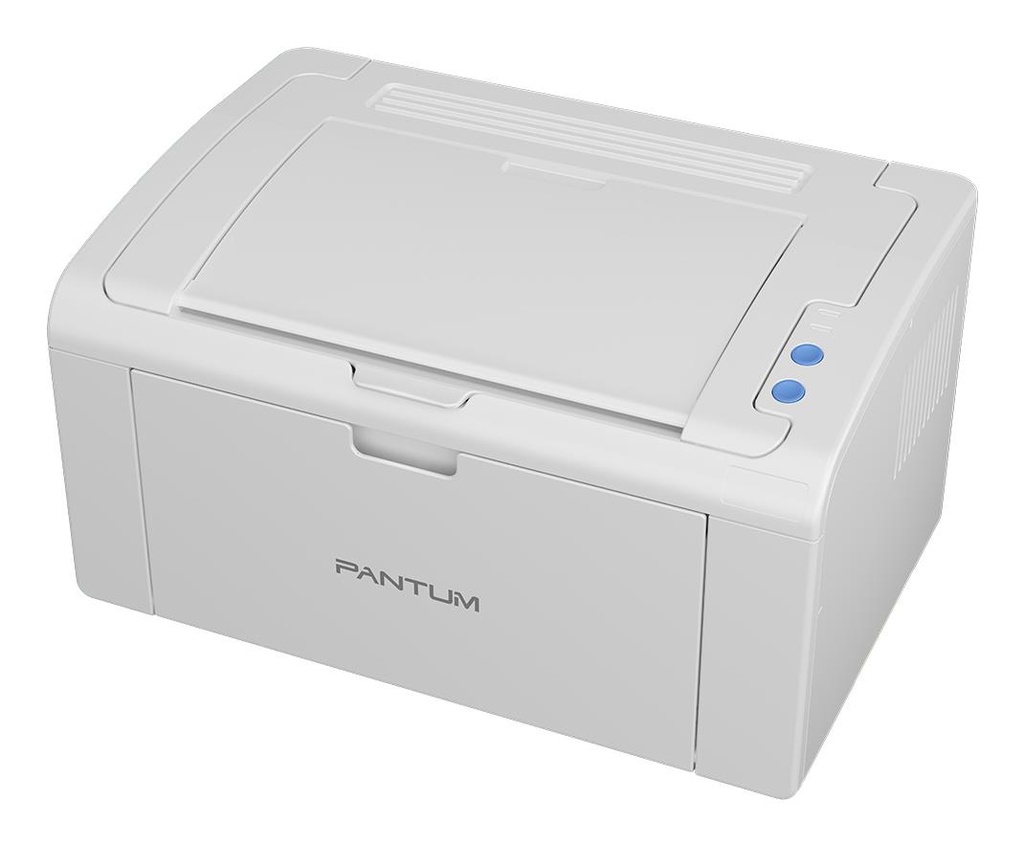

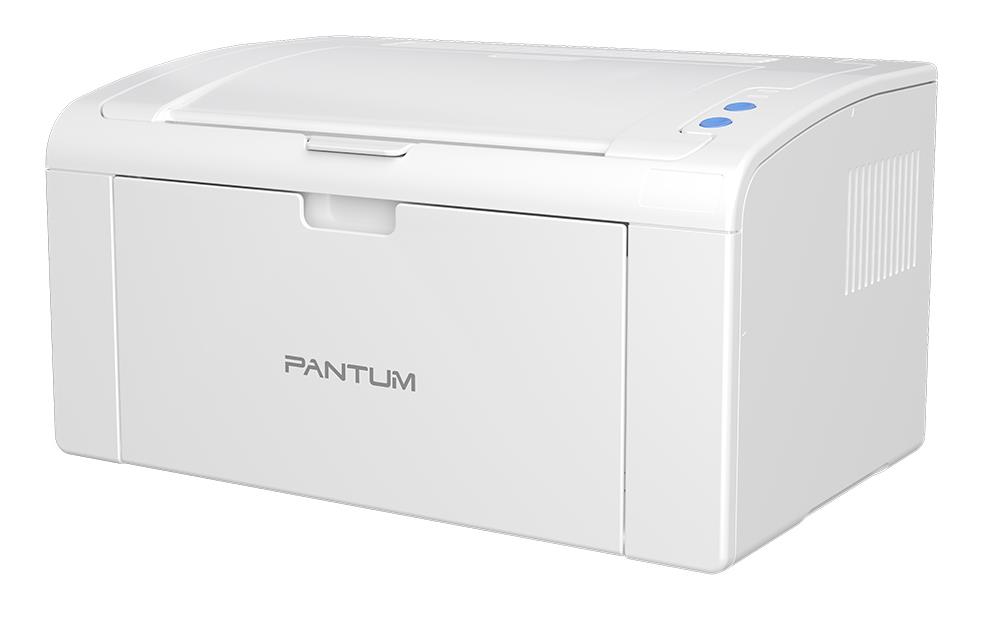

P2509W Mono laser single function printer
- Printing speed：22ppm
- Connection method：USB+WIFI
- Basic function：Print
- Small size
- One step driver installation , new product comes with a USB cable
- The metal frame inside the machine is strong and durable
General
| Unit Calculated Weight | 5.6 kg |
| Unit Calculated Volume | 0.02556 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | Pantum P2509W. Print technology: Laser. Number of print cartridges: 1, Maximum duty cycle: 15000 pages per month. Maximum resolution: 1200 x 1200 DPI. Maximum ISO A-series paper size: A4. Print speed (black, normal quality, A4/US Letter): 23 ppm. Wi-Fi. Product colour: White |
| Unit Box Height | 0.23 |
| Unit Box Length | 0.39 |
| Unit Box Width | 0.285 |
Printing
| Colour | No |
| Duplex printing mode | Manual |
| Economical printing | Yes |
| Maximum resolution | 1200 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) | 23 ppm |
| Print technology | Laser |
| Time to first page (black, normal) | 7.8 s |
Features
| Maximum duty cycle | 15000 pages per month |
| Number of print cartridges | 1 |
| Page description languages | GDI |
| Printing colours | Black |
| Recommended duty cycle | 2000 - 15000 pages per month |
Input & output capacity
| Total input capacity | 150 sheets |
| Total number of input trays | 1 |
| Total output capacity | 100 sheets |
Paper handling
| Envelopes sizes | C5/C6/Com-10/DL |
| ISO A-series sizes (A0...A9) | A4/A5/A6 |
| ISO B-series sizes (B0...B9) | B5/B6 |
| Maximum ISO A-series paper size | A4 |
| Paper tray media types | Card stock/Envelopes/Labels/Plain paper/Thick paper/Thin paper/Transparencies |
| Paper tray media weight | 60 - 163 g/m² |
Ports & interfaces
| Standard interfaces | USB 2.0 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
Network
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b/802.11g/Wi-Fi 4 (802.11n) |
Performance
| Built-in processor | Yes |
| Internal memory | 128 MB |
| Processor frequency | 600 MHz |
| Sound power level (standby) | 30 dB |
| Sound pressure level (printing) | 52 dB |
Design
| Built-in display | No |
| Market positioning | Home & office |
| Product colour | White |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 2 W |
| Power consumption (printing) | 370 W |
| Power consumption (ready) | 38 W |
System requirements
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
Operational conditions
| Operating relative humidity (H-H) | 20 - 80 % |
| Operating temperature (T-T) | 10 - 32 °C |
Weight & dimensions
| Depth | 220 mm |
| Height | 178 mm |
| Weight | 4750 g |
| Width | 337 mm |
Packaging content
| Cables included | AC,USB |
| Drivers included | Yes |
| Quick start guide | Yes |
