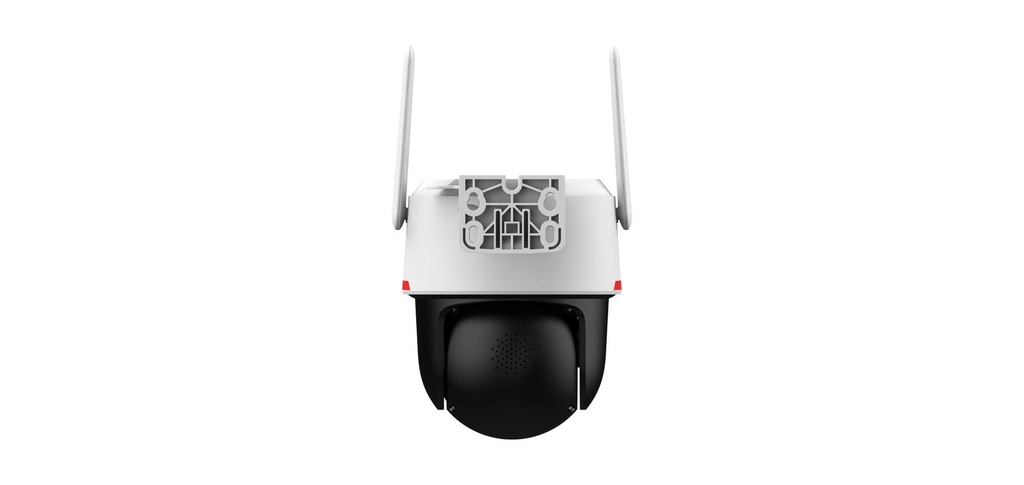

5MP WizColor Outdoor Wi-Fi Pan & Tilt Network Camera
The Wireless Compact Outdoor PT Camera sets a new standard for intelligent surveillance. In low-light conditions, it leverages WizColor technology to deliver crisp and vibrant images comparable to those captured in daylight without the need for additional lighting. Featuring advanced auto-tracking and preset patrol functions, it accurately detects humam and vehicles while minimizing false alarms. In the event of an intrusion, the camera activates sound and light alarms and promptly relays vital information to the mobile client, ensuring you stay informed no matter where you are.
Resolution: 5MP 2880 × 1620
Illumination Distance: 30 m (warm white)
Focal Length/ Field of View: 3.6 mm fixed / 89.5°
Tripwire; Intrusion, Human detection, Vehicle Detection, Auto Tracking Lite, Light Warning, Sound Warning, Built-in MIC, Built-in Speaker
Micro SD card support, H.265, IP66
General
| Unit Calculated Weight | 1.08 kg |
| Unit Calculated Volume | 0.006317 cubm |
| Units per Shipping Box | 12 |
| Units per Pallet | 0 |
| Unit Box Height | 0.204 |
| Unit Box Length | 0.18 |
| Unit Box Width | 0.15 |
| Model | P5F-PV-0360B-PRO |
Performance
| Connectivity technology | Wireless |
| Placement supported | Outdoor |
Design
| Form factor | Dome |
| International Protection (IP) code | IP66 |
| Product colour | White |
Camera
| Camera shutter speed | 1–1/100,000 s s |
| Camera shutter type | Electronic |
Image sensor
| Number of effective pixels (H x V) | 2880 (H) × 1620 (V) pixels |
| Optical sensor size | 1/1.8" " |
| Sensor type | CMOS |
Lens system
| Fixed focal length | 3.6 mm |
| Maximum aperture number | 1 |
Night vision
| B/W night vision distance | 30 m |
| LED type | White |
Video
| Total megapixels | 5 MP |
| Video formats supported | H.264+/H.265/H.265+ |
Audio
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Voice codecs | G.711a/G.711Mu |
Network
| Wi-Fi standards | 802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 6 (802.11ax) |
Storage
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Power consumption (max) | 9 W |
| Power consumption (typical) | 3 W |
System requirements
| Mobile operating systems supported | Android/iOS |
Weight & dimensions
| Diameter | 129.3 mm |
| Weight | 600 g |
| Width | 153.5 mm |
