CHIEFTEC ATX 750W 750 Watts Efficiency 80 PLUS GOLD PFC Active PPG-750-C
General
| Unit Calculated Weight | 2.5 kg |
| Unit Calculated Volume | 0.00759 cubm |
| Units per Shipping Box | 5 |
| Model name | ATX 750W |
| Summary | Chieftec Vega PPG-750-C. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Certification: 80PLUS Gold |
| Unit Box Height | 0.21 |
| Unit Box Length | 0.28 |
| Unit Box Width | 0.105 |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Max output current (+12V1) | 62.5 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Power Factor Correction (PFC) type | Active |
| Total power | 750 W |

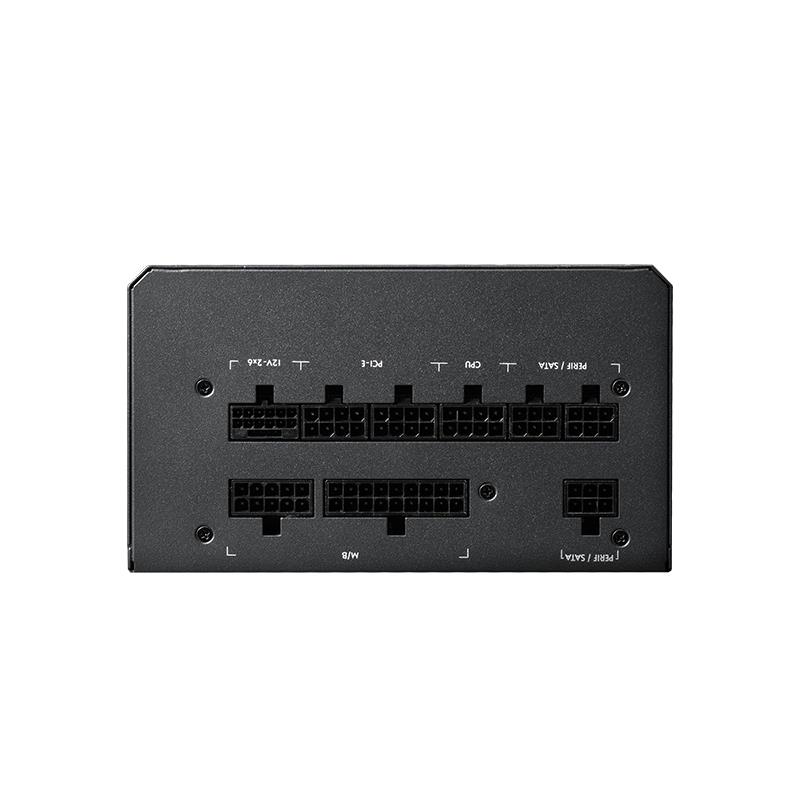

Ports & interfaces
| ATX power connector (20+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Fully-Modular |
| CPU power cable length | 650 mm |
| CPU power connector (4+4 pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Motherboard power cable length | 600 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 400 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 400 mm |
Performance
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
Design
| Cooling type | Active |
| Fan diameter | 135 mm |
| Illumination | No |
| Product colour | Black |
Certificates
| Certification | 80PLUS Gold |
Weight & dimensions
| Depth | 150 mm |
| Height | 85 mm |
| Weight | 1960 g |
| Width | 150 mm |
Packaging data
| Package weight | 2430 g |
