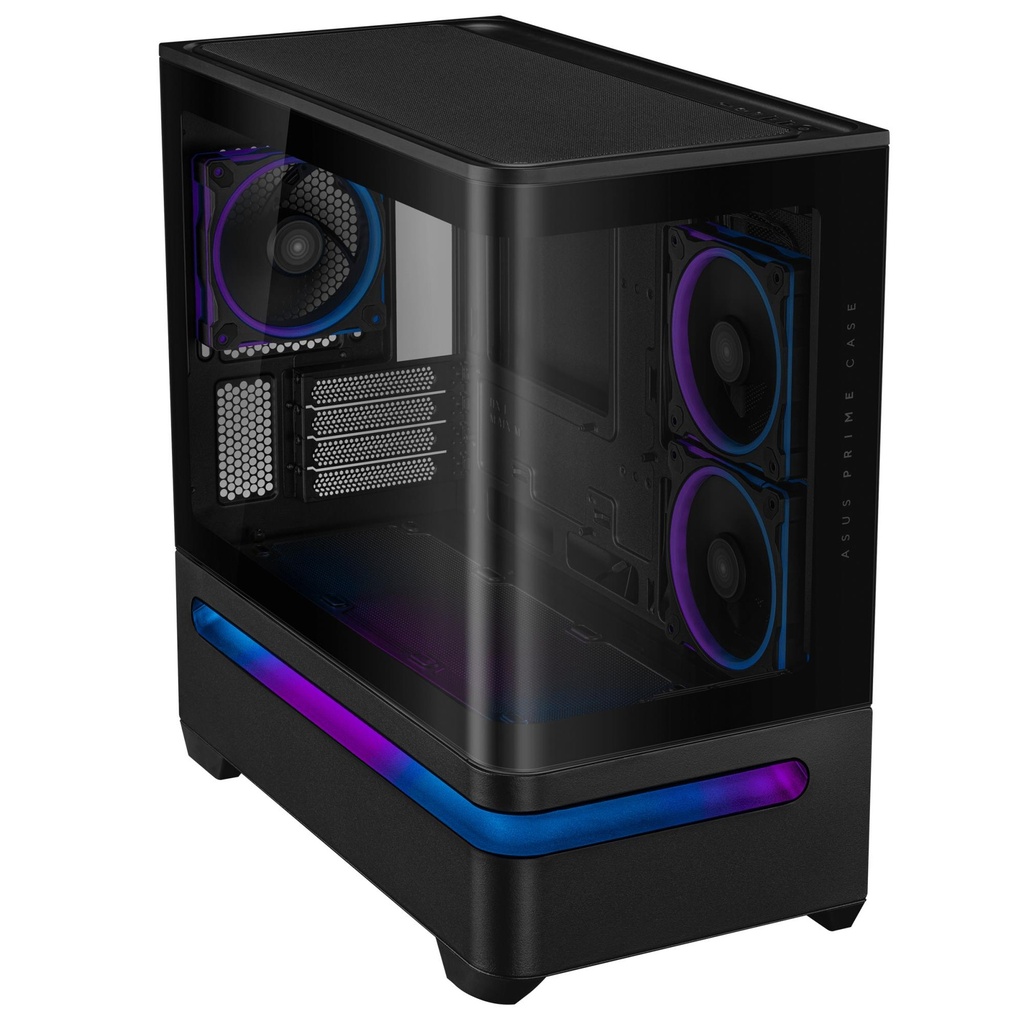

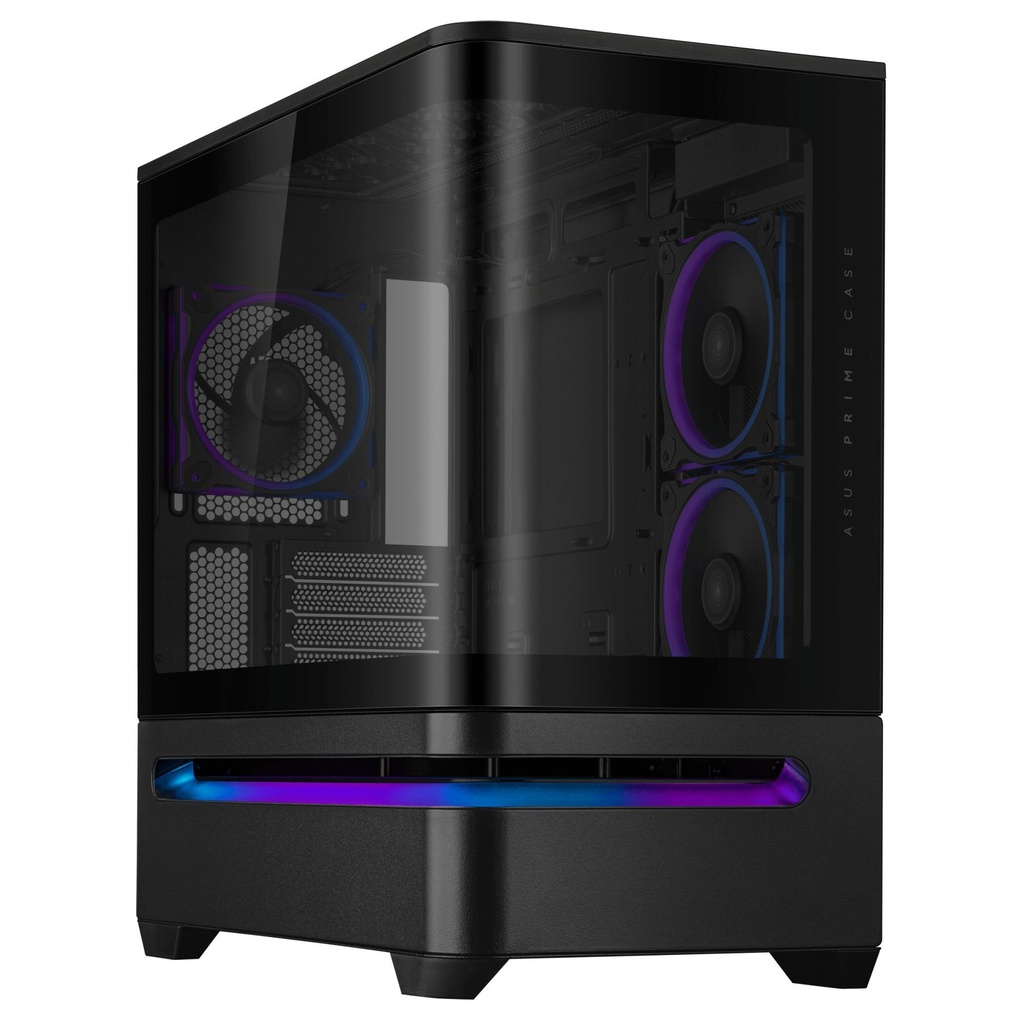

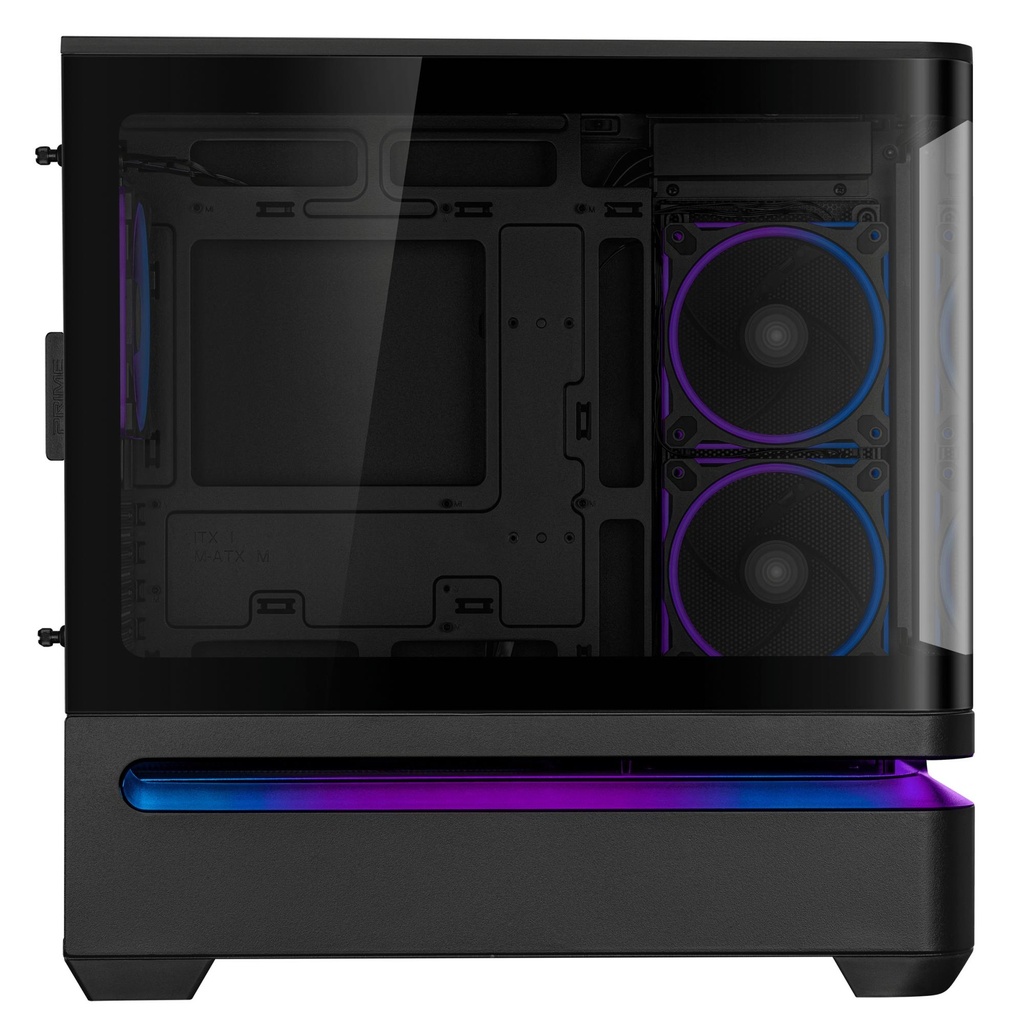

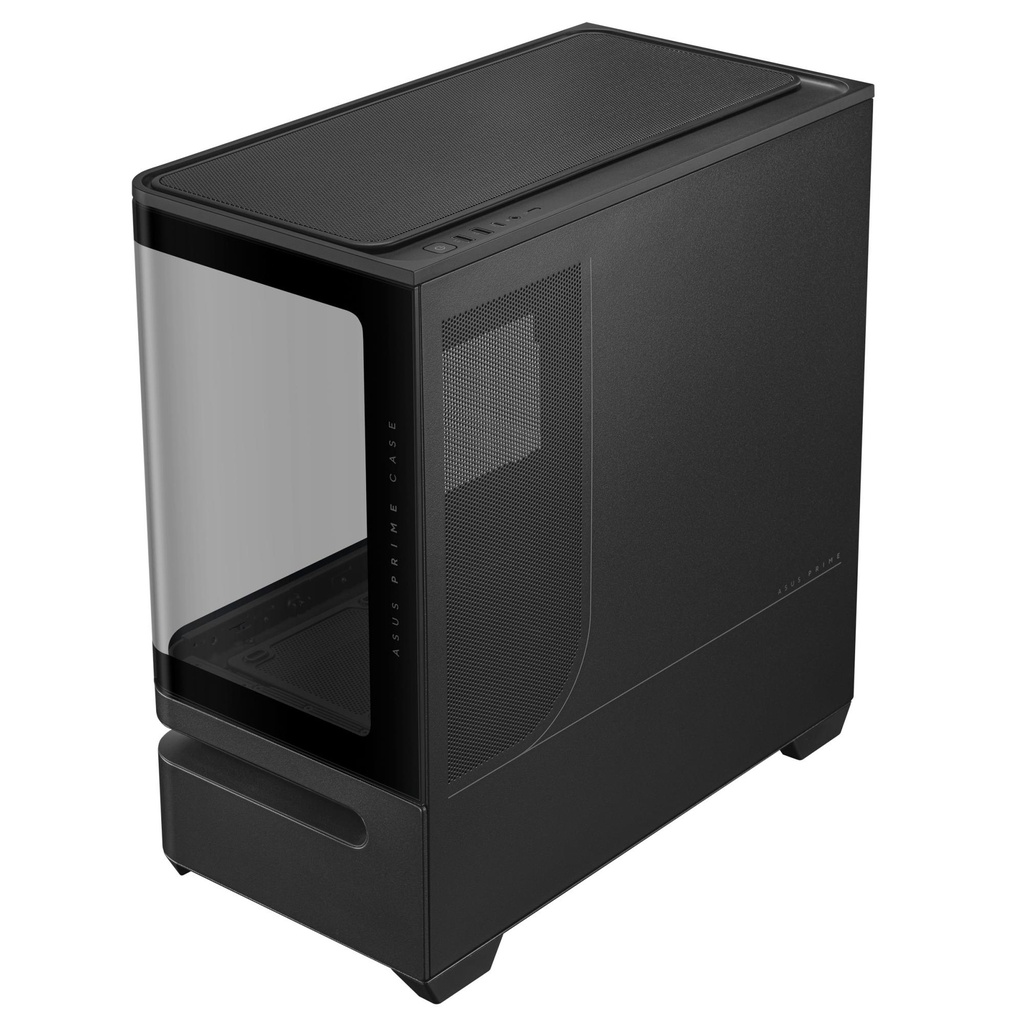

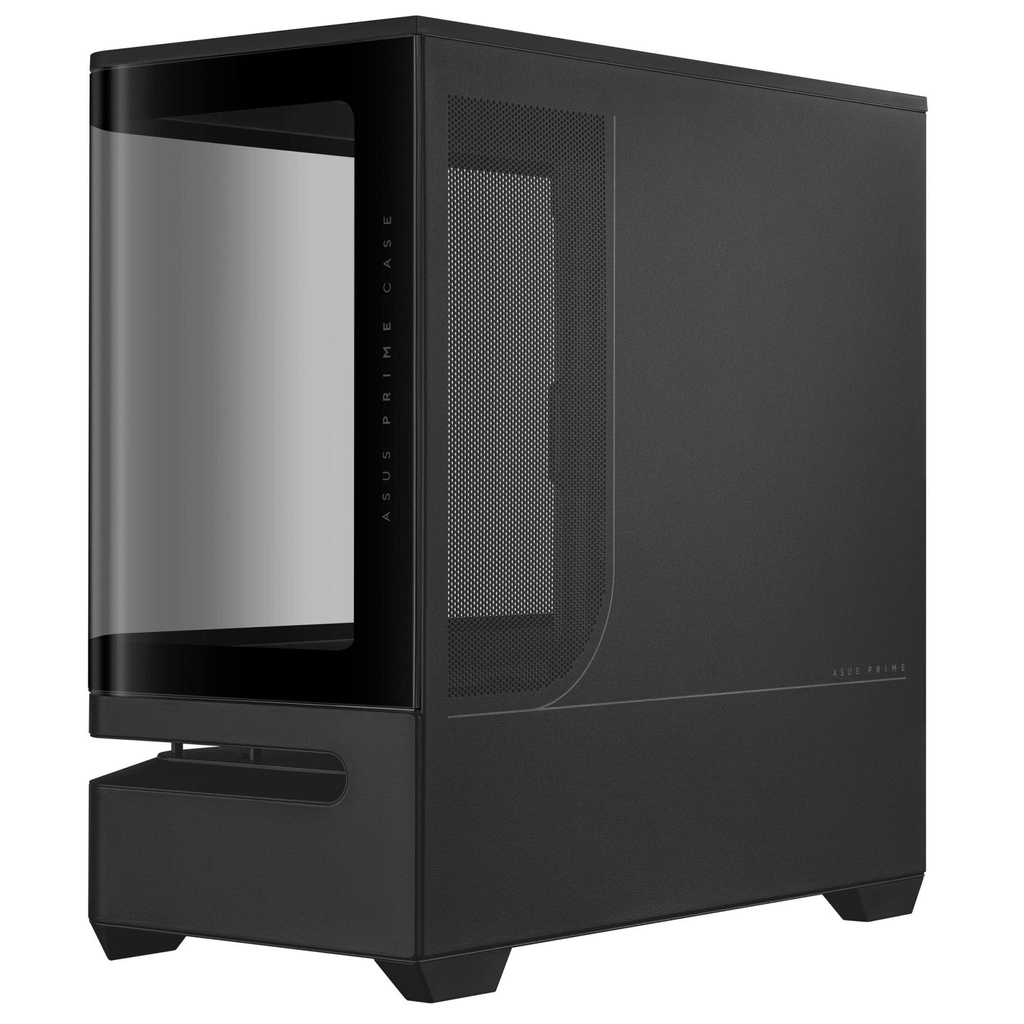

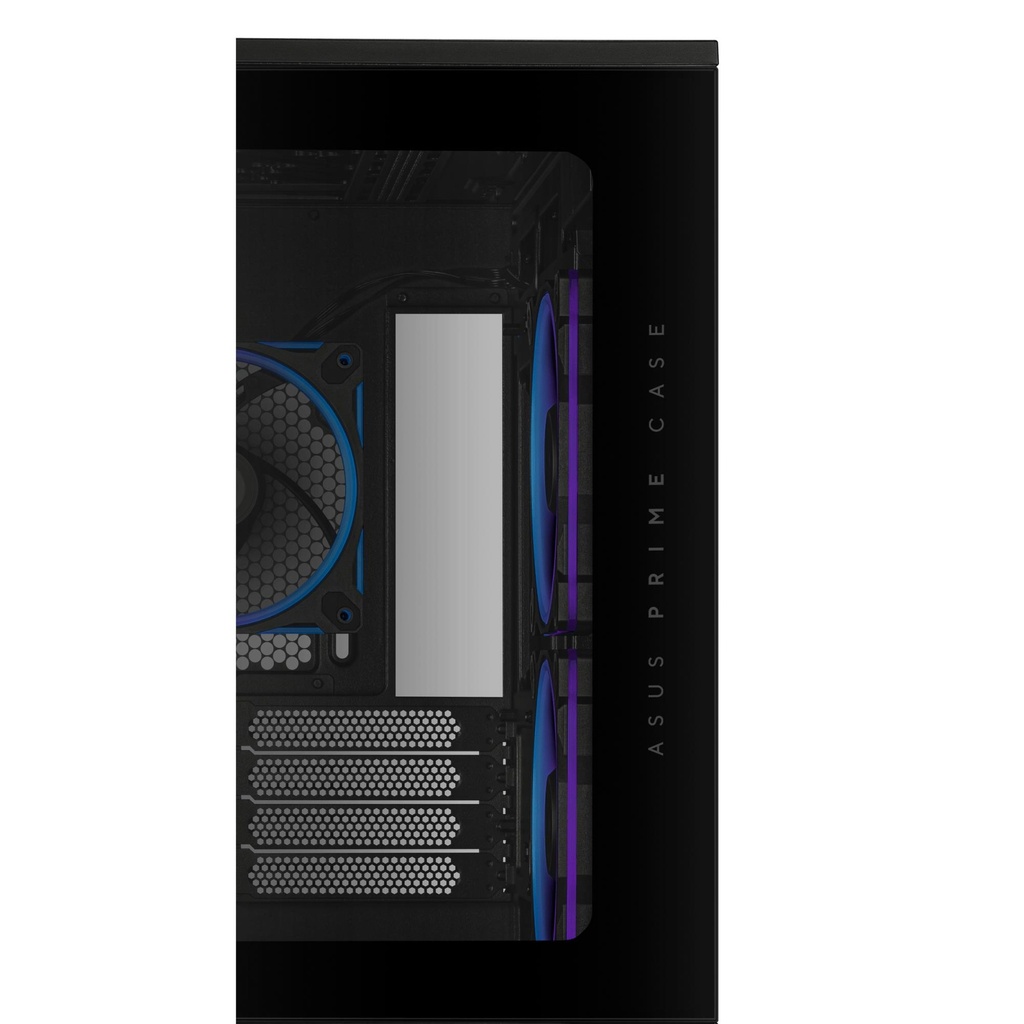

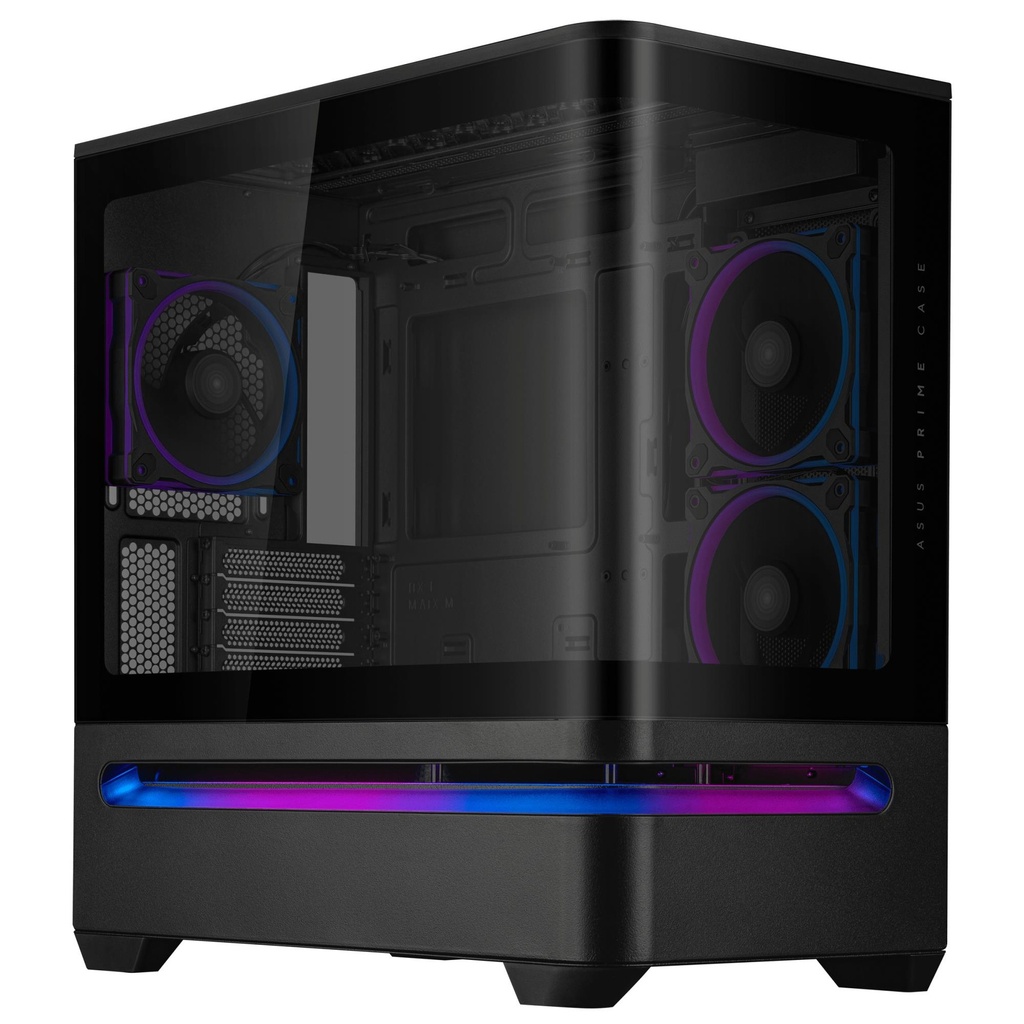

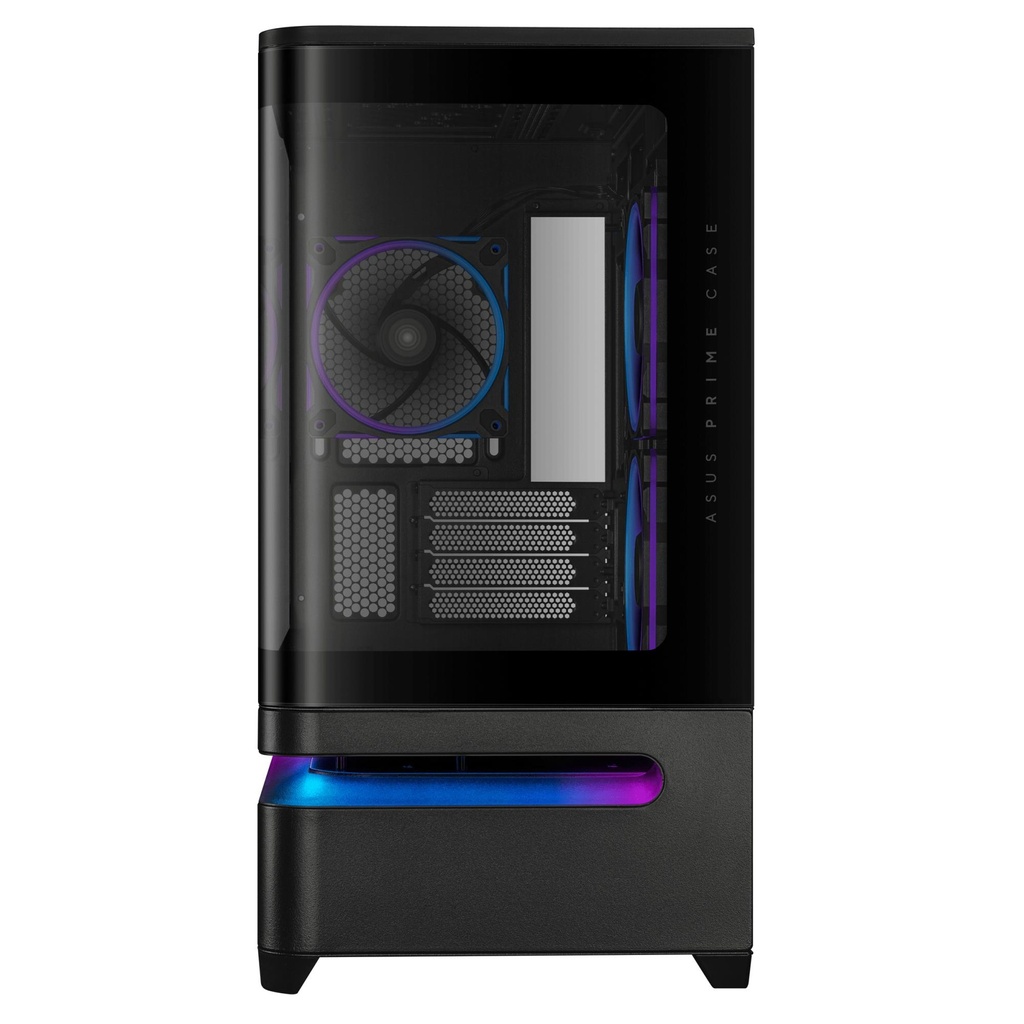

ASUS Prime AP202 ARGB
The ASUS Prime AP202 ARGB is a versatile panoramic mATX chassis designed to showcase system components with style. A curved tempered glass panel extends seamlessly from the front to the side, offering spectacular views of components from almost any angle. A patented slot vent provides optimal cooling for the graphics card, and an integrated ARGB light band works seamlessly with Aura Sync.
- Support GPU up to 420mm in length
- Curved tempered glass panel extends seamlessly from the front to the side, offering a panoramic view of the components from almost any angle
- Easy-detach rail and anti-drop mechanism make panel removal and reattachment safe and simple
- Patented slot vent provides optimal graphics card cooling
- Integrated ARGB light band works seamlessly with Aura Sync
General
| Unit Calculated Weight | 10.9 kg |
| Unit Calculated Volume | 0.08082 cubm |
| Units per Shipping Box | 1 |
| Summary | ASUS PRIME AP202 ARGB. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom. Side fans installed: 2x 120 mm, Rear fans installed: 1x 120 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 236 mm, Depth: 460 mm, Height: 441 mm |
| CnCode | 84733080 |
| Unit Box Height | 0.53 |
| Unit Box Length | 0.5 |
| Unit Box Width | 0.305 |
| Model name | Prime AP202 ARGB |
Design
| Anti-dust filter | Yes |
| Cable management | Yes |
| Form factor | Midi Tower |
| Illumination | Yes |
| Illumination colour | Multi |
| Maximum CPU cooler height | 175 mm |
| Maximum graphics card length | 420 mm |
| Maximum PSU length | 200 mm |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 2 |
| Number of expansion slots | 4 |
| Number of internal 3.5" bays | 2 |
| Product colour | Black |
| Side window | Yes |
| Supported motherboard form factors | micro ATX/Mini-ITX |
| Tempered glass panel(s) | Yes |
| Type | PC |
Power supply
| Power supply included | No |
| Power supply location | Bottom |
Ports & interfaces
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Cooling
| Front radiator installed | No |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Rear radiator installed | No |
| Side fans installed | 2x 120 mm |
| Top fans diameters supported | 120/140 mm |
| Top radiator installed | No |
| Top radiator sizes supported | 360 mm |
Storage
| Supported HDD sizes | 2.5/3.5 " |
Weight & dimensions
| Depth | 460 mm |
| Height | 441 mm |
| Weight | 9100 g |
| Width | 236 mm |
Packaging data
| Package depth | 308 mm |
| Package height | 526 mm |
| Package weight | 11300 g |
| Package width | 500 mm |
