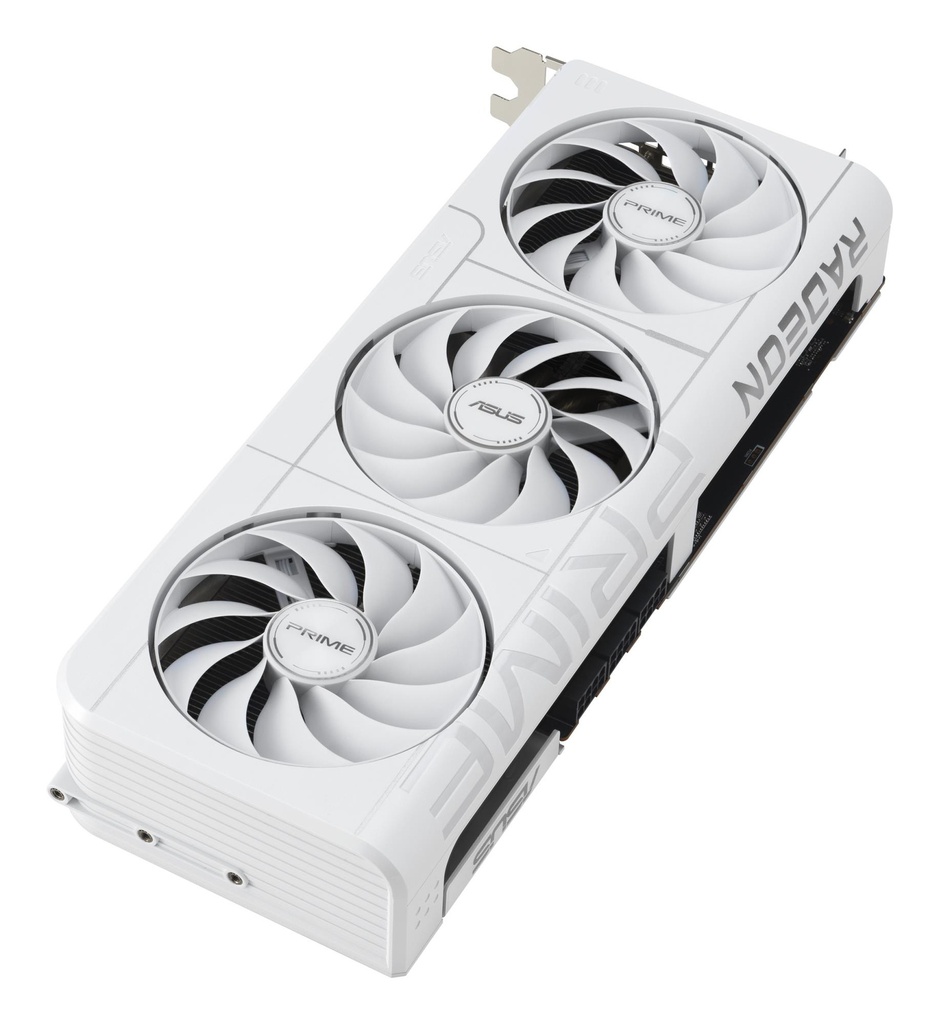

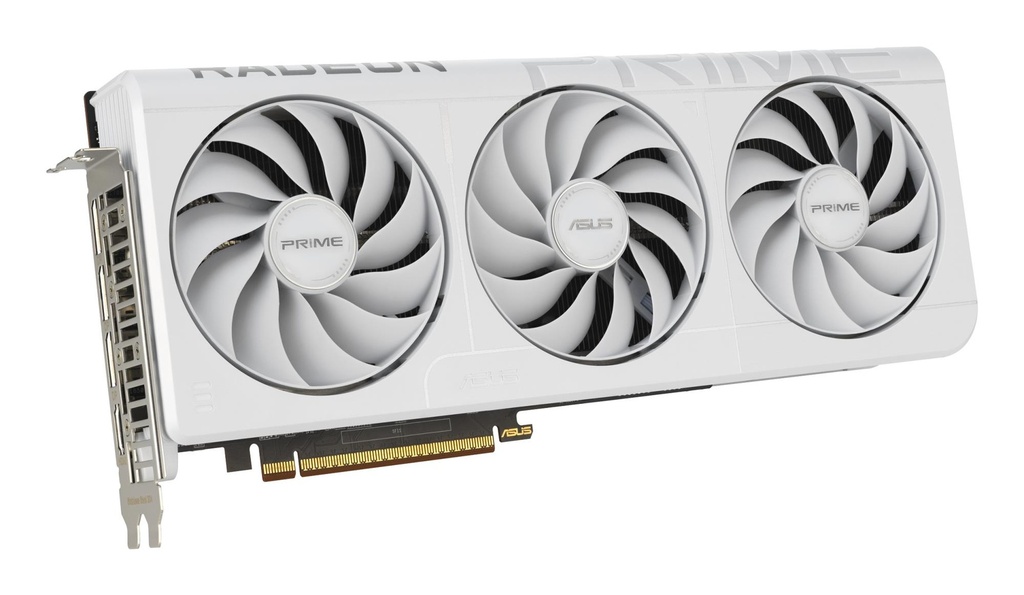

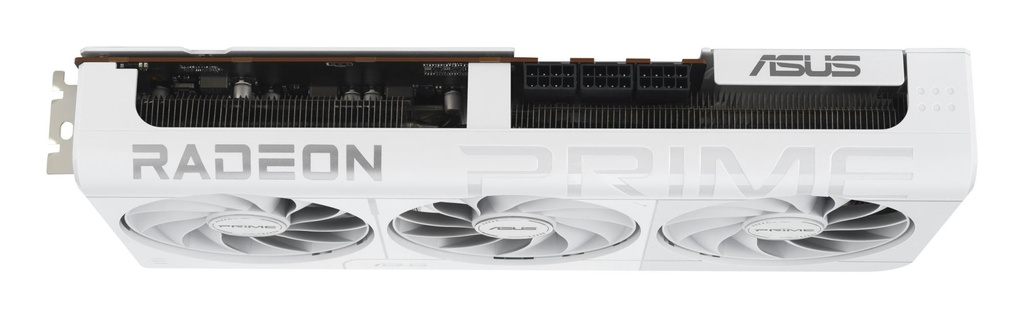

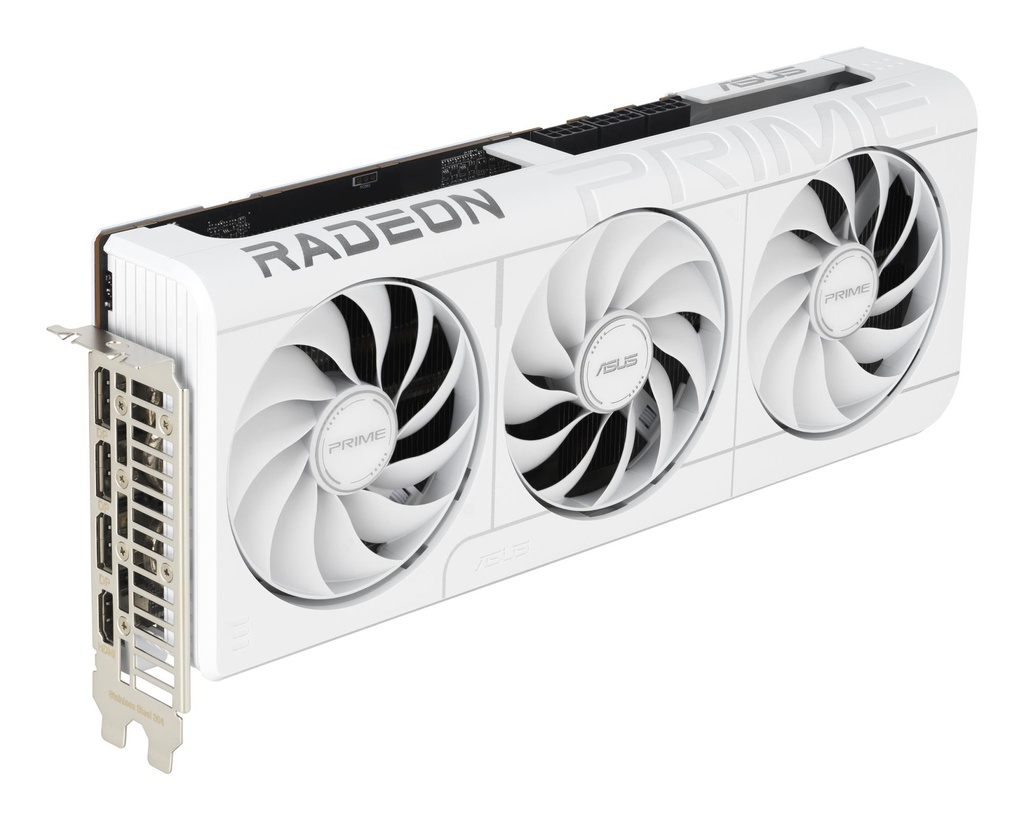

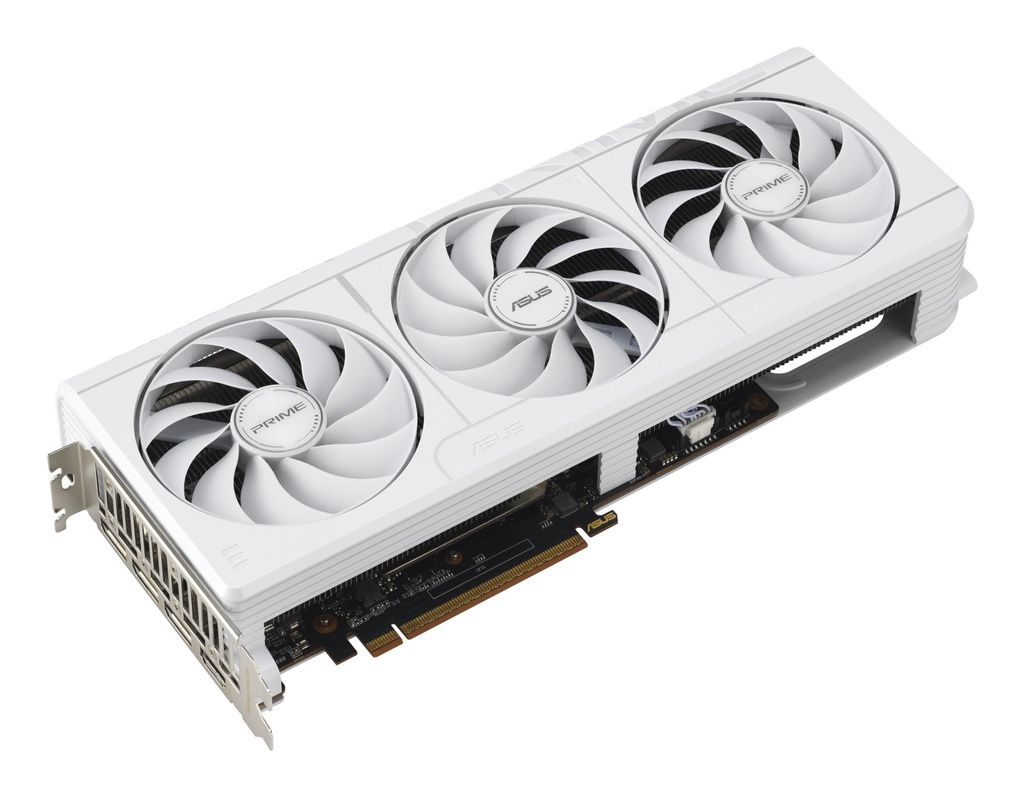

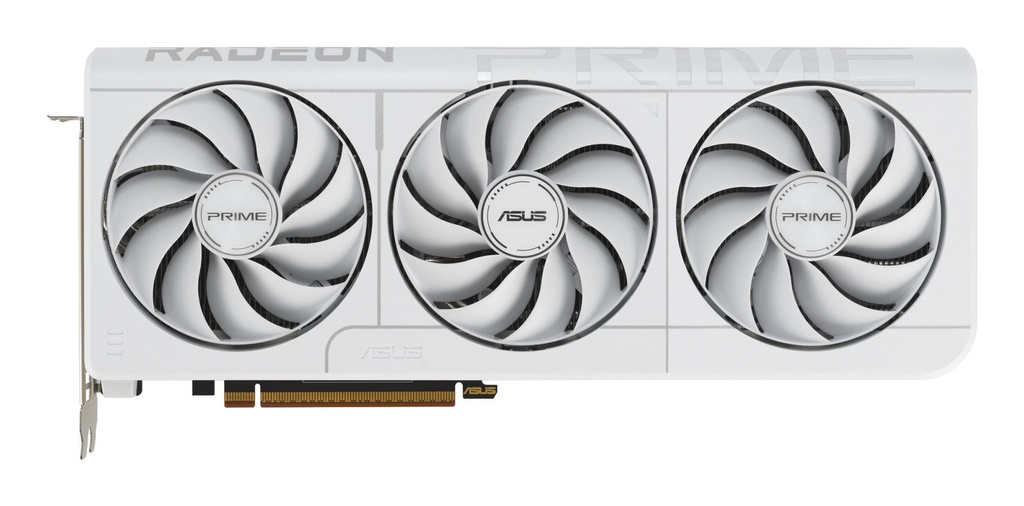

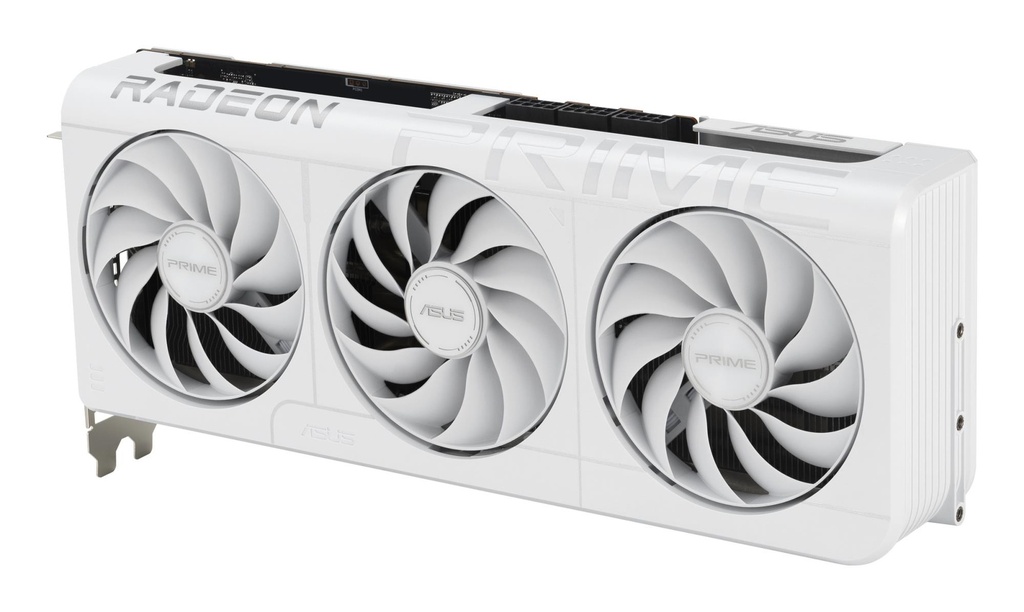

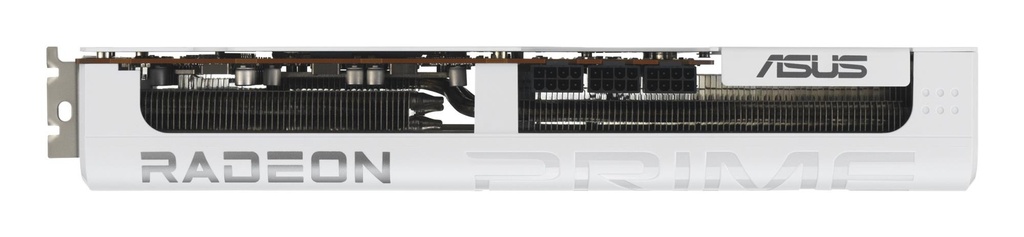

ASUS Prime Radeon™ RX 9070 XT White OC Edition 16GB GDDR6 boasts three axial-tech fans and a phase-change GPU thermal pad for supreme cooling.
General
| Unit Calculated Weight | 1.94 kg |
| Product Net Weight | 1.16 kg |
| Unit Calculated Volume | 0.009987 cubm |
| Units per Shipping Box | 5 |
| Units per Pallet | 0 |
| Summary | ASUS Prime -RX9070XT-O16G-WHITE. Graphics processor family: AMD, Graphics processor: Radeon RX 9070 XT, Processor frequency: 2460 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s) |
| CnCode | 84718000 |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.405 |
| Unit Box Width | 0.235 |
Processor
| CUDA | No |
| Graphics processor | Radeon RX 9070 XT |
| Graphics processor family | AMD |
| Maximum displays per videocard | 4 |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Processor boost clock speed | 3010 MHz |
| Processor boost clock speed (OC mode) | 3030 MHz |
| Processor frequency | 2460 MHz |
| Processor frequency (OC mode) | 2480 MHz |
| Stream processors | 4096 |
Memory
| Data transfer rate | 20 Gbit/s |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
Ports & interfaces
| DisplayPort version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| Interface type | PCI Express 5.0 |
Performance
| Dual Link DVI | No |
| HDCP | Yes |
| HDCP version | 2.3 |
| OpenGL version | 4.6 |
| Overclocked (OC) edition | Yes |
Design
| Cooling technology | ASUS Axial-tech |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Number of slots | 2.5 |
| Product colour | White |
Power
| Minimum system power supply | 750 W |
| Supplementary power connectors | 3x 8-pin |
System requirements
| Windows operating systems supported | Yes |
Weight & dimensions
| Depth | 50 mm |
| Height | 130 mm |
| Length | 312 mm |
| Weight | 1160 g |
Packaging data
| Package depth | 233 mm |
| Package height | 88.5 mm |
| Package type | Box |
| Package weight | 1750 g |
| Package width | 405 mm |
