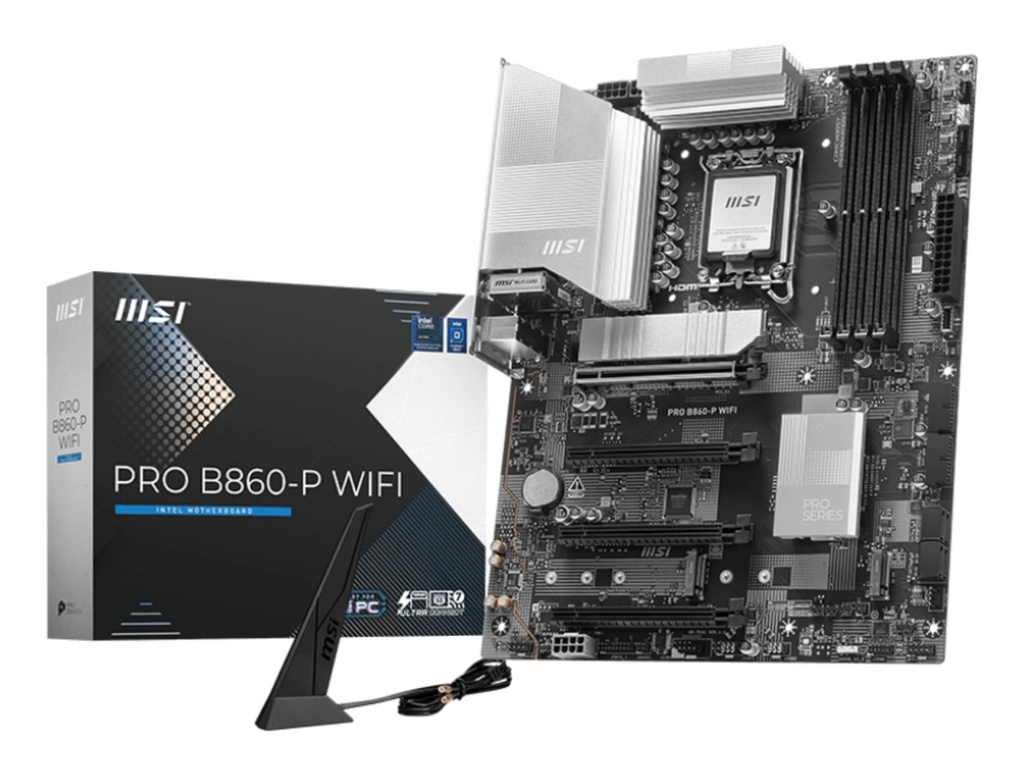

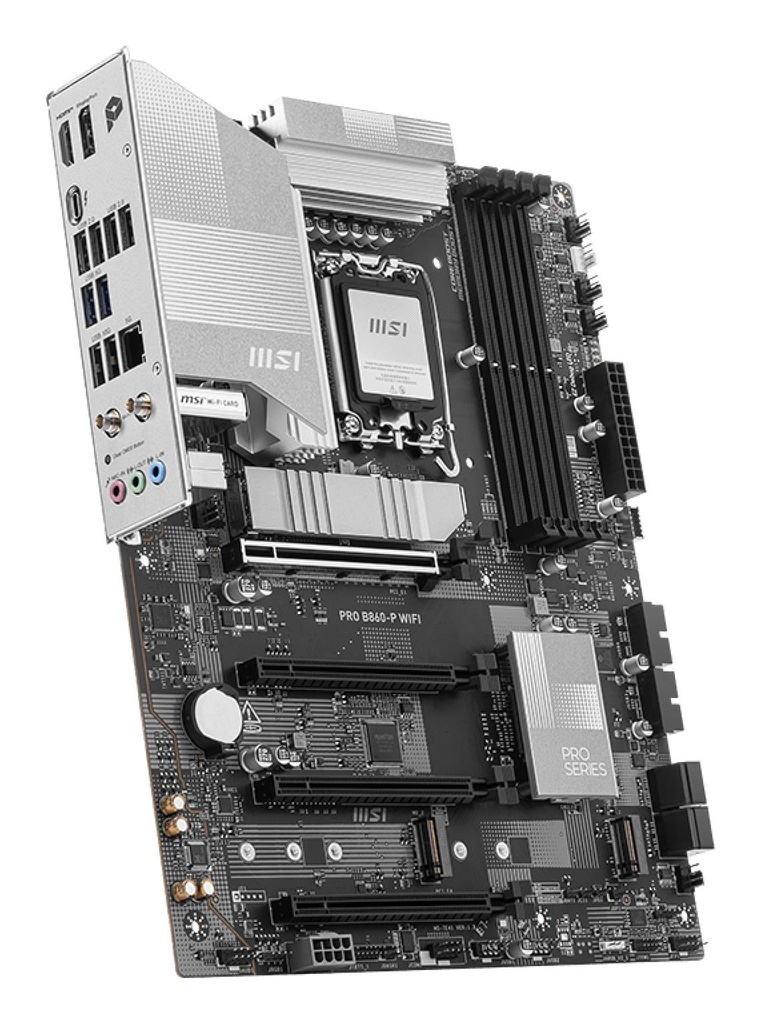

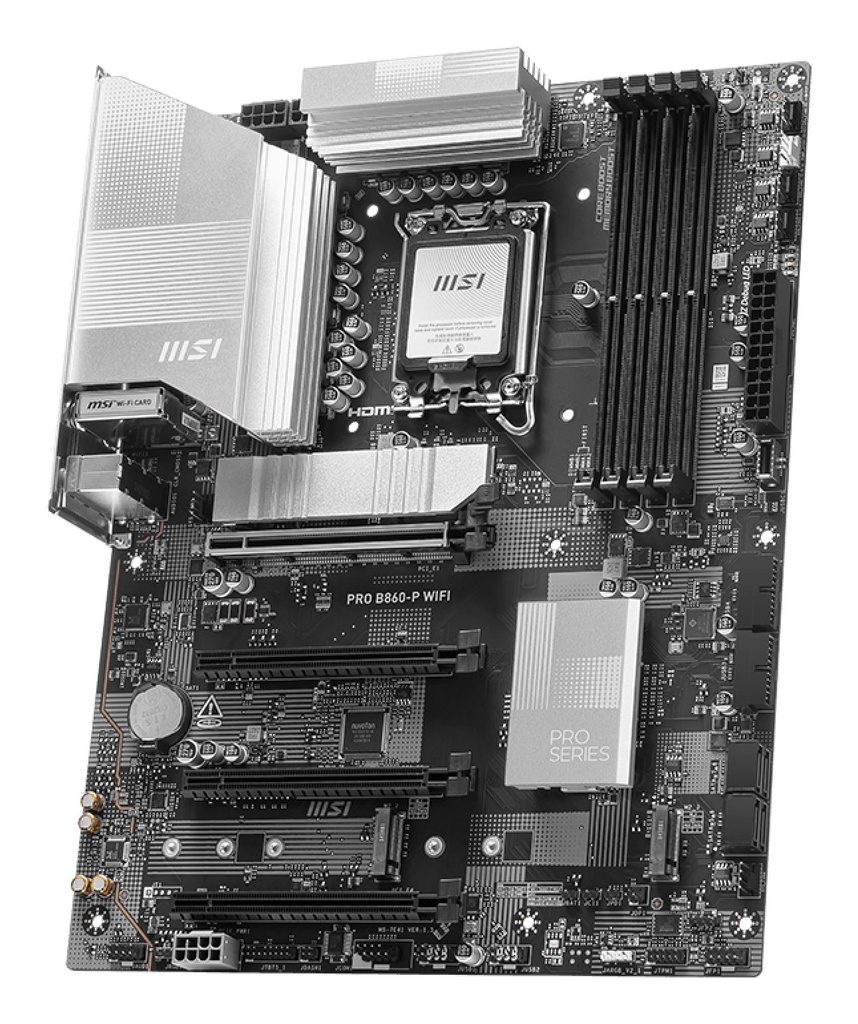

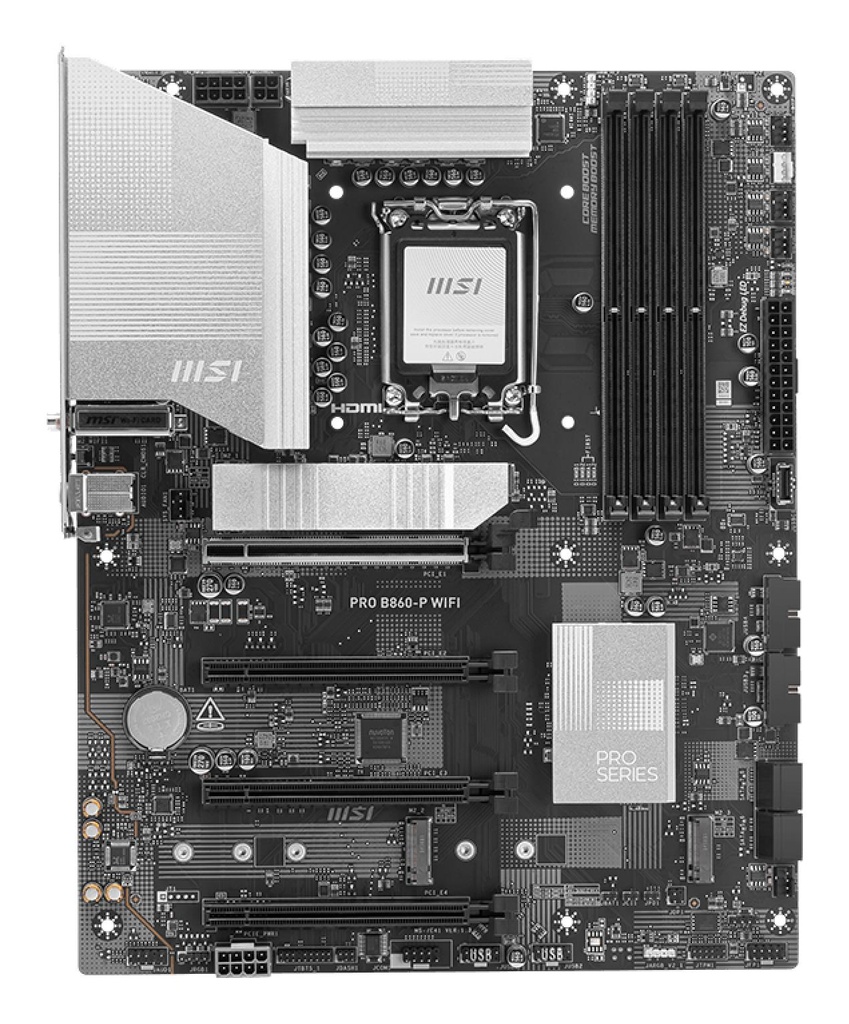

PRO B860-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
- Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
General
| Unit Calculated Weight | 1.69 kg |
| Unit Calculated Volume | 0.008299 cubm |
| Units per Shipping Box | 10 |
| Summary | MSI PRO B860-P WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.34 |
| Unit Box Width | 0.27 |
| Model | PRO B860-P WIFI |
Features
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | Intel B860 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Product colour | Black |
| Windows operating systems supported | Windows 11 x64 |
Processor
| Compatible processor series | Intel Core Ultra (Series 2) |
| Maximum internal memory supported by processor | 256 GB |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Supported processor sockets | LGA 1851 |
Memory
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 8800 MHz |
| Supported memory clock speeds | 4800/6400/8800 MHz |
| Supported memory types | DDR5-SDRAM |
Storage controllers
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,Micro SATA III |
| Supported storage drive types | HDD & SSD |
Internal I/O
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of RGB LED pin headers | 3 |
| Number of SATA III connectors | 4 |
| Number of water pump connectors | 1 |
| RGB LED pin header | Yes |
| Total number of SATA connectors | 4 |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |

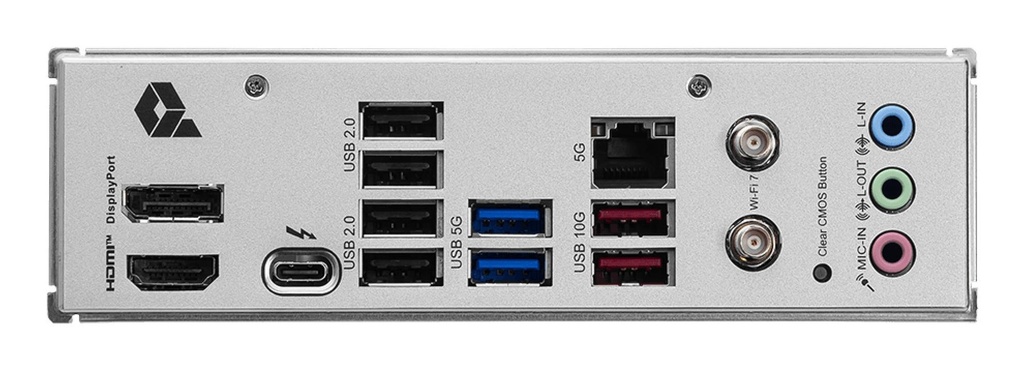

Rear panel I/O ports
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
Network
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ethernet interface type | 5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
Expansion slots
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
BIOS
| ACPI version | 6.5 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| System Management BIOS (SMBIOS) version | 3.7 |
Weight & dimensions
| Depth | 304.8 mm |
| Width | 243.84 mm |
