VIABLE, APPLIABLE, & RELIABLE
With up to 87% efficiency at 50% load and a 120mm low-noise fan featuring an intelligent curve, XPG PROBE is designed to deliver stable and reliable power to your system!
Enhanced Safety in Operation
Unlike most Bronze power supply units, XPG PROBE is ATX v2.52 compliant, enhancing overall reliability and providing safer operation for your current and future hardware.
Compact Size for Easy Installation
With a compact 140mm length, XPG PROBE allows for easier installation in mainstream PC cases and reduced cable clutter.

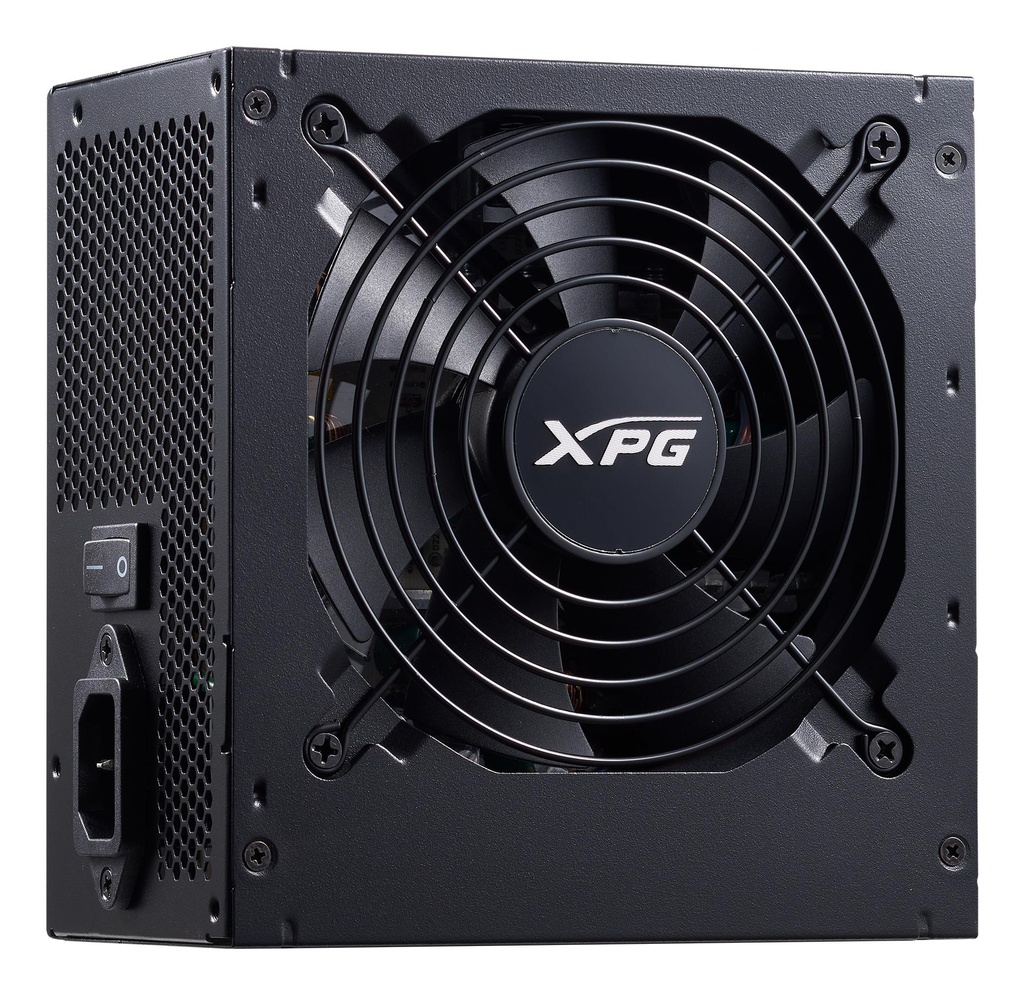

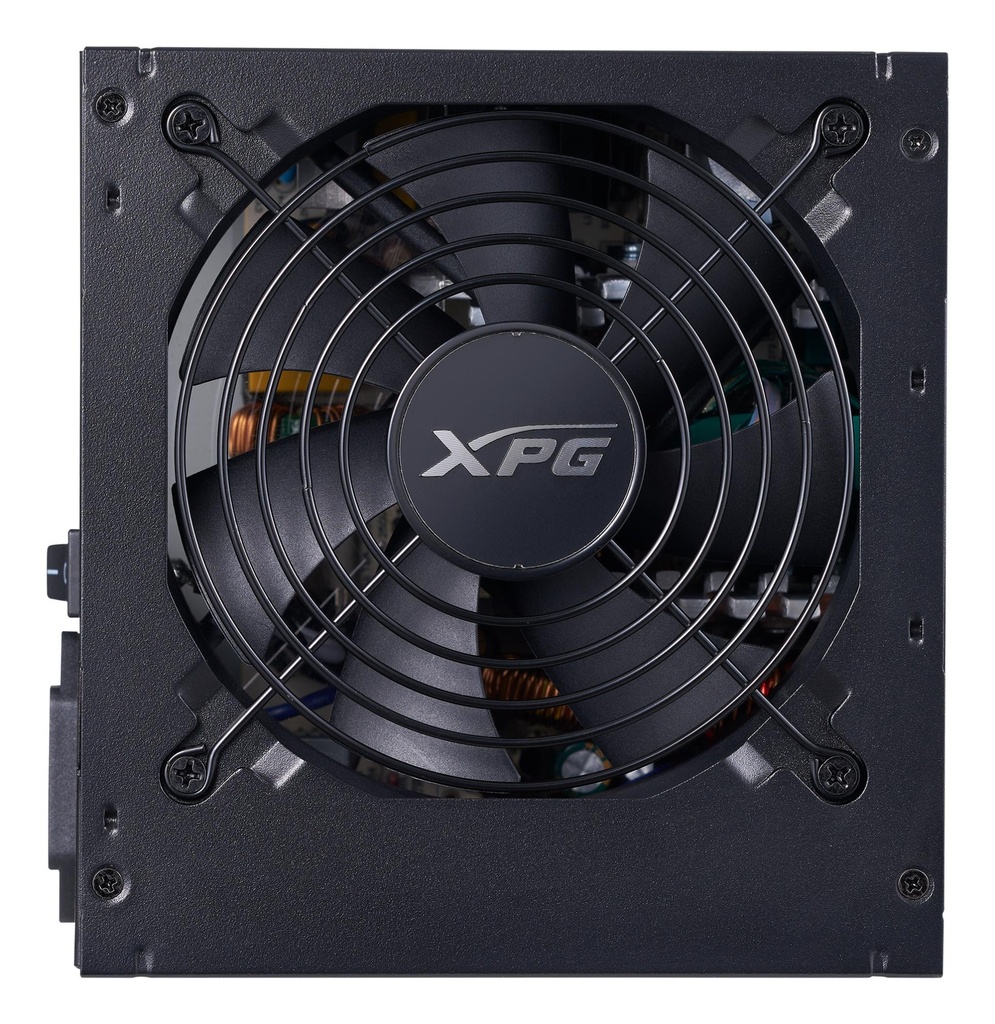

Intelligent Fan-Curve Design
The 120mm low-noise sleeve-bearing fan, featuring an intelligent curve design, keeps the power supply cool without excessive noise, thus reducing power consumption for cooling and improving overall energy efficiency.
Long, Reliable Lifespan
XPG PROBE comes with premium capacitors with a 105°C rating, offering greater reliability, premium efficiency, and a longer lifespan.
Six Industrial Safeguards
XPG PROBE offers 6 industrial-grade protections, shielding your system from over-power, over-voltage, surge and inrush, under-voltage, short circuits, and over temperature.
- Certified 80 PLUS Bronze efficiency
- Compact 140mm length design ensures easier installation with mainstream PC cases
- 6 industrial protections
- Intelligent Fan-Curve design
General
| Unit Calculated Weight | 2.03 kg |
| Unit Calculated Volume | 0.006581 cubm |
| Units per Shipping Box | 6 |
| Units per Pallet | 0 |
| Model name | PROBE BRONZE Power Supply |
| Summary | XPG PROBE 600 BRONZE Power Supply. Total power: 600 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM |
| Unit Box Height | 0.195 |
| Unit Box Length | 0.265 |
| Unit Box Width | 0.1 |
Power
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 10 A |
| Max output current (+12V) | 46 A |
| Max output current (+3.3V) | 19 A |
| Max output current (+5V) | 17 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under voltage |
| Total power | 600 W |
Ports & interfaces
| ATX Power connector (24-pin) | Yes |
| Cabling type | Non-Modular |
| EPS power connector (4+4 pin) | Yes |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
Performance
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.52 |
| Bearing technology | Sleeve |
| Mean time between failures (MTBF) | 100000 h |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
Design
| Cooling type | Active |
| Fan diameter | 120 mm |
| Fan speed | 2160 - 2640 RPM |
| Number of fans | 1 fan(s) |
| Product colour | Black |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Certification | CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM |
Weight & dimensions
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1480.1 g |
| Width | 150 mm |
