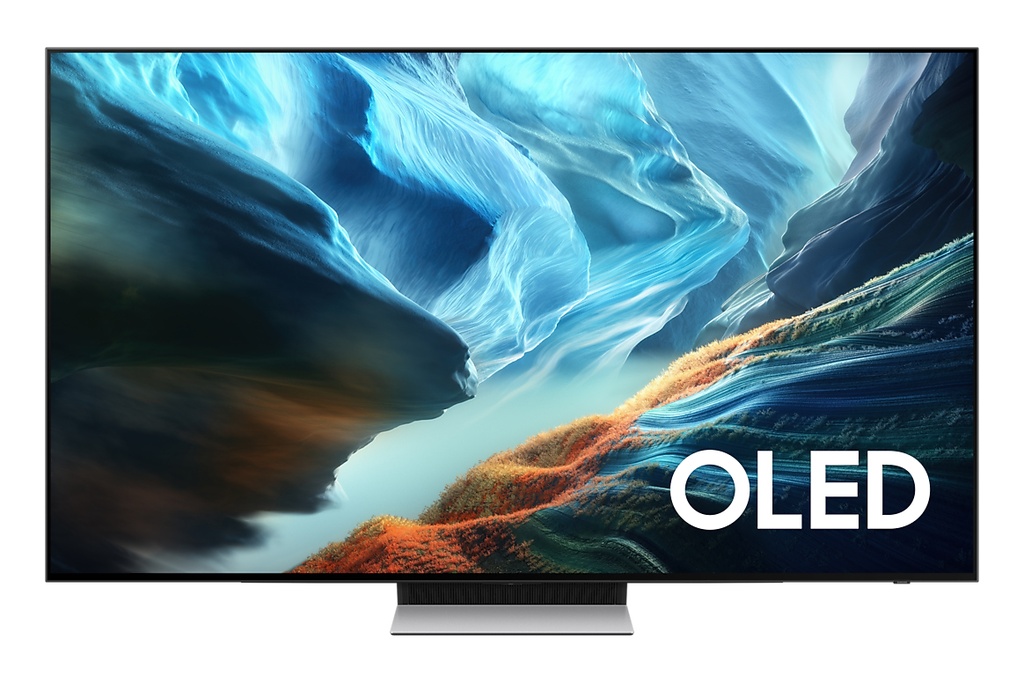

SAMSUNG 65 " 4K Ultra HD 3840 x 2160 pixels Flat 16:9 OLED QE65S90HAEXXH
General
| Summary | Samsung QE65S90HAE. Display diagonal: 165.1 cm (65"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: OLED, Screen shape: Flat. Smart TV. Motion interpolation technology: Auto Motion Plus, Native aspect ratio: 16:9. Digital signal format system: DVB-S2, DVB-T2, DVB-C. Wi-Fi, Ethernet LAN. Product colour: Black |
| Unit Box Height | 0.95 |
| Unit Box Length | 1.62 |
| Unit Box Width | 0.16 |
| Name | TV SET LCD 65" OLED 4K/QE65S90HAEXXH SAMSUNG |
| Model name | QE65S90HAE |
Display
| Viewable size diagonal | 1651 mm |
| Anti-glare screen | Yes |
| Display diagonal (metric) | 165.1 cm |
| Display resolution | 3840 x 2160 pixels |
| Display refresh rates supported | 165 Hz |
| Motion interpolation technology | Auto Motion Plus |
| Native refresh rate | 165 Hz |
| Supported graphics resolutions | 3840 x 2160 |
| Native aspect ratio | 16:9 |
| Screen shape | Flat |
| Display technology | OLED |
| HD type | 4K Ultra HD |
| Display diagonal | 65 " |
Smart TV
| Far-field voice interaction | Yes |
| TV initiate mirroring | Yes |
| Hybrid Broadcast Broadband TV (HbbTV) version | 2.0.4 |
| Hybrid Broadcast Broadband TV (HbbTV) | Yes |
| Sound mirroring | Yes |
| Screen mirroring | Yes |
| Operating system version | Tizen Smart TV |
| Operating system installed | Tizen |
| Internet TV | Yes |
| Smart TV | Yes |
Ports & interfaces
| AC (power) in | Yes |
| Consumer Electronics Control (CEC) | Anynet+ |
| Common interface Plus (CI+) version | 1.4 |
| Common interface Plus (CI+) | Yes |
| Common interface (CI) | Yes |
| RF ports quantity | 1 |
| Digital audio optical out | 1 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio Return Channel (ARC) | Yes |
| HDMI ports quantity | 4 |
| HDMI Quick Switch | Yes |
Audio
| Enhanced Audio Return Channel (eARC) | Yes |
| Active voice amplifier (AVA) | Yes |
| Adaptive sound | Yes |
| Audio pre-selection descriptor | Yes |
| Audio decoders | Dolby Atmos |
| Built-in subwoofer | Yes |
| Audio output channels | 2.1 channels |
| RMS rated power | 40 W |
| Number of speakers | 2.1 |
Network
| Browsing | Yes |
| Web browser | Yes |
| Ethernet LAN | Yes |
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
Design
| Stand colour | Silver |
| Bezel type | 4 Bezel-less |
| Frame | Yes |
| Frameless design | Yes |
| Rollable display | No |
| Panel mounting interface | 300 x 200 mm |
| VESA mounting | Yes |
| Colour name | Graphite Black |
| Product colour | Black |
Performance
| 4K Ultra HD upscaling | Yes |
| Digital butler | Yes |
| Multi View | Yes |
| SmartThings app support | Yes |
| Video upscaling | Yes |
| NVIDIA G-SYNC | Yes |
| AMD FreeSync | Yes |
| AMD FreeSync type | FreeSync Premium Pro |
| Multi-screen | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Picture processor | NQ4 AI Gen3 |
| Digital Clean View | Yes |
| TV key support | Yes |
| AI Upscale | Yes |
| Eco sensor | Yes |
| Teletext standards | EPG |
| Game mode | Yes |
TV tuner
| Supported TV bands | DTV |
| Channels quantity | 2.1 channels |
| Digital signal format system | DVB-C/DVB-S2/DVB-T2 |
| Tuner type | Analog & digital |
Management features
| Works with Samsung Bixby | Yes |
| Auto power off | Yes |
| Number of OSD languages | 27 |
| On Screen Display (OSD) | Yes |
| Electronic Programme Guide (EPG) | Yes |
| Voice guide | Yes |
| Voice control | Yes |
| Control type | Remote |
Power
| Energy efficiency scale | A to G |
| Energy saving mode | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 220 - 240 V |
| Energy consumption (HDR) per 1000 hours | 198 kWh |
| Energy consumption (SDR) per 1000 hours | 85 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | E |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 85 W |
Weight & dimensions
| Stand depth | 265.2 mm |
| Stand width | 366 mm |
| Weight (without stand) | 19100 g |
| Height (without stand) | 831.7 mm |
| Depth (without stand) | 39.9 mm |
| Width (without stand) | 1444.3 mm |
| Weight (with stand) | 20400 g |
| Height (with stand) | 896.7 mm |
| Depth (with stand) | 265.2 mm |
| Width (with stand) | 1444.3 mm |
Packaging data
| Package weight | 28000 g |
| Package height | 950 mm |
| Package depth | 160 mm |
| Package width | 1617 mm |
Packaging content
| Cables included | AC |
| Desktop stand | Yes |
Other features
| Energy efficiency class (legacy scale) | E |
| Special features | NQ4 Gen3 AI Processor; AI 4K Pro Upscaling; OLED HDR+; Motion Smoother 165Hz; Dolby Atmos; Object Following Sound Lite; Q-Symphony; FreeSync Premium Pro; G-SYNC |
Energy Efficiency
| EPREL Registration Number | 2571477 |
| EPREL Version Number | 1 |
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2571477/fiches?language=EN |
| Energy efficiency class | E |
ELKO Verified Logistics Data
| Unit Height | 95 cm |
| Unit Depth | 162 cm |
| Unit Width | 16 cm |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Product Net Weight | 20.4 kg |
| Unit Calculated Weight | 28 kg |
ELKO Internal Logistics Data
| Shipping Box Width | 16 cm |
| Shipping Box Depth | 162 cm |
| Shipping Box Height | 95 cm |
| Shipping Box Weight | 28 kg |
| Unit Calculated Volume | 0.2462 cubm |
| Battery | Rechargeable |
