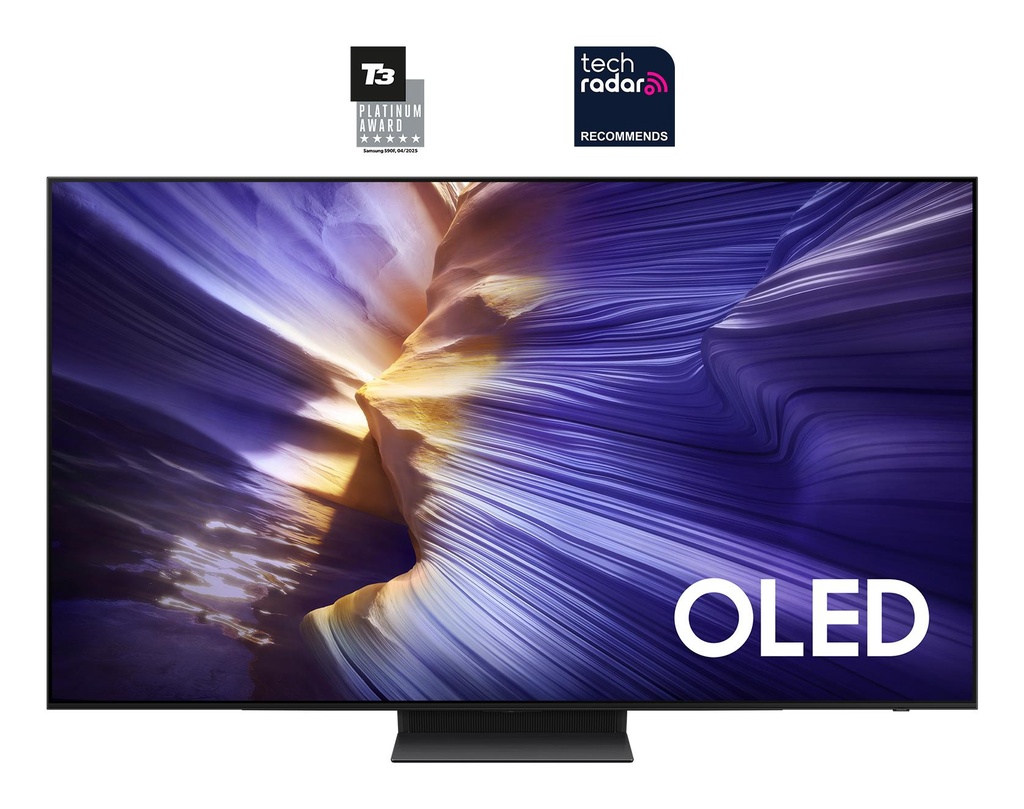

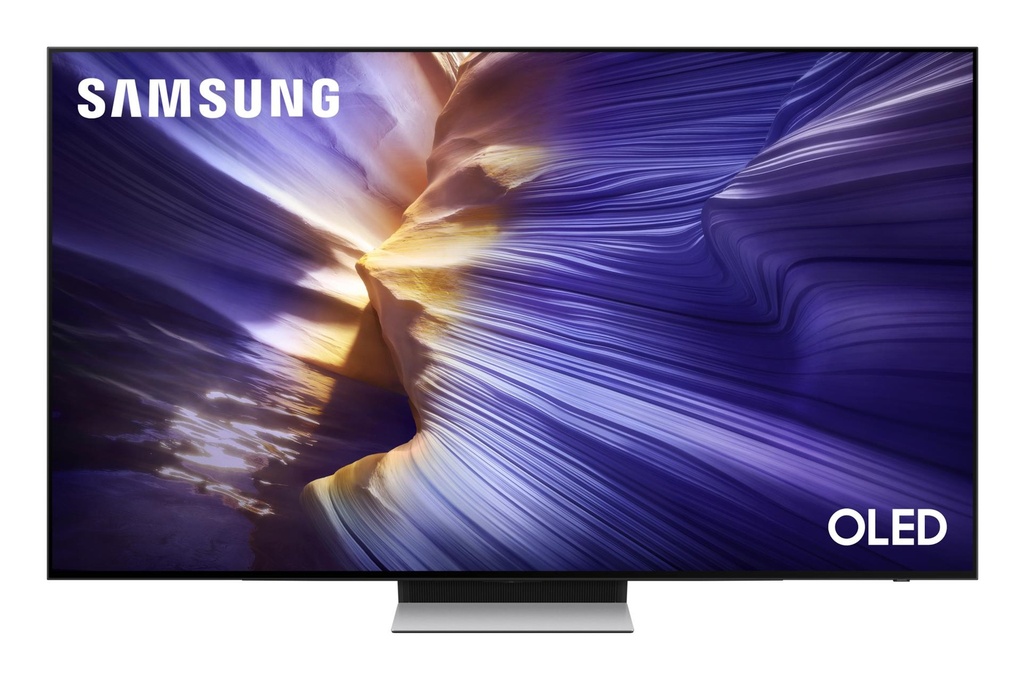

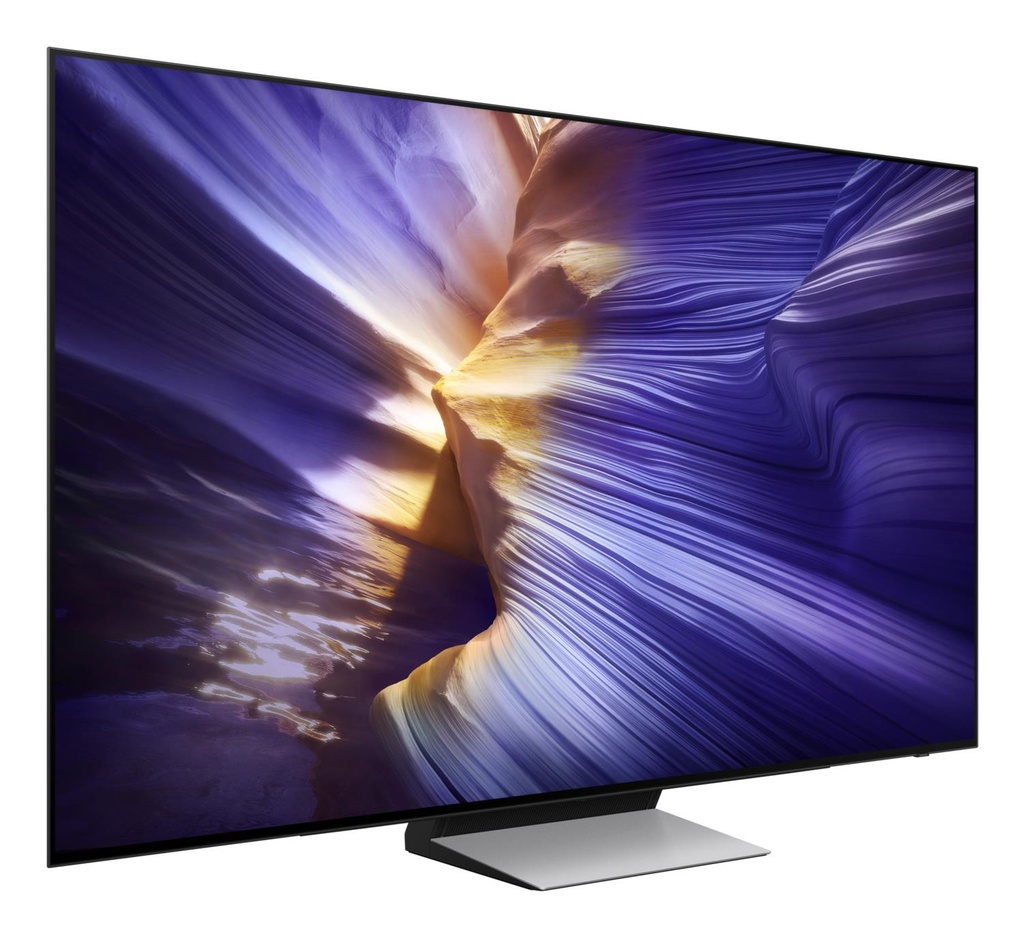

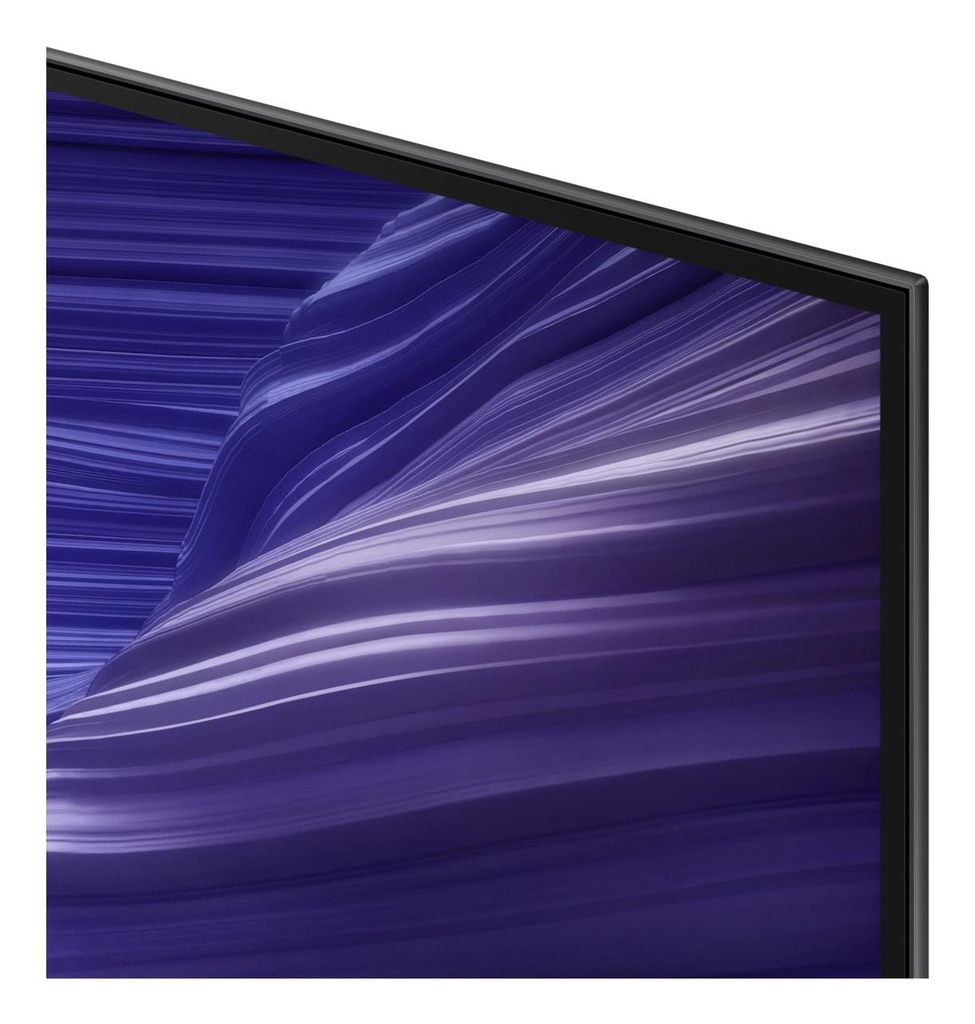

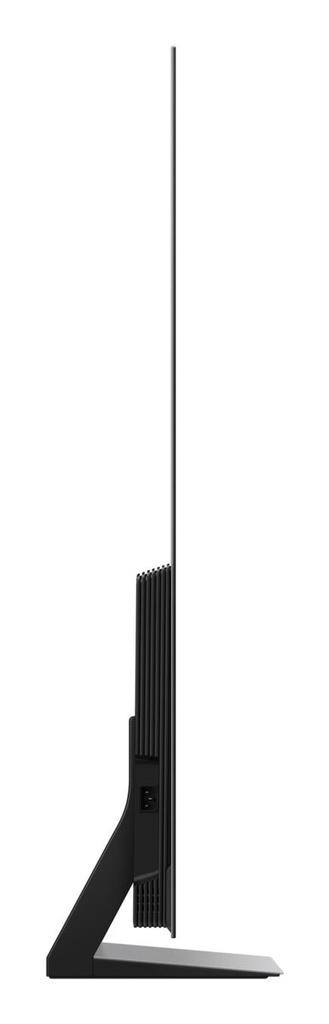

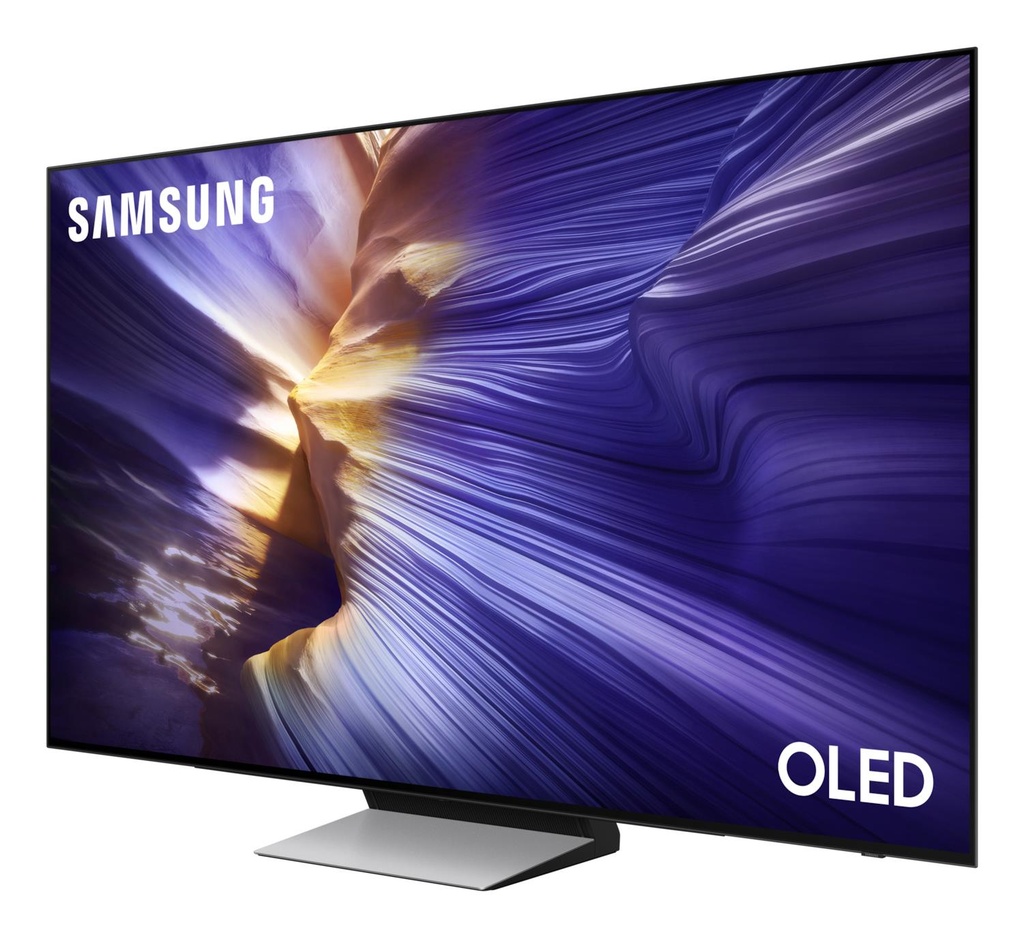

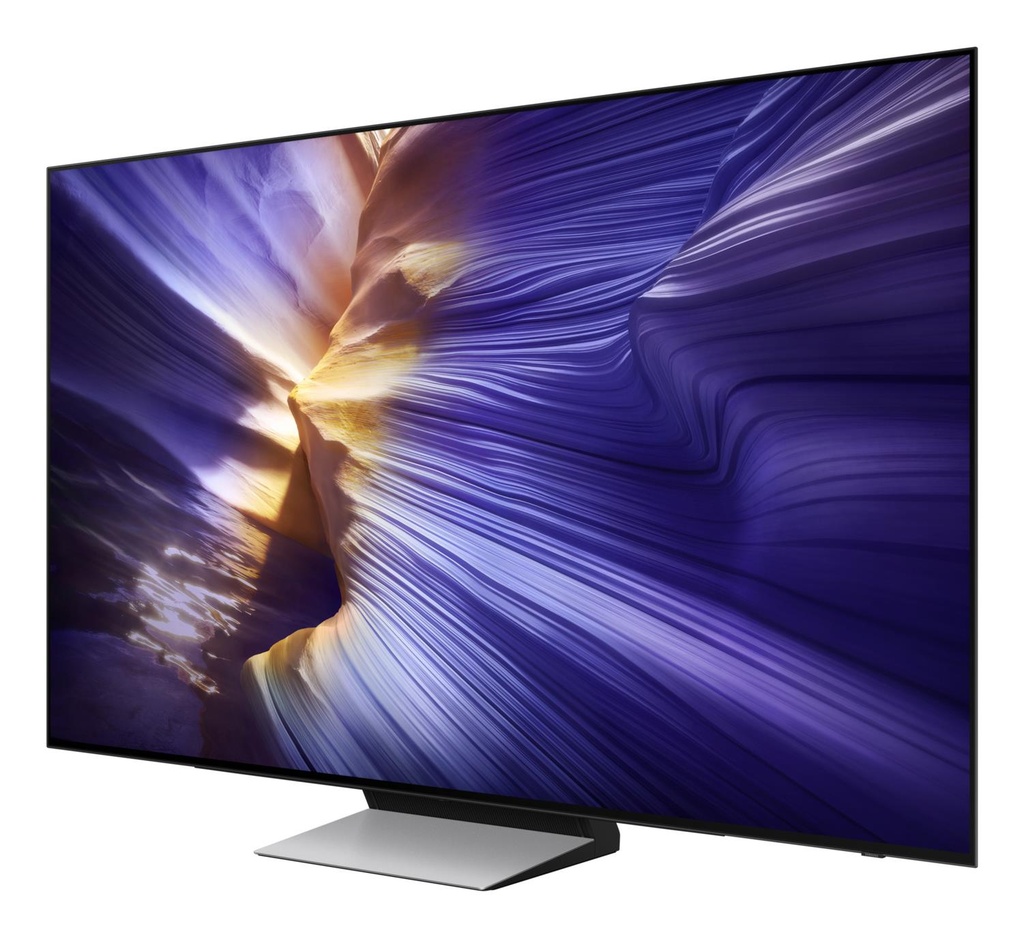

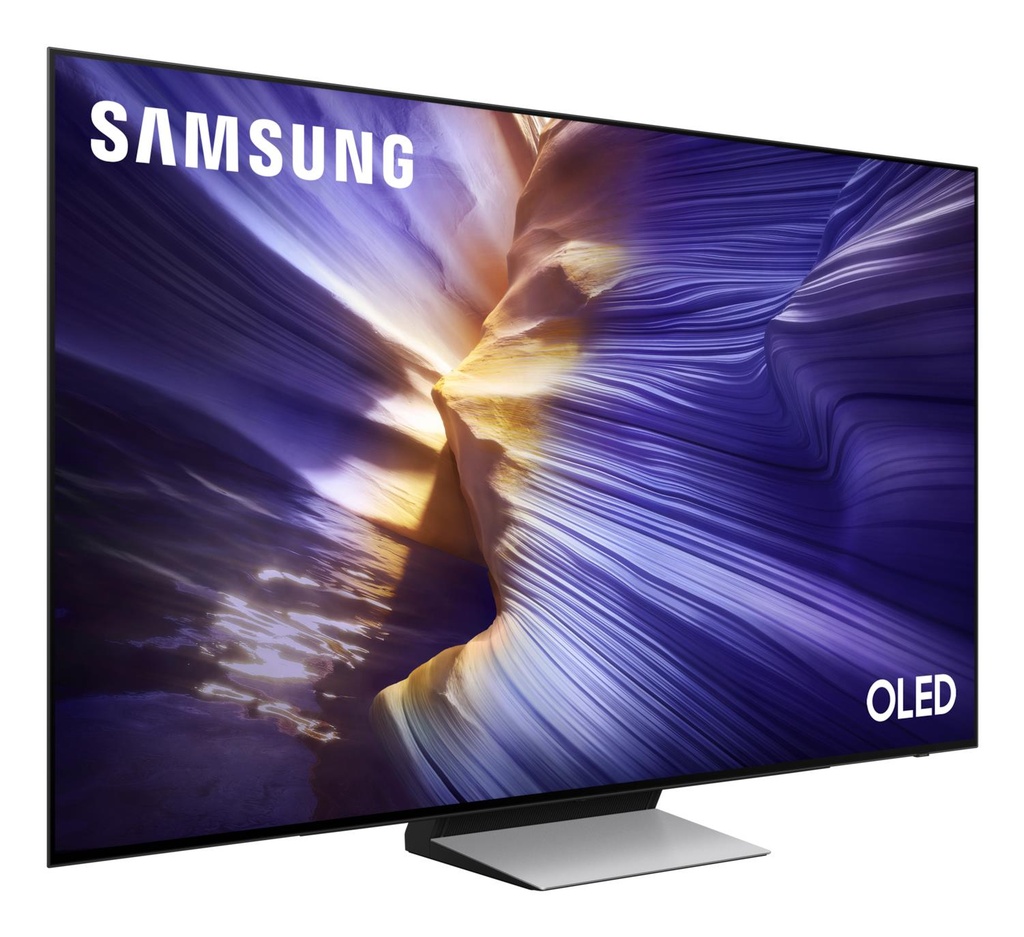

SAMSUNG 83 " 4K Ultra HD 3840 x 2160 pixels Flat 16:9 OLED QE83S90FAEXXH
General
| Unit Calculated Weight | 40 kg |
| Product Net Weight | 39.4 kg |
| Unit Calculated Volume | 0.4759 cubm |
| Summary | Samsung S90F QE83S90FAE. Display diagonal: 2.11 m (83"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: OLED, Screen shape: Flat. Smart TV. Native aspect ratio: 16:9. Digital signal format system: DVB-C, DVB-S2, DVB-T2. Wi-Fi, Ethernet LAN. Product colour: Black |
| Unit Box Height | 1.24 |
| Unit Box Length | 2.02 |
| Unit Box Width | 0.19 |
| Model name | QE83S90FAE |
| Model | QE83S90FAE |
Display
| Anti-glare screen | Yes |
| Display diagonal | 83 " |
| Display diagonal (metric) | 210.8 cm |
| Display refresh rates supported | 120 Hz/144 Hz |
| Display resolution | 3840 x 2160 pixels |
| Display technology | OLED |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Native refresh rate | 120 Hz |
| Screen shape | Flat |
Smart TV
| Apple AirPlay 2 support | Yes |
| Hybrid Broadcast Broadband TV (HbbTV) | Yes |
| Hybrid Broadcast Broadband TV (HbbTV) version | 2.0.4 |
| Internet TV | Yes |
| Operating system installed | Tizen |
| Smart modes | Filmmaker/Game |
| Smart TV | Yes |
| Sound mirroring | Yes |
| TV initiate mirroring | Yes |
Ports & interfaces
| Common interface (CI) | No |
| Common interface Plus (CI+) | Yes |
| Common interface Plus (CI+) version | 1.4 |
| Consumer Electronics Control (CEC) | Anynet+ |
| Digital audio optical out | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 4 |
| PC in (D-Sub) | No |
| RF ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
Audio
| Audio decoders | Dolby Atmos |
| Audio output channels | 2.1 channels |
| Audio pre-selection descriptor | Yes |
| Built-in subwoofer | Yes |
| Enhanced Audio Return Channel (eARC) | Yes |
| RMS rated power | 40 W |
Network
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Browsing | Yes |
| Ethernet LAN | Yes |
| Web browser | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
Design
| Bezel type | 4 Bezel-less |
| Introduction year | 2025 |
| Panel mounting interface | 400 x 300 mm |
| Product colour | Black |
| Stand colour | Silver |
| Stand type | Center stand |
| VESA mounting | Yes |
Performance
| AI Upscale | Yes |
| Ambient mode | Yes |
| AMD FreeSync | Yes |
| AMD FreeSync type | FreeSync Premium Pro |
| Game features | Dynamic Black EQ,Game Motion Plus,HGiG,Mini Map Zoom,Surround Sound,Ultra Wide Game,Variable Refresh Rate (VRR) |
| Game mode | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10+ (HDR10 Plus)/OLED HDR+ |
| Multi View | Yes |
| Picture processor | NQ4 AI Gen3 |
| SmartThings app support | Yes |
| Subtitles function | Yes |
| TV key support | Yes |
| TV sound to mobile device | Yes |
TV tuner
| Digital signal format system | DVB-C/DVB-S2/DVB-T2 |
| Number of tuners | 2 tuner(s) |
| Tuner type | Analog & digital |
Management features
| Auto power off | Yes |
| Electronic Programme Guide (EPG) | Yes |
| Firmware upgradeable | Yes |
| Number of OSD languages | 28 |
| On Screen Display (OSD) | Yes |
| Voice control | Yes |
| Voice guide | Yes |
| Works with Samsung Bixby | Yes |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 220 - 240 V |
| Energy consumption (HDR) per 1000 hours | 379 kWh |
| Energy consumption (SDR) per 1000 hours | 150 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | F |
| Energy efficiency scale | A to G |
| Energy saving mode | Yes |
| Power consumption (standby) | 0.5 W |
Brand-specific features
| Samsung technologies (AV/TV) | LaserSlim Design/Motion Xcelerator 144Hz/Object Tracking Sound Lite/Q-Symphony/Smart Calibration/Wide Viewing Angle |
Weight & dimensions
| Depth (with stand) | 359 mm |
| Depth (without stand) | 44.9 mm |
| Height (with stand) | 1133.7 mm |
| Height (without stand) | 1062.8 mm |
| Stand depth | 359 mm |
| Stand width | 366 mm |
| Weight (with stand) | 39400 g |
| Weight (without stand) | 37600 g |
| Width (with stand) | 1851 mm |
| Width (without stand) | 1851 mm |
Packaging data
| Package depth | 189 mm |
| Package height | 1234 mm |
| Package weight | 49800 g |
| Package width | 2024 mm |
Packaging content
| Cables included | AC |
| Desktop stand | Yes |
| Remote control included | Yes |
| Remote control type | TM2360E |
Shipping/Package Box Dimensions
| Shipping Box Depth | 202 cm |
| Shipping Box Height | 124 cm |
| Shipping Box Weight | 40 kg |
| Shipping Box Width | 19 cm |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2205107/fiches?language=EN |
| Energy efficiency class | F |
| EPREL Registration Number | 2205107 |
| EPREL Version Number | 1 |
