TAKE THE ESSENTIALS
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

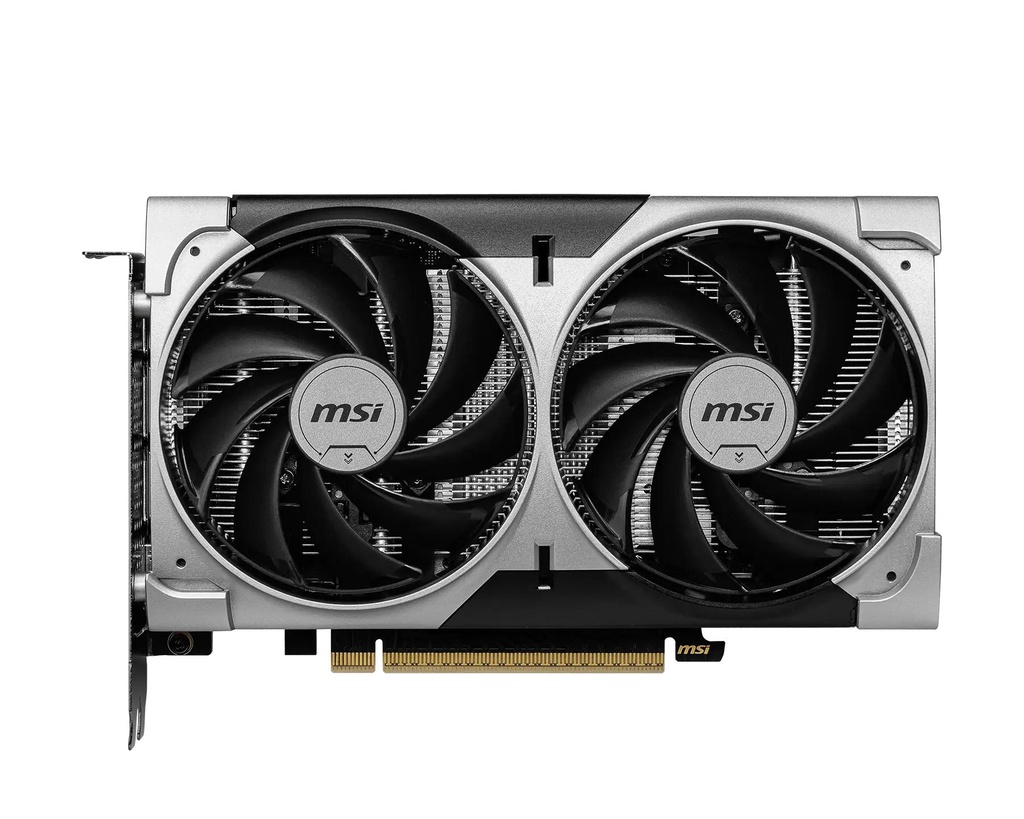

DUAL-FAN THERMAL DESIGN
Two fans on a large heatsink ensure great cooling performance with a quieter experience.
MSI CENTER
BRINGING IT ALL TOGETHER
MSI's exclusive MSI Center software empowers you to maximize your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks. One of its standout features, AI Tuning, intelligently adjusts your system to meet AI-oriented requirements.
AFTERBURNER
PRECISION CONTROLS,
UNLIMITED POWER
MSI Afterburner is the world's leading graphics card overclocking software, offering complete control and real-time system monitoring. It’s free and compatible with most graphics cards.
MSI APP PLAYER
SEAMLESS GAMING EXPERIENCE
Developed under an exclusive partnership with BlueStacks, the MSI APP Player provides a seamless gaming experience between mobile gaming and the PC.
- Powered by the NVIDIA Blackwell architecture and DLSS 4.5
- Core Clocks:
- Extreme Performance: 2535 MHz (MSI Center)
- Boost: 2527 MHz
- TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow
- Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance

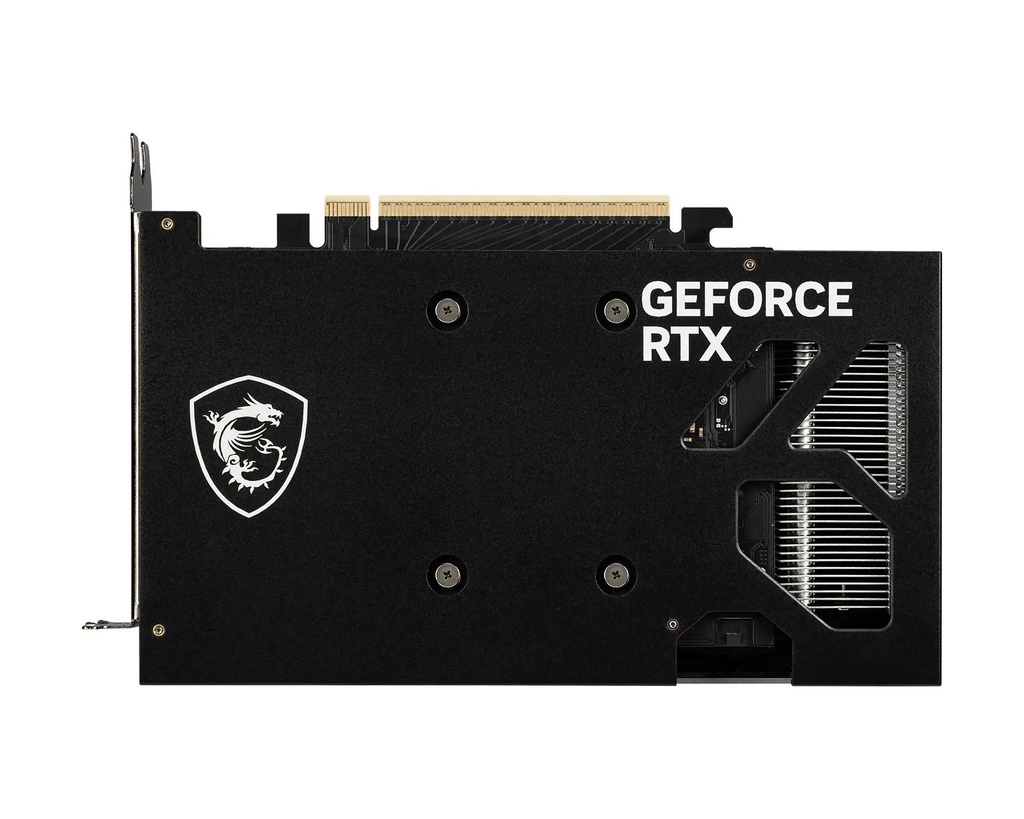

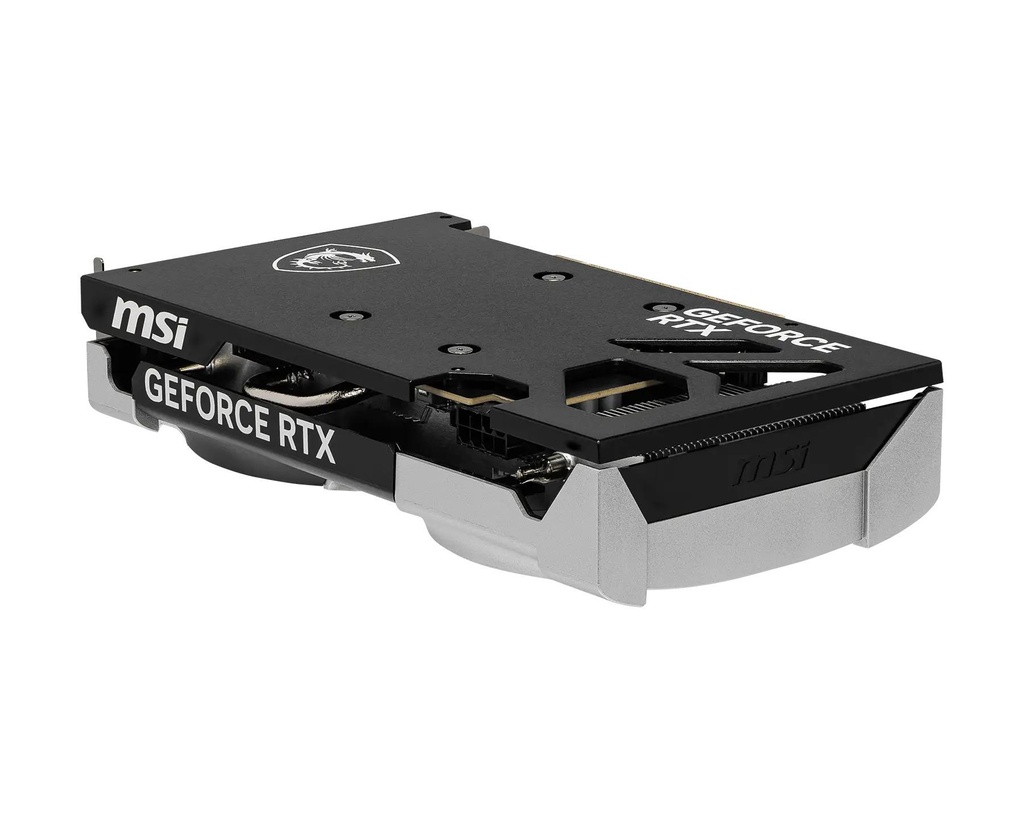

- Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world
General

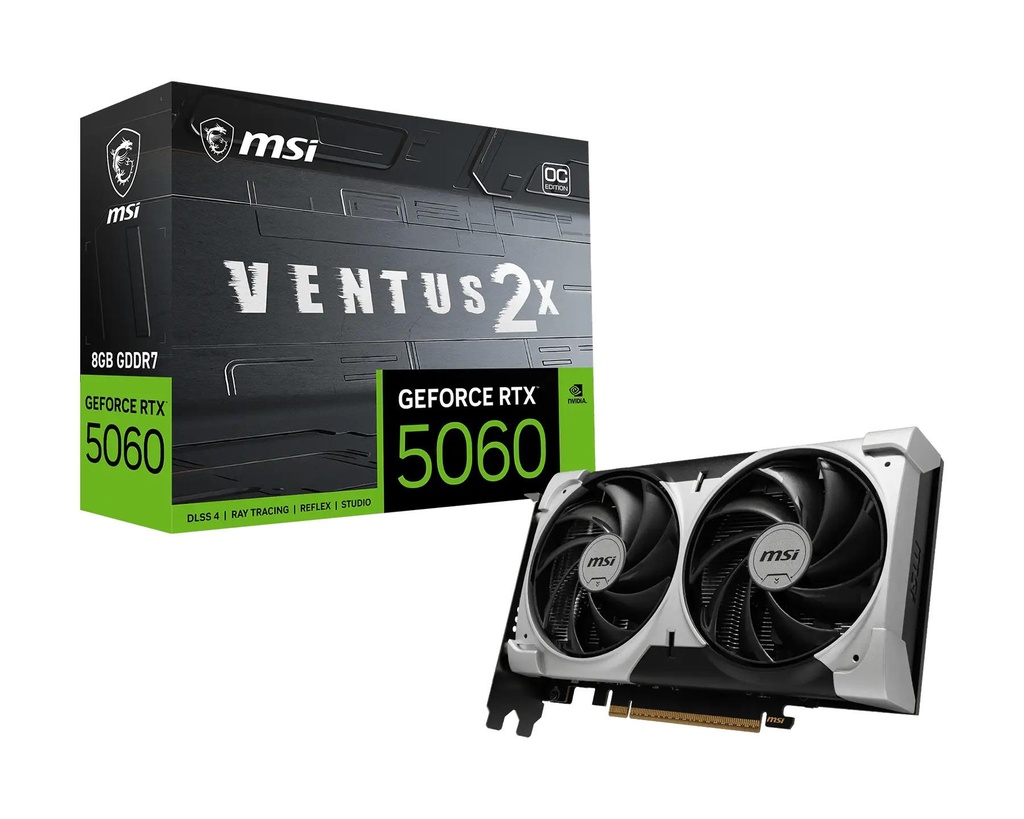

| Summary | MSI GeForce RTX 5060 8G VENTUS 2X OC V1. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060, Processor frequency: 2535 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 2 fan(s) |
| Unit Box Height | 0.215 |
| Unit Box Length | 0.28 |
| Unit Box Width | 0.075 |
| Name | VGA PCIE16 RTX5060 8GB GDDR7/RTX5060 8G VENTUS 2X OC V1 MSI |
| Model name | GeForce RTX 5060 8G VENTUS 2X OC V1 |
Processor
| Maximum displays per videocard | 4 |
| CUDA cores | 3840 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Processor boost clock speed | 2527 MHz |
| Processor frequency | 2535 MHz |
| Graphics processor | GeForce RTX 5060 |
| Graphics processor family | NVIDIA |
Memory
| Data transfer rate | 28 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR7 |
| Discrete graphics card memory | 8 GB |

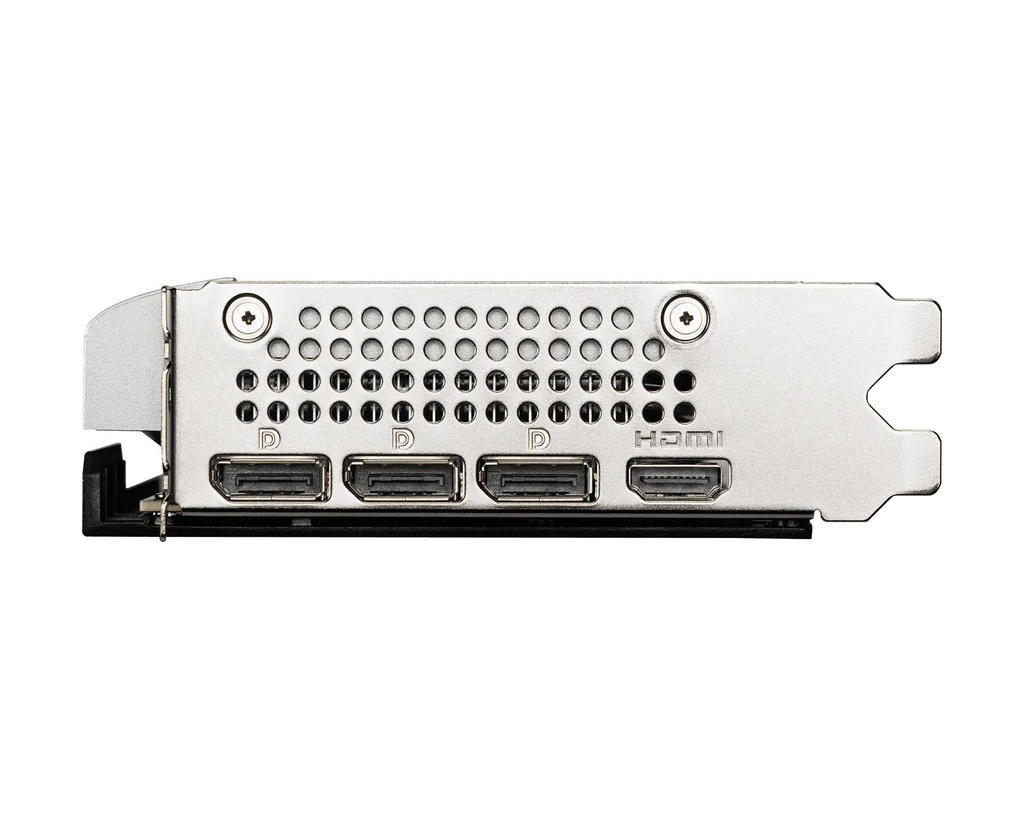

Ports & interfaces
| DisplayPort version | 2.1b |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1b |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 5.0 |
Performance
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
Design
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of fans | 2 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
Power
| Power consumption (typical) | 145 W |
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 550 W |
Weight & dimensions
| Height | 120 mm |
| Depth | 41 mm |
| Length | 197 mm |
| Weight | 548 g |
Packaging data
| Package weight | 840 g |
ELKO Verified Logistics Data
| Unit Height | 21.5 cm |
| Unit Depth | 28 cm |
| Unit Width | 7.5 cm |
| Units per Pallet | 0 |
| Units per Shipping Box | 12 |
| Unit Calculated Weight | 1 kg |
ELKO Internal Logistics Data
| Shipping Box Width | 43 cm |
| Shipping Box Depth | 49 cm |
| Shipping Box Height | 32 cm |
| Shipping Box Weight | 12 kg |
| Unit Calculated Volume | 0.005619 cubm |
