5G
Ultra-high cellular speeds of up to 3.3 Gbps
SA & NSA
Supports both architectures to leverage the 5G infrastructure
ULTRA-LOW LATENCY
Single-digit latency for mission-critical applications
DUAL SIM
Uninterrupted communication with auto-failover
WI-FI 5
Dual-band data throughput for up to 150 clients simultaneously
FUTURE-PROOFING
Backward compatible with 4G (LTE CAT 20) and 3G network technologies

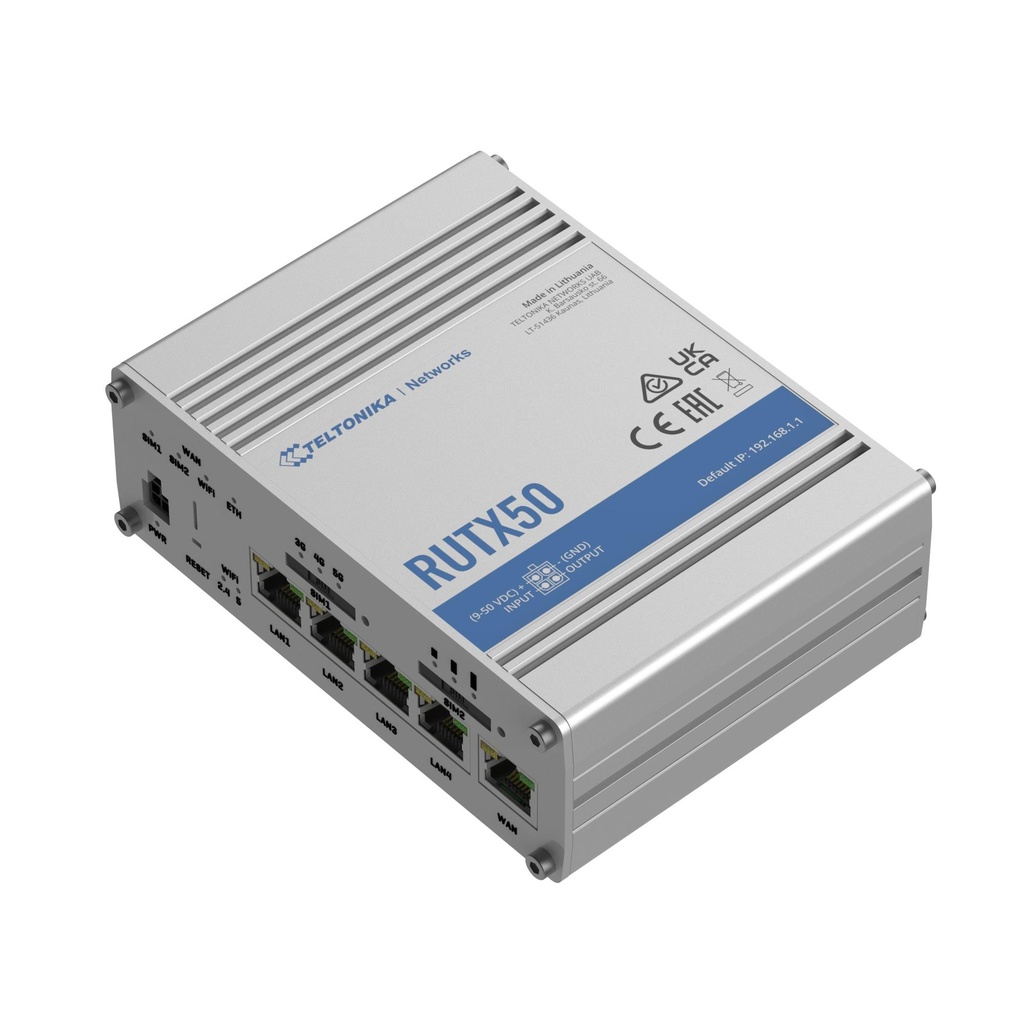

- RUTX50 is your future-proof, multi-network industrial router, offering 5G mobile communication for high-speed and data-heavy applications
- 5G dual SIM cellular communication combined with 5 Gigabit Ethernet ports and dual-band Wi-Fi enables reliable ultra-low latency data transfer
- The power of 5G technology, combined with a wide range of interfaces and industrial hardware features, ensures adaptability for future upgrades and expansions
- RUTX50 comes with the RutOS, which provides advanced security features and specialized industrial protocols for a wide range of professional application scenarios, and is compatible with our Remote Management System (RMS), for optimized remote management and monitoring capabilities of large fleets of devices
General
| Unit Calculated Weight | 1.12 kg |
| Unit Calculated Volume | 0.004672 cubm |
| Units per Shipping Box | 5 |
| Units per Pallet | 0 |
| Summary | Teltonika RUTX50. Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s, Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 5G, 4G standard: LTE, SIM card type: MiniSIM. Security algorithms: WPA3-EAP, WPA2-Enterprise-PEAP, AES-CCMP, TKIP, WEP, WPA2-PSK, WPA3-SAE. Routing protocols: NHRP, BGP, EIGRP, OSPFv2, RIP-1, RIP-2 |
| Unit Box Height | 0.175 |
| Unit Box Length | 0.355 |
| Unit Box Width | 0.06 |
| Model name | RUTX50000000 |
| Model | RUTX50 |
Wireless LAN features
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
WAN connection
| 3G/4G USB modem compatibility | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | Yes |
Network
| Auto MDI/MDI-X | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Port forwarding | Yes |
| Static route | Yes |
Mobile network
| 4G LTE category | 20 |
| 4G standard | LTE |
| Dual SIM support | Yes |
| Mobile network generation | 5G |
| SIM card type | MiniSIM |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 5 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
Management features
| MIMO | Yes |
| MU-MIMO technology | Yes |
| Reset button | Yes |
| Wake-on-LAN ready | Yes |
| Web-based management | Yes |
Security
| DDoS protection | Yes |
| DoS attack prevention | Yes |
| Filtering | Yes |
| Firewall | Yes |
| MAC address filtering | Yes |
| Network address translation (NAT) | Yes |
| Security algorithms | AES-CCMP/TKIP/WEP/WPA2-Enterprise-PEAP/WPA2-PSK/WPA3-EAP/WPA3-SAE |
| System event log | Yes |
Protocols
| Routing protocols | BGP/EIGRP/NHRP/OSPFv2/RIP-1/RIP-2 |
Design
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | LAN,Power,WAN,WLAN |
| Product colour | Stainless steel |
| Product type | Portable router |
Packaging content
| AC adapter included | Yes |
| Antenna included | Yes |
| Cables included | LAN (RJ-45) |
| Manual | Yes |
| Quick start guide | Yes |
Antenna
| Antenna connector type | SMA |
| Antenna design | External |
| Antennas quantity | 7 |
| Detachable antenna(s) | Yes |
Features
| Built-in processor | Yes |
| Flash memory | 256 MB |
| Internal memory | 256 MB |
| Operating system installed | RutOS |
| Processor architecture | ARM Cortex A7 |
| Processor frequency | 717 MHz |
Power
| Power source type | DC |
| Power supply | 18 W |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -40 - 75 °C |
Weight & dimensions
| Depth | 95.1 mm |
| Height | 44.2 mm |
| Weight | 533 g |
| Width | 132 mm |
Packaging data
| Number of products included | 1 pc(s) |
