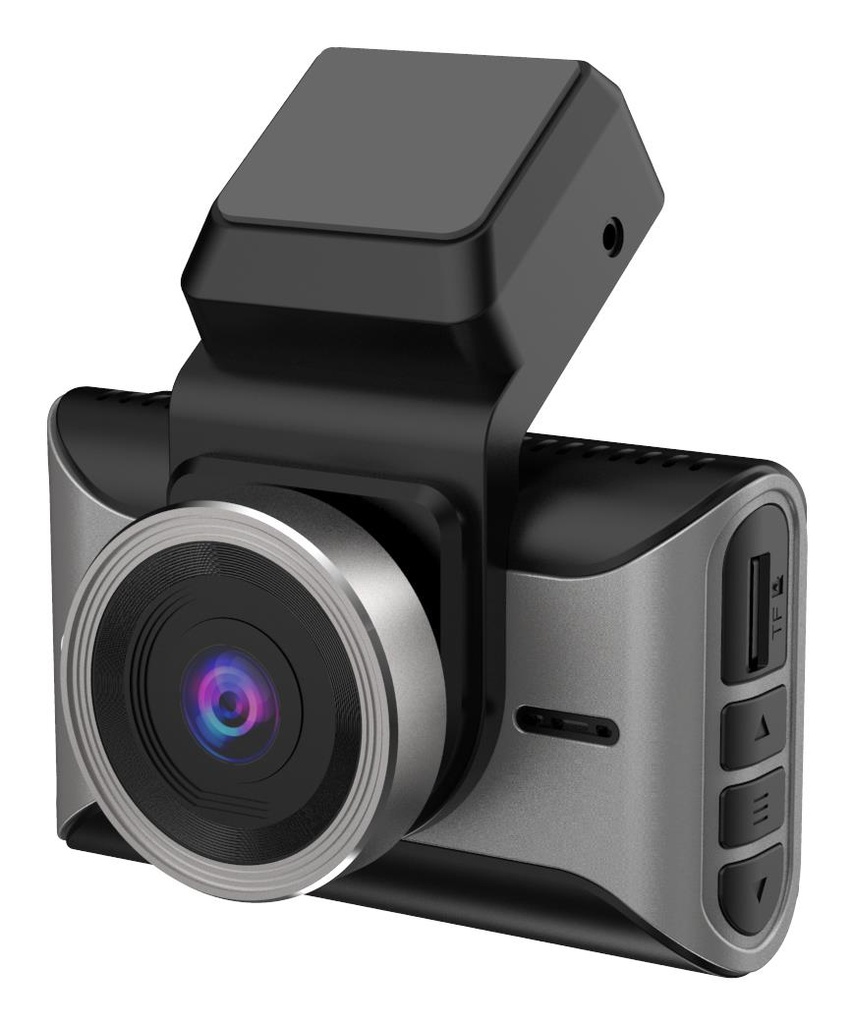

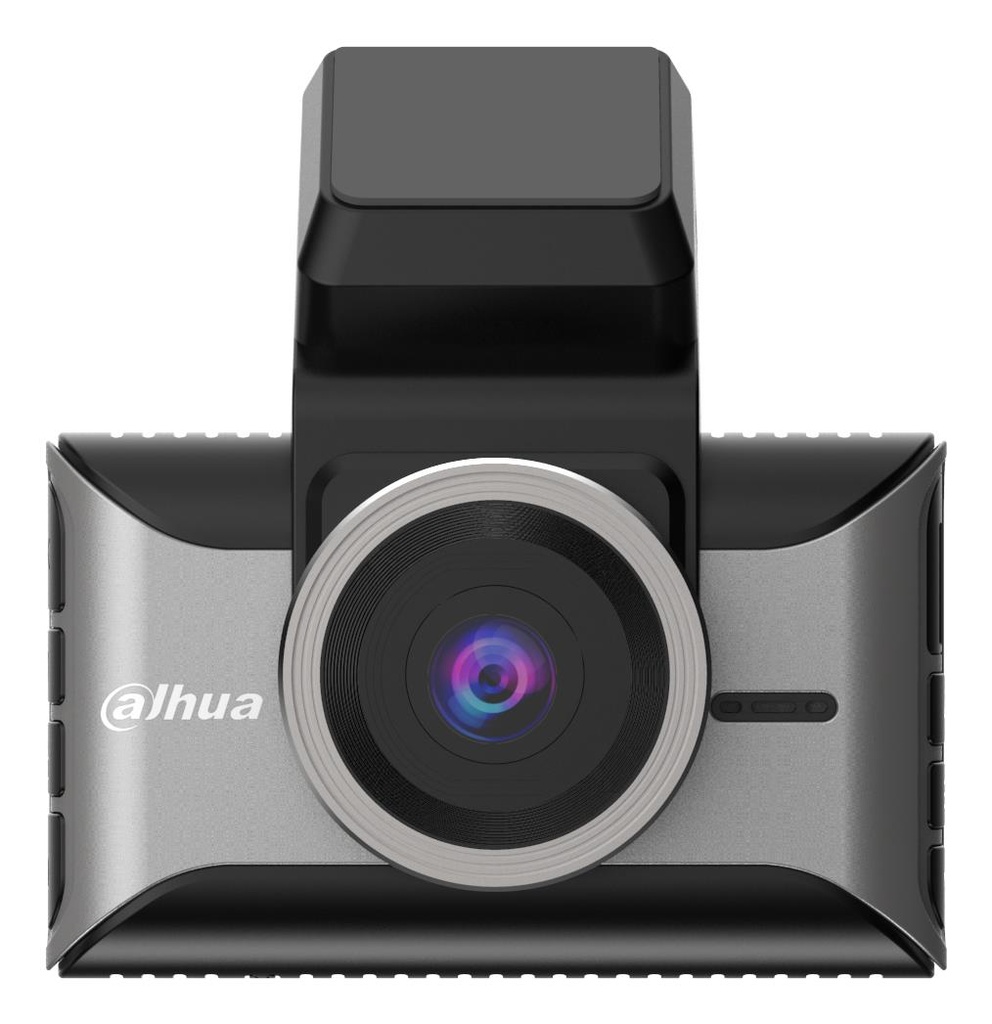

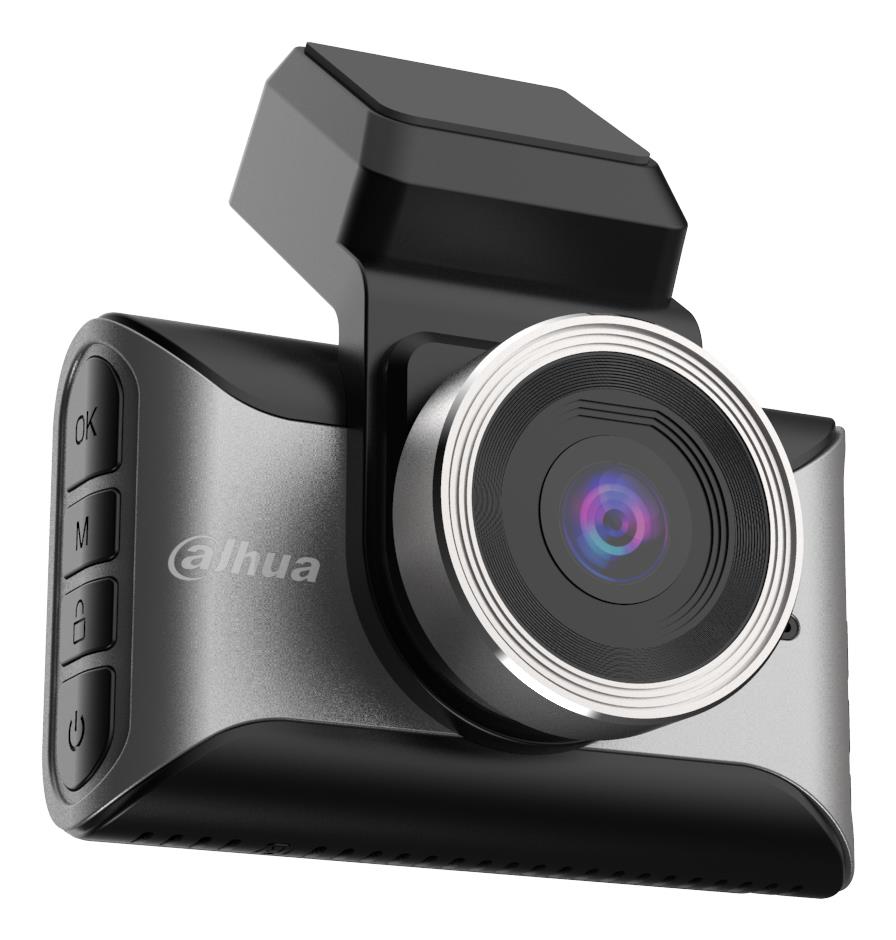

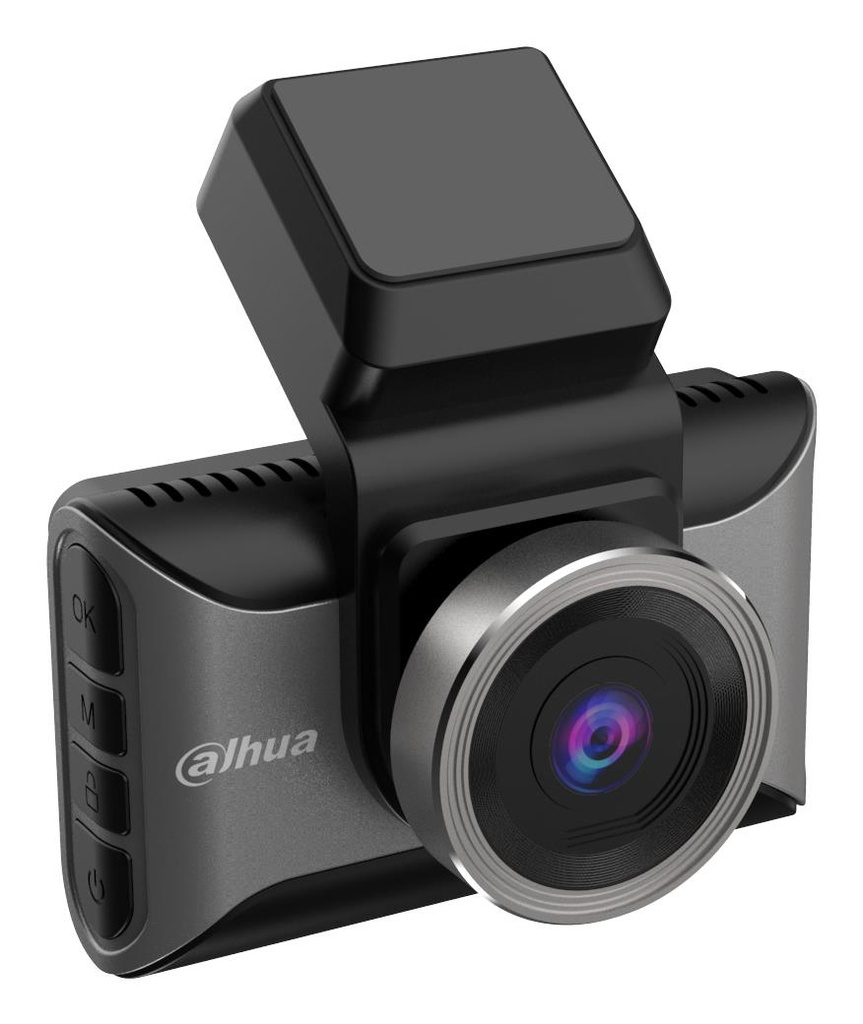

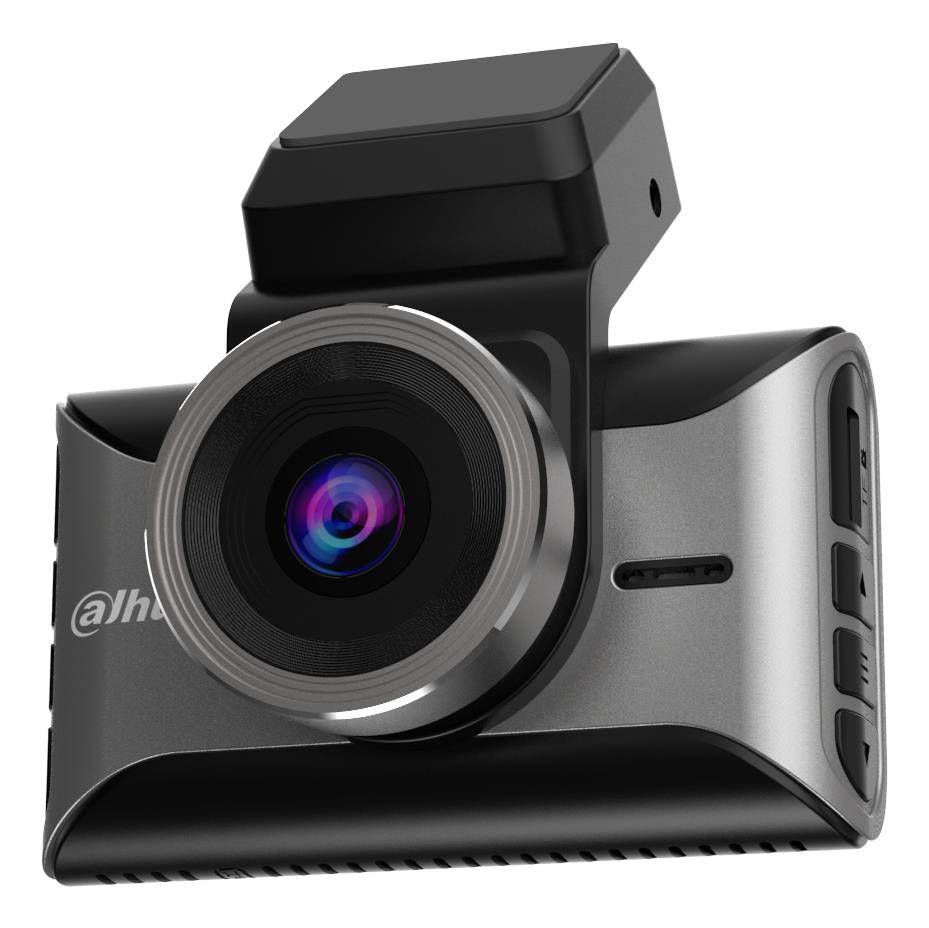

Dahua S10 Dash Cam is a high-resolution in-vehicle camera featuring easy installation and user-friendly operation. The device communicates with its dedicated DH Dashcam App via built-in Wi-Fi. Equipped with a G-Sensor, it automatically locks the currently recorded video upon detecting collisions or strong vibrations to prevent overwriting. Supports TF(MicroSD) card up to 128GB. Built-in microphone and speaker enable audio recording and playback.
- Supports dual-camera,with resolution of 4K+1K
- Supports TF(MicroSD) card up to 128GB
- Supports voice control
- Supports Wi-Fi AP module
- Supports GPS track playback
- Supports App control, mobile client compatibility for configuration, real-time monitoring, recording search, and backup
- G-Sensor module supports collision detection and video lock

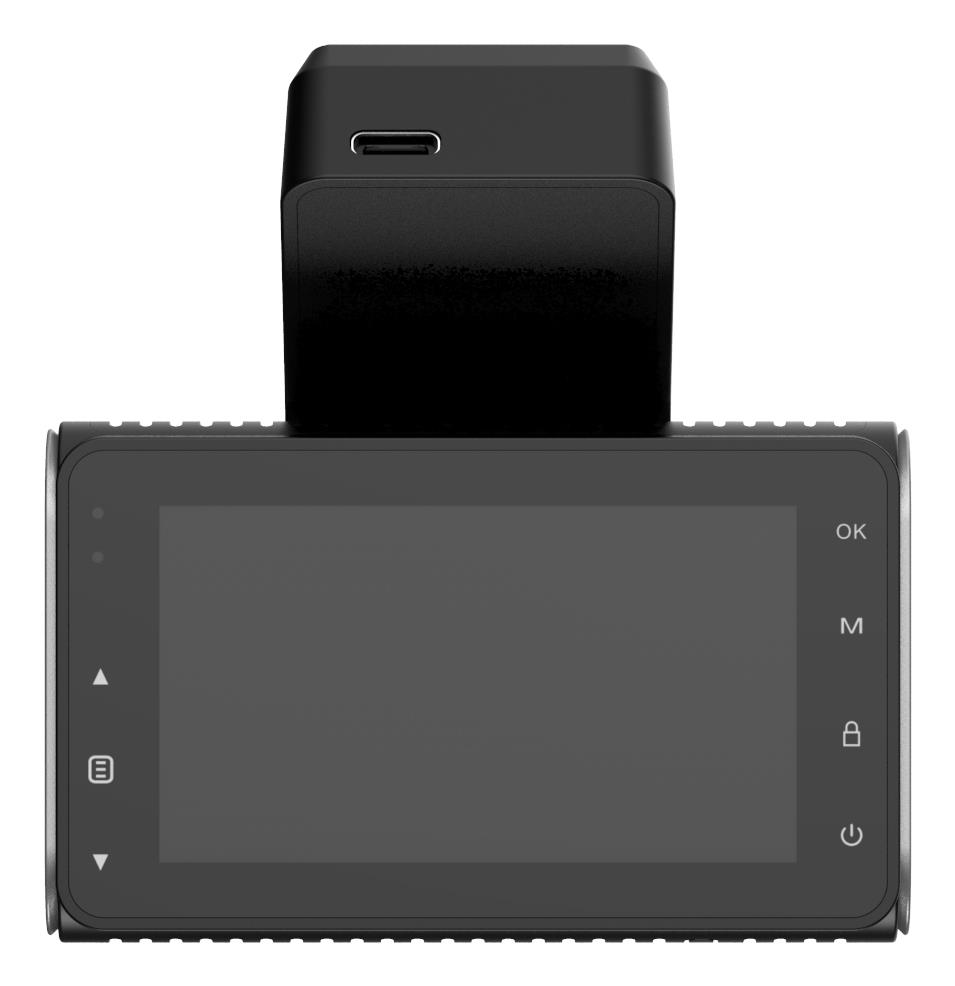

- Features a 3-inch display
General
| Unit Calculated Weight | 0.7 kg |
| Product Net Weight | 0.124 kg |
| Unit Calculated Volume | 0.002814 cubm |
| Units per Shipping Box | 20 |
| Units per Pallet | 0 |
| Summary | Dahua Technology S10. HD type: 4K Ultra HD, Main camera sensor: CMOS, Maximum frame rate: 25 fps. Display diagonal: 7.62 cm (3"). Compatible memory cards: MicroSD (TransFlash), Maximum memory card size: 128 GB. Image formats supported: JPEG. Interface type: USB-C |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.185 |
| Unit Box Width | 0.155 |
Performance
| G-shock sensor | Yes |
| HD type | 4K Ultra HD |
| Horizontal field of view | 105 ° |
| Main camera sensor | CMOS |
| Maximum frame rate | 25 fps |
| Number of cameras | 2 |
| Product colour | Black |
| Vertical field of view | 56 ° |
| Video compression formats | H.265 |
Display
| Built-in display | Yes |
| Display diagonal | 3 " |
Storage
| Built-in storage media | No |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 128 GB |
Audio
| Audio recording | Yes |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
Still image
| Image formats supported | JPEG |
Ports & interfaces
| Bluetooth | No |
| Interface type | USB-C |
| Wi-Fi | Yes |
Power
| Operating voltage | 5 V |
| Power consumption (typical) | 5 W |
| Power source type | DC |
Weight & dimensions
| Depth | 88.4 mm |
| Height | 57.97 mm |
| Weight | 124 g |
| Width | 91.93 mm |
Packaging content
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -20 - 70 °C |
