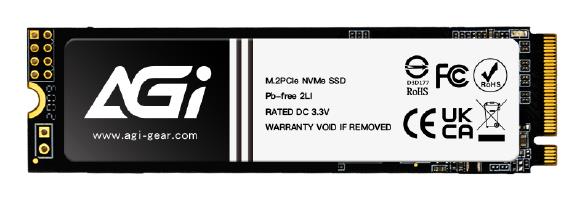

AGI PCIe SSD
Using the latest 3D NAND flash memory technology
PCIe Gen3x4 Product line
3D NAND is the latest flash memory technology currently on the market, which can further increase the max capacity.
Where to use
The M.2 PCIe Gen3x4 2280 specification can be assembled in the M.2 interface of a new generation computer, and significantly improved the transmission speed by PCIe technology
Speed up 30 times to replace HDD
"This is internal test data, and actual read and write speeds may vary depending on system hardware, testing software, operating system, and capacity."
- ➠ PCIe Gen 3 x 4 interface
- ➠ Support NVMe 1.3
- ➠ Advanced LDPC ECC technology
General
| Unit Calculated Weight | 0.03 kg |
| Unit Calculated Volume | 0.0002693 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | AGI Technology AI298. SSD capacity: 2 TB, SSD form factor: M.2, Read speed: 3200 MB/s, Write speed: 1700 MB/s, Component for: PC |
| Unit Box Height | 0.02 |
| Unit Box Length | 0.132 |
| Unit Box Width | 0.102 |
Features
| Component for | PC |
| ECC | Yes |
| Interface | PCI Express 3.0 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Mean time between failures (MTBF) | 1600000 h |
| Memory type | 3D NAND |
| NVMe | Yes |
| NVMe version | 1.3 |
| PCI Express interface data lanes | x4 |
| Read speed | 3200 MB/s |
| SSD capacity | 2000 GB |
| SSD form factor | M.2 |
| TBW rating | 1200 |
| Write speed | 1700 MB/s |
Power
| Operating voltage | 3.3 V |
Weight & dimensions
| Depth | 80 mm |
| Height | 3.5 mm |
| Weight | 6 g |
| Width | 22 mm |
Packaging data
| Package type | Box |
Operational conditions
| Operating shock | 1500 G |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Other features
| Compliance certificates | BSMI/CE/Federal Communications Commission (FCC)/RoHS/VCCI |
| Warranty period | 3 year(s) |
