- 8 sets of AMD EPYC™ 4004 Series Processor
- AMD Knoll - Integrated I/O Controller Hub
- 8 set of Up to 128GB ECC/non ECC UDIMM; DDR5 5200MHz, in 4 DIMM sockets
- 8 set of PCIe 5.0 x8 (in x16 slot) low profile slot and 8 set of Micro-LP slots (MicroLP upgradable)
- 8 set of 2x Front NVMe U.2/ SAS/ SATA3 drives w/ optional kits
- 2200W Redundant 80+ Titanium Level high-efficiency power supplies
General
| Unit Calculated Weight | 45.5 kg |
| Unit Calculated Volume | 0.1729 cubm |
| Units per Shipping Box | 1 |
| Summary | Supermicro MicroCloud A+ Server AS -3015MR-H8TNR. Motherboard chipset: AMD SoC, Processor socket: Socket AM5, Processor manufacturer: AMD. Supported memory types: DDR5-SDRAM, Maximum internal memory: 1 TB, Supported UDIMM clock speeds: 5200 MHz. Storage drive sizes supported: 3.5,M.2, Supported storage drive types: HDD & SSD, Supported storage drive interfaces: M.2, Serial ATA. PCI Express slots version: 4.0, 5.0. PC health monitoring: CPU |
| Unit Box Height | 0.67 |
| Unit Box Length | 0.86 |
| Unit Box Width | 0.3 |

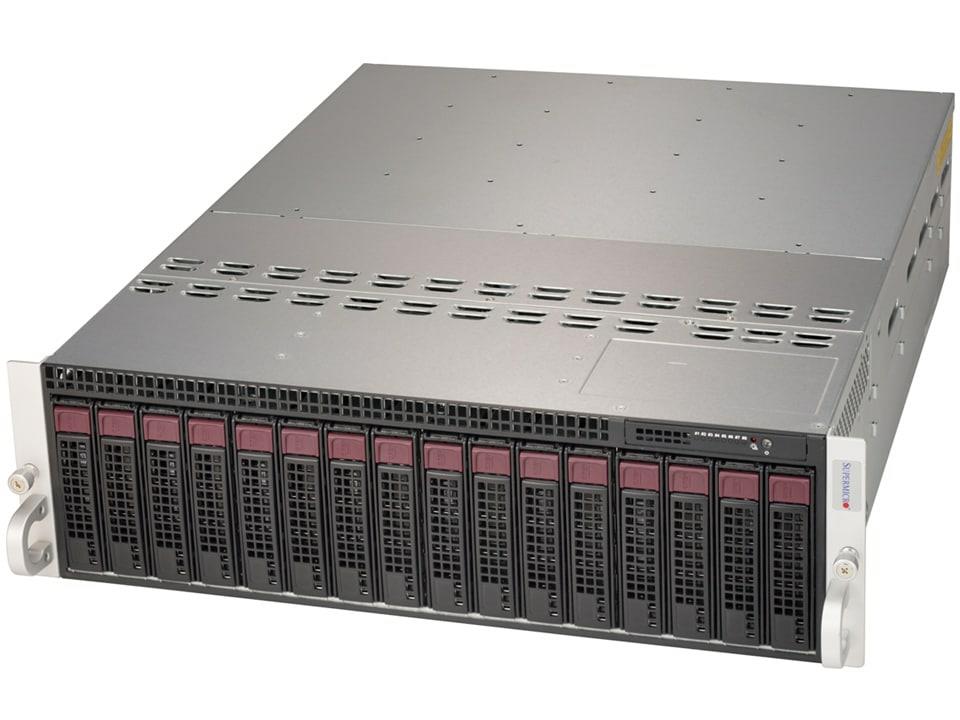

| Model name | MicroCloud A+ Server AS -3015MR-H8TNR |
| Model | AS -3015MR-H8TNR |
Processor
| Built-in processor | No |
| Motherboard chipset | AMD SoC |
| Number of processors supported | 8 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
Memory
| ECC | Yes |
| Maximum internal memory | 1024 GB |
| Non-ECC | Yes |
| Number of DIMM slots | 32 |
| Supported memory types | DDR5-SDRAM |
| Supported UDIMM clock speeds | 5200 MHz |
Storage
| Hot-swap HDD bays | Yes |
| Number of 3.5" bays | 16 |
| Number of storage drives supported | 24 |
| Storage drive sizes supported | 3.5/M.2 " |
| Supported storage drive interfaces | M.2,Serial ATA |
| Supported storage drive types | HDD & SSD |
Ports & interfaces
| USB 2.0 ports quantity | 16 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 8 |
Expansion slots
| PCI Express slots version | 4.0/5.0 |
| PCI Express x8 (Gen 4.x) slots | 1 |
Features
| PC health monitoring | CPU |
| Trusted Platform Module (TPM) | Yes |
BIOS
| BIOS type | AMI |
Design
| Certification | RoHS |
| Chassis type | Rack (3U) |
| Cooling type | Active |
| Fan diameter | 80 mm |
| LED indicators | Yes |
| Number of fans | 4 fan(s) |
| On/off switch | Yes |
| Product colour | Black/Metallic |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 220 - 240 V |
| Number of redundant power supplies installed | 1 |
| Power supply | 2200 W |
| Redundant power supply (RPS) support | Yes |
Operational conditions
| Operating relative humidity (H-H) | 8 - 90 % |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Depth | 589 mm |
| Height | 132 mm |
| Weight | 28210 g |
| Width | 438 mm |
Packaging data
| Package depth | 863.6 mm |
| Package height | 295.91 mm |
| Package weight | 39920 g |
| Package width | 667 mm |
