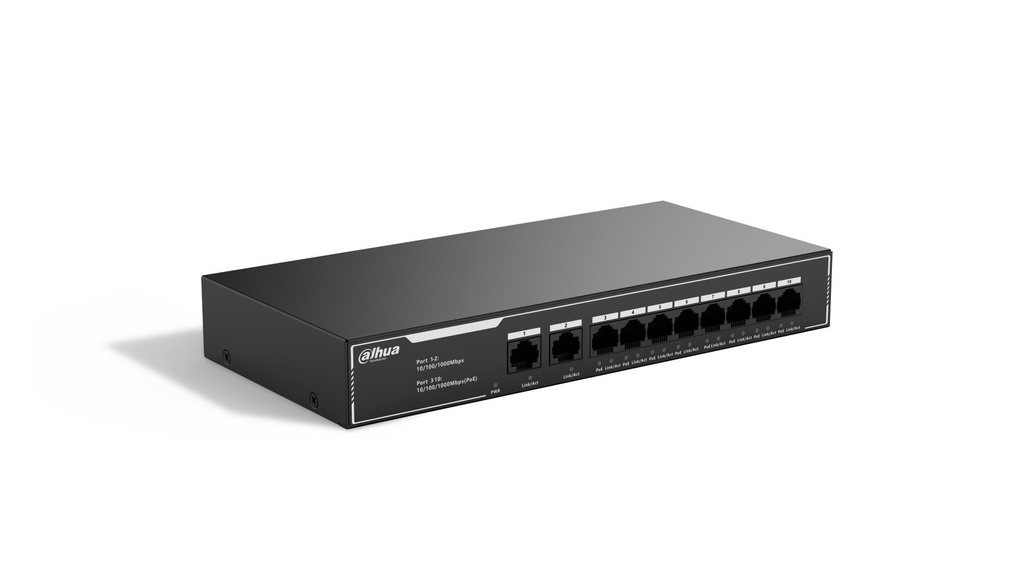

DH-SG1010LP Unmanaged All-gigabit Switch is highly efficient, coming with 8 × 10/100/1000 Mbps PoE ports. It consumes 65 W at most, and has 8 × 10/100/1000 Mbps Ethernet ports and 2 × 10/100/1000 Mbps uplink Ethernet ports. Hassle-free, it does not require any configuration due to its plug-and-play design. The switch is a reliable, cost-effective option for small and medium-sized scenes
Eight-pin PoE
Supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power at the same time. Compatibility with IPC is enhanced. Cable loss is reduced. Loading capacity is increased.
Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.
All-Gigabit Ports
Designed with large buffer memory and all-Gigabit ports, enabling high-definition access of large stream.
Wide Operating Temperature
Supports working at ambient temperatures of -10 °C to +55 °C, and has built-in professional mine-proof circuits, effectively reducing the impact of thunderstorms on network systems and improving system robustness, adapted to harsh environments.
- Unmanaged gigabit PoE switch
- Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, and IEEE802.3x standards
- A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof
- Easy to install, and plug and play
- Meets the IEEE 802.3af and IEEE802.3at power supply standards
General
| Unit Calculated Weight | 1.35 kg |
| Unit Calculated Volume | 0.006506 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Summary | Dahua Technology PoE SG1010LP. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 2000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE) |
| Unit Box Height | 0.26 |
| Unit Box Length | 0.3 |
| Unit Box Width | 0.07 |
| Model name | 10-Port Economical Gigabit PoE Switch with 8-Port PoE |
| Model | SG1010LP |
Management features
| Switch layer | L2 |
| Switch type | Unmanaged |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 10 |
| Uplink ports quantity | 2 |
Network
| 10G support | No |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x |
Data transmission
| Forwarding rate | 14.88 Mpps |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| MAC address table | 2000 entries |
| Packet buffer memory | 2 MB |
| Switching capacity | 20 Gbit/s |
Design
| Housing material | Iron |
| Product colour | Black |
| Rack mounting | No |
Performance
| Plug and Play | Yes |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 1.5 A |
| Power consumption (max) | 65 W |
| Power source | DC/PoE |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 65 W |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -10 - 55 °C |
Weight & dimensions
| Depth | 243 mm |
| Height | 35 mm |
| Weight | 800 g |
| Width | 118 mm |
Packaging data
| Package depth | 300 mm |
| Package height | 70 mm |
| Package weight | 1800 g |
| Package width | 260 mm |
Sustainability
| Sustainability compliance | Yes |
Certificates
| Compliance certificates | CE |
