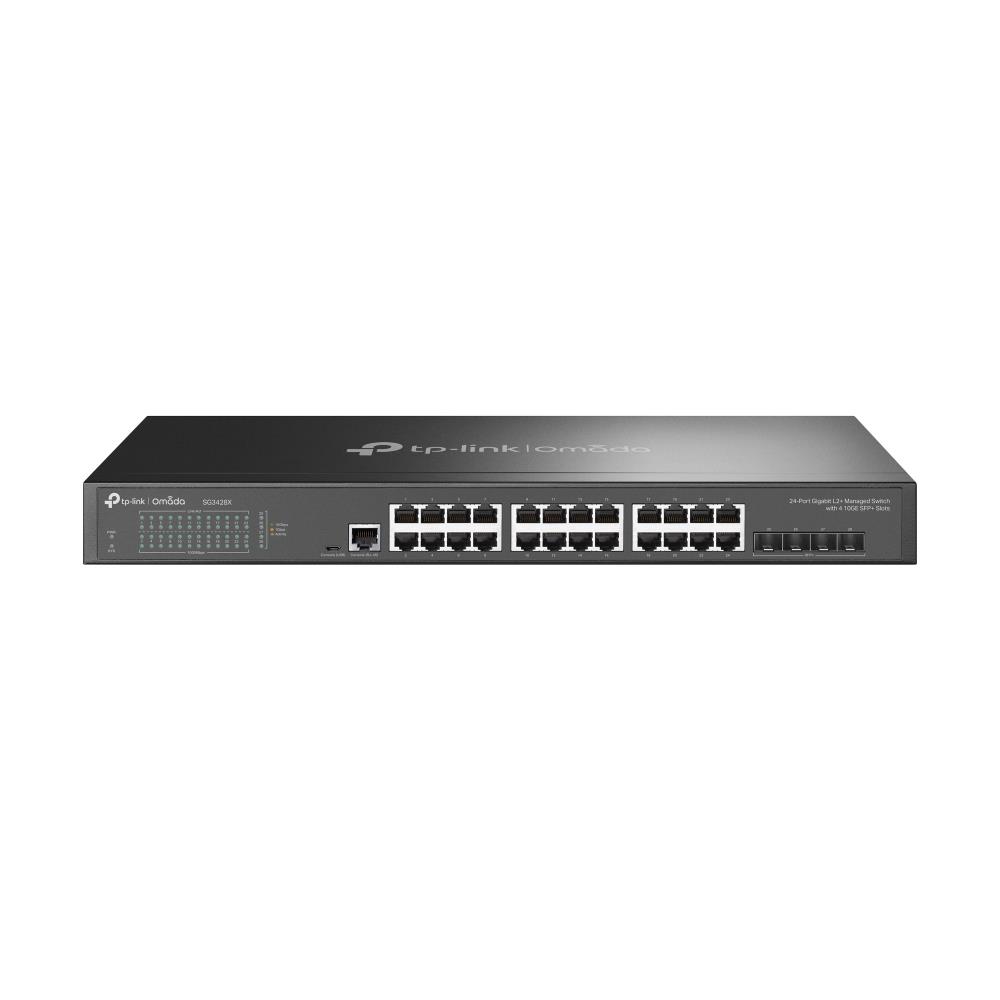

TP-LINK Omada TL-SG3428X Type L2+ Rack 4xSFP+ 1xConsole TL-SG3428X

Kainos tik partneriams Prisijungti B2B

TP-LINK
Garantija: 60 mėn.
Pristatymas į terminalą: DPD, InPost, Omniva
  • Gamintojas
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Gamintojas: TP-LINK

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

  • 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity
  • 24× Gigabit RJ45 ports
  • 128 Gbps switching capacity
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Fanless design for silent operation
  • Durable metal casing and rackmountable design
General
SummaryTP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots. Switch type: Managed, Switch layer: L2+/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/micro-USB. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z. Power connector: AC-in jack. Rack mounting, Form factor: 1U
CnCode85176200
Unit Box Height0.25
Unit Box Length0.53
Unit Box Width0.08
Model nameTL-SG3428X
SeriesOmada
Management features
ARP inspectionYes
Cloud-managedYes
Configuring Location Settings (CLI)Yes
MIB supportYes
Quality of Service (QoS) supportYes
Switch layerL2+/L3
Switch typeManaged
System event logYes
Web-based managementYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Console portRJ-45/Micro-USB
Gigabit Ethernet (copper) ports quantity24
Power connectorAC-in jack
SFP+ module slots quantity4
Network
10G supportYes
Active link detectionYes
Broadcast storm controlYes
Ethernet LAN data rates10,100,1000 Mbit/s
Flow control supportYes
Head-of-line (HOL) blockingYes
IPv4 routes48
IPv6 routes48
Link aggregationYes
Networking standardsIEEE 802.3ab/IEEE 802.3ae/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z
Number of VLANs4000
Policy-based routingYes
Port mirroringYes
Rate limitingYes
Spanning tree protocolYes
Virtual LAN featuresPrivate VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN
VLAN supportYes
Data transmission
Forwarding rate95.23 Mpps
Jumbo frames9000
Jumbo frames supportYes
MAC address table16000 entries
Number of static routes48
Packet buffer memory12 MB
Static routeYes
Store-and-forwardYes
Switching capacity128 Gbit/s
Security
Access Control List (ACL)Yes
AuthenticationGuest VLAN,MAC-based authentication,Port-based authentication
Authentication typeAAA,RADIUS,TACACS+
BPDU filtering/protectionYes
DHCP featuresDHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping
IGMP snoopingYes
IP-MAC-Port bindingYes
Loop protectionYes
SSH/SSL supportYes
Multicast features
Multicast Listener Discovery (MLD) snoopingY
Multicast supportYes
Protocols
GARP VLAN Registration Protocol (GVRP)Yes
IPv4 & IPv6 featuresIPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 Telnet/IPv6 tracert
Management protocolsSNMPv1/v2c/v3, SNTP
Design
Form factor1U
LED indicatorsYes
Number of fans0 fan(s)
Product colourBlack
Rack mountingYes
Performance
FanlessYes
Power
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Power consumption (max)23.6 W
Power sourceAC
Power supply includedYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Heat dissipation80.52 BTU/h
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 45 °C
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Weight & dimensions
Depth180 mm
Height44 mm
Width440 mm
Packaging content
Cables includedLAN (RJ-45)
Quick start guideYes
ELKO Logistics Data
Product Net Weight2.5 kg
Unit Calculated Weight3.03 kg
Units per Shipping Box6
ELKO Internal Logistics Data
Shipping Box Depth55 cm
Shipping Box Height26.5 cm
Shipping Box Weight18.2 kg
Shipping Box Width52 cm
Unit Calculated Volume0.01263 cubm
