Purpose-built for enterprise applications and workloads
Trusted. Efficient. Versatile
For everything Enterprise storage, there's Exos E — the safest and most powerful way to traverse the datasphere and harness its full potential. Always on and always working, the Exos E series of hard drives is loaded with advanced options for optimal performance, reliability, security and user-definable storage management. Built on generations of industry-defining innovation, Exos E is designed to work and perform consistently in enterprise-class workloads.

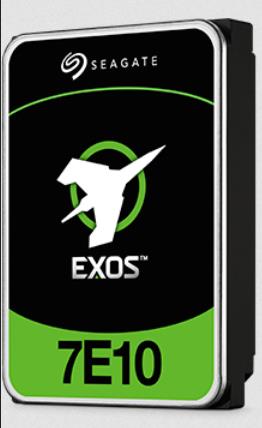

Exos 7E10
Specifically designed to address the needs of storing unstructured data cost-effectively.
General
| Unit Calculated Weight | 0.75 kg |
| Product Net Weight | 0.72 kg |
| Unit Calculated Volume | 0.001595 cubm |
| Units per Shipping Box | 20 |
| Summary | Seagate Enterprise ST10000NM017B. HDD capacity: 10 TB, HDD speed: 7200 RPM, Storage drive buffer size: 256 MB, HDD size: 3.5", Interface: Serial ATA III |
| Unit Box Height | 0.22 |
| Unit Box Length | 0.5 |
| Unit Box Width | 0.0145 |
| Model name | ST10000NM017B |
Features
| 24/7 operation | Yes |
| Average latency | 4.16 ms |
| Component for | Disk array |
| HDD capacity | 10000 GB |
| HDD interface transfer rate | 6 Gbit/s |
| HDD size | 3.5 " |
| HDD speed | 7200 RPM |
| Interface | Serial ATA III |
| Mean time between failures (MTBF) | 2000000 h |
| Rotational Vibration (RV) sensors | Yes |
| Storage drive buffer size | 256 MB |
| Type | HDD |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
Power
| Operating voltage | 5 / 12 V |
| Power consumption (idle) | 7.8 W |
| Power consumption (typical) | 11.8 W |
Operational conditions
| Non-operating shock | 300 G |
| Non-operating vibration | 5 G |
| Operating shock | 70 G |
| Operating temperature (T-T) | 5 - 60 °C |
Weight & dimensions
| Depth | 147 mm |
| Height | 26.11 mm |
| Weight | 720 g |
| Width | 101.85 mm |
Logistics data
| Harmonized System (HS) code | 84717050 |
