A video-optimised drive, SkyHawk AI is designed for NVRs with artificial intelligence for edge applications.
SkyHawk AI
Designed for AI video analytics, SkyHawk AI supports up to 64 HD cameras and 32 additional AI streams while offering capacities up to 20 TB. It delivers zero dropped frames with ImagePerfect AI and has enterprise-class workload rates at 550 TB/yr for high reliability.
SkyHawk
24×7 workloads can leverage up to 8 TB with drives designed for DVR and NVR systems. SkyHawk video drives are equipped with enhanced ImagePerfect™ and SkyHawk Health Management to help you sail through your toughest challenges.
Drive Health and Data Recovery
When integrated into compatible NVR systems, these drives provide overall system reliability increases due to SkyHawk Health Management (SHM).1
In addition, the SkyHawk drives include a robust three-year Rescue Data Recovery Services plan.
General
| Unit Calculated Weight | 0.725 kg |
| Unit Calculated Volume | 0.001575 cubm |
| Units per Shipping Box | 20 |
| Units per Pallet | 0 |

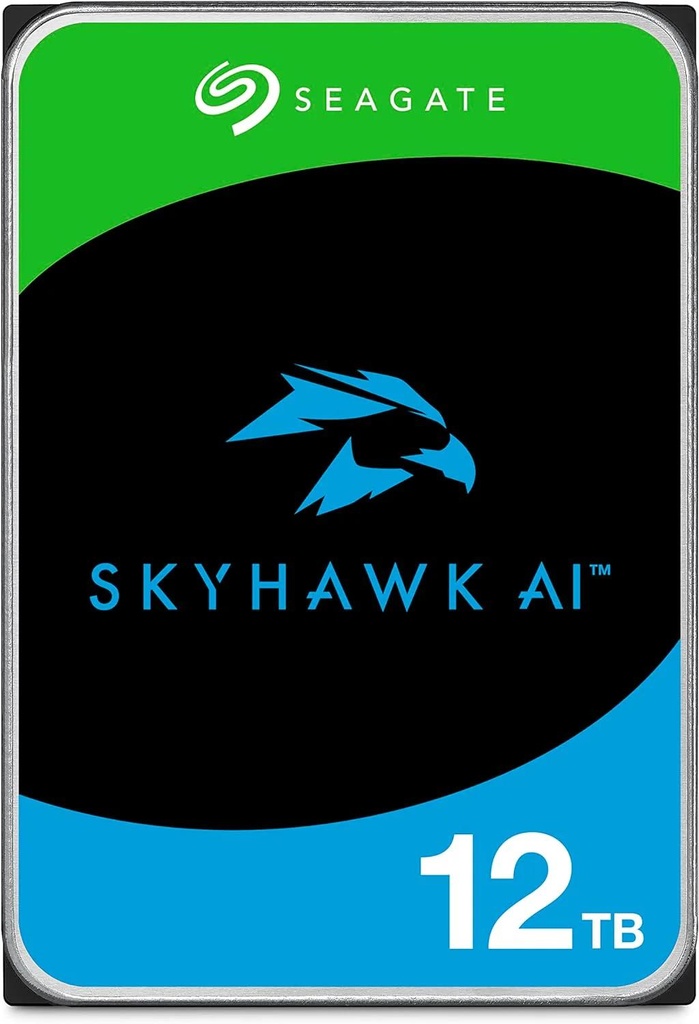

| Summary | Seagate SkyHawk . HDD capacity: 12 TB, HDD speed: 7200 RPM, Storage drive buffer size: 512 MB, HDD size: 3.5", Interface: Serial ATA III |
| Unit Box Height | 0.015 |
| Unit Box Length | 0.15 |
| Unit Box Width | 0.1 |
| HDD Family name | SkyHawk |
Features
| Component for | Surveillance system |
| HDD capacity | 12000 GB |
| HDD interface transfer rate | 6 Gbit/s |
| HDD size | 3.5 " |
| HDD speed | 7200 RPM |
| HDD sustained transfer rate | 260 MiB/s |
| Interface | Serial ATA III |
| Mean time between failures (MTBF) | 2000000 h |
| Number of AI channels | 32 |
| Rotational Vibration (RV) sensors | Yes |
| Start/stop cycles | 600000 |
| Storage drive buffer size | 512 MB |
| Type | HDD |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
Power
| Operating voltage | 5 / 12 V |
| Power consumption (idle) | 3.5 W |
| Power consumption (standby) | 1 W |
| Power consumption (typical) | 7.72 W |
| Start-up current | 2 A |
Operational conditions
| Operating temperature (T-T) | 0 - 65 °C |
Weight & dimensions
| Depth | 146.99 mm |
| Height | 26.11 mm |
| Weight | 680 g |
| Width | 101.85 mm |
Logistics data
| Harmonized System (HS) code | 84717050 |
| Master (outer) cases per pallet | 40 pc(s) |
| Products per master (outer) case | 20 pc(s) |
| Products per pallet layer | 8 pc(s) |
Other features
| Maximum number of cameras supported | 64 |
