IronWolf NAS Hard Drives
For multi-user NAS environments that need high workload rated drives.
IronWolf is designed for everything NAS. Get used to tough, ready and scalable 24×7 performance that can handle multi-bay NAS environments across a wide range of capacities.
IronWolf
IronWolf provides a workload rate of 180 TB/year with scalable 24×7 performance that can handle multi-bay NAS environments, as well as capacities up to 12 TB. It fits applications like 1- to 8-bay network attached storage (NAS).
Drive Health and Data Recovery
When integrated into compatible NAS systems, these drives provide overall system reliability increases due to IronWolf Health Management (IHM).1
In addition, the IronWolf drives include a robust three-year Rescue Data Recovery Services plan.
General

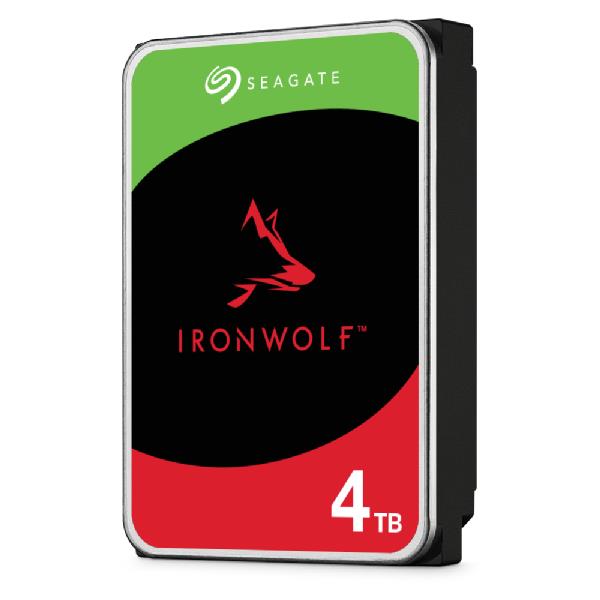

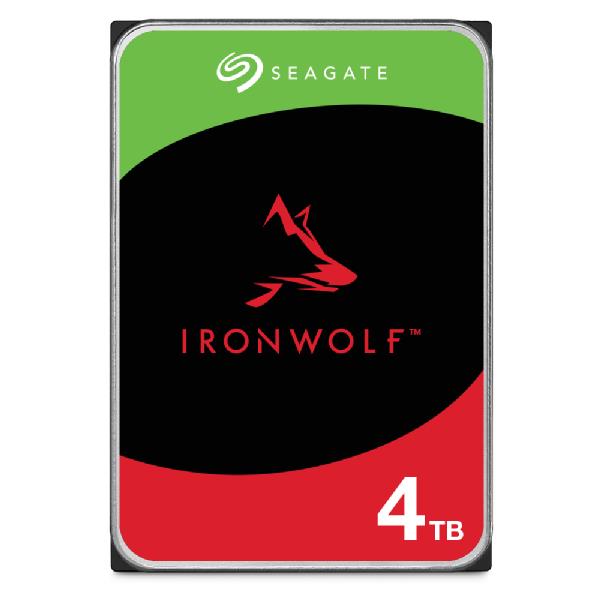

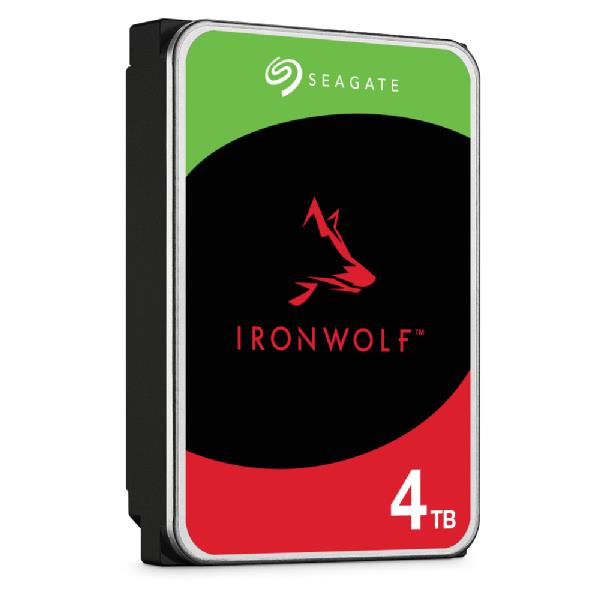

| Summary | Seagate IronWolf ST4000VN006. HDD capacity: 4 TB, HDD speed: 5400 RPM, Storage drive buffer size: 256 MB, HDD size: 3.5", Interface: Serial ATA III |
| Unit Box Height | 0.02 |
| Unit Box Length | 0.15 |
| Unit Box Width | 0.1 |
| Name | HDD SATA 4TB 5900RPM 64MB/ST4000VN006 SEAGATE |
Features
| Mean time to failure (MTTF) | 1000000 h |
| Workload rate limit | 180 TB/year |
| Start/stop cycles | 600000 |
| 24/7 operation | Yes |
| Rotational Vibration (RV) sensors | Yes |
| HDD sustained transfer rate | 202 MiB/s |
| HDD interface transfer rate | 6 Gbit/s |
| Component for | NAS |
| Type | HDD |
| Interface | Serial ATA III |
| HDD size | 3.5 " |
| Storage drive buffer size | 256 MB |
| HDD speed | 5400 RPM |
| HDD capacity | 4000 GB |
Power
| Start-up current | 1.8 A |
| Operating voltage | 5 / 12 V |
| Power consumption (idle) | 3.96 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 4.8 W |
Operational conditions
| Non-operating shock | 300 G |
| Operating shock | 80 G |
| Non-operating altitude | -304 - 12192 m |
| Operating altitude | -304 - 3048 m |
| Non-operating vibration | 3 G |
| Operating vibration | 0.25 G |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 65 °C |
Weight & dimensions
| Weight | 490 g |
| Depth | 146.99 mm |
| Height | 20.2 mm |
| Width | 101.8 mm |
Logistics data
| Harmonized System (HS) code | 84717050 |
ELKO Verified Logistics Data
| Unit Height | 2 cm |
| Unit Depth | 15 cm |
| Unit Width | 10 cm |
| Units per Shipping Box | 1 |
| Product Net Weight | 0.44 kg |
| Unit Calculated Weight | 0.44 kg |
ELKO Internal Logistics Data
| Shipping Box Width | 10 cm |
| Shipping Box Depth | 15 cm |
| Shipping Box Height | 2 cm |
| Shipping Box Weight | 0.44 kg |
| Unit Calculated Volume | 0.0003 cubm |
