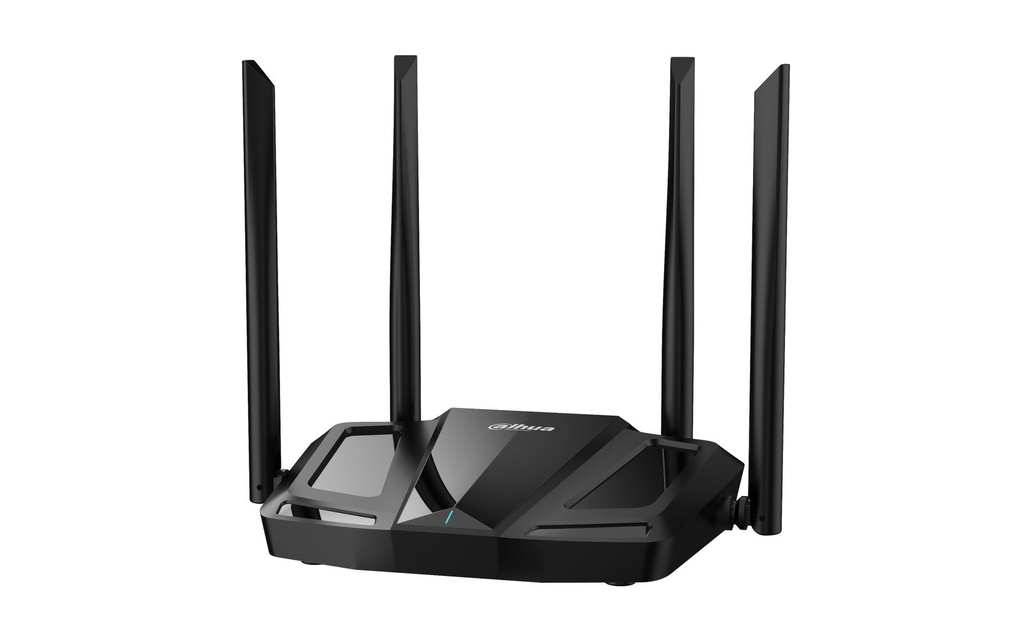

DH-AC12 Gigabit Wireless Router has a wide signal coverage and fast wireless speed. It complies with the IEEE 802.11ac standard, and its wireless speed reaches up to 1,167 Mbps, allowing smooth internet access. It uses beamforming technology to widen its Wi-Fi coverage, and has a built-in 1 GHz high-performance processor, which provides it with strong processing capabilities and high data transmission speeds. The router can be managed through the WiLynk app and provides wireless networks, making it a great choice for common wireless applications.
- 1.2 Gbps Wireless Speed(300 [email protected] GHz, 867 Mbps@5 GHz)
- Backward compatible (IEEE 802.11 b/g/n/ac standard)
- Beamforming for better Coverage
- Bi-directional MU-MIMO
- WiFi protected Access(WPA/WPA2)
- Guest Wi-Fi
- Parental Control
General
| Summary | Dahua Technology AC12 AC1200 Wireless Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 1200 Mbit/s. Ethernet LAN interface type: Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: 64-bit WEP, 128-bit WEP, WEP, WPA, WPA2. Product type: Tabletop router, Product colour: Black |
| CnCode | 85176200 |
| Unit Box Height | 0.26 |
| Unit Box Length | 0.3 |
| Unit Box Width | 0.07 |
| Model name | AC12 AC1200 Wireless Router |
Wireless LAN features
| Channel bandwidth | 80 MHz |
| Channels quantity | 165 channels |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (max) | 1200 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
WAN connection
| 3G/4G USB modem compatibility | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | No |
| WAN connection type | RJ-45 |
Network
| Automatic channel selection | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Ethernet LAN interface type | Ethernet |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u |
| Receiver sensitivity | 5GHz 11ac VHT80_MCS0: -89dbm 11ac VHT80_MCS9:-62dbm 2.4GHz 11n HT20_MCS0: -95dbm 11n HT20_MCS7: -75dbm 11n HT40_MCS0: -92dbm 11n HT40_MCS7: -72dbm |
| VPN Passthrough | Yes |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
Management features
| MIMO | Yes |
| MU-MIMO technology | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Security
| Network address translation (NAT) | Yes |
| Parental control | Yes |
| Security algorithms | 128-bit WEP/64-bit WEP/WEP/WPA/WPA2 |
| System event log | Yes |
Protocols
| DHCP client | Yes |
| DHCP server | Yes |
Design
| Indication light | Yes |
| Product colour | Black |
| Product type | Tabletop router |
| Wall mountable | Yes |
Packaging content
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Manual | Yes |
| Quick start guide | Yes |
Antenna
| Antenna design | External |
| Antenna gain level (max) | 5 dBi |
| Antennas quantity | 4 |
Features
| Firmware upgradeable | Yes |
| Internal memory | 64 MB |
| Number of simultaneously connected devices (max) | 32 |
Power
| External power adapter | Yes |
| Output current | 1 A |
| Output voltage | 12 V |
| Power consumption (typical) | 12 W |
| Power source type | DC |
Operational conditions
| Operating relative humidity (H-H) | 0 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 20 - 70 °C |
Weight & dimensions
| Depth | 222 mm |
| Height | 188.4 mm |
| Weight | 310 g |
| Width | 147.4 mm |
Packaging data
| Number of products included | 1 pc(s) |
| Package depth | 300 mm |
| Package height | 70 mm |
| Package width | 260 mm |
Other features
| Bandwidth (first) | 2.484 GHz |
| Bandwidth (second) | 5.85 GHz |
ELKO Logistics Data
| Product Net Weight | 0.31 kg |
| Unit Calculated Weight | 0.61 kg |
| Units per Shipping Box | 1 |
ELKO Internal Logistics Data
| Shipping Box Depth | 30 cm |
| Shipping Box Height | 26 cm |
| Shipping Box Weight | 0.61 kg |
| Shipping Box Width | 7 cm |
| Unit Calculated Volume | 0.00546 cubm |
