600Mbps Powerline Speeds Ideal for HD Streaming
Using advanced Home Plug AV technology, TL-PA4010 KIT provides users with stable, high-speed data transfer rates of up to 600Mbps on a line length of up to 300 meters. With speed of up to 600Mbps,
TL-PA4010 KIT enables heavy-bandwidth applications like HD streaming, on-line gaming and large file downloading, turning your home into a robust and high-speed networking.
Miniature Design
With its new ultra-compact housing design, TL-PA4010 KIT is much smaller than TP-Link’s legacy mini 600Mbps powerline products. At just 28.5mm thick, it nearly blends completely in front of any power outlet.
Pair Button for Easy Network Security
Simply by pushing the Pair button on the adapters, users can set up a hassle-free Powerline network within minutes, complete with 128-bit AES encryption for network security and data protection.
It's that simple!
1. Plug the adapter into the power outlet
2. Connect the device via the network cable to the adapter
3. Press the pair buttons—and you're done!
- HomePlug AV standard compliant, high-speed data transfer rates of up to 600Mbps1
- Miniature design, smaller than most powerline adapters at the market, blends discreetly in front of any power outlet
- No new wires, Easy Plug and Play operation, No configuration required
- Patented Power-Saving Mode automatically reduces power consumption by up to 85%
General
| Unit Calculated Weight | 0.458 kg |
| Unit Calculated Volume | 0.003046 cubm |
| Units per Shipping Box | 24 |
| Units per Pallet | 0 |
| Summary | TP-Link TL-PA4010KIT. Maximum data transfer rate: 600 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, Ethernet LAN interface type: Fast Ethernet. Power consumption (typical): 4.26 W, Power consumption (standby): 0.88 W. Product colour: White, Certification: CE, FCC. Width: 65 mm, Depth: 52 mm, Height: 28.5 mm. Compliance certificates: RoHS |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.195 |
| Unit Box Width | 0.1 |

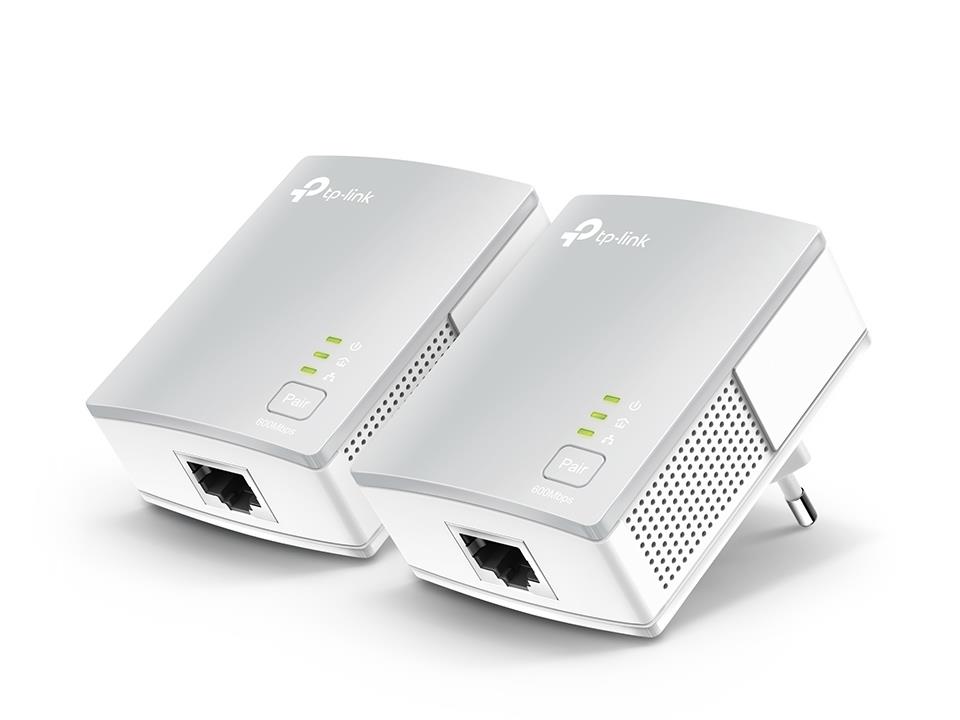

| Model name | TL-PA4010KIT |
Performance
| Built-in power socket | No |
| Copper ethernet cabling technology | 100BASE-TX/10BASE-T |
| Encryption button | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100 Mbit/s |
| Ethernet LAN interface type | Fast Ethernet |
| Maximum data transfer rate | 600 Mbit/s |
| Maximum operating distance | 300 m |
| Modulation | OFDM |
| Networking standards | IEEE 802.3/IEEE 802.3u |
| Plug and Play | Yes |
| PowerLine standard | HomePlug AV |
| Security algorithms | 128-bit AES |
| Wi-Fi | No |
Power
| Power consumption (standby) | 0.88 W |
| Power consumption (typical) | 4.26 W |
Design
| Certification | CE, FCC |
| LED indicators | Yes |
| Product colour | White |
System requirements
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 52 mm |
| Height | 28.5 mm |
| Width | 65 mm |
Certificates
| Compliance certificates | RoHS |
Packaging content
| Cables included | LAN (RJ-45) |
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
Logistics data
| Harmonized System (HS) code | 85171800 |
