Extend a Gigabit Network via
Your Existing Electrical Wiring

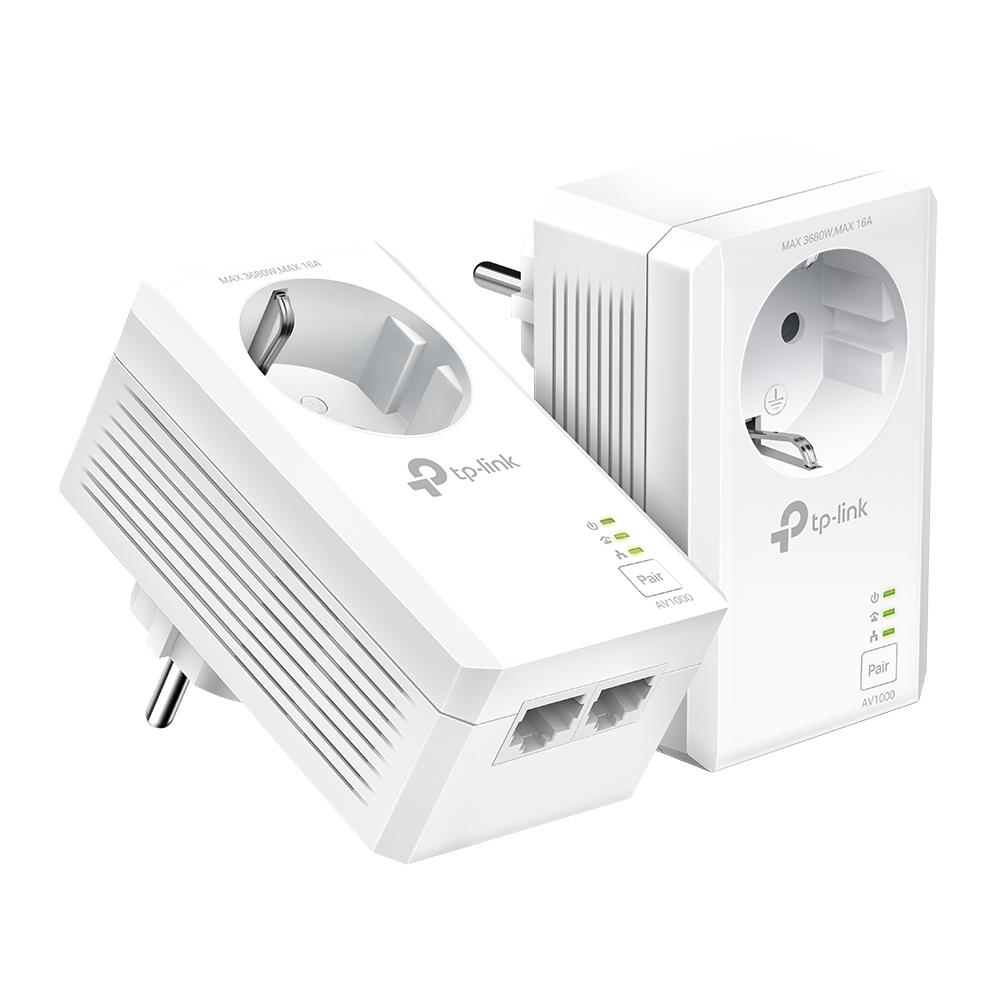

AV1000 2-Port Gigabit Passthrough Powerline Starter Kit
Extend an AV1000
Speed Network to Any Outlet
- No need for new wires or drilling
- Network passes through walls and floors
Integrating advanced HomePlug AV2 technology, this kit provides users with high-speed data transfer rates up to 1000 Mbps, which is ideal for bandwidth-intensive applications such as simultaneous HD/3D/4K video streaming, online gaming, and large file transfers. Just plug in and enjoy!
2× Gigabit Ports for High-Speed Connections
Provide reliable high-speed wired connections for game consoles, smart TVs, STBs, and more.
Plug and Play, No Configuration Required
- HomePlug AV2 Standard - high-speed data transfer rates of up to 1000 Mbps, supporting all your online needs
- 2 Gigabit Ports - provides secure wired networks for desktops, smart TVs or games consoles
- Plug and Play - allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired connections right away
- Extra Power Socket - ensures no power outlet goes to waste
- Patented Power-Saving Mode - automatically reduces power consumption by up to 85%
General
| Summary | TP-Link TL-PA7027P KIT. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 1901, IEEE 802.3, IEEE 802.3u, Power plug: Type E / F. Power consumption (typical): 4 W, Power consumption (standby): 0.84 W. Product colour: White, Antenna type: Internal, LED indicators: LAN, Power. Windows operating systems supported: Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP. Width: 58 mm, Depth: 42 mm, Height: 95 mm |
| CnCode | 85176200 |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.19 |
| Unit Box Width | 0.14 |
| Model name | TL-PA7027P KIT |
| Model | TL-PA7027P KIT |
Performance
| Built-in power socket | Yes |
| Encryption button | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum operating distance | 300 m |
| Modulation | COFDM |
| Networking standards | IEEE 1901/IEEE 802.3/IEEE 802.3u |
| Plug and Play | Yes |
| Power plug | Type E / F |
| PowerLine standard | HomePlug AV2 |
| Security algorithms | 128-bit AES |
| Wi-Fi | No |
Power
| Power consumption (standby) | 0.84 W |
| Power consumption (typical) | 4 W |
Design
| Antenna type | Internal |
| Certification | CE, RoHS |
| LED indicators | LAN/Power |
| Product colour | White |
System requirements
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 7/Windows 8/Windows 8.1/Windows Vista/Windows XP |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Depth | 42 mm |
| Height | 95 mm |
| Width | 58 mm |
Certificates
| Compliance certificates | CE/RoHS |
Packaging data
| Package depth | 136 mm |
| Package height | 100 mm |
| Package type | Box |
| Package weight | 580 g |
| Package width | 190 mm |
Packaging content
| Cables included | LAN (RJ-45) |
| Manual | Yes |
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
