SAMSUNG 75 " 4K Ultra HD 3840 x 2160 pixels Flat 16:9 LED UE75U7022FKXXH
General
| Unit Calculated Weight | 31 kg |
| Unit Calculated Volume | 0.3303 cubm |
| Summary | Samsung UE75U7022FKXXH. Display diagonal: 190.5 cm (75"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LED, Screen shape: Flat. Smart TV. Motion interpolation technology: Motion Xcelerator, Native aspect ratio: 16:9. Digital signal format system: DVB-C, DVB-T2. Wi-Fi, Ethernet LAN. Product colour: Black |
| Unit Box Height | 1.1 |
| Unit Box Length | 1.82 |
| Unit Box Width | 0.165 |
| Model name | UE75U7022FKXXH |
Display
| Display diagonal | 75 " |
| Display diagonal (metric) | 189 cm |
| Display resolution | 3840 x 2160 pixels |
| Display technology | LED |
| Dynamic contrast ratio marketing name | Mega Contrast |
| HD type | 4K Ultra HD |
| Motion interpolation technology | Motion Xcelerator |
| Native aspect ratio | 16:9 |
| Native refresh rate | 60 Hz |
| Screen shape | Flat |
Smart TV
| Apple AirPlay 2 support | Yes |
| Hybrid Broadcast Broadband TV (HbbTV) | Yes |
| Hybrid Broadcast Broadband TV (HbbTV) version | 2.0.4 |
| Internet TV | Yes |
| Operating system installed | Tizen |
| Smart modes | Filmmaker |
| Smart TV | Yes |
| Sound mirroring | Yes |
Ports & interfaces
| Audio Return Channel (ARC) | Yes |
| Common interface (CI) | Yes |
| Common interface Plus (CI+) | Yes |
| Common interface Plus (CI+) version | 1.4 |
| Consumer Electronics Control (CEC) | Anynet+ |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 3 |
| PC in (D-Sub) | No |
| RF ports quantity | 3 |
| USB 2.0 ports quantity | 1 |
Audio
| Adaptive sound | Yes |
| Audio output channels | 2.0 channels |
| Audio pre-selection descriptor | Yes |
| Enhanced Audio Return Channel (eARC) | Yes |
| Number of speakers | 2 |
| RMS rated power | 20 W |
Network
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Browsing | Yes |
| Ethernet LAN | Yes |
| Web browser | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
Design
| Panel mounting interface | 400 x 300 mm |
| Product colour | Black |
| Stand colour | Grey |
| Stand type | Legs stand |
| VESA mounting | Yes |
Performance
| 4K Ultra HD upscaling | Yes |
| AI Upscale | Yes |
| Backlight dimming technology | UHD Dimming |
| Eco sensor | Yes |
| Game features | Auto Low Latency Mode (ALLM),HGiG,Variable Refresh Rate (VRR) |
| Game mode | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10)/High Dynamic Range 10+ (HDR10 Plus) |
| Picture processing technology | Samsung Contrast Enhancer |
| SmartThings app support | Yes |
| Subtitles function | Yes |
| TV key support | Yes |
TV tuner
| Digital signal format system | DVB-C/DVB-T2 |
| Tuner type | Analog & digital |
Management features
| Auto power off | Yes |
| Electronic Programme Guide (EPG) | Yes |
| Firmware upgradeable | Yes |
| Number of OSD languages | 28 |
| On Screen Display (OSD) | Yes |
| Voice control | Yes |
| Voice guide | Yes |
| Works with Samsung Bixby | Yes |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 220 - 240 V |
| Energy consumption (HDR) per 1000 hours | 199 kWh |
| Energy consumption (SDR) per 1000 hours | 138 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | G |
| Energy efficiency scale | A to G |
| Energy saving mode | Yes |
| Power consumption (max) | 220 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 138 W |
Brand-specific features
| Samsung technologies (AV/TV) | Crystal Processor 4K/Object Tracking Sound Lite/Q-Symphony |

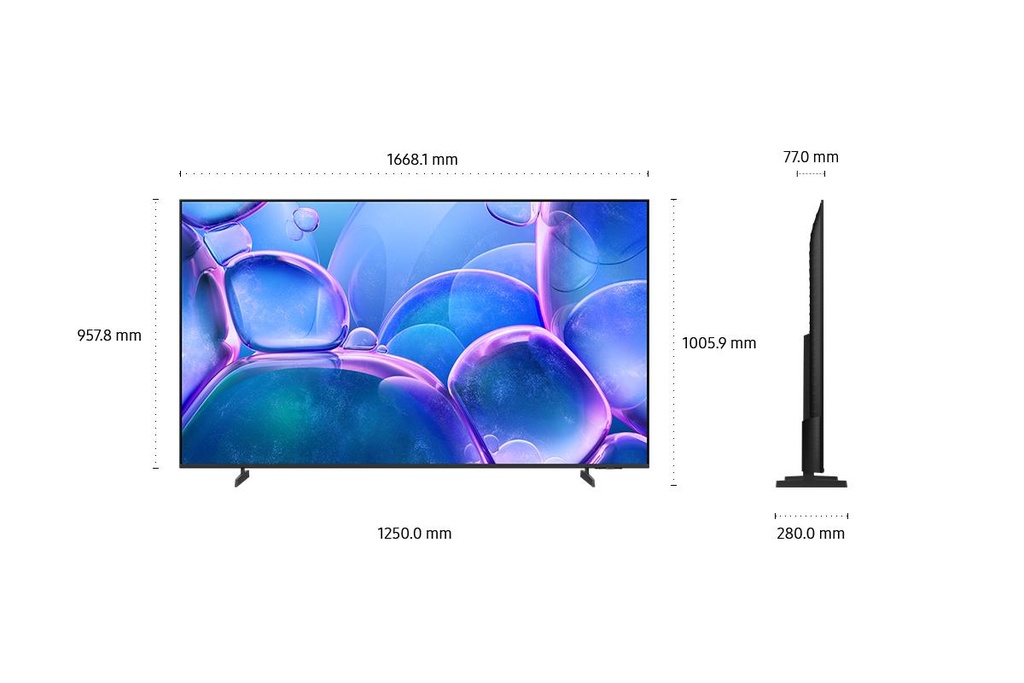

Weight & dimensions
| Depth (with stand) | 280 mm |
| Depth (without stand) | 77 mm |
| Height (with stand) | 1005.9 mm |
| Height (without stand) | 957.8 mm |
| Stand depth | 280 mm |
| Stand width | 1250 mm |
| Weight (with stand) | 22800 g |
| Weight (without stand) | 22400 g |
| Width (with stand) | 1668.1 mm |
| Width (without stand) | 1668.1 mm |
Packaging data
| Package depth | 164 mm |
| Package height | 1100 mm |
| Package weight | 31000 g |
| Package width | 1820 mm |
Packaging content
| Cables included | AC |
| Desktop stand | Yes |
| Remote control included | Yes |
| Remote control type | TM1240A |
Shipping/Package Box Dimensions
| Shipping Box Depth | 182 cm |
| Shipping Box Height | 110 cm |
| Shipping Box Weight | 31 kg |
| Shipping Box Width | 16.5 cm |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2257120/fiches?language=EN |
| Energy efficiency class | G |
| EPREL Registration Number | 2257120 |
| EPREL Version Number | 1 |
