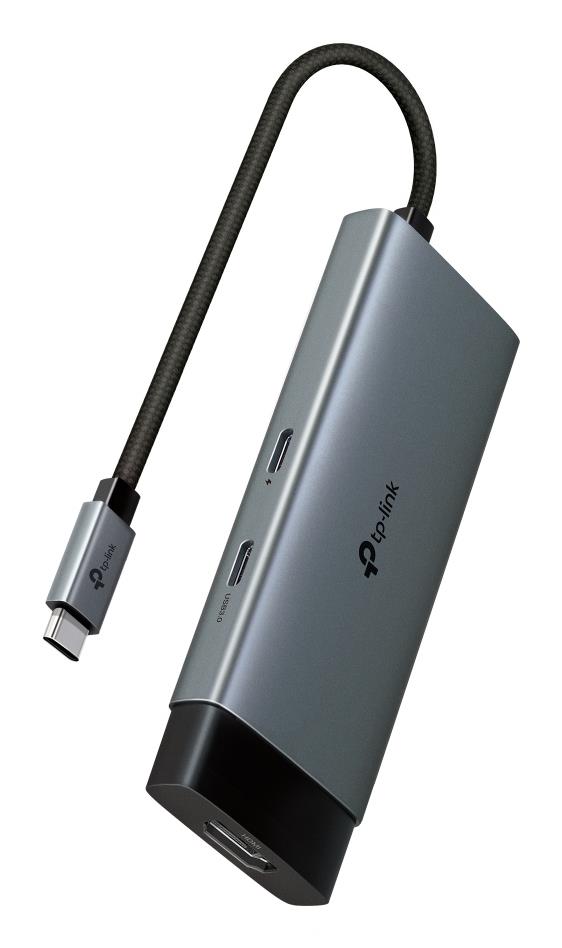

5 in 1 USB-C Hub

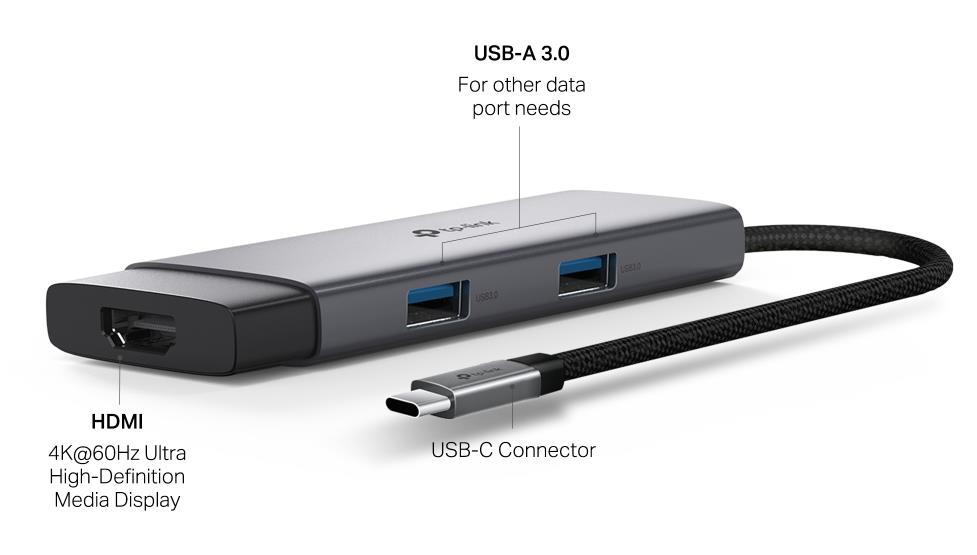

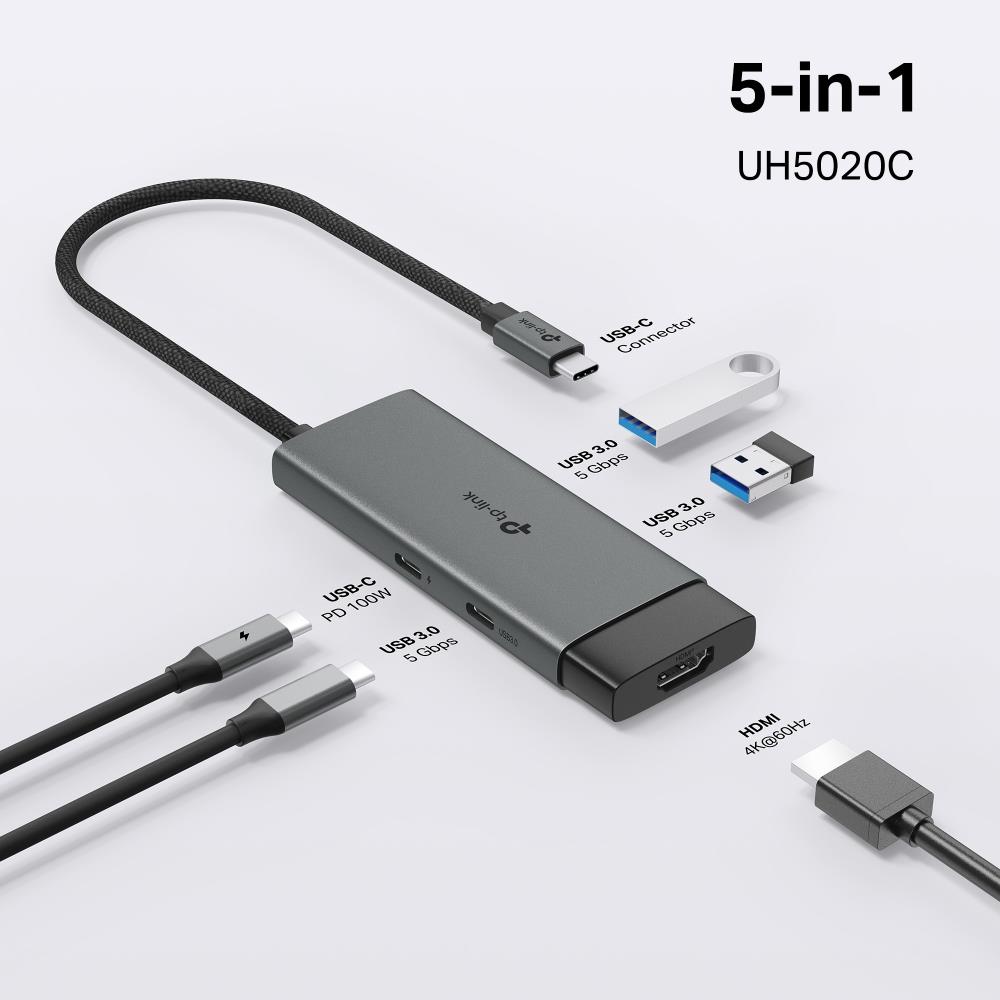

UH5020C turns a single USB-C port into 5 ports with a 4K@60Hz HDMI, 100W Power Delivery, 1× USB-C Data Port, 2× USB-A Data Ports.
Ultra High-Definition Media Display
Connect to an external monitor via the 4K@60Hz HDMI port for a stunning ultra high-definition experience.
Powerful 100W Fast Charging
Plug the charging cable into UH5020C and continuously deliver up to 100W of power to your PC while transferring files or streaming media.
5 Gbps SuperSpeed Data Transfer
UH5020C adds three USB 3.0 ports to your device, enabling simultaneous use of multiple USB devices.
Easy to Use with Plug & Play
Simply plug in and start using in seconds, thanks to driver-free install with Mac OS, Windows 11/10/8.1/8/7, Linux OS, iPadOS, iOS, Android, Chrome OS, and Nintendo OS.
Compact and Elegant Design

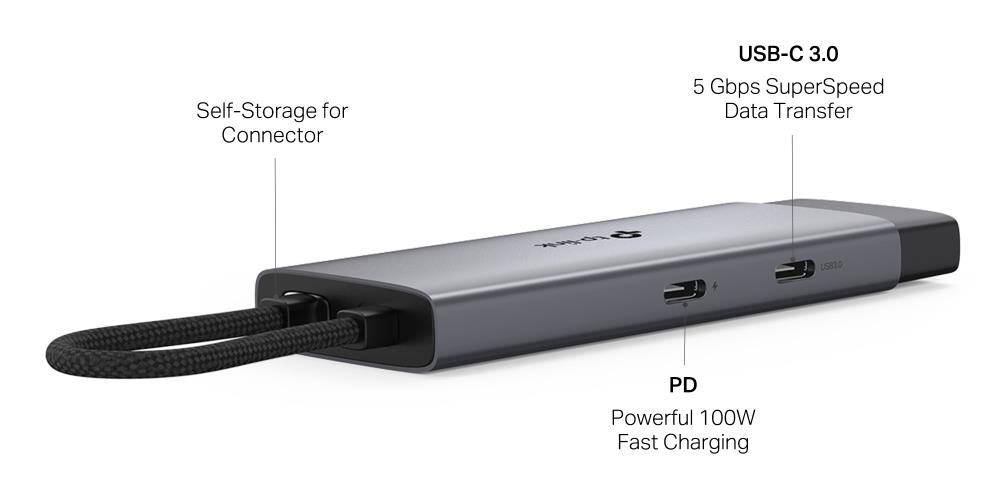

The self-storing design not only protects the connector, but also but also improves portability. Aluminum alloy case and braided cable make UH5020C more durable. Bring you a better user experience.
- 5 in 1 USB-C Hub
- Ultra High-Definition Media Display
- Easy to Use with Plug & Play
General
| Summary | TP-Link UH5020C. Host interface: USB Type-C, Hub interfaces: HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C. Data transfer rate: 5000 Mbit/s, Maximum refresh rate: 60 Hz, Supported video modes: 2160p. Power supply type: USB. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Mac operating systems supported: MacOS, Other operating systems supported: Android, ChromeOS, iOS, iPadOS. Width: 108.2 mm, Depth: 40 mm, Height: 12.2 mm |
| CnCode | 85176200 |
| Unit Box Height | 0.02 |
| Unit Box Length | 0.2 |
| Unit Box Width | 0.09 |
| Model name | UH5020C |
| Model | UH5020C |
Ports & interfaces
| Card reader integrated | No |
| DC-in jack | No |
| HDMI ports quantity | 1 |
| Host interface | USB Type-C |
| Hub interfaces | HDMI,USB 3.2 Gen 1 (3.1 Gen 1) Type-A,USB Type-C |
| Ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
Features
| Cable length | 0.18 m |
| Cable type | Round cable |
| Certification | HDMI |
| Data transfer rate | 5000 Mbit/s |
| Fast charging | Yes |
| Housing material | Aluminium |
| Maximum refresh rate | 60 Hz |
| Maximum resolution (HDMI) | 4096 x 2160 pixels |
| Plug and Play | Yes |
| Product colour | Grey |
| Supported video modes | 2160p |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
Power
| Power supply type | USB |
System requirements
| Compatible operating systems | Nintendo OS |
| Linux operating systems supported | Yes |
| Mac operating systems supported | MacOS |
| Other operating systems supported | Android/ChromeOS/iOS/iPadOS |
| Windows operating systems supported | Windows 10/Windows 11/Windows 7/Windows 8/Windows 8.1 |
Weight & dimensions
| Depth | 40 mm |
| Height | 12.2 mm |
| Width | 108.2 mm |
Packaging data
| Package type | Hanging box |
| Quantity per pack | 1 pc(s) |
Packaging content
| Quick start guide | Yes |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
Design
| Cable colour | Black |
Technical details
| Compliance certificates | BSMI/CE/EAC/Federal Communications Commission (FCC)/RoHS/UKCA |
ELKO Logistics Data
| Product Net Weight | 0.1 kg |
| Unit Calculated Weight | 0.112 kg |
| Units per Shipping Box | 1 |
ELKO Internal Logistics Data
| Shipping Box Depth | 20 cm |
| Shipping Box Height | 2 cm |
| Shipping Box Weight | 0.112 kg |
| Shipping Box Width | 9 cm |
| Unit Calculated Volume | 0.00036 cubm |
