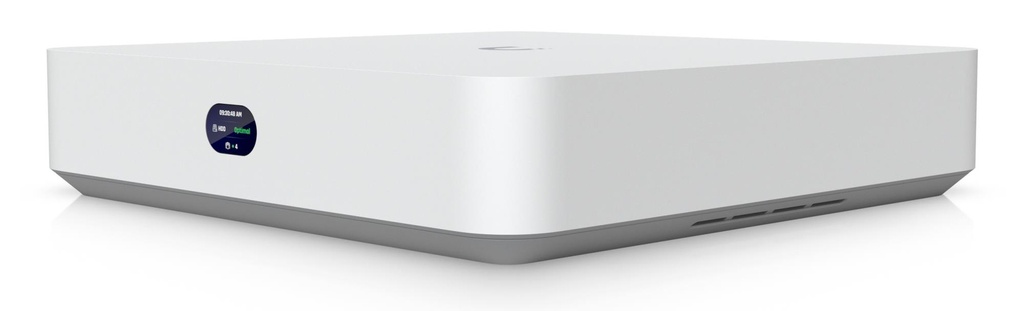

Compact UniFi Protect NVR with 3.5" HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for (6) 4K cameras or (15) Full HD cameras.
General
| Unit Calculated Weight | 2.25 kg |
| Unit Calculated Volume | 0.02007 cubm |
| Units per Shipping Box | 4 |
| Units per Pallet | 0 |
| Summary | Ubiquiti UNVR-Instant. Maximum resolution: 3840 x 2160 pixels. HDD size: 3.5". Ethernet LAN data rates: 10,100,1000 Mbit/s. LED indicators: LAN, PoE, Product colour: White. Processor frequency: 1.7 GHz |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.275 |
| Model name | UNVR-Instant |
| Model | UNVR-INSTANT |
Performance
| Maximum resolution | 3840 x 2160 pixels |
Wireless LAN features
| Wi-Fi | No |

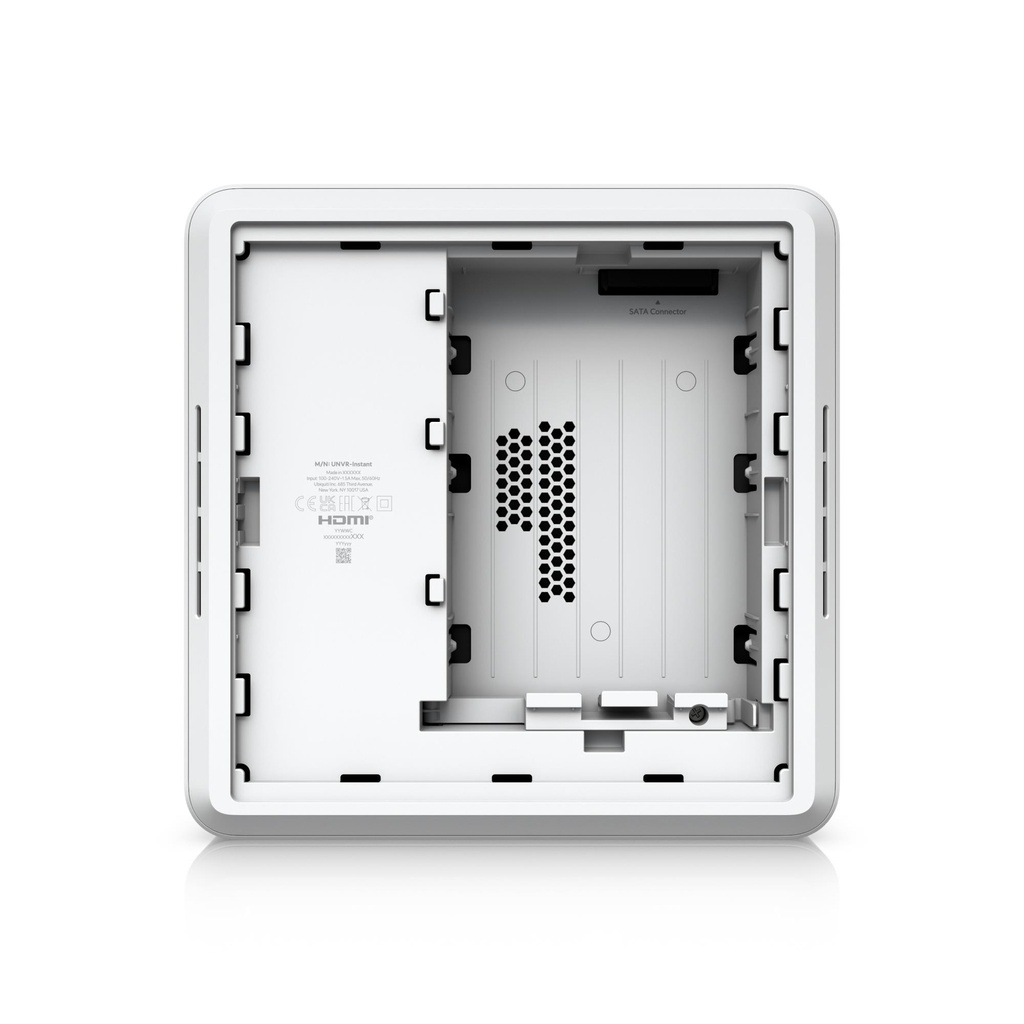

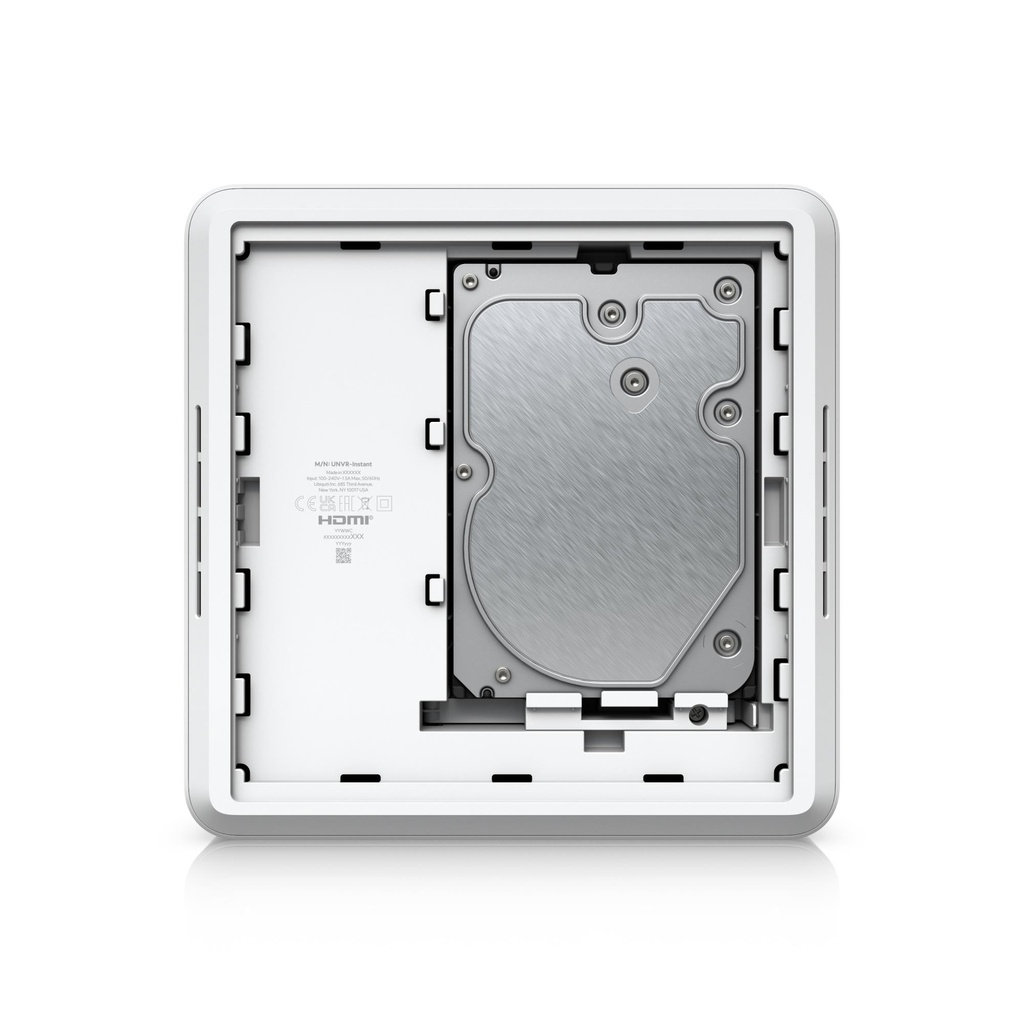

Hard drive
| HDD size | 3.5 " |
| Number of HDDs supported | 1 |

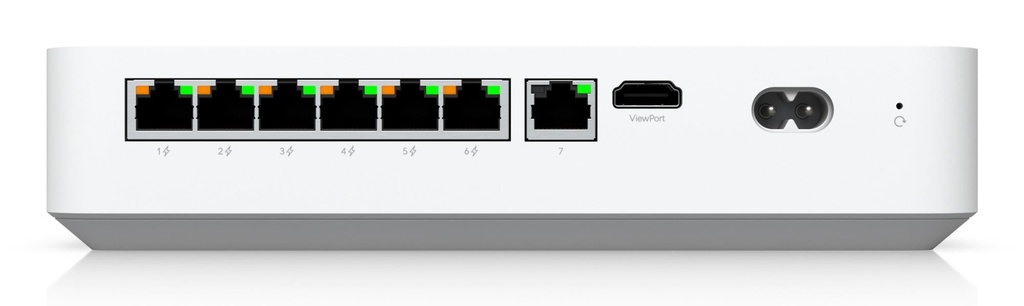

Ports & interfaces
| Ethernet LAN (RJ-45) ports | 7 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 6 |
Features
| LED indicators | LAN/PoE |
| Product colour | White |
| Reset button | Yes |
Processor
| Built-in processor | Yes |
| Processor cores | 4 |
| Processor frequency | 1.7 GHz |

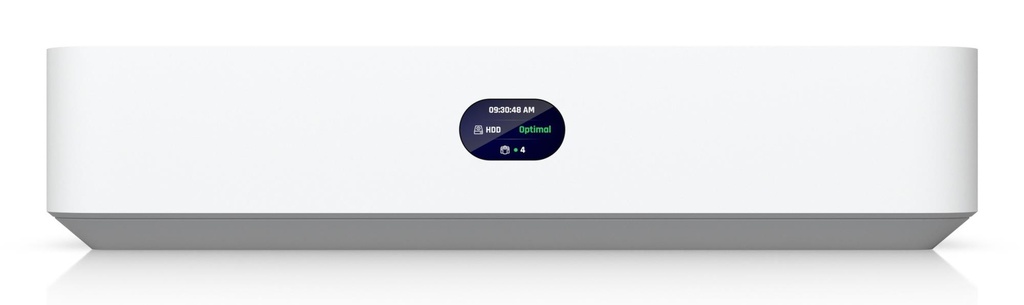

Display
| Built-in display | Yes |
| Display diagonal | 1.14 " |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 9 W |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 40 W |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
Technical details
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)/UL |
Weight & dimensions
| Depth | 220 mm |
| Height | 47 mm |
| Weight | 1040 g |
| Width | 220 mm |
Packaging content
| Cables included | Power |
Logistics data
| Harmonized System (HS) code | 85219000 |
