Enterprise network video recorder, can provide up to 30 days of 4K video storage for 15 cameras or Full HD video storage for 50 cameras

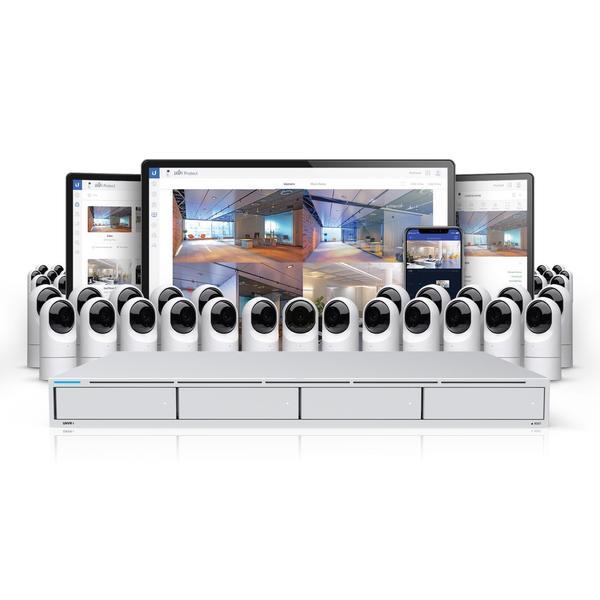

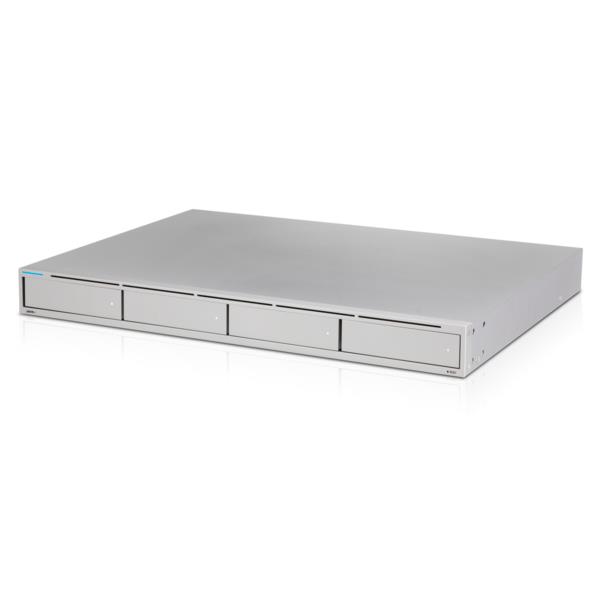

The UniFi® NVR is an enterprise network video recorder that integrates an NVR, the UniFi Protect software, and a 4-drive bay. UNVR unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software. From a desktop computer or mobile device, you can access your surveillance recordings from virtually anywhere using the intuitive graphical user interface. The mobile app is available for iOS and Android-based devices. The drive bays are easily accessed from the front panel, so hard drive mounting and maintenance are simple. Using four 8 TB drives in a RAID 5 configuration, the UNVR can provide up to 30 days of 4k video storage for 15 cameras or Full HD video storage for 50 cameras.

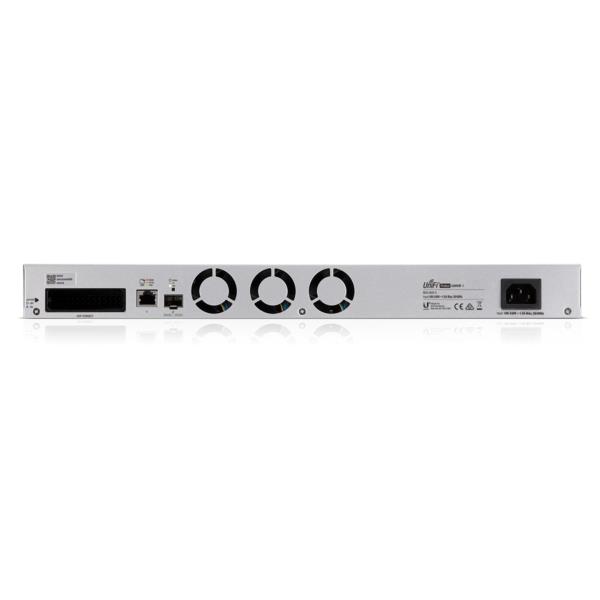

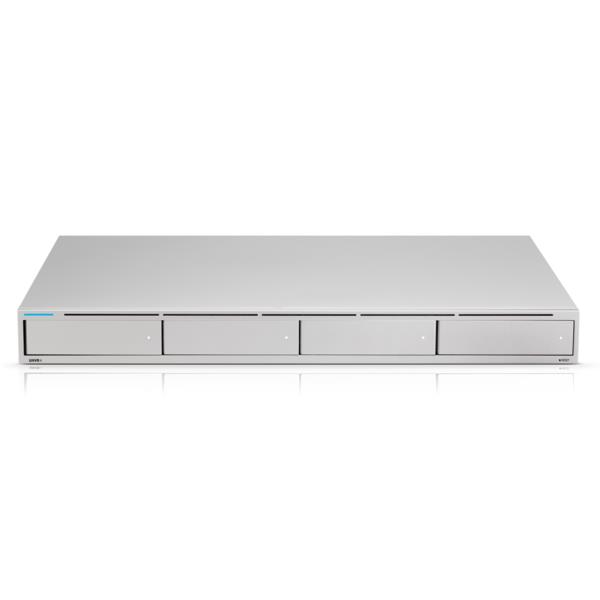

- (4) 2.5"/3.5" Drive bays
- (1) 10G SFP+ port
- (1) Gigabit RJ45 port
- 1U rackmountable (kit included)
- Plug and Play UniFi Protect system with NVR
- Automated secure RAID 1 or RAID 5 configuration
General
| Unit Calculated Weight | 7.1 kg |
| Unit Calculated Volume | 0.03229 cubm |
| Units per Shipping Box | 2 |
| Units per Pallet | 12 |
| Summary | Ubiquiti Protect Network Video Recorder. Video input channels: 4 channels. HDD capacity: 4 GB. Ethernet LAN data rates: 1000,10000,100000 Mbit/s. Product colour: Grey. Processor frequency: 1.7 GHz |
| Unit Box Height | 0.43 |
| Unit Box Length | 0.52 |
| Unit Box Width | 0.12 |
| Model name | Protect Network Video Recorder |
Performance
| Video input channels | 4 channels |
Hard drive
| HDD capacity | 4 GB |
| RAID levels | 5 |
| RAID support | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000/10000/100000 Mbit/s |
Features
| LED indicators | Yes |
| On/off switch | Yes |
| Product colour | Grey |
| Rack mounting | Yes |
Processor
| Built-in processor | Yes |
| Processor cores | 4 |
| Processor frequency | 1.7 GHz |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Output current | 2 A |
| Power consumption (max) | 100 W |
| Power consumption (typical) | 75 W |
Operational conditions
| Operating temperature (T-T) | -5 - 40 °C |
Weight & dimensions
| Depth | 325 mm |
| Height | 43.7 mm |
| Weight | 5110 g |
| Width | 442.4 mm |
Logistics data
| Harmonized System (HS) code | 85219000 |
