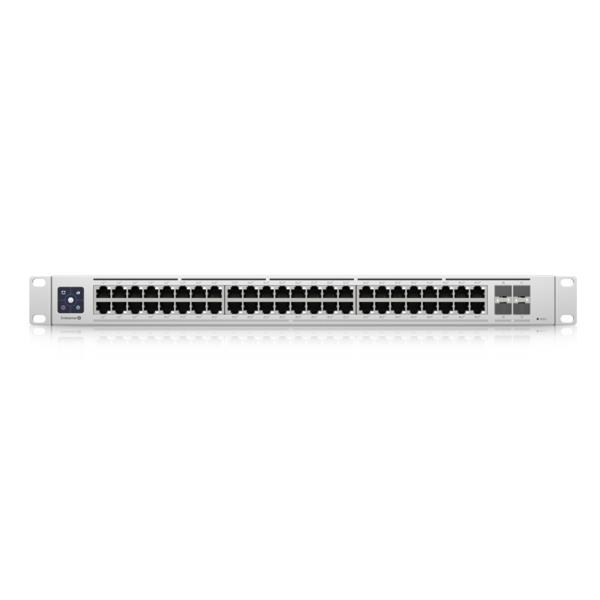

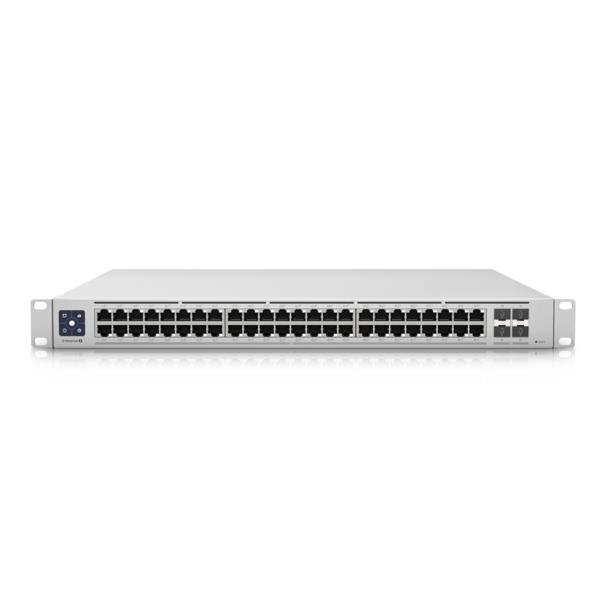

The Switch Enterprise 48 PoE (USW Enterprise 48 PoE) is a fully managed switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports, (4) 10G SFP+ ports, and a 720W total PoE supply. Along with its Layer 3 functionality, this switch offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate).The USW Enterprise 48 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise 48 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
- (1) 1.3" LCM color touchscreen with AR switch management
- (48) 2.5GbE, 802.3at PoE+ RJ45 ports
- (4) 10G SFP+ ports
- (1) USP RPS DC input
- 720W total PoE supply
- Layer 3 switching features
General
| Unit Calculated Weight | 8.1 kg |
| Unit Calculated Volume | 0.01755 cubm |
| Units per Shipping Box | 2 |
| Summary | Ubiquiti UniFi USW-ENTERPRISE-48-POE. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 48. Switching capacity: 360 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 52 V |
| Unit Box Height | 0.125 |
| Unit Box Length | 0.54 |
| Unit Box Width | 0.26 |
| Model name | USW-ENTERPRISE-48-POE |
Management features
| Switch layer | L3 |
| Switch type | Managed |
| Web-based management | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 4 |
Network
| 10G support | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
Data transmission
| Forwarding rate | 238.095 Mpps |
| Switching capacity | 360 Gbit/s |
| Throughput | 160 Gbit/s |
Design
| Housing material | Steel |
| Product colour | White |
| Reset button | Yes |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| DC input voltage | 52 V |
| Input current | 10 A |
| Power source | AC/DC |
| Redundant power supply (RPS) support | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
Weight & dimensions
| Depth | 400 mm |
| Height | 44 mm |
| Weight | 6200 g |
| Width | 442 mm |
Certificates
| Compliance certificates | CE |
Logistics data
| Harmonized System (HS) code | 85176990 |
