General
| Unit Calculated Weight | 0.8 kg |
| Unit Calculated Volume | 0.002025 cubm |
| Units per Shipping Box | 1 |

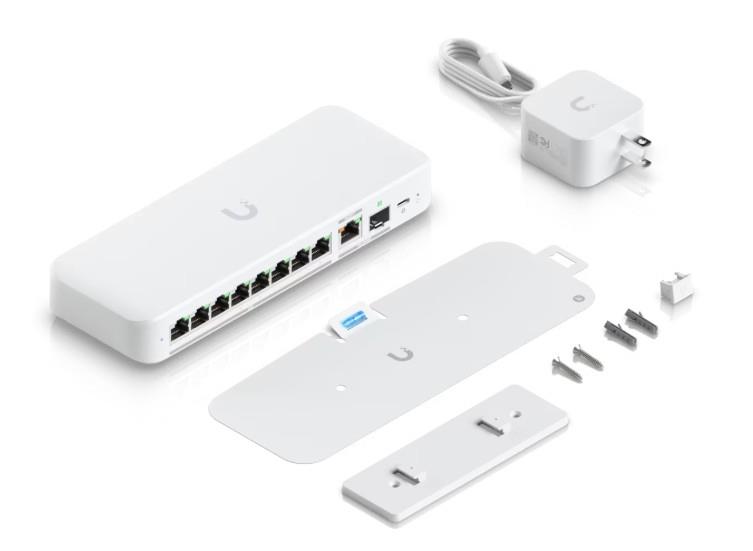

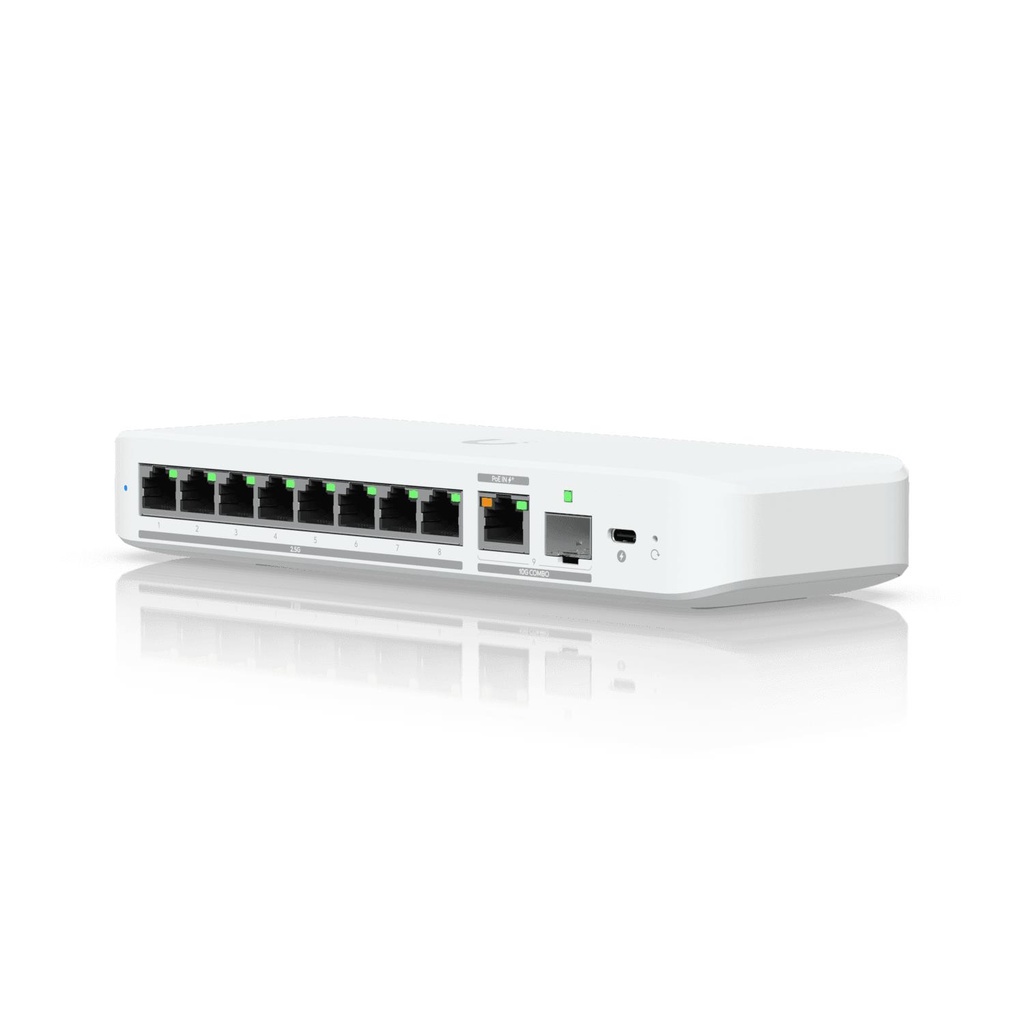

| Summary | Ubiquiti UniFi Flex 2.5G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 60 Gbit/s. Wall mountable, Form factor: Desktop/Wall-Mounting |
| CnCode | 85176200 |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.25 |
| Unit Box Width | 0.09 |
| Model name | USW-FLEX-2.5G-8 |
Management features
| Switch layer | L2 |
| Switch type | Managed |
Ports & interfaces
| 10G Ethernet (copper) ports quantity | 1 |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 1 |
Network
| 10G support | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Flow control support | Yes |
| Number of VLANs | 256 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
Data transmission
| Forwarding rate | 45 Mpps |
| Jumbo frames support | Yes |
| MAC address table | 4000 entries |
| Switching capacity | 60 Gbit/s |
| Throughput | 30 Gbit/s |
Security
| Loop protection | Yes |
Multicast features
| Multicast support | Yes |
Design
| DIN rail mounting | Yes |
| Form factor | Desktop/Wall-Mounting |
| Housing material | Polycarbonate (PC) |
| LED indicators | Activity/Link/Power/Status |
| Product colour | White |
| Wall mountable | Yes |
Power
| Input current | 3.9 A |
| Power consumption (max) | 17 W |
| Power source | PoE/USB |
| Power supply included | No |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -20 - 45 °C |
Weight & dimensions
| Depth | 99.4 mm |
| Height | 33.5 mm |
| Weight | 567 g |
| Width | 212.9 mm |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |
