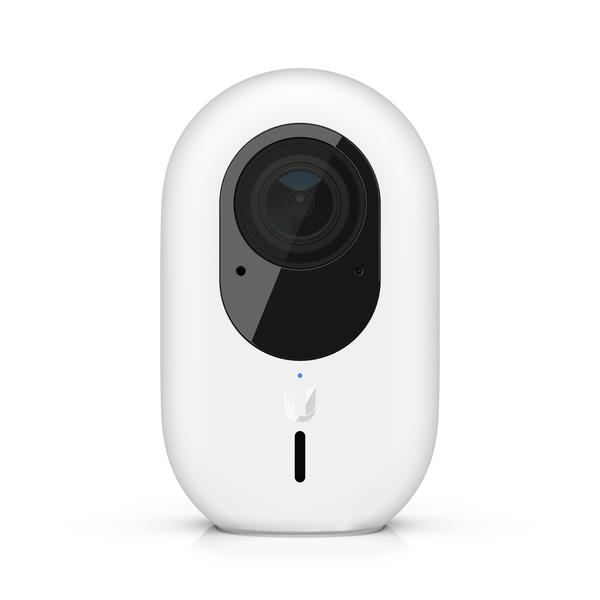

Compact, wide-angle, WiFi-connected camera with two-way audio.
- 2K HD, 30 FPS camera
- Built-in IR LEDs with an automatic IR cut filter for optimal nighttime surveillance
- Built-in microphone and speaker
- IPX5-rated, weatherproof casing
- Wall-mountable
General
| Unit Calculated Weight | 0.6 kg |
| Unit Calculated Volume | 0.003546 cubm |
| Units per Shipping Box | 12 |
| Units per Pallet | 0 |
| Summary | Ubiquiti G4 Instant. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wireless. Mounting type: Wall, Product colour: White, Form factor: Cube. Lens viewing angle, horizontal: 102.4°, Lens viewing angle, vertical: 54.9°, Lens viewing angle, diagonal: 120.6°. Sensor type: CMOS. Fixed focal length: 2.8 mm |
| Unit Box Height | 0.12 |
| Unit Box Length | 0.13 |
| Unit Box Width | 0.125 |
| Model name | Camera G4 Instant |
| Model | UVC-G4-INS |
Performance
| Built-in processor | Yes |
| Certification | FCC, IC, CE |
| Connectivity technology | Wireless |
| Placement supported | Outdoor |
| Processor model | ARM Cortex-A7 |
| Type | IP security camera |
Design
| Form factor | Cube |
| Housing material | Polycarbonate (PC) |
| IK code | IK04 |
| International Protection (IP) code | IPX5 |
| LED indicators | Yes |
| Mounting type | Wall |
| Product colour | White |
| Weatherproof | Yes |
Camera
| Lens viewing angle, diagonal | 120.6 ° |
| Lens viewing angle, horizontal | 102.4 ° |
| Lens viewing angle, vertical | 54.9 ° |
Image sensor
| Sensor type | CMOS |
Lens system
| Fixed focal length | 2.8 mm |
| Maximum aperture number | 1.6 |
Night vision
| LED type | IR |
| Night vision | Yes |
Video
| Frame rate | 30 fps |
| Maximum resolution | 2688 x 1512 pixels |
| Total megapixels | 5 MP |
| Video compression formats | H.264/M-JPEG |
| Video recording | Yes |
Audio
| Audio system | 2-way |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
Network
| Bluetooth | Yes |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
Storage
| Built-in HDD | No |
| Flash memory | 2048 MB |
| Internal memory | 2048 MB |
Management features
| Reset button | Yes |
| Smartphone/tablet remote support | Yes |
Power
| DC output current | 2 A |
| DC output voltage | 5 |
| Power consumption (max) | 6 W |
| Power source type | USB |
Operational conditions
| Operating relative humidity (H-H) | 0 - 90 % |
| Operating temperature (T-T) | -20 - 40 °C |
Weight & dimensions
| Depth | 50 mm |
| Height | 81.6 mm |
| Weight | 125 g |
| Width | 47.2 mm |
Packaging content
| Cables included | USB |
| Manual | Yes |
| Mounting kit | Yes |
| Number of cameras | 1 |
