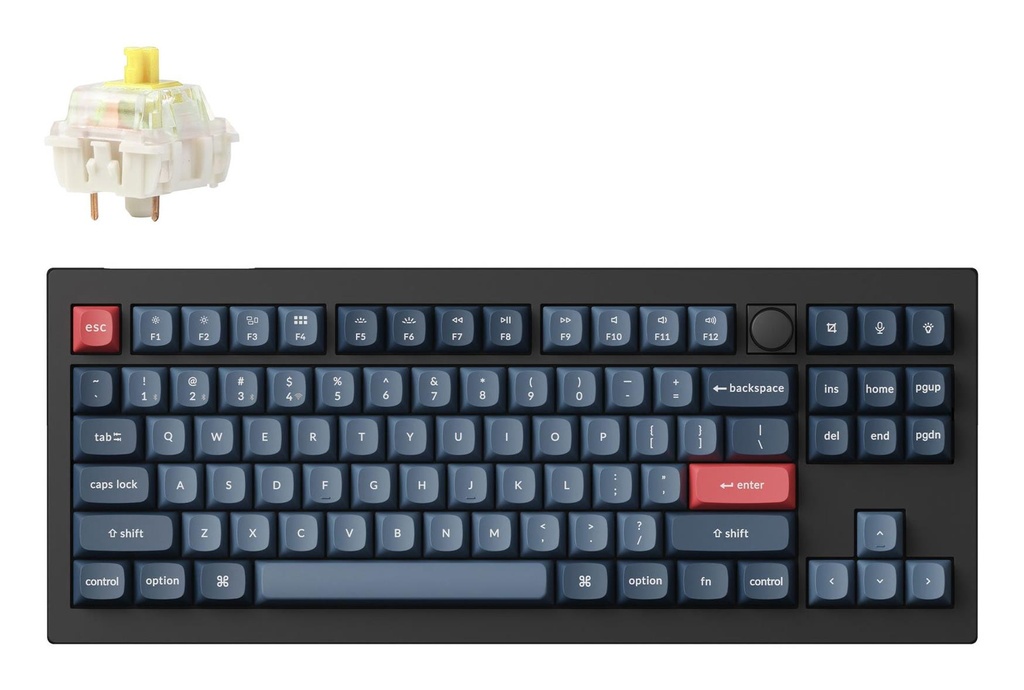

Keychron V3 Max
The V3 Max is a QMK custom mechanical keyboard with 2.4 GHz wireless and Bluetooth 5.1 connection. It has a classic TKL layout and offers a gasket mount design, sound-absorbing foam, double-shot PBT keycaps, and more. The V3 Max is designed for a personalized experience and enhanced typing comfort.
- ABS plastic housing
- The keyboard PCB, screw-in stabs, and the PC plate
- Double-shot OSA PBT keycaps (including Mac & Windows keycaps)
- Gateron Jupiter switches
General
| Unit Calculated Weight | 1.54 kg |
| Unit Calculated Volume | 0.0056 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | Keychron V3 Max. Keyboard form factor: Tenkeyless (80 - 87%). Keyboard style: Straight. Connectivity technology: Wired & Wireless, Device interface: RF Wireless + Bluetooth, Keyboard key switch: Mechanical. Backlight type: RGB LED. Recommended usage: Universal. Product colour: Black, Grey |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.2 |
| Unit Box Width | 0.4 |
| Model | V3M-D4 |
Keyboard
| Actuation force | 59 g |
| Bluetooth version | 5.1 |
| Built-in memory | Yes |
| Built-in memory capacity | 256 KB |
| Connectivity technology | Wired & Wireless |
| Device interface | RF Wireless + Bluetooth |
| Frequency band | 2.4 GHz |
| Key travel distance | 3.4 mm |
| Keyboard form factor | Tenkeyless (80 - 87%) |
| Keyboard key profile | High-profile |
| Keyboard key switch | Mechanical |
| Keyboard keys operating life | 80 million characters |
| Keycaps | Double shot |
| Keycaps material | Polybutylene terephthalate (PBT) |
| Numeric keypad | No |
| On/off switch | Yes |
| Pointing device | No |
| Polling rate | 1000/90 Hz |
| Programmable hot keys | Yes |
| Recommended usage | Universal |
| Rollover | N-key rollover |
| Windows keys | Yes |
Design
| Adjustable backlight | Yes |
| Adjustable keyboard height | Yes |
| Backlight | Yes |
| Backlight colour | Red/Green/Blue |
| Backlight type | RGB LED |
| Keyboard style | Straight |
| Material | Plastic |
| Product colour | Black/Grey |
Features
| Detachable cable | Yes |
| Hot-swap | Yes |
| USB connector type | USB Type-C |
Power
| Battery capacity | 4000 mAh |
| Battery life (max) | 225 h |
| Battery technology | Lithium Polymer (LiPo) |
| Keyboard battery type | Built-in battery |
| Power source type | Battery,USB |
| Rechargeable | Yes |
| USB Type-C charging port | Yes |
Mouse
| Mouse included | No |
Operational conditions
| Operating temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Keyboard dimensions (WxDxH) | 367.8 x 149 x 32.5 mm |
| Keyboard weight | 895 g |
Packaging content
| AC adapter included | No |
| Number of products included | 1 pc(s) |
| Receiver included | Yes |
