WRL CAMERA 4MP PAN/TILT/VIGI C540-W(4MM) TP-LINK

Kainos tik partneriams Prisijungti B2B

TP-LINK
Garantija: 24 mėn.
Pristatymas į terminalą: DPD, InPost, Omniva
  • Gamintojas
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Gamintojas: TP-LINK

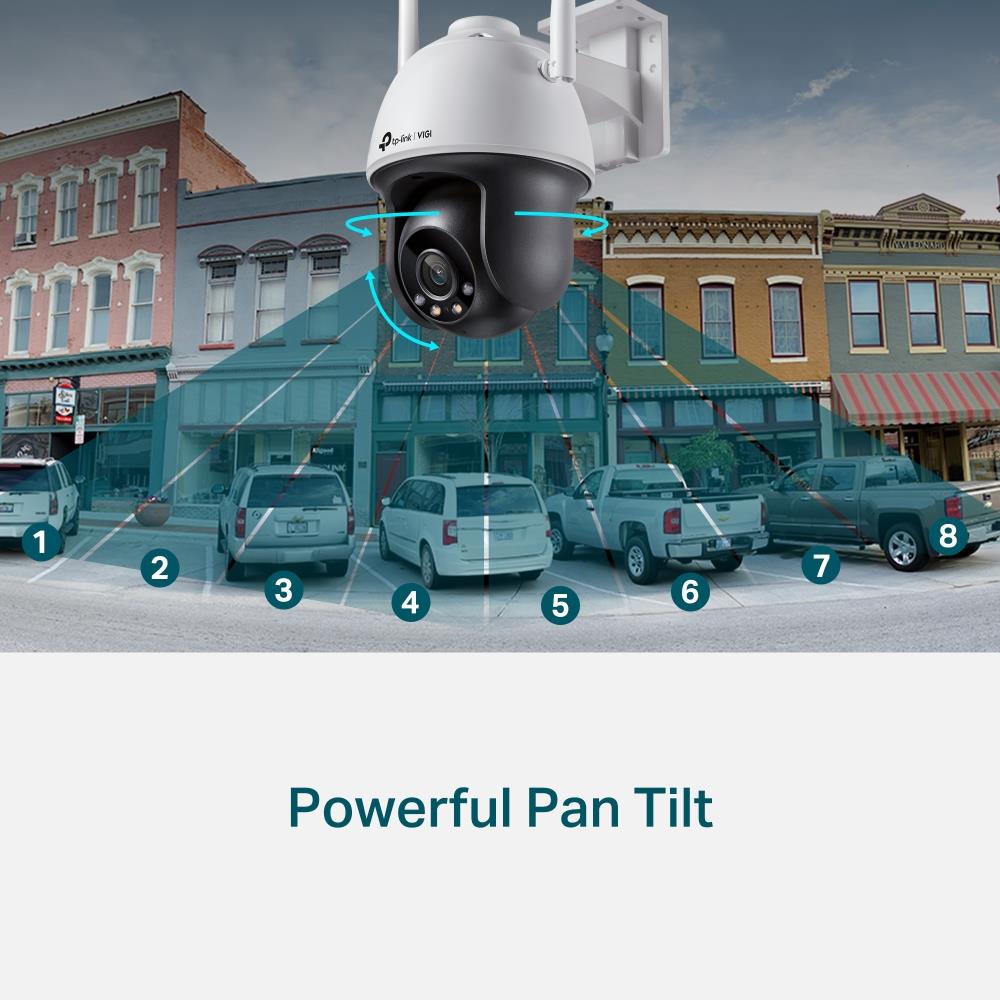

Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.

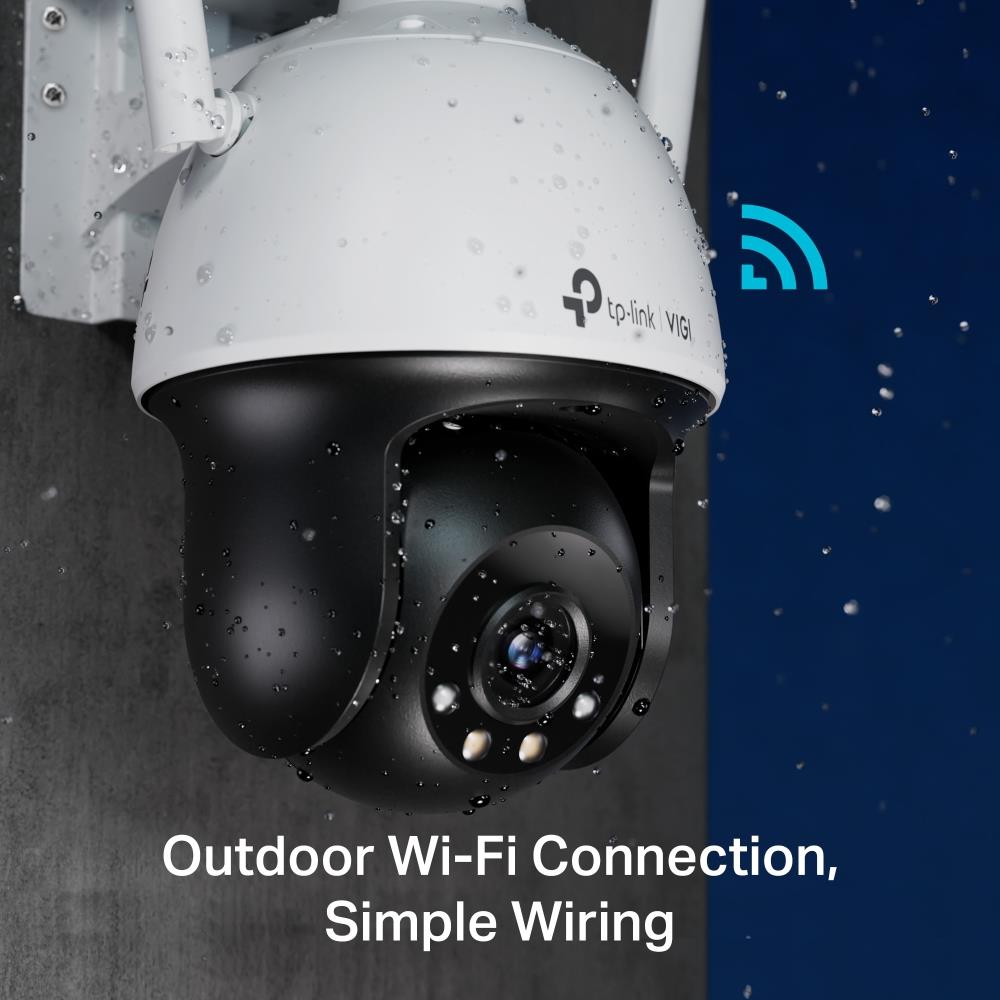

Outdoor Wi-Fi Connection, Simple Wiring
Just power up your camera, then the transmission starts by its 2×2 MIMO antennas. Waterproof hardware protects stable performance in outdoor scenarios.

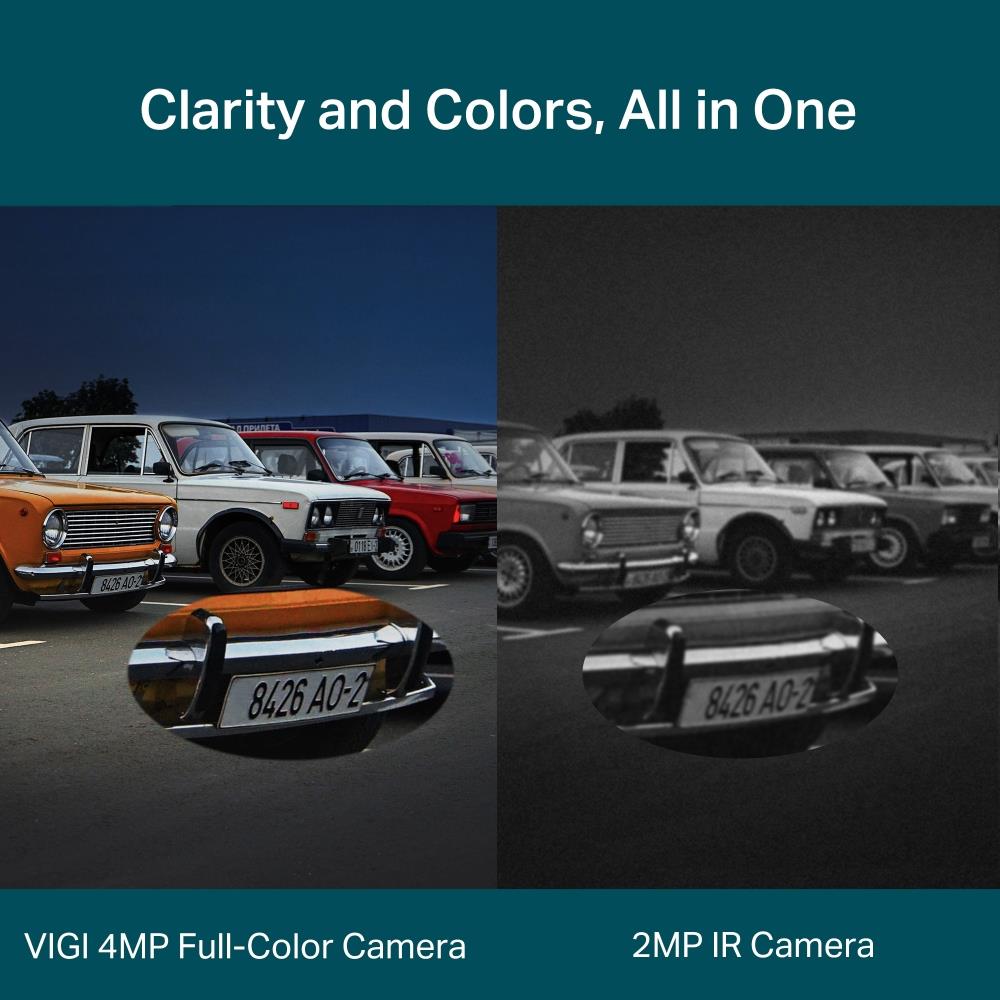

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.

Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.

Every Event is Under Your Control.
VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.

Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to the camera at night.

Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.

3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with an SD card slot (up to 256 GB).

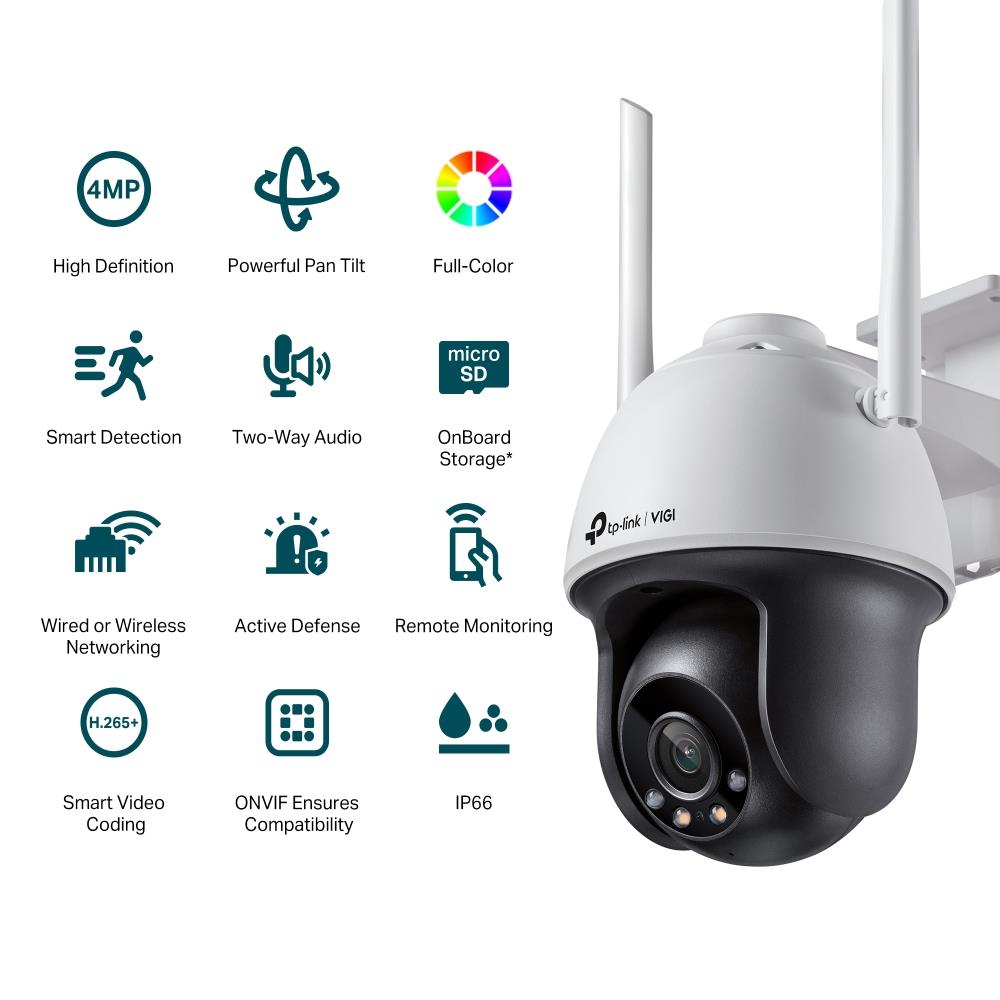

  • 4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details
  • 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs
  • Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property
  • Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals
  • Waterproof: Reliable IP66 for stable outdoor performance
  • Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera
  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality

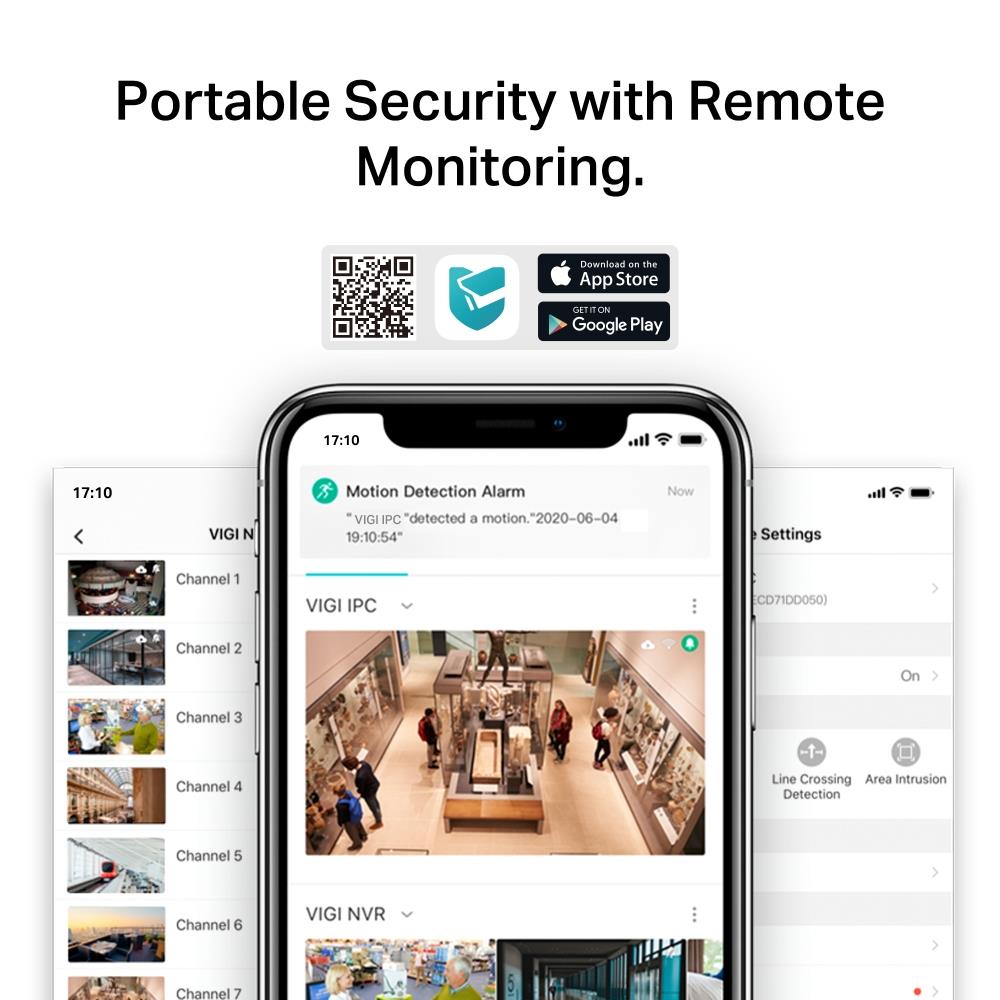

  • VIGI App: Manage your security from the palm of your hand with the VIGI app
General
Unit Calculated Weight1.18 kg
Unit Calculated Volume0.009216 cubm
Units per Shipping Box1
SummaryTP-Link VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 79°, Lens viewing angle, vertical: 43°, Lens viewing angle, diagonal: 93°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m
Unit Box Height0.24
Unit Box Length0.24
Unit Box Width0.16
Model nameVIGI C540-W
Performance
CertificationRCM, BSMI, VCCI, NCC, JRF, KC
Connectivity technologyWired & Wireless
Placement supportedIndoor & outdoor
TypeIP security camera
Design
Form factorTurret
Housing materialPlastic
International Protection (IP) codeIP66
Mounting typeCeiling/wall
Product colourBlack/White
Camera
Camera pan controlYes
Camera tilt controlYes
Lens viewing angle, diagonal93 °
Lens viewing angle, horizontal79 °
Lens viewing angle, vertical43 °
Pan range0 - 350 °
Pan speed44 °/sec
Tilt angle range0 - 120 °
Tilt speed44 °/sec
Image sensor
Optical sensor size1/3 "
Progressive scanYes
Sensor typeCMOS
Lens system
Detect distance80 m
Identify distance8 m
Lens diameter4 mm
Number of lenses1
Observe distance33 m
Recognize distance16 m
Zoom capabilityYes
Night vision
Infra-red wavelength850 nm
LED typeIR
Night visionYes
Night vision distance30 m
Video
Bit rate256 Kbps - 4 Mbps
Digital Wide Dynamic Range (DWDR)Yes
Frame rate30 fps
Image quality adjustmentBrightness/Contrast/Mirror/Saturation/Sharpness
Maximum resolution2560 x 1440 pixels
Noise reductionYes
Noise reduction technology3D noise reduction
Privacy maskingYes
Supported graphics resolutions1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/320 x 240/352 x 288/640 x 480 (VGA)
Total megapixels4 MP
Video compression formatsH.264/H.264+/H.265/H.265+
Video streamingYes
Audio
Built-in microphoneYes
Built-in speaker(s)Yes
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Ethernet LANYes
Live viewYes
Number of simultaneous live view channels3 channels
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wi-FiYes
Wi-Fi standards802.11b/802.11g/Wi-Fi 4 (802.11n)
Storage
Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Security
Digest authenticationYes
HTTPS encryptionYes
Intelligent Video Surveillance (IVS) system featuresHuman detection
IP address filteringYes
MirrorYes
Password protectionYes
Security algorithmsWPA/WPA2-PSK
Management features
Behavior analysisIntrusion detection,Line crossing detection
Reset buttonYes
Power
DC output voltage12
Power source typeDC
Operational conditions
Operating temperature (T-T)-30 - 60 °C
Weight & dimensions
Depth172 mm
Height198 mm
Width120 mm
Features
Basic eventMotion Detection, Camera Tampering Detection, Exception
Sustainability
Compliance certificatesCE/RoHS
Packaging data
Package depth243 mm
Package height243 mm
Package weight1210 g
Package width163 mm
Packaging content
Mounting kitYes
Number of cameras1
