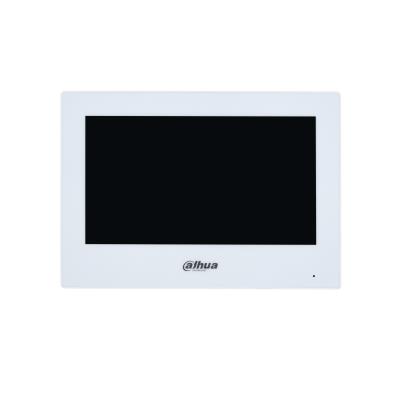

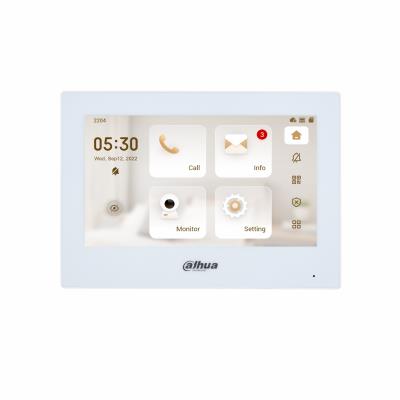

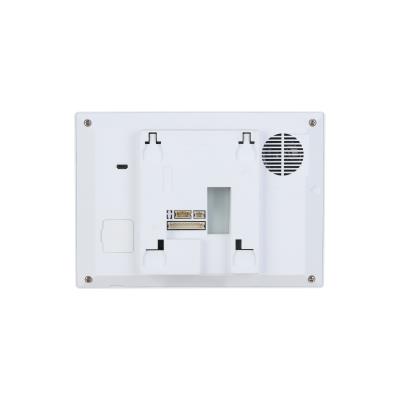

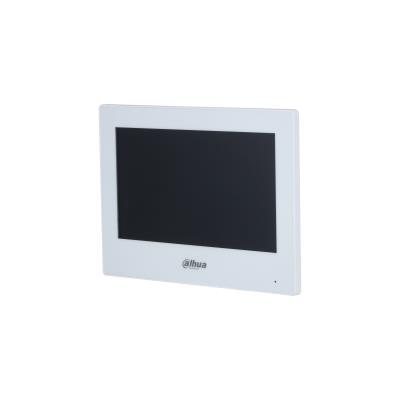

2-Wire IP & Wi-Fi Indoor Monitor
> 7" TFT capacitive touch screen, 1024 × 600
> 6-channel alarm input and 1-channel alarm output
> WiFi
> Door station and IPC monitor
> H.265 and H.264 video decoding
> 2-wire digital communication
> High performance & cost-effective
> 7" TFT capacitive touch screen, 1024 × 600
> 6-channel alarm input and 1-channel alarm output
> WiFi
> Door station and IPC monitor
> H.265 and H.264 video decoding
> 2-wire digital communication
> High performance & cost-effective
General
| Model | VTH2622GW-W |
| Unit Box Height | 0.072 |
| Power supply requirements | 48 VDC 1.25 A |
| Unit Box Length | 0.257 |
| Unit Box Width | 0.187 |
| Operating temperature range | –10 °C to +55 °C |
| Name | MONITOR LCD 7" IP DOORPHONE/WIFI VTH2622GW-W DAHUA |
| Colour | Black / White |
| Dimensions | 189.6 × 134.6 × 26.0mm |
Input/Output connectors
| Alarm In | 6 |
| Alarm Out | 1 |
ELKO Internal Logistics Data
| Shipping Box Width | 18.7 cm |
| Shipping Box Depth | 25.7 cm |
| Shipping Box Height | 7.2 cm |
| Shipping Box Weight | 0.57 kg |
| Unit Calculated Volume | 0.00346 cubm |
ELKO Verified Logistics Data
| Unit Height | 7.2 cm |
| Unit Depth | 25.7 cm |
| Unit Width | 18.7 cm |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Product Net Weight | 0.34 kg |
| Unit Calculated Weight | 0.57 kg |
