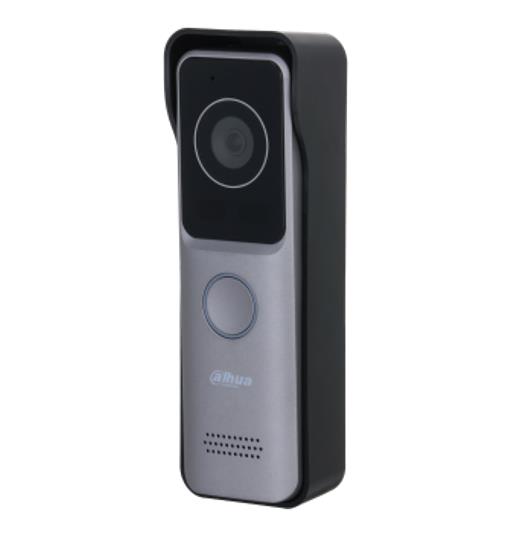

IP Villa Door Station
> Ultra slim design.
> PC and ABS material make it ideal for indoor and outdoor use.
> 1/2.8" 2-MP HD CMOS camera.
> Offers two–way video call with indoor monitors.
> Video and voice messages from visitors can be checked on the indoor monitor
> Video call and unlocking through app.
> IR illumination and auto WDR.
> Wi-Fi connection.
> IP65 rated.
> H.264 and H.265.
> Unlock with IC card.
> PoE power supply.
General
| Model | VTO2311R-WP |
| Unit Box Height | 0.11 |
| Power supply requirements | 12–33 VDC, 1 A ; Standard PoE |
| Unit Box Length | 0.21 |
| Unit Box Width | 0.12 |
| Operating temperature range | –40 °C to +60 °C |
| Colour | Light Grey |
| Dimensions | 160 mm × 50 mm × 30 mm |
| Units per Shipping Box | 20 |
| Unit Calculated Volume | 0.003299 cubm |
| Product Net Weight | 0.18 kg |
| Unit Calculated Weight | 0.535 kg |
Input/Output connectors
| Audio-In | 1 |
| MicroSD Card Slot | 1 |
| RJ45 | 1 |
