- 32-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
- 12-channel AcuPick for analog channels which improves the efficiency of target retrieval
- 12-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI
- 6-channel face recognition for analog channels which supports face comparison
- 32-channel SMD Plus for analog channels or 64-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles
- 32-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
- Supports HDCVI, AHD, TVI, CVBS and IP video input
- Supports up to 64-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 256 Mbps
- Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes
- Smart H.265+ and H.265 dual-stream video compression
General
| Unit Calculated Weight | 4.02 kg |
| Unit Calculated Volume | 0.02773 cubm |
| Units per Shipping Box | 1 |

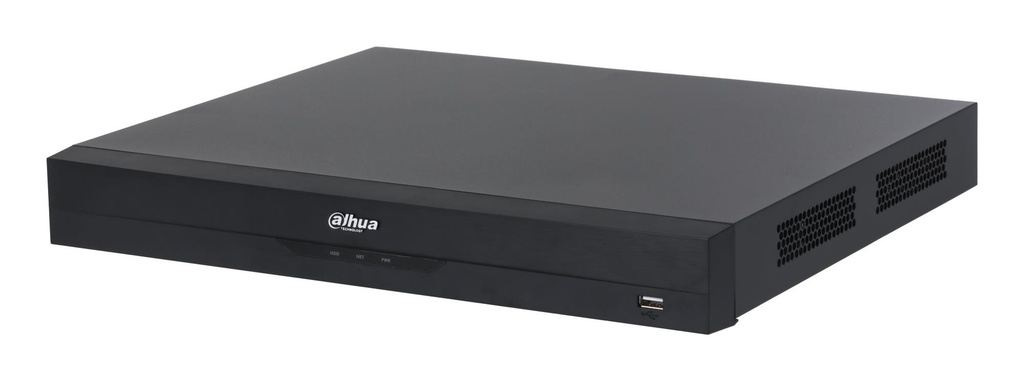

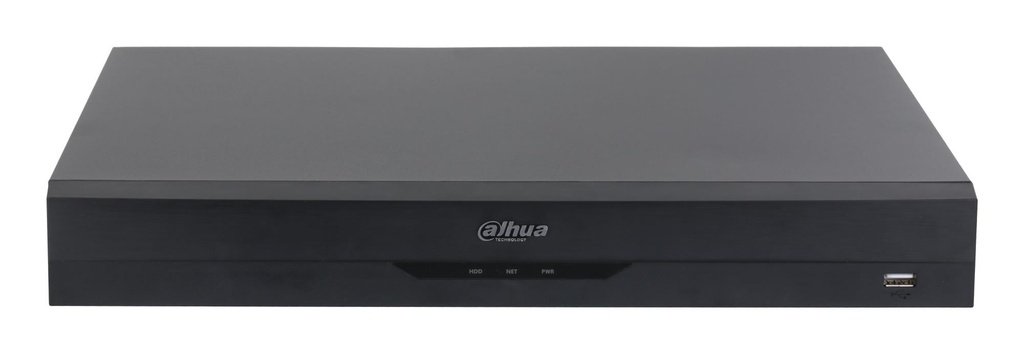

| Summary | Dahua Technology XVR5232AN-4KL-I3/T. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video resolutions: 3840 x 2160,1920 x 1080,1280 x 720. Video input channels: 32 channels. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Supported network protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P, Ethernet LAN data rates: 10,100,1000 Mbit/s. Maximum HDD capacity: 16 TB |
| Unit Box Height | 0.425 |
| Unit Box Length | 0.45 |
| Unit Box Width | 0.145 |

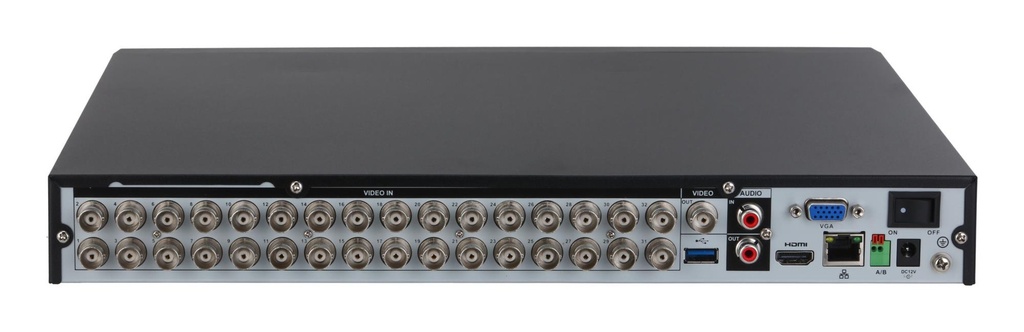

Ports & interfaces
| BNC input ports | 32 |
| HDMI ports quantity | 1 |
| RS-485 ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Video input channels | 32 channels |
| Video RCA outputs | 1 |
Network
| Ethernet interface type | Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Supported network protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P |
Hard drive
| Maximum HDD capacity | 16000 GB |
| Number of HDDs supported | 2 |
Performance
| Audio formats supported | G.711 A-law/G.711u/PCM |
| Audio output channels | 1.0 channels |
| Backup function | Yes |
| Dual stream support | Yes |
| Graphical user interface (GUI) | Yes |
| Maximum video resolution | 3840 x 2160 pixels |
| Multi-display modes | 1/16/25/36/4/8/9 |
| Multi-display supported | Yes |
| Operating system installed | Embedded LINUX |
| Playback modes | Event/General/Instant/Smart/Tag |
| Product colour | Black |
| Rack capacity | 1U |
| USB connectivity | Yes |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
| Video loss detection | Yes |
| Video motion detection | Yes |
Video
| Video resolutions | 1280 x 720/1920 x 1080/3840 x 2160 pixels |
Power
| DC voltage | 12 V |
| Power consumption (typical) | 32 W |
| Power supply type | DC |
Weight & dimensions
| Depth | 333.9 mm |
| Height | 53 mm |
| Weight | 2378 g |
| Width | 375 mm |
Packaging data
| Package depth | 147 mm |
| Package height | 425 mm |
| Package weight | 3840 g |
| Package width | 451 mm |
Packaging content
| Quick start guide | Yes |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Technical details
| Compliance certificates | CE |
