Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Digital 16+1+2+1 Phases 80A SPS VRM with Tantalum Polymer Capacitor
- Reinforced PCIe UD Slot X PCIe 5.0 with PCIe EZ-Latch Plus Design
- PCIe M.2 design (Up to 25110) with M.2 EZ-Latch Plus & Thermal Guard
- Fully Covered MOSFET Heatsinks with heatpipe/M.2 EZ-Latch Click Design

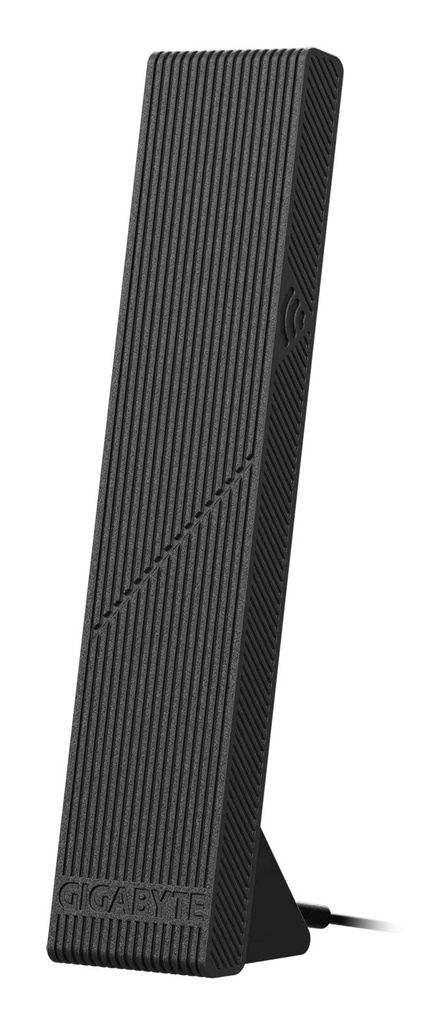

- 2x2 Wi-Fi 7 with WIFI EZ-Plug Design
- 2.5GbE LAN, THUNDERBOLT 4 Type-C, USB 3.2 Gen2 Type-C
General
| Unit Calculated Weight | 2.52 kg |
| Unit Calculated Volume | 0.0105 cubm |
| Units per Shipping Box | 6 |
| Units per Pallet | 0 |

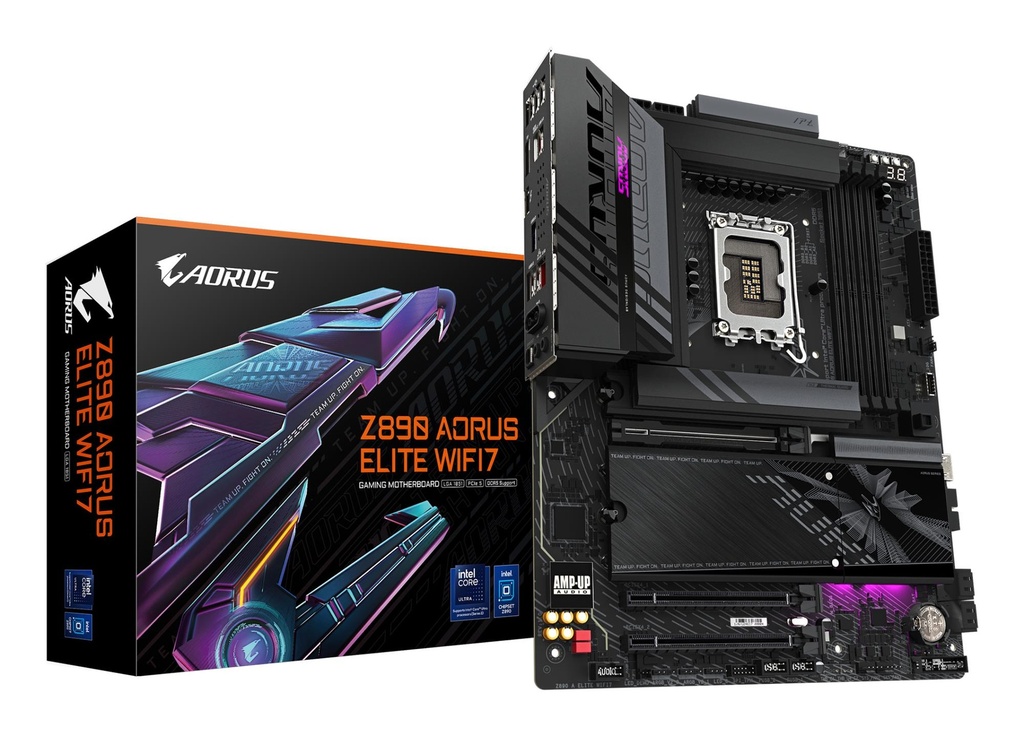

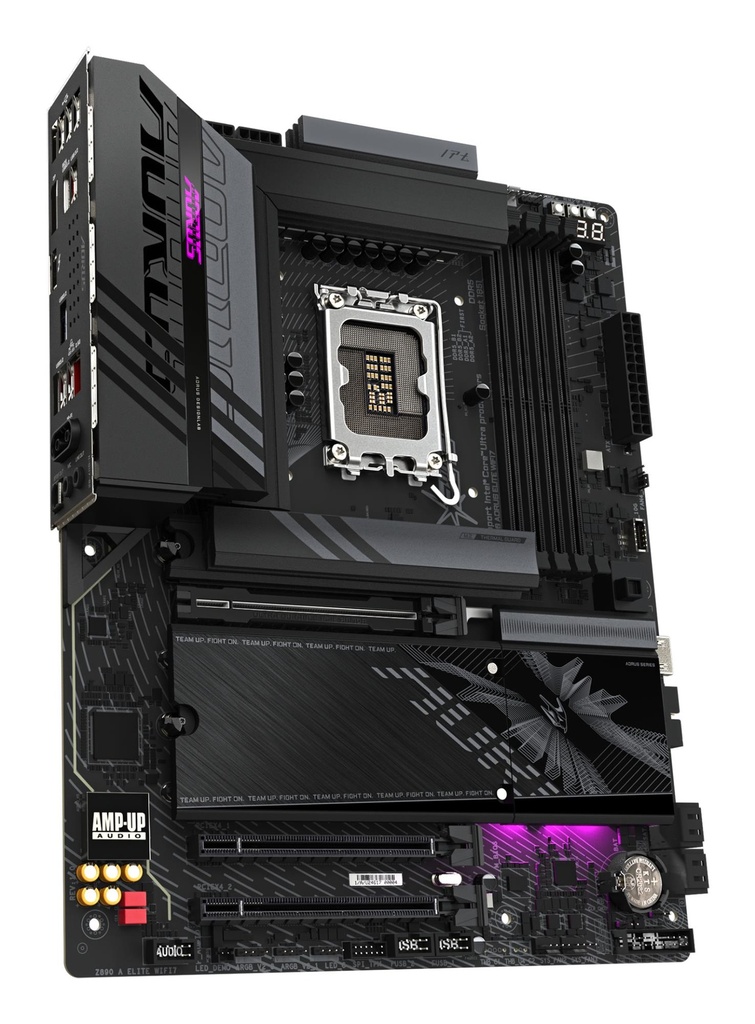

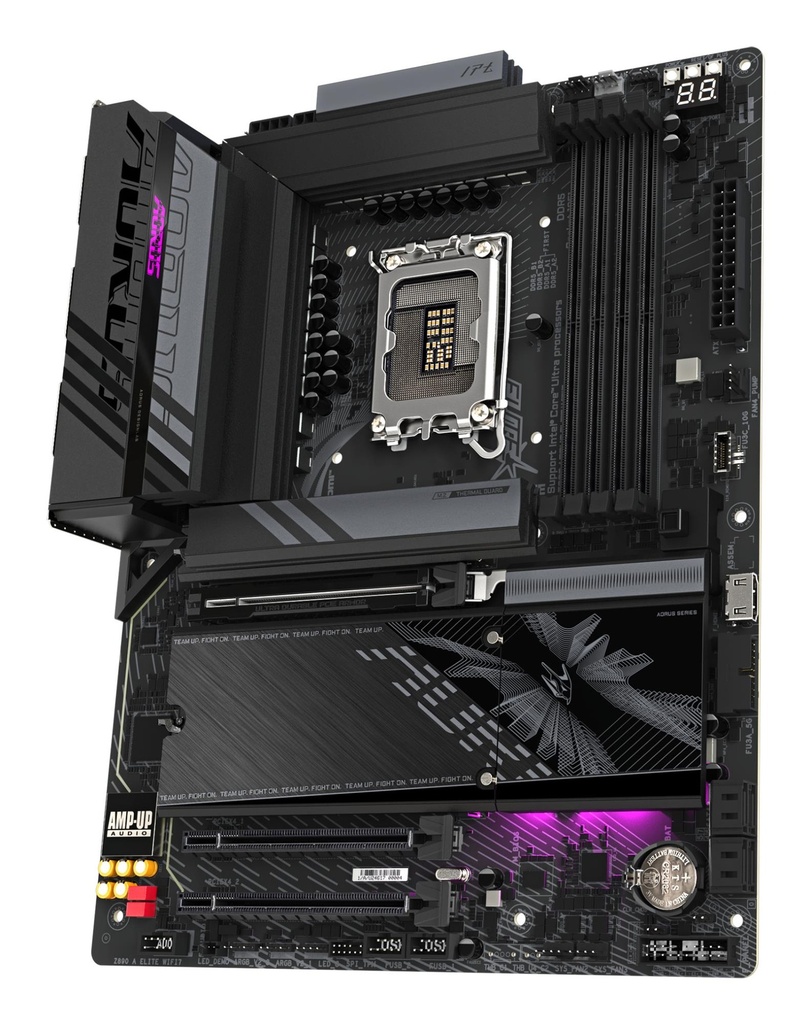

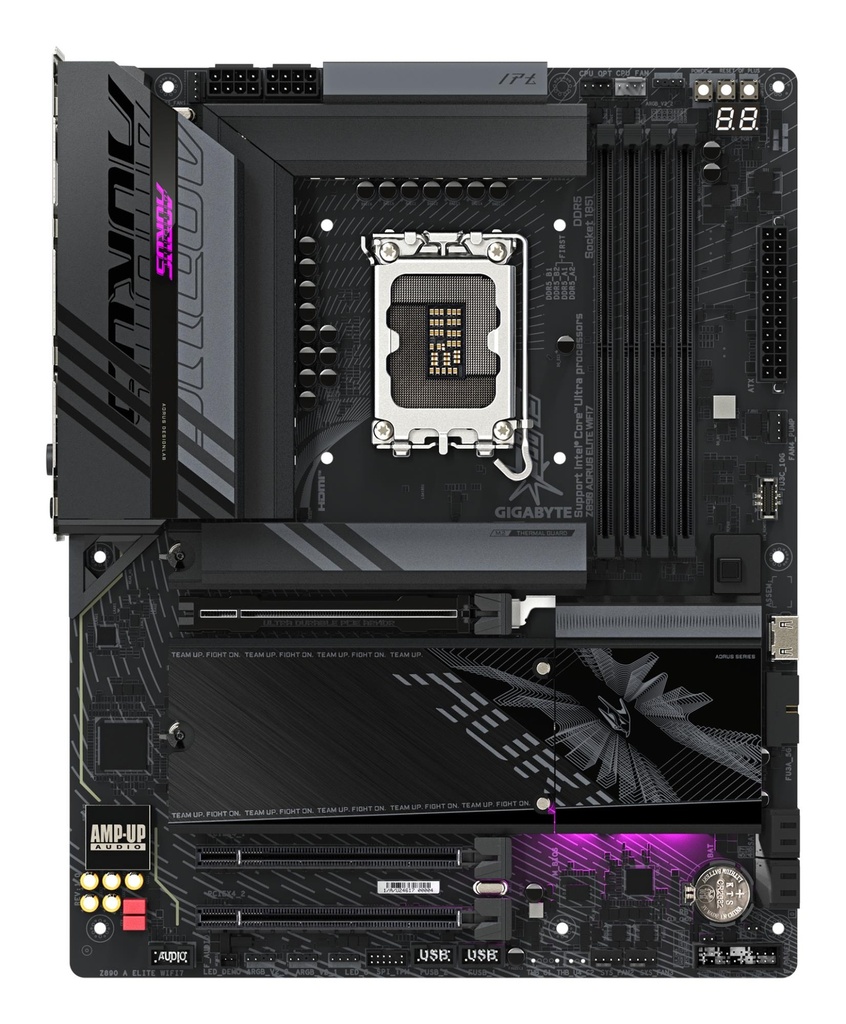

| Summary | GIGABYTE Z890 AORUS ELITE WIFI7 Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.335 |
| Unit Box Width | 0.275 |
| Model | Z890 A ELITE WIFI7 1.1 |
Features
| Audio chip | Realtek ALC1220 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | Intel Z890 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| PC health monitoring | Fan/Temperature/Voltage |
| Product colour | Black |
| Windows operating systems supported | Windows 11 x64 |
Processor
| Compatible processor series | Intel Core Ultra (Series 2) |
| Maximum internal memory supported by processor | 256 GB |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Supported processor sockets | LGA 1851 |
Memory
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 8800 MHz |
| Supported memory clock speeds | 5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800 MHz |
| Supported memory module capacities | 12GB/16GB/1GB/24GB/2GB/32GB/40GB/48GB/4GB/64GB/8GB |
| Supported memory types | DDR5-SDRAM |
Storage controllers
| Number of HDDs supported | 8 |
| Number of storage drives supported | 4 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
Graphics
| DirectX version | 12.0 |
| On-board graphics card | No |
Internal I/O
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| Total number of SATA connectors | 4 |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Rear panel I/O ports
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Thunderbolt ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
Network
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WLAN controller model | MediaTek MT7925 |
Expansion slots
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
BIOS
| ACPI version | 5.0 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Battery
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
Logistics data
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
Packaging data
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2500 g |
| Package width | 335 mm |
Weight & dimensions
| Depth | 244 mm |
| Height | 35 mm |
| Width | 305 mm |
Packaging content
| Batteries included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
Technical details
| Warranty period | 3 year(s) |
Other features
| Weight | 2230 g |
