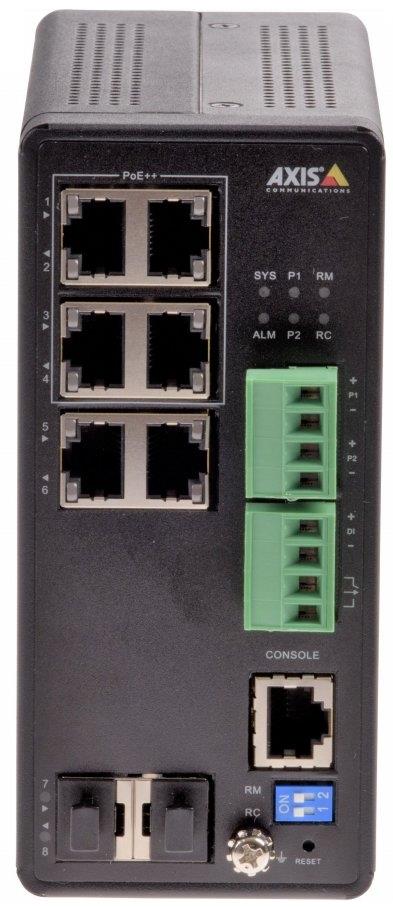

AXIS T8504-R Industrial PoE Switch is a 4-port managed industrial PoE Gigabit switch. In addition, the switch is equipped with two RJ45 and two SFP data ports that allows for extra devices to be connected. The switch uses the same intuitive administrator interface as AXIS T85 PoE Network Switch Series. The ruggedized switch is perfect for challenging environments when mounted inside a surveillance cabinet. It is designed to withstand shock, vibrations and temperatures from -40 °C to 75 °C (-40 °F to 167 °F), making it perfect for high demanding installations such as alongside highways and tunnels.
- 60 W per port, 240 W power budget; Compliant with High PoE 60 W; Dual DC power redundancy; High availability with Rapid Ring; NEMA TS-2 compliant
General
| Unit Calculated Weight | 1.06 kg |
| Unit Calculated Volume | 0.004641 cubm |
| Units per Shipping Box | 1 |
| Summary | Axis 01633-001. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1x. DC input voltage: 54 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE) |
| Unit Box Height | 0.21 |
| Unit Box Length | 0.26 |
| Unit Box Width | 0.085 |
Management features
| Switch type | Managed |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Fiber optic connector | SFP |
| Power connector | DC-in jack |
Network
| 10G support | No |
| Networking standards | IEEE 802.1Q/IEEE 802.1x |
| VLAN support | Yes |
Data transmission
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Throughput | 11.9 Mpps |
Security
| Authentication type | RADIUS |
| Password protection | Yes |
| Security algorithms | HTTPS/SNMP/SNMPv3 |
Design
| Housing material | Aluminium |
| Product colour | Black |
Power
| DC input voltage | 54 - 57 V |
| Surge protection | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 60 W |
| Total Power over Ethernet (PoE) budget | 240 W |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Depth | 130 mm |
| Height | 135 mm |
| Weight | 600 g |
| Width | 62 mm |
Packaging content
| Quick start guide | Yes |
Packaging data
| Mounting brackets included | Yes |
Certificates
| Certification | EN 55032, EN 55024, FCC, ICES-003, VCCI, RCM AS/NZS CISPR 32, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 IEC 62236-4, IEC/EN/UL 60950-1, IEC 60068-2-6, IEC 60068-2-27, 60068-2-31, NEMA TS-2-2003 |
Logistics data
| Harmonized System (HS) code | 85176990 |
