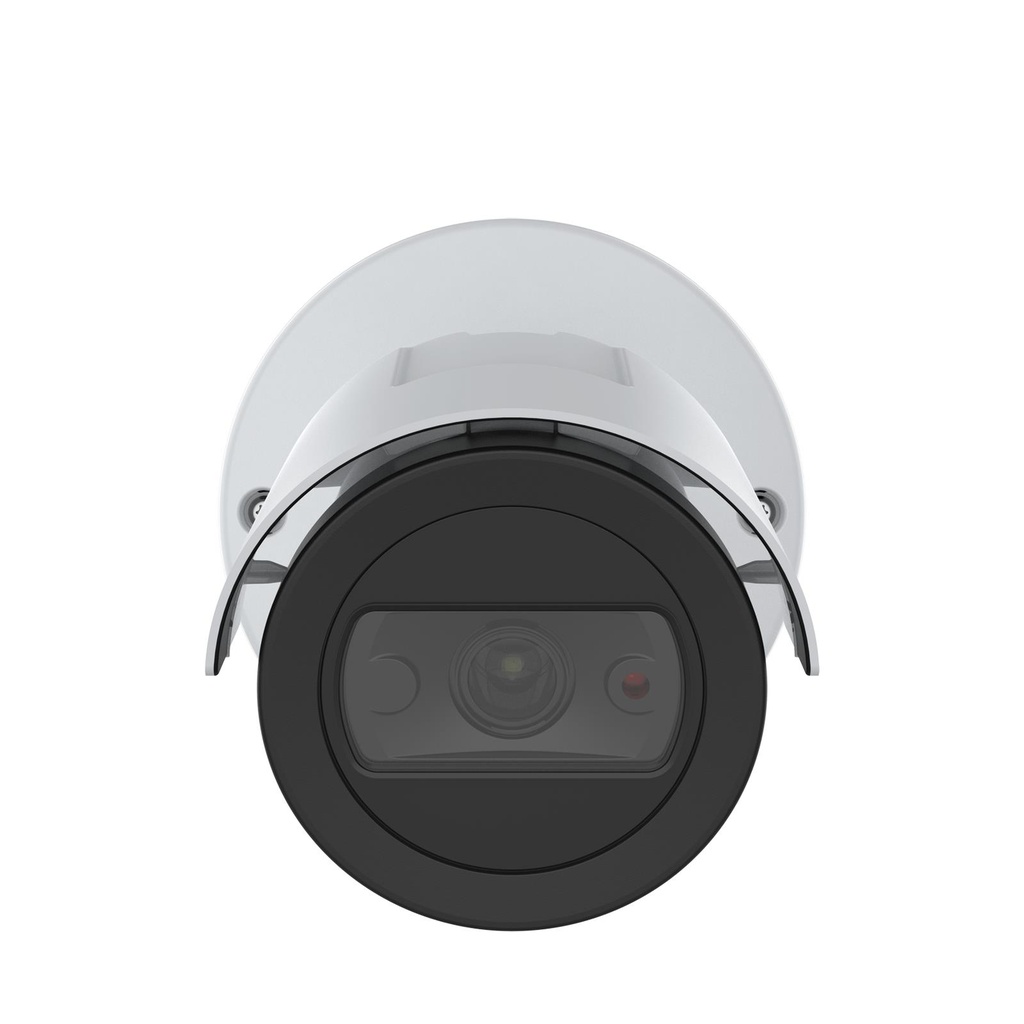

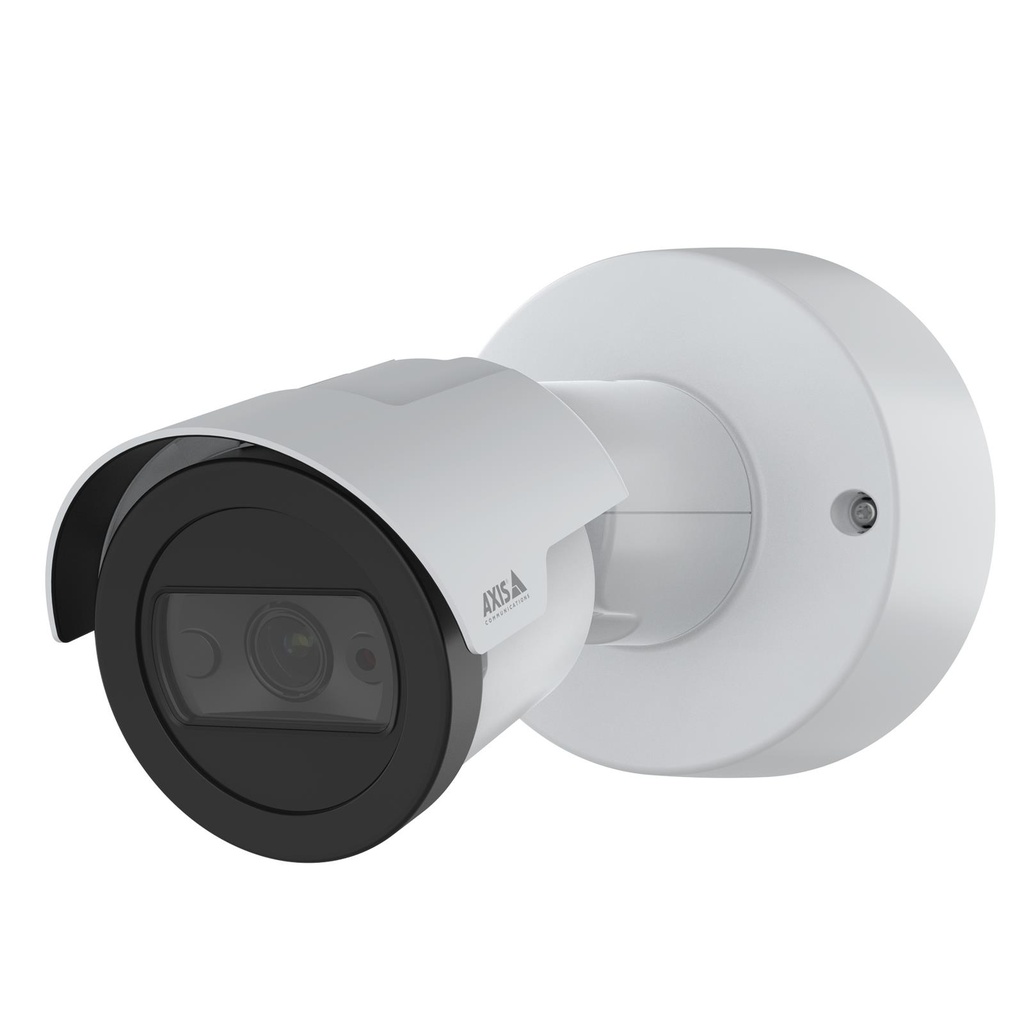

Ideal for tough environments and rough weather, AXIS M2036-LE delivers Quad HD 1440p/4 MP. With a deep learning processing unit, it enables unique opportunities for analytics based on deep learning on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles. And Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This IK08-rated camera offers flexible and cost-efficient installation including support for PoE. Edge-to-edge technology allows for smart pairing with Axis Speakers. Plus, a spacious, sealed back box ensures secure cable management.
- Analytics with deep learning; Compact, lightweight design; Outdoor-ready with IR illumination; Quad HD 1440p/4 MP; Zipstream supporting H.264/H.265
General
| Summary | Axis 02125-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 130°, Lens viewing angle, vertical: 81°, White balance: Auto. Sensor type: CMOS. Fixed focal length: 2.4 mm, Closest focusing distance: 0.5 m |
| CnCode | 85258900 |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.16 |
| Unit Box Width | 0.14 |
| Name | NET CAMERA M2036-LE IR BULLET/WHITE 02125-001 AXIS |
| Model | M2036-LE |
Design
| IK code | IK08 |
| International Protection (IP) code | IP66, IP67 |
| Protection features | Dust resistant/Vandal proof/Water resistant |
| Housing material | Aluminium/Plastic |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Form factor | Bullet |
Performance
| Certification | CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A IEC/EN 62368-1, IEC 62471, IS 13252 IEC 60068-2-X, IEC/EN 60 |
| Languages support | English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese |
| Number of languages | 12 |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Wide Dynamic Range (WDR) | Yes |
| PTZ modes | Digital PTZ |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Type | IP security camera |
Camera
| Camera shutter speed | 1/38500 - 1/5 s |
| White balance | Auto |
| Lens viewing angle, vertical | 81 ° |
| Lens viewing angle, horizontal | 130 ° |
| Minimum illumination | 0 lx |
Image sensor
| Sensor type | CMOS |
Lens system
| Closest focusing distance | 0.5 m |
| Fixed focal length | 2.4 mm |
| Maximum aperture number | 2.1 |
| Number of lenses | 1 |
Night vision
| Infra-red wavelength | 855 nm |
| LED type | IR |
| Night vision distance | 20 m |
| Night vision | Yes |
Video
| Image stabilizer | Yes |
| Privacy masking | Yes |
| Text caption overlay | Yes |
| Video streaming | Yes |
| Video intelligence analytic | Yes |
| Video recording | Yes |
| Supported video modes | 1440p |
| Supported graphics resolutions | 2304 x 1728/2668 x 1512 |
| Video compression formats | H.264/H.265/M-JPEG |
| Total megapixels | 4 MP |
| Maximum resolution | 2304 x 1728 pixels |
Network
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, MQTT v3.1.1 |
| Networking standards | IEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
Storage
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC |
| Card reader integrated | Yes |
| Built-in HDD | No |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Active tampering alarm | Yes |
| Alert notification type | |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Security algorithms | 802.1x RADIUS/EAP-TLS/HTTPS/SSH |
| Video motion detection | Yes |
| Password protection | Yes |
Power
| Power consumption (max) | 12.95 W |
| Power consumption (typical) | 5 W |
| Power source type | PoE |
Operational conditions
| Operating relative humidity (H-H) | 10 - 100 % |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | -30 - 50 °C |
Weight & dimensions
| Weight | 491 g |
| Length | 170 mm |
| Diameter | 101 mm |
Packaging content
| Number of cameras | 1 |
Other features
| Doesn't contain | BFR/PVC |
Logistics data
| Harmonized System (HS) code | 85258900 |
ELKO Logistics Data
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Product Net Weight | 0.491 kg |
| Unit Calculated Weight | 0.7 kg |
ELKO Internal Logistics Data
| Shipping Box Width | 14 cm |
| Shipping Box Depth | 16 cm |
| Shipping Box Height | 11 cm |
| Shipping Box Weight | 0.699999988079071 kg |
| Unit Calculated Volume | 0.002464 cubm |
