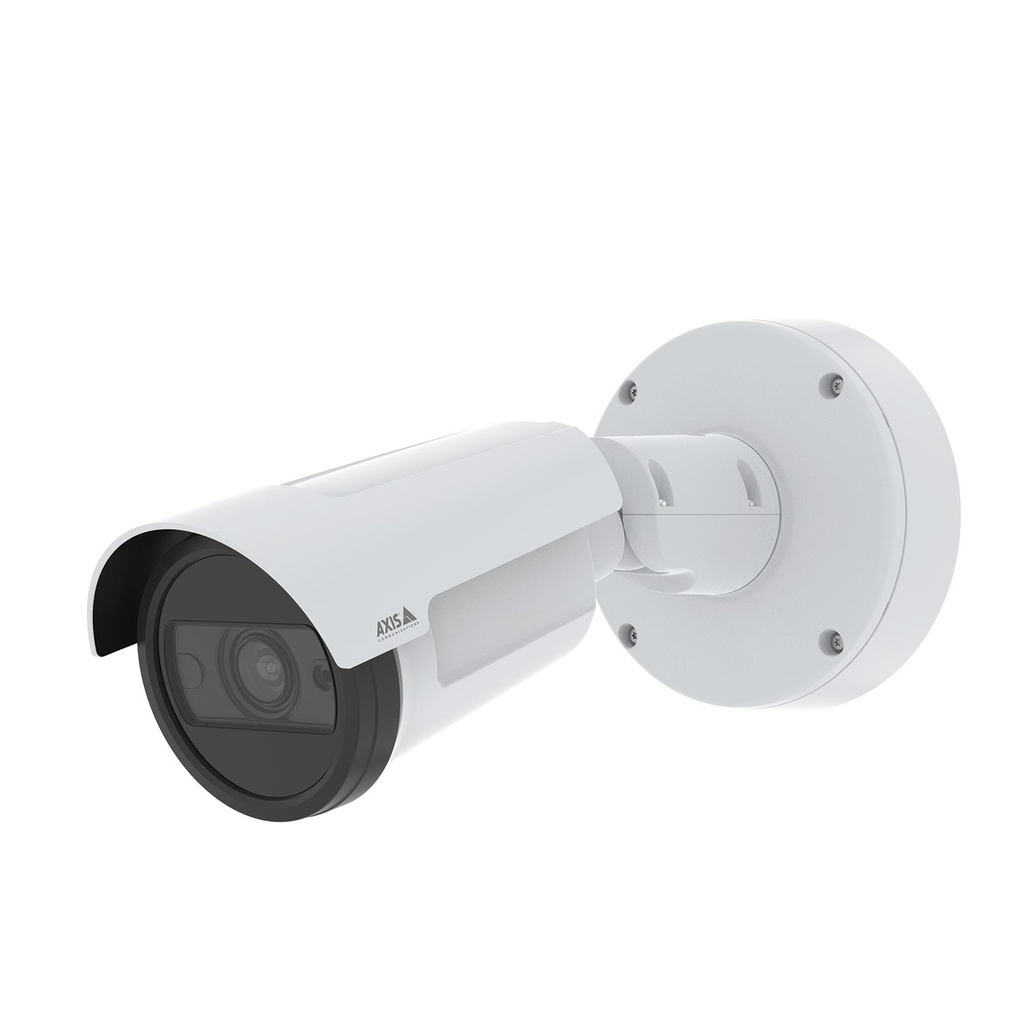

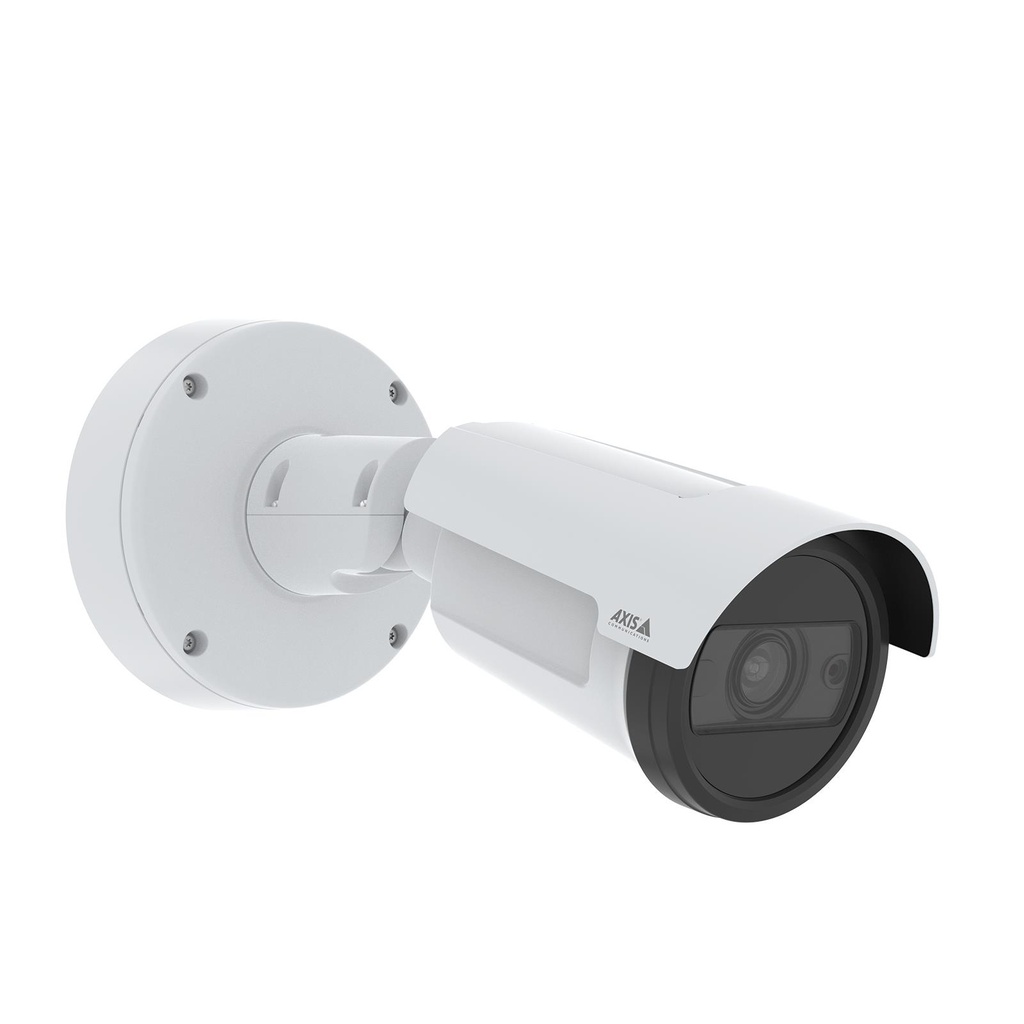

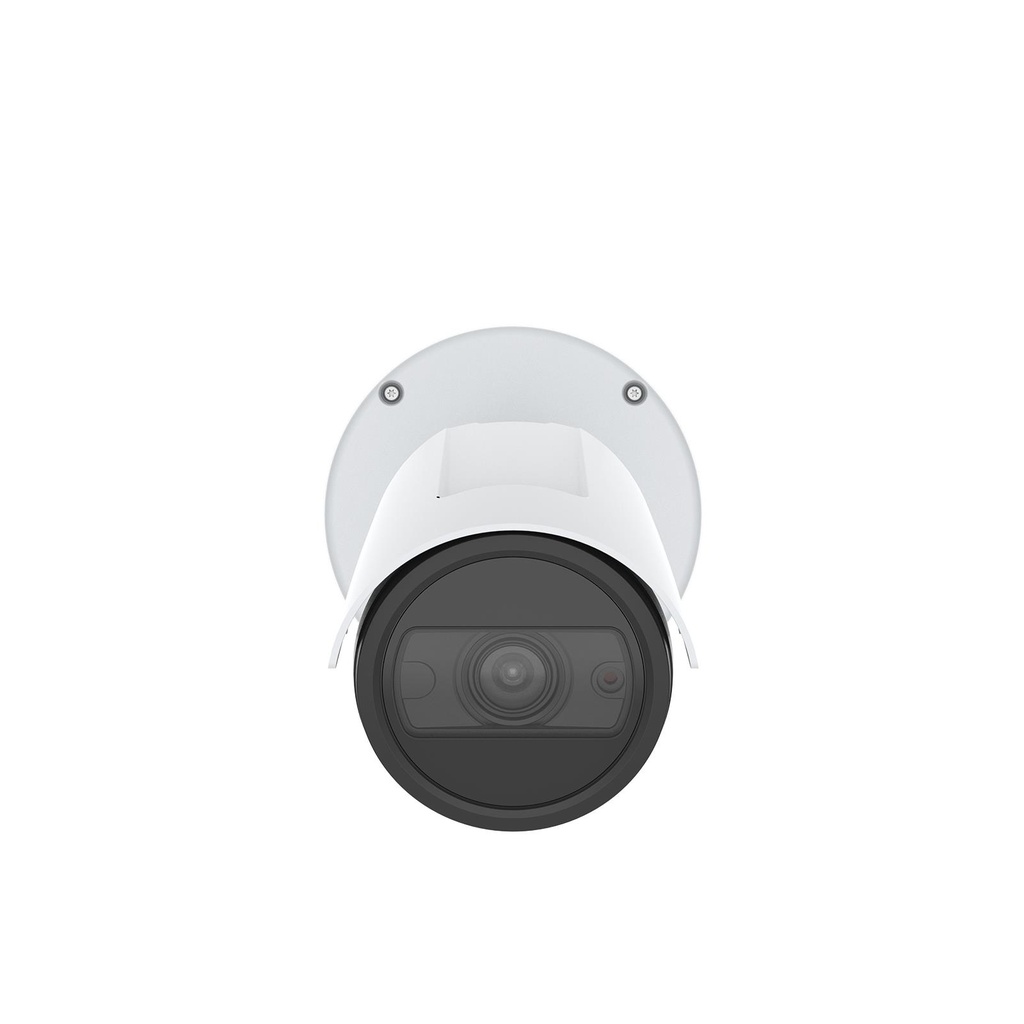

Based on ARTPEC-8, AXIS P1468-LE delivers excellent image quality in outstanding 4K. It includes a deep learning processing unit enabling advanced features and powerful analytics based on deep learning on the edge. With AXIS Object Analytics preinstalled, it offers detection and classification of humans, vehicles, and types of vehicles. This IP66/IP67, NEMA 4X, and IK10-rated camera can withstand winds up to 50 m/s. Lightfinder 2.0, Forensic WDR, and OptimizedIR, ensure sharp, detailed images under any light conditions. Furthermore, it includes Axis Edge Vault to protect your Axis device ID and simplify authorization of Axis products on your network.
- Analytics with deep learning; Audio and I/O connectivity; Built-in cybersecurity features; Impact and weather resistant; Lightfinder 2.0, Forensic WDR, OptimizedIR
General
| Unit Calculated Weight | 1.5 kg |
| Unit Calculated Volume | 0.002808 cubm |
| Units per Shipping Box | 1 |
| Summary | Axis 02342-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.07 lx, Camera shutter speed: 1/66500 - 2 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Optical zoom: 2.08x, Focal length range: 6.2–12.9 |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.26 |
| Unit Box Width | 0.18 |
Design
| Form factor | Bullet |
| Housing material | Aluminium/Polycarbonate (PC) |
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Mounting type | Ceiling/wall |
| Product colour | White |
Performance
| Certification | EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55035, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Languages support | English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese |
| Number of languages | 11 |
| Placement supported | Indoor & outdoor |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
Camera
| Camera shutter speed | 1/66500 - 2 s |
| Minimum illumination | 0.07 lx |
Image sensor
| Number of sensors | 1 |
| Optical sensor size | 1/1.2 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
Lens system
| Focal length range | 6.2-12.9 mm |
| Number of lenses | 1 |
| Optical zoom | 2.08 x |
| Zoom capability | Yes |
Night vision
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 40 m |
Video
| Bit rate | Configurable bit rate |
| Bit rate control | Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Frame rate | 60 fps |
| Maximum resolution | 3840 x 2160 pixels |
| Privacy masking | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720) |
| Text caption overlay | Yes |
| Video compression formats | H.264/H.265/M-JPEG |
| Video intelligence analytic | Yes |
| Video recording | Yes |
| Video streaming | Yes |
Audio
| Audio detection | Yes |
| Audio formats supported | AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM |
| Audio system | 2-way |
Network
| Bluetooth | No |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, LLDP |
| Wi-Fi | No |
Storage
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 8192 MB |
| Internal memory | 2048 MB |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| Terminal block port | Yes |
Security
| Active tampering alarm | Yes |
| Alert notification type | |
| Digest authentication | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Password protection | Yes |
| Pixel counter | Yes |
| Security algorithms | 256-bit AES-XTS/EAP-TLS |
| Video motion detection | Yes |
Power
| Power consumption (max) | 12.95 W |
| Power consumption (typical) | 7.7 W |
| Power source type | PoE |
Operational conditions
| Operating relative humidity (H-H) | 10 - 100 % |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 65 °C |
Weight & dimensions
| Depth | 280 mm |
| Diameter | 132 mm |
| Weight | 1200 g |
| Width | 280 mm |
Packaging content
| Drilling template included | Yes |
| Manual | Yes |
| Mounting brackets included | Yes |
| Number of cameras | 1 |
Other features
| Doesn't contain | BFR/PVC |
