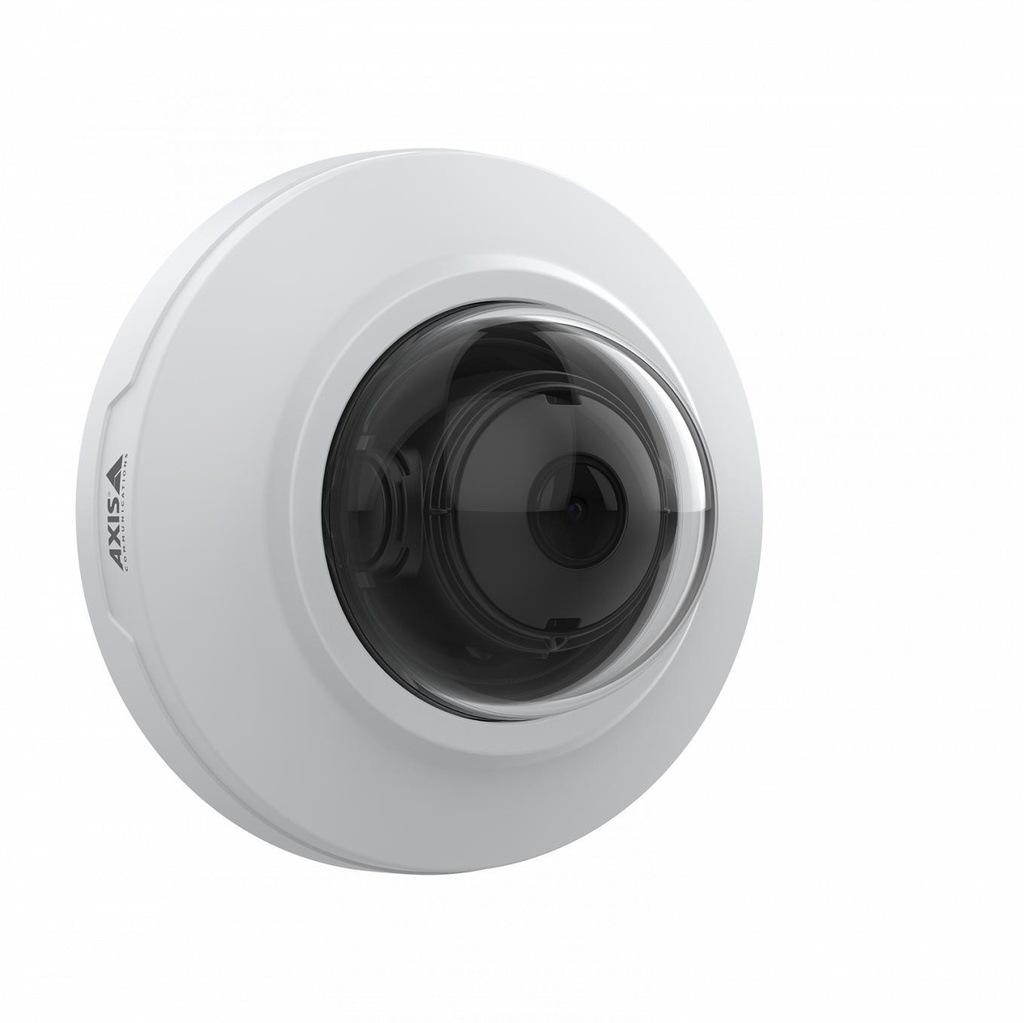

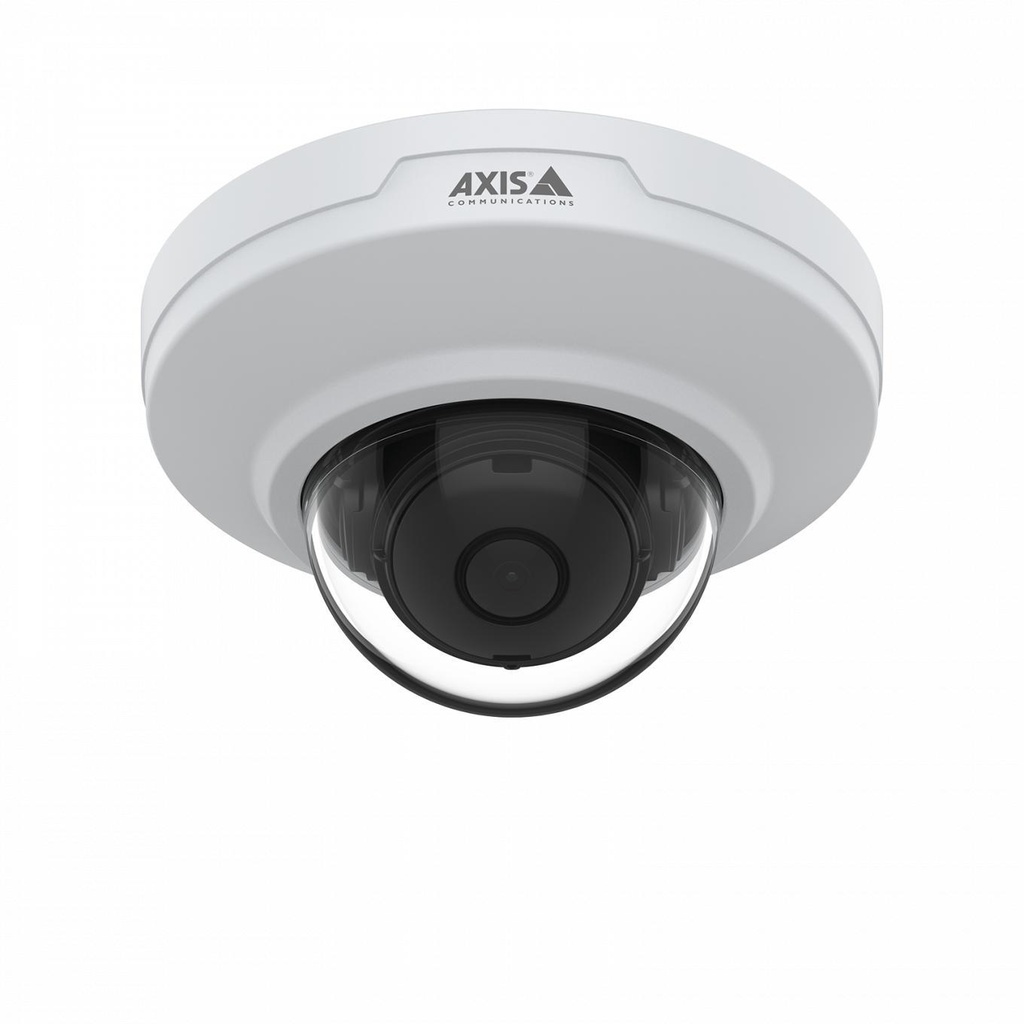

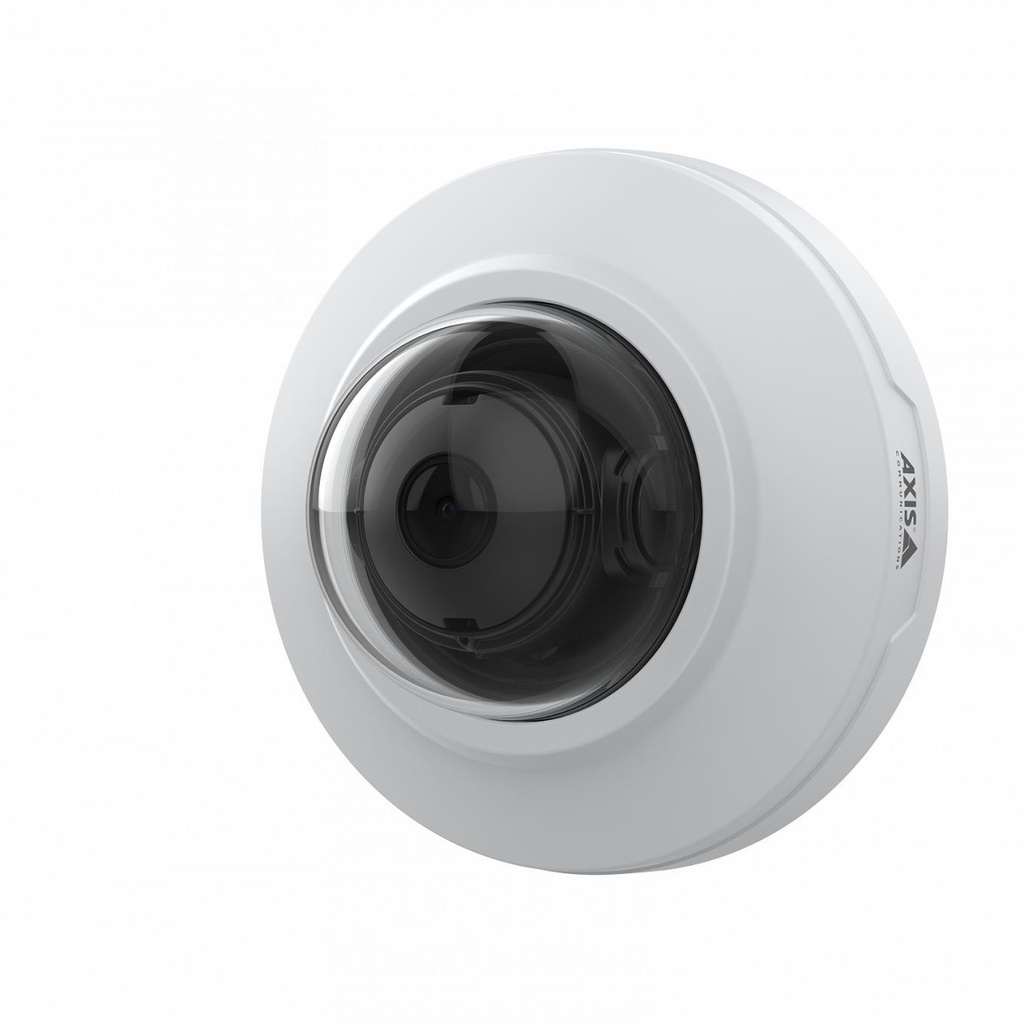

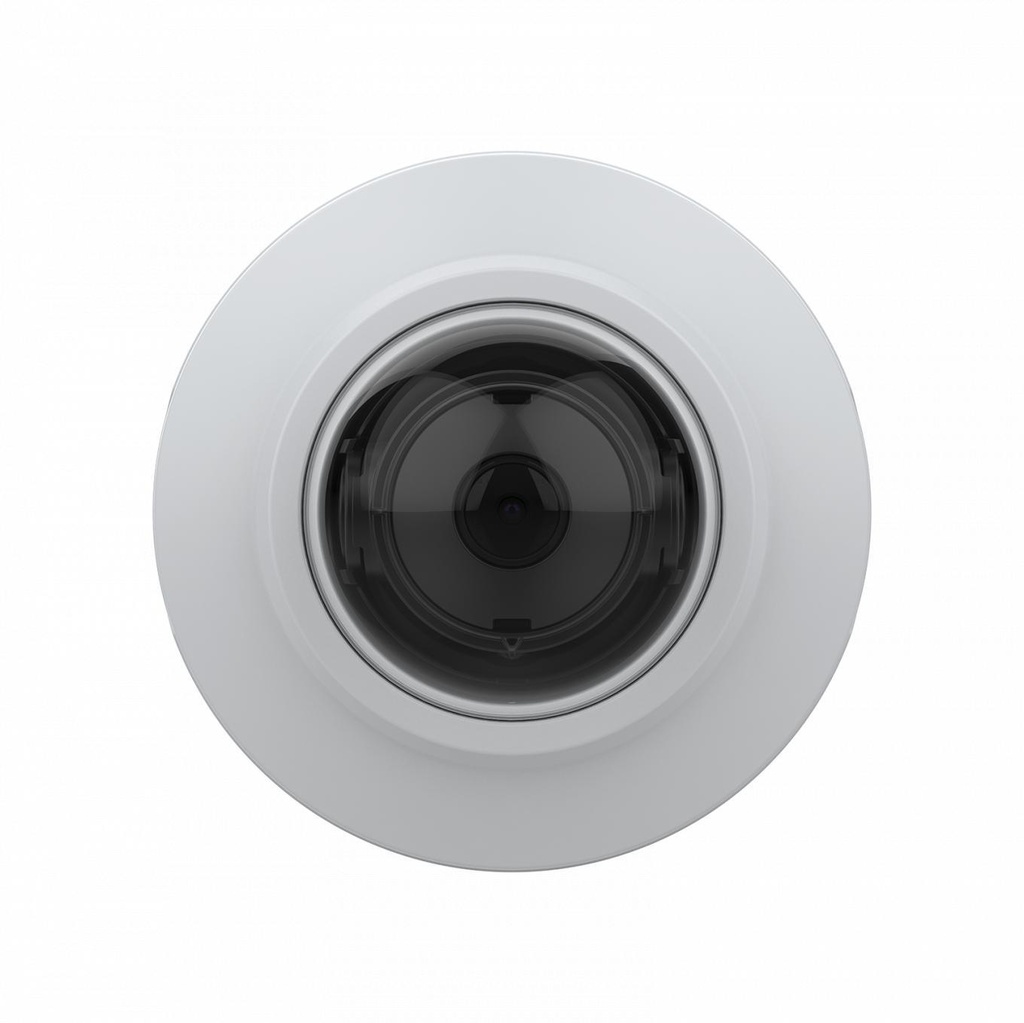

This cost-efficient mini dome features Wide Dynamic Range (WDR) to ensure clarity even when there’s both dark and light areas in the scene. A deep learning processing unit enables intelligent analytics based on deep learning on the edge. Plus, AXIS Object Analytics including time in area feature lets you track whenever an object stays in a defined area longer than a user-defined time, for example, to detect loitering. This compact, easy-to-install, vandal-resistant camera comes factory focused so there’s no manual focusing required. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
- Built-in cybersecurity features; Compact, discreet design; Great image quality in 8 MP; Support for analytics with deep learning; WDR for challenging light
General
| Unit Calculated Weight | 0.28 kg |
| Unit Calculated Volume | 0.001188 cubm |
| Units per Shipping Box | 1 |
| Summary | Axis 02375-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.25 lx, Angle of rotation: 175°, Lens viewing angle, horizontal: 109°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 2.9 mm |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.12 |
| Unit Box Width | 0.11 |
Design
| Form factor | Dome |
| Housing material | Acrylonitrile butadiene styrene (ABS)/Polycarbonate (PC) |
| IK code | IK08 |
| International Protection (IP) code | IP42 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Protection features | Dust resistant/Impact resistant/Water resistant |
Performance
| Alarm input/output | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Languages support | Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese |
| Number of languages | 18 |
| Placement supported | Indoor |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
Camera
| Angle of rotation | 175 ° |
| Camera shutter speed | 1/71500 - 1/5 s |
| Lens viewing angle, horizontal | 109 ° |
| Lens viewing angle, vertical | 56 ° |
| Minimum illumination | 0.25 lx |
| Pan range | 0 - 175 ° |
| Tilt angle range | 0 - 80 ° |
Image sensor
| Number of sensors | 1 |
| Optical sensor size | 1/2.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
Lens system
| Focal length range | 2.9 mm |
Night vision
| Night vision | Yes |
Video
| Frame rate | 15 fps |
| Image quality adjustment | Brightness/Contrast/Sharpness |
| Maximum resolution | 3840 x 2160 pixels |
| Privacy masking | Yes |
| Total megapixels | 8 MP |
| Video compression formats | H.264/H.265/M-JPEG/MPEG4 |
Audio
| Audio system | 2-way |
Network
| Bluetooth | No |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Number of users | 1 user(s) |
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH |
| Wi-Fi | No |
Storage
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 512 MB |
| Internal memory | 2048 MB |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Digest authentication | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Network access storage (NAS) | Yes |
| Password protection | Yes |
| Pixel counter | Yes |
| Video motion detection | Yes |
Power
| Power consumption (max) | 4.2 W |
| Power consumption (typical) | 3.6 W |
| Power source type | PoE |
Operational conditions
| Operating relative humidity (H-H) | 10 - 85 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 65 °C |
Weight & dimensions
| Diameter | 101 mm |
| Height | 56 mm |
| Weight | 150 g |
Packaging content
| Manual | Yes |
| Number of cameras | 1 |
Other features
| Doesn't contain | BFR/PVC |
| Warranty period | 5 year(s) |
