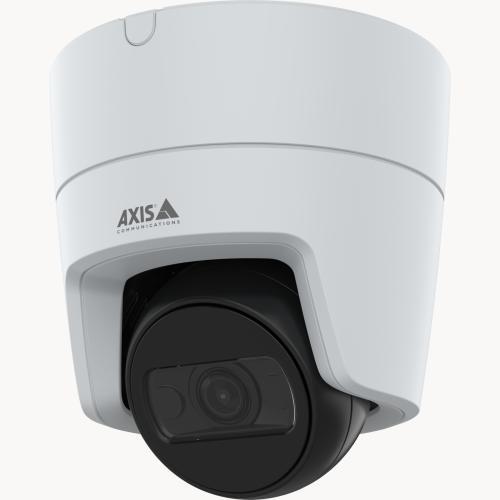

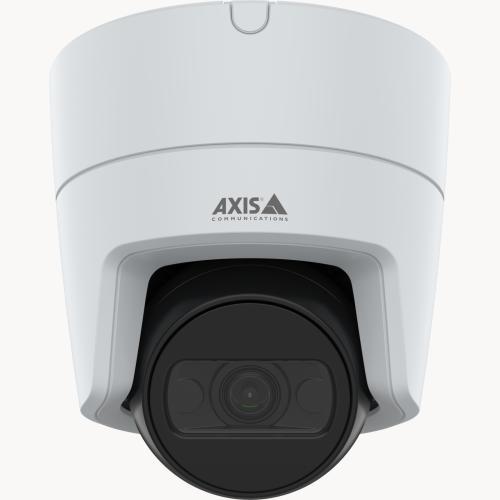

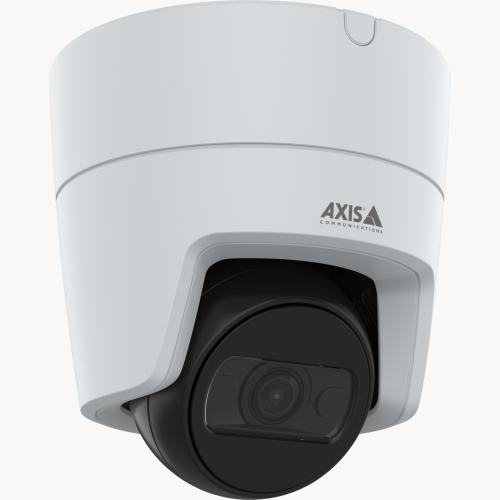

This turret-style, AI-powered dome camera delivers great 2 MP image quality. With AXIS Object Analytics it can detect and classify objects like humans and vehicles. It offers flexible installation both indoors and outdoors.
Great image quality
AXIS M3125-LVE offers great 2 MP resolution with 110° field of view. Built-in OptimizedIR allows for surveillance in complete darkness up to 20 m (65 ft) or more depending on the scene. So, there’s no need for extra lighting—you get unobtrusive surveillance both day and night. In addition, WDR preserves details when there are both light and dark areas in a scene. And Axis Lightfinder technology ensures increased light sensitivity and clear colors in low light.
Powerful with strong security
Including a deep learning processing unit (DLPU), this AI-based camera lets you run powerful analytics on the edge. For instance, it comes preinstalled with AXIS Object Analytics to detect, classify, track and count objects like humans and vehicles. This DLPU also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.
Flexible and outdoor-ready
This flat-faced dome is designed to suppress light reflections and deliver great image quality and usability. It offers flexible installation both indoors and outdoors. Plus, with a versatile set of mounting accessories including pendant kits, conduit back boxes, and recessed mount kits, it can be mounted on walls or ceilings. Compact and discreet, it’s available in black or white to blend in with different environments. Additionally, this weatherproof camera is IP66-rated and has an operating temperature range from -30 °C to 50 °C (-22 °F to 122 °F).
- Great image quality in 2 MP
- WDR, Lightfinder, and OptimizedIR
- Available in black or white
- AI-based video analytics
- Built-in cybersecurity with Axis Edge Vault
General
| Unit Calculated Weight | 0.538 kg |
| Unit Calculated Volume | 0.001728 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | Axis 02916-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 95°, Lens viewing angle, horizontal: 110°, Lens viewing angle, vertical: 60°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Detect distance: 40 m, Observe distance: 15.9 m, Recognize distance: 8 m |
| Unit Box Height | 0.12 |
| Unit Box Length | 0.12 |
| Unit Box Width | 0.12 |
| Model | M3125-LVE |
Design
| Form factor | Dome |
| IK code | IK08 |
| International Protection (IP) code | IP66 |
| Mounting type | Ceiling |
| Product colour | White |
Performance
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 110 dB |
| Languages support | Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese |
| Placement supported | Indoor & outdoor |
| PTZ control | Yes |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
Camera
| Angle of rotation | 95 ° |
| Camera shutter speed | 1/25000 - 2 s |
| Lens viewing angle, horizontal | 110 ° |
| Lens viewing angle, vertical | 60 ° |
| Minimum illumination | 0 lx |
| Pan range | -180 - 180 ° |
| Tilt angle range | 0 - 60 ° |
Image sensor
| Optical sensor size | 1/2.8 " |
| Sensor type | CMOS |
Lens system
| Detect distance | 40 m |
| Fixed focal length | 2.9 mm |
| Identify distance | 4 m |
| Observe distance | 15.9 m |
| Recognize distance | 8 m |
Night vision
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 20 m |
Video
| Frame rate | 60 fps |
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264/H.265/M-JPEG |
Audio
| Signal-to-Noise Ratio (SNR) | 55 dB |
Network
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v |
| Wi-Fi | No |
Storage
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD |
| Flash memory | 512 MB |
| Internal memory | 1024 MB |
Power
| Power source type | PoE |
Operational conditions
| Operating relative humidity (H-H) | 10 - 100 % |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 65 °C |
Weight & dimensions
| Weight | 390 g |
Packaging content
| Number of cameras | 1 |
