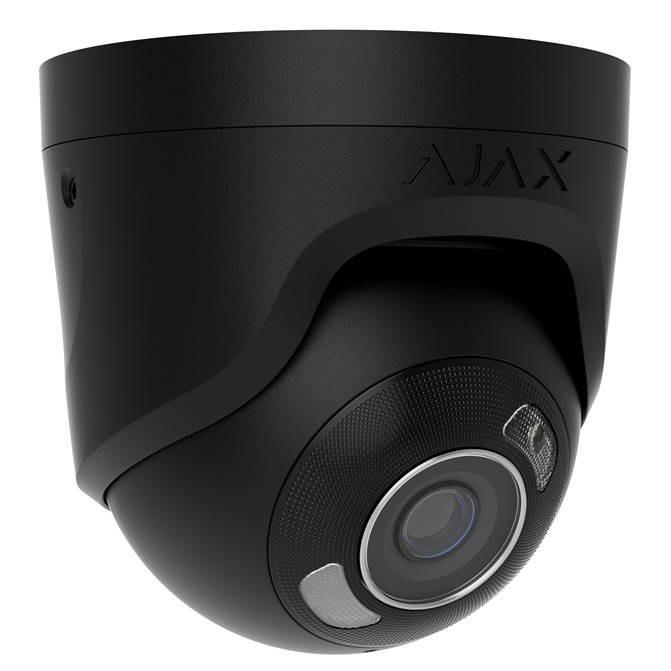

Wired AI-powered security IP camera with hybrid illumination, TrueWDR, microphone, and PoE/12 V. For outdoor and indoor use.
General
| Unit Box Height | 0.13 |
| Unit Box Length | 0.13 |
| Unit Box Width | 0.125 |
| Name | NET CAMERA 5MP TURRETCAM/HL 2.8MM BLACK 126260 AJAX |
| Model | TurretCam HL (5 Mp/2.8 mm) |
Design
| IK code | IK08 |
| International Protection (IP) code | IP65 |
| Product colour | Black |
Performance
| Wide Dynamic Range (WDR) | Yes |
Camera
| Lens viewing angle, diagonal | 131° ° |
| Lens viewing angle, vertical | 56° ° |
| Lens viewing angle, horizontal | 110° ° |
| Minimum illumination | 0.005 lx |
Image sensor
| Sensor type | CMOS |
| Optical sensor size | 1/2.8" " |
Lens system
| Fixed focal length | 2.8 mm |
| Maximum aperture number | 1.6 |
Night vision
| B/W night vision distance | 50 m |
| Night vision | Yes |
Video
| Total megapixels | 5 MP |
| Maximum resolution | 2880 × 1620 pixels |
Audio
| Built-in microphone | Yes |
Storage
| Compatible memory cards | MicroSD (TransFlash) |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Operational conditions
| Operating temperature (T-T) | −30 °C to +60 °C °C |
Weight & dimensions
| Weight | 475 g |
| Height | 103 mm |
| Depth | 98 mm |
| Width | 98 mm |
ELKO Verified Logistics Data
| Unit Height | 13 cm |
| Unit Depth | 13 cm |
| Unit Width | 12.5 cm |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Product Net Weight | 0.475 kg |
| Unit Calculated Weight | 0.74 kg |
ELKO Internal Logistics Data
| Shipping Box Width | 12.5 cm |
| Shipping Box Depth | 13 cm |
| Shipping Box Height | 13 cm |
| Shipping Box Weight | 0.74 kg |
| Unit Calculated Volume | 0.002112 cubm |
