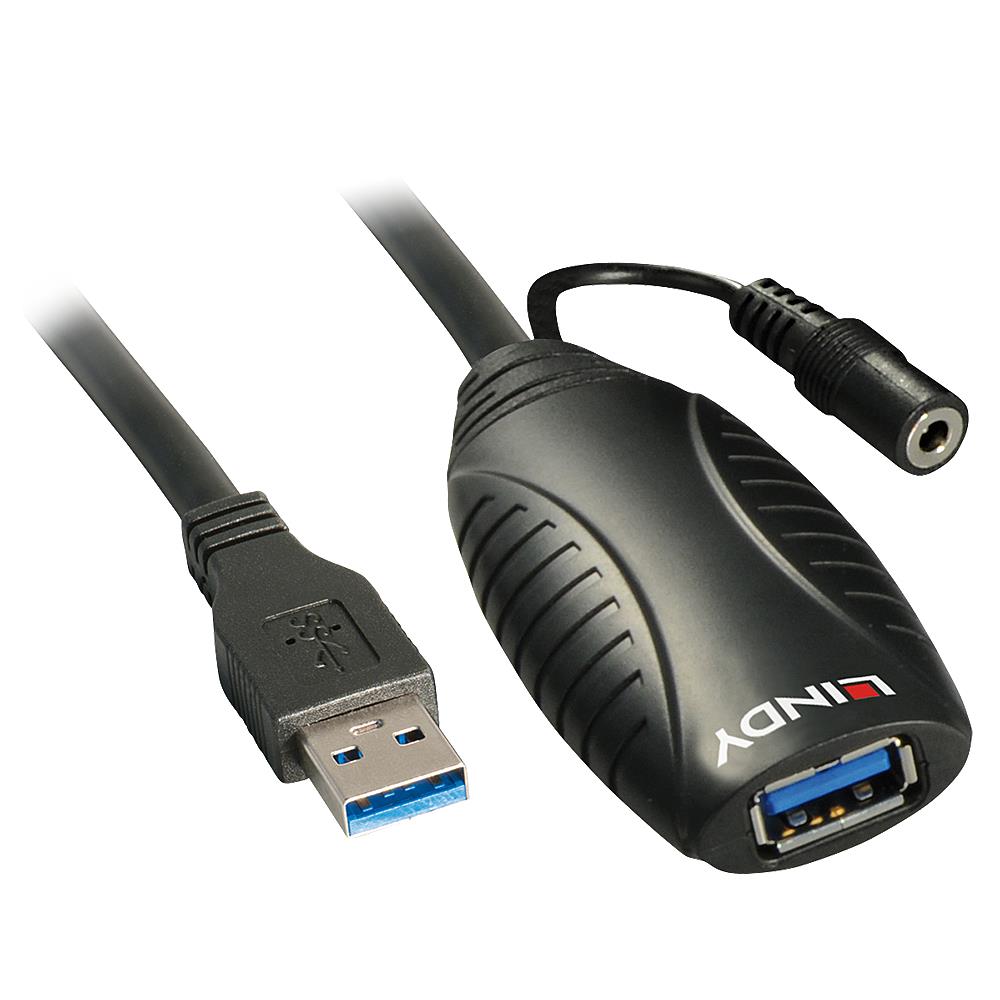

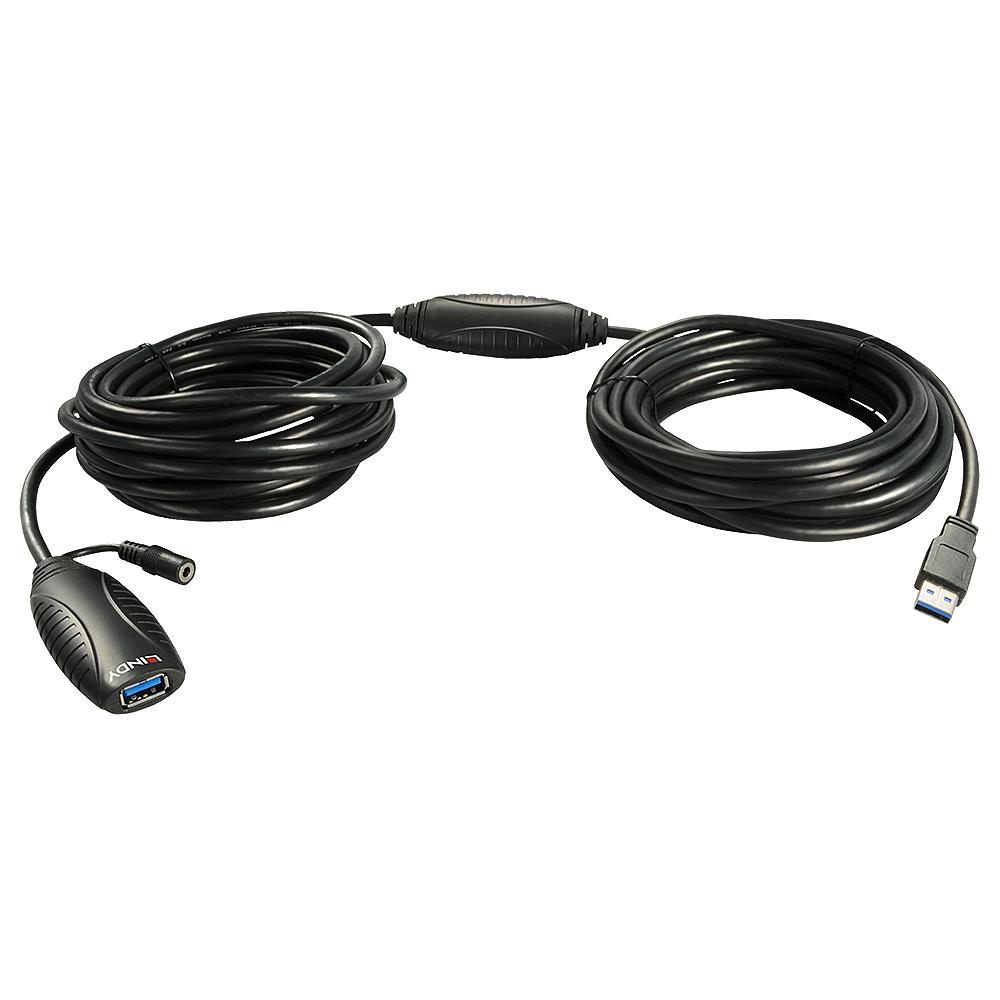

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 15m whilst continuing to support data transfer rates of up to 5Gbps.
With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 30m.
The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.
The USB active extension cable also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
- 15 metre USB 3.0 Active Extension Repeater Lead
- Supports transfer rates up to 5Gbps
- For even greater distances simply connect 2 cables in series
- Plug and Play
- 2 year warranty
General
| Unit Calculated Weight | 1.02 kg |
| Unit Calculated Volume | 0.002052 cubm |
| Units per Shipping Box | 1 |
| Summary | Lindy 15m USB 3.0 Active Extension. Cable length: 15 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5 Gbit/s, Connector contacts plating: Nickel, Product colour: Black |
| CnCode | 85444290 |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.19 |
| Unit Box Width | 0.18 |
| Model name | 15m USB 3.0 Active Extension |
Weight & dimensions
| Bend radius (min) | 60 mm |
| Cable diameter | 7 mm |
| Cable length | 15 m |
| Connector 1 dimensions (WxDxH) | 16 x 49 x 9 mm |
| Connector 2 dimensions (WxDxH) | 35 x 85 x 15 mm |
| Connector 3 dimensions (WxDxH) | 35 x 100 x 15 mm |
| Weight | 1333 g |
Features
| AWG wire size | 28/28/22 |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable type | Round cable |
| Conductor material | Copper |
| Connector 1 | USB A |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | USB A |
| Connector 2 form factor | Straight |
| Connector 2 gender | Female |
| Connector contacts plating | Nickel |
| Connector housing material | Plastic |
| Connector material | Nickel |
| Connector shield material | Aluminium |
| Connector shielding | Yes |
| Contact material | Copper |
| Maximum data transfer rate | 5 Gbit/s |
| Maximum data transfer rate | 5000 Mbit/s |
| Nominal attenuation | 100 MHz, -1.5 dB 1.25 GHz, -5.0 dB 2.5 GHz, -7.5 dB 7.5 GHz, -25 dB |
| Plug and Play | Yes |
| Product colour | Black |
| Transmission medium | Twisted pair |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
Power
| Power note | 3.5/1.35mm DC |
Packaging data
| Package depth | 80 mm |
| Package height | 300 mm |
| Package type | Polybag |
| Package weight | 1390 g |
| Package width | 300 mm |
Packaging content
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
Operational conditions
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
Certificates
| Certification | CE, UKCA, FCC, RoHS, REACH |
Logistics data
| Harmonized System (HS) code | 84733080 |
